Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

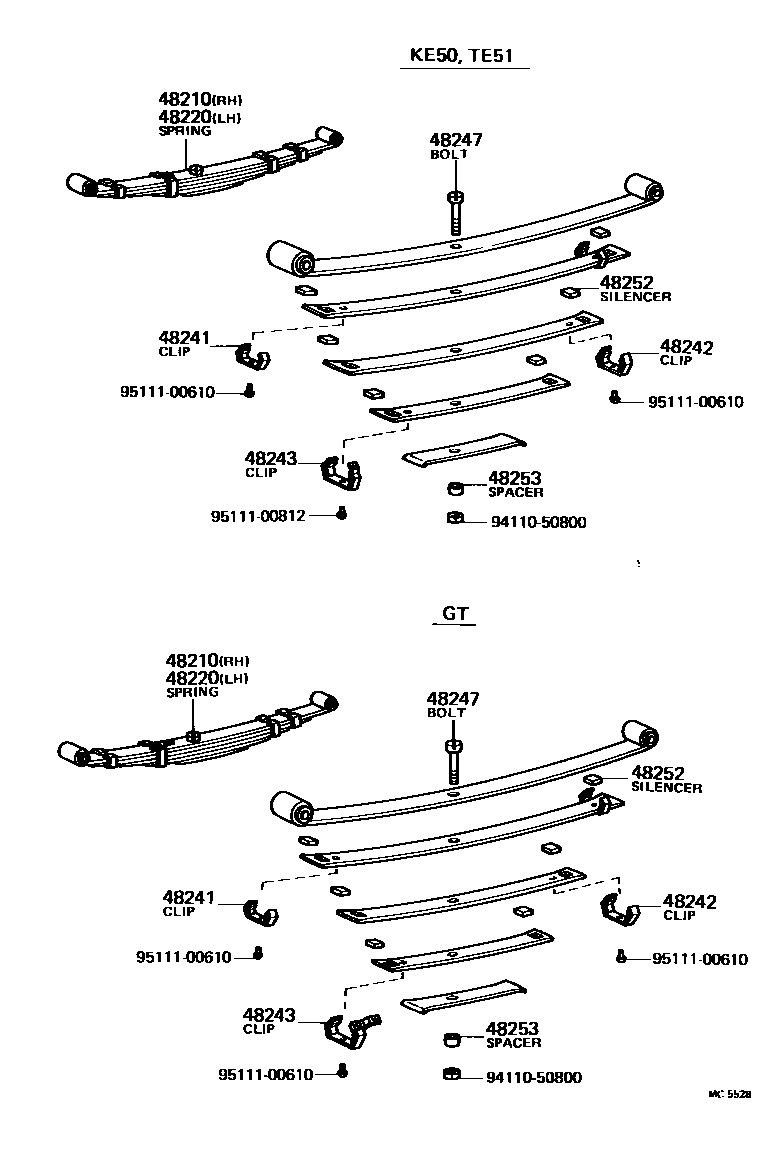

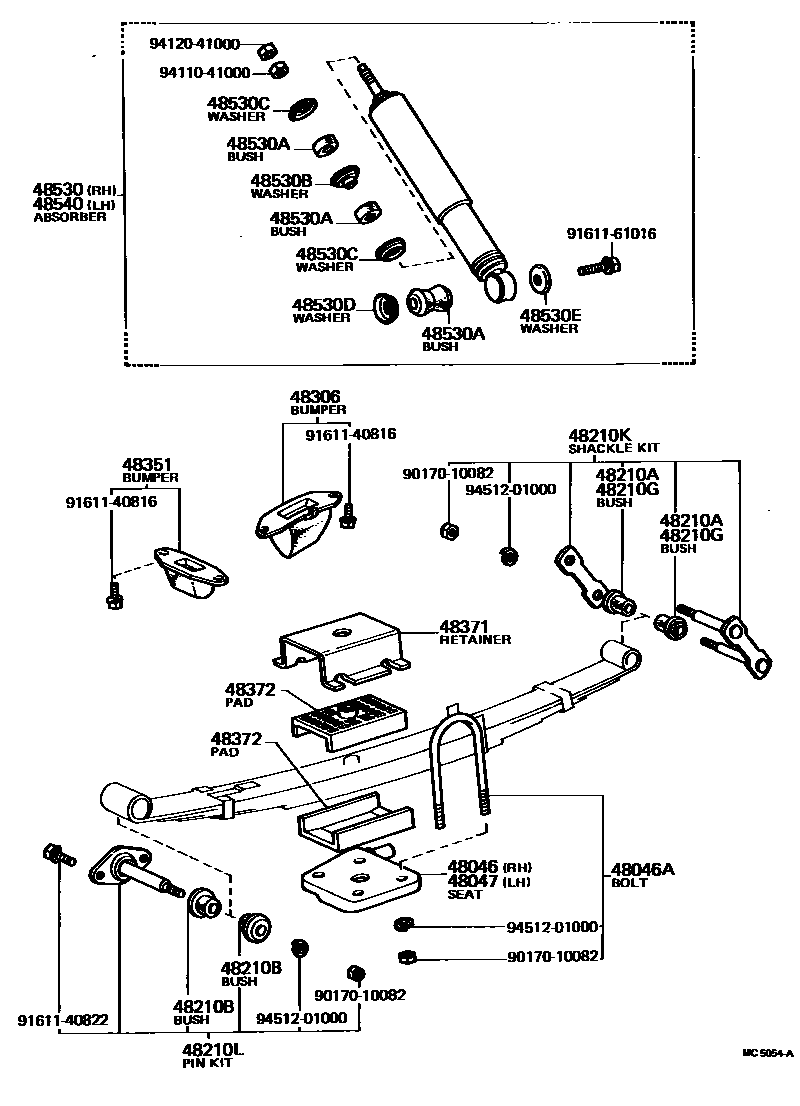

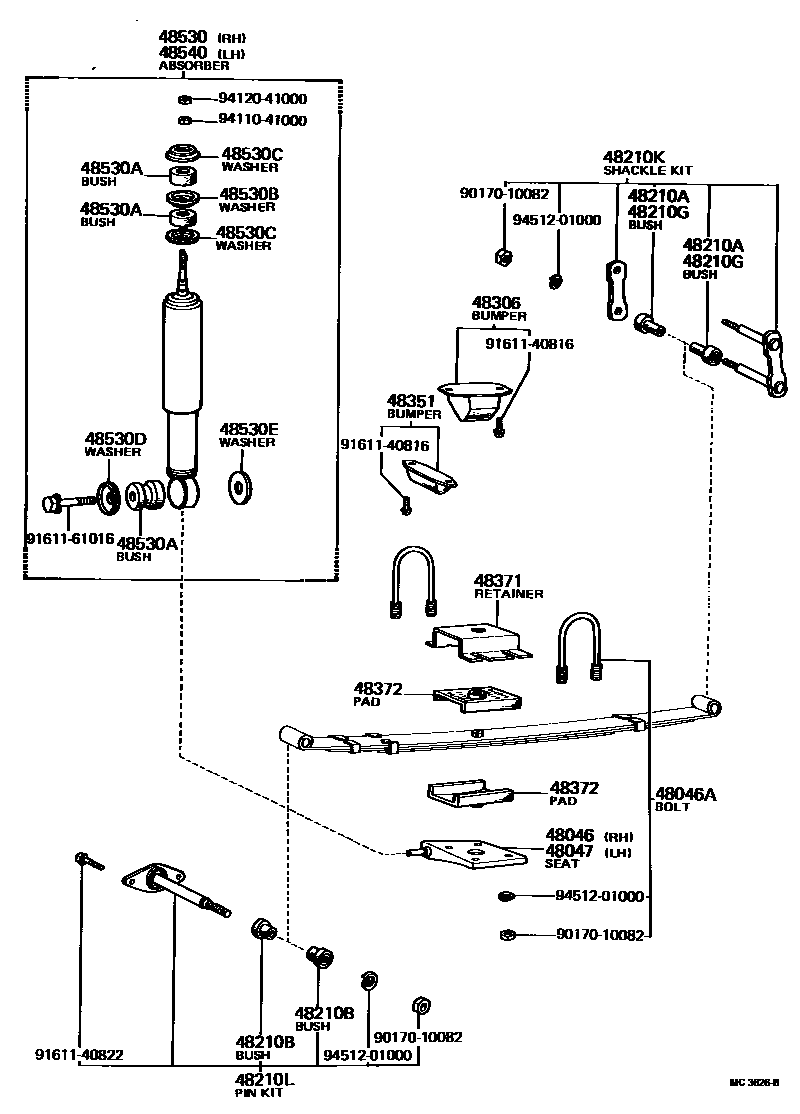

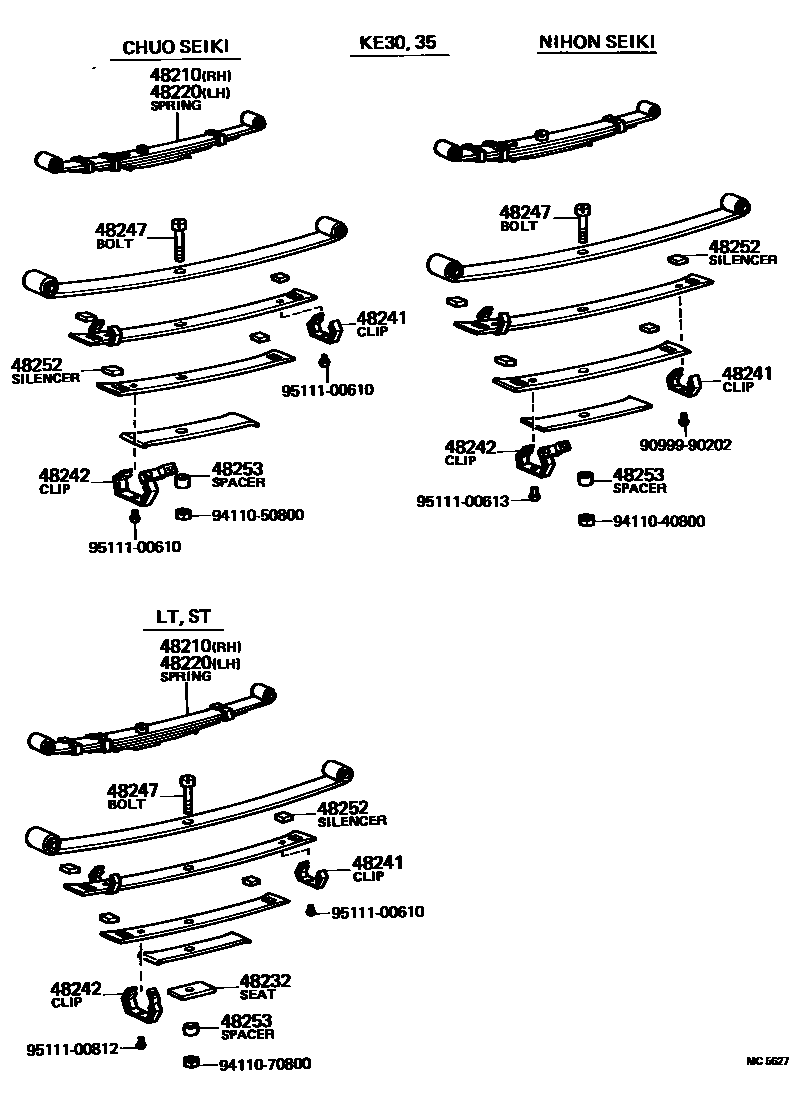

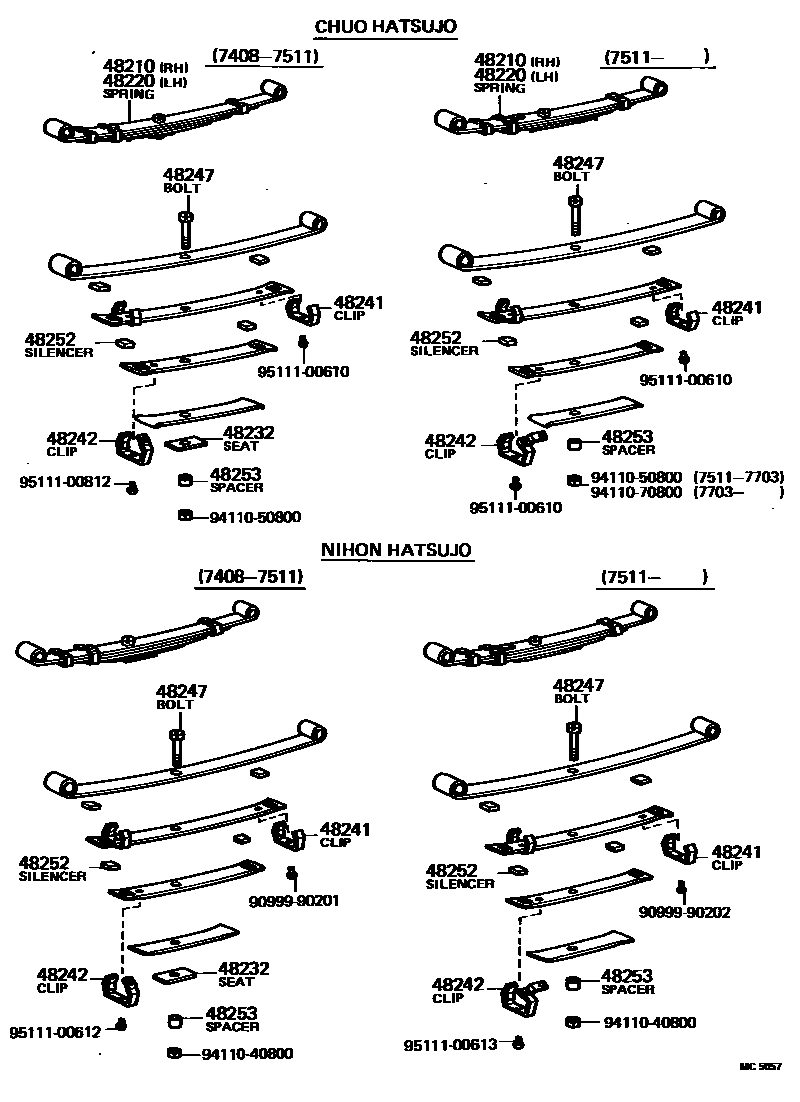

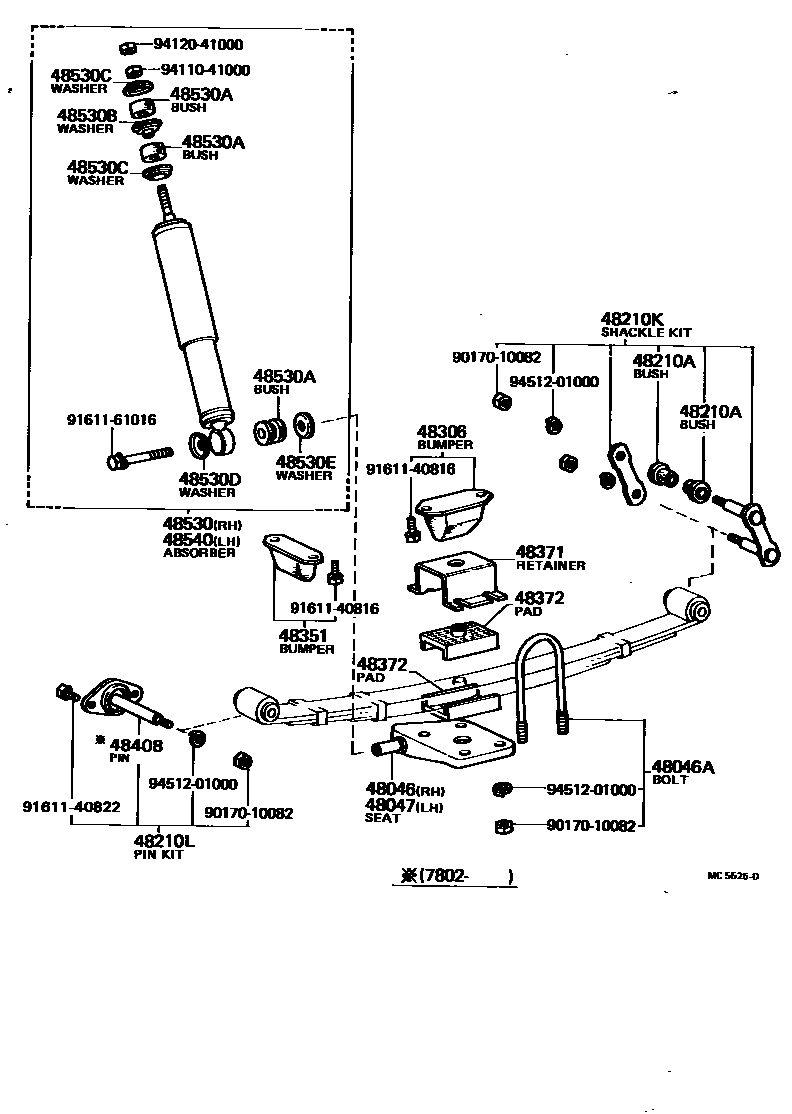

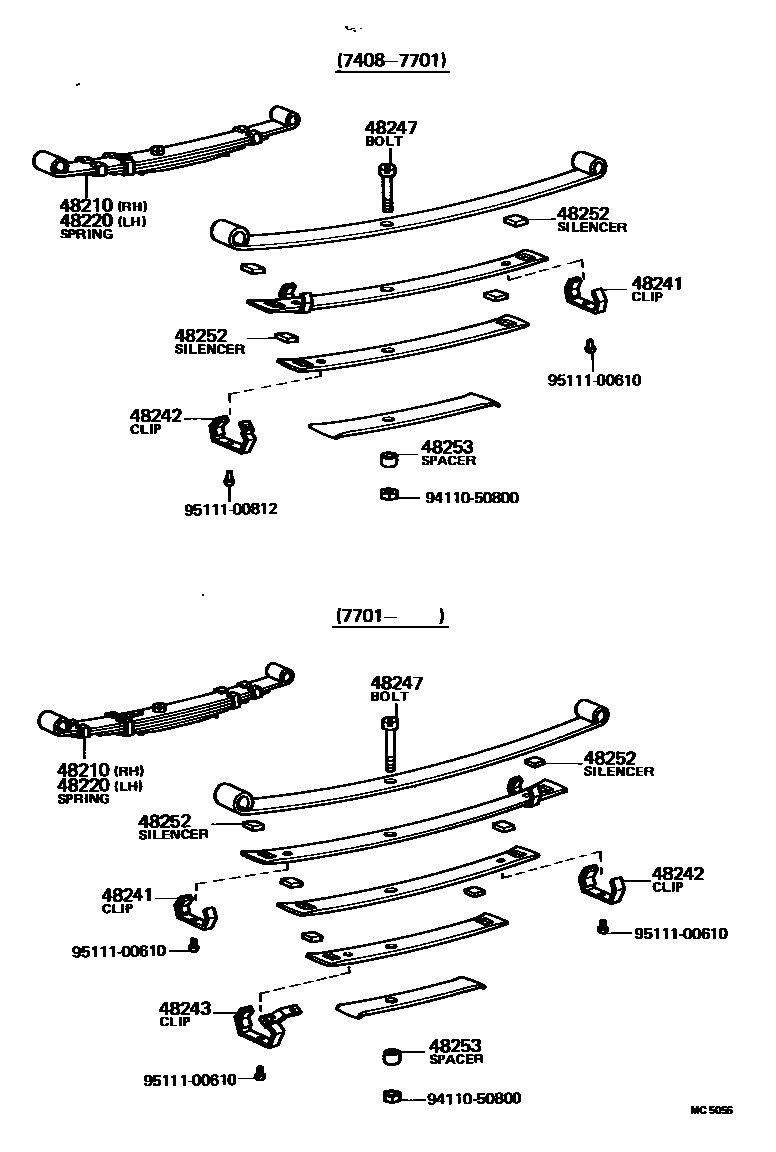

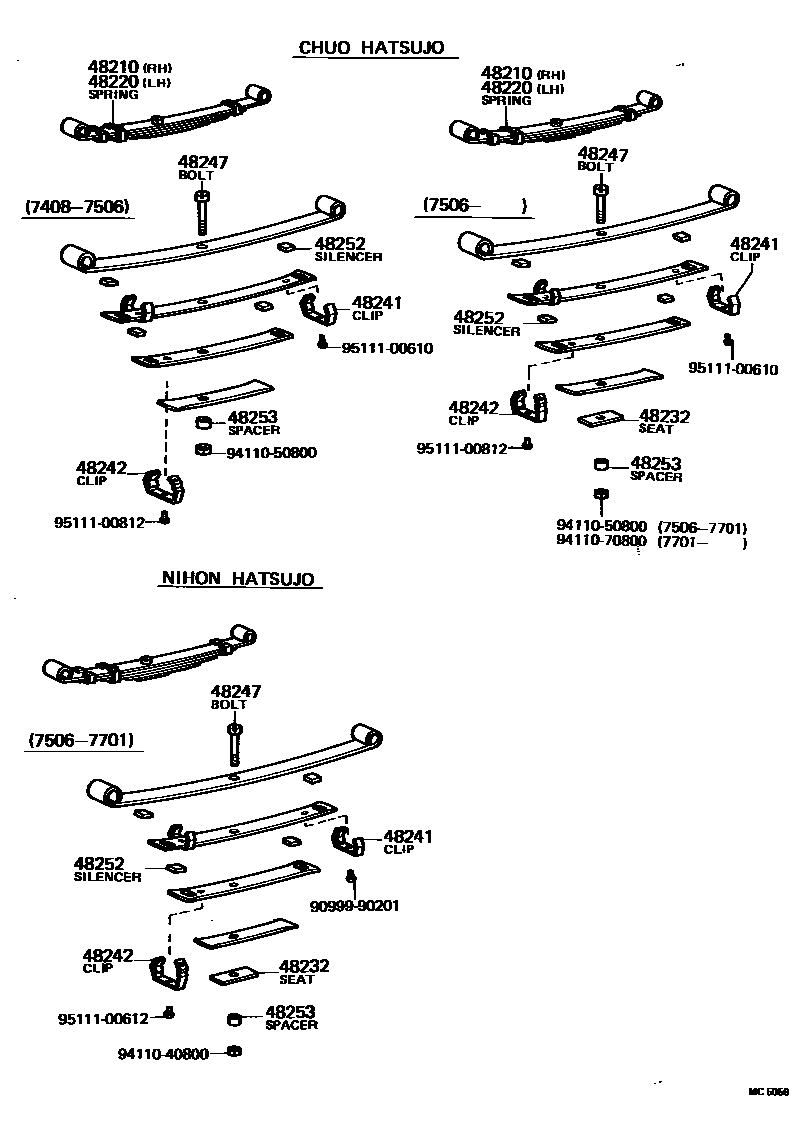

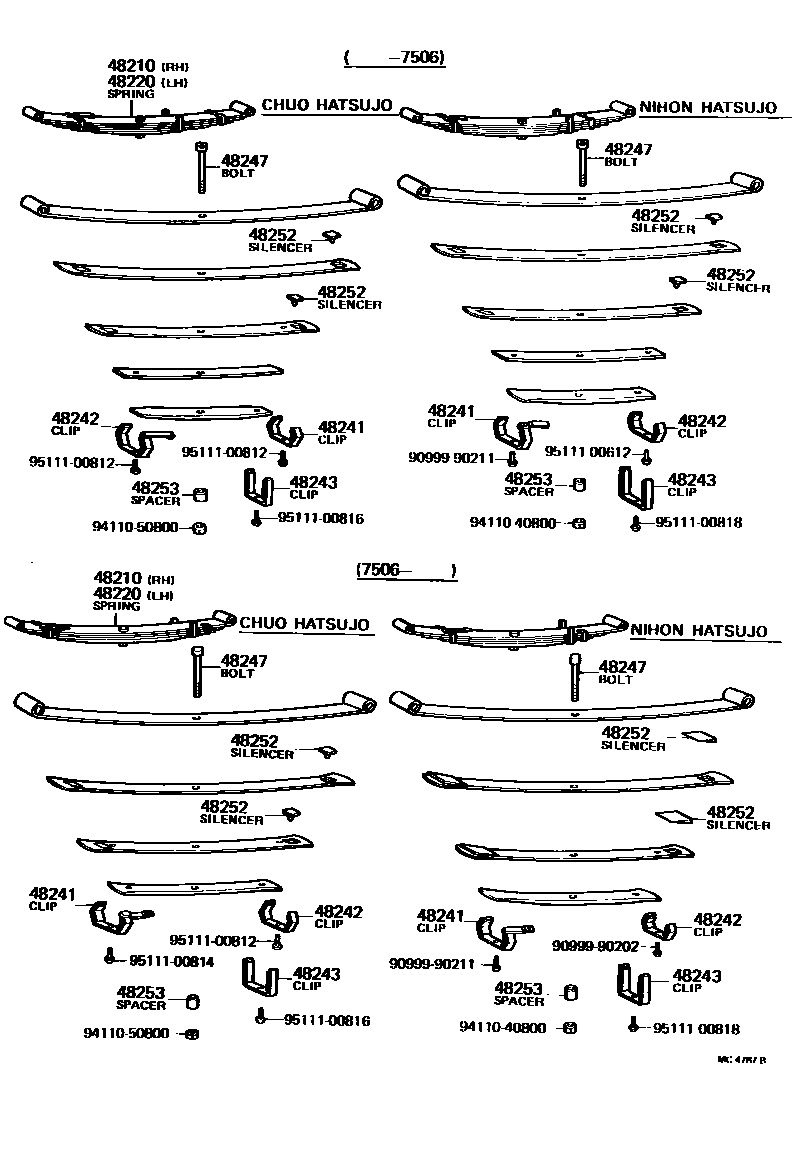

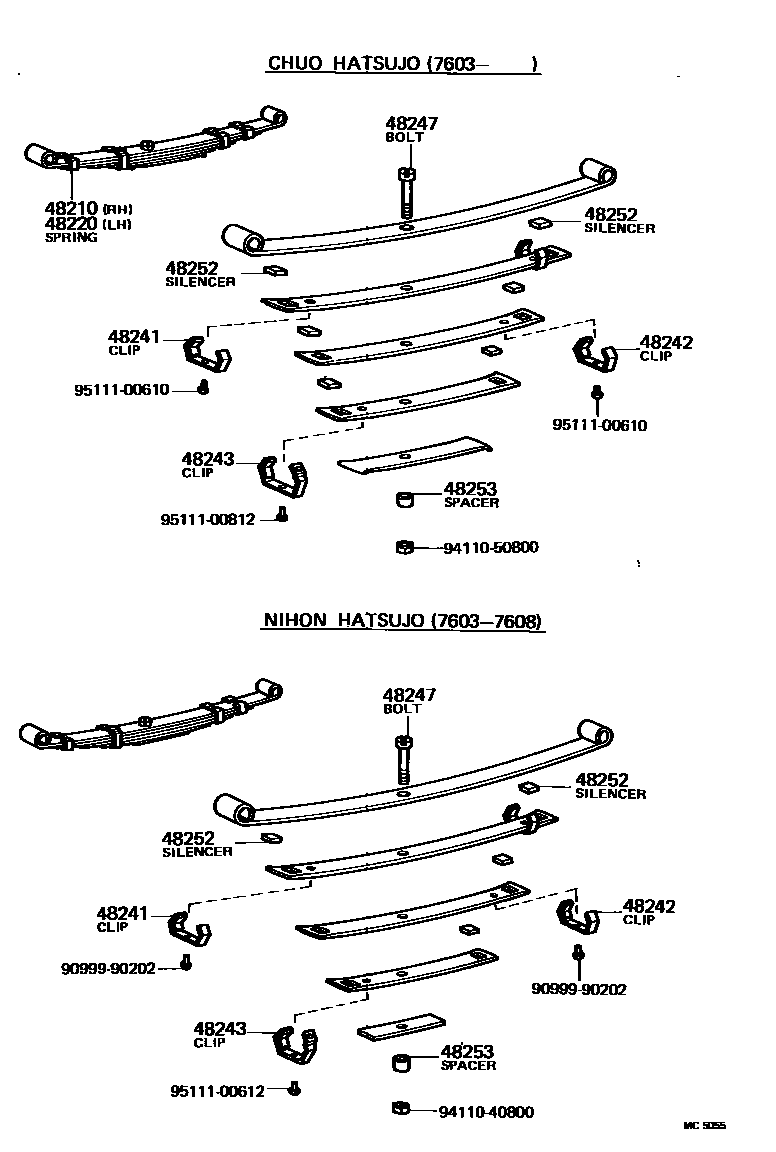

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 10 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48046 | Right spring U-bolt base sub-assembly | 48046-12010 · 48046-13040 · 48046-20040 |
| 48046A | U-bolt (for rear spring) | 90118-10123 · 90118-10127 · 90118-10128 · 90118-10129 · 90118-10138 · 90118-10145 |
| 48047 | Left spring U-bolt base sub-assembly | 48047-12010 · 48047-13040 · 48047-20040 |
| 48210 | Right rear spring assembly | 48210-12111 · 48210-12130 · 48210-12132 · 48210-12140 · 48210-12160 · 48210-12161 · 48210-12220 · 48210-12240 · 48210-12260 · 48210-12261 · 48210-12300 · 48210-12310 · 48210-12320 · 48210-12321 · 48210-12350 · 48210-12380 · 48210-12390 · 48210-13050 · 48210-13051 · 48210-13110 |
| 48210A | Upper bushing (for rear spring lug) | 90385-13003 · 90385-13071 |
| 48210B | Bushing (for rear spring pin) | 90385-13002 · 90385-13065 · 90385-17069 · 90385-17072 |
| 48210G | Lower bushing (for rear spring lug) | 90385-13003 · 90385-13071 |
| 48210K | Rear spring lifting lug assembly | 04483-12020 · 04483-12040 · 04483-12050 |
| 48210L | Rear spring pin assembly | 04484-12030 · 04484-12040 · 04484-12050 · 04484-13010 · 04484-13011 |
| 48220 | Left rear spring assembly | 48210-12111 · 48210-12130 · 48210-12132 · 48210-12140 · 48210-12160 · 48210-12161 · 48210-12220 · 48210-12240 · 48210-12260 · 48210-12261 · 48210-12300 · 48210-12310 · 48210-12320 · 48210-12321 · 48210-12350 · 48210-12380 · 48210-12390 · 48210-13050 · 48210-13051 · 48210-13110 |
| 48232 | Rear coil spring seat | 48251-12070 · 48255-12210 |
| 48241 | No. 1 rear spring clip | 48241-12053 · 48241-13050 · 48241-13051 · 48241-13080 · 48241-13081 · 48241-22010 · 48242-10060 · 48243-13050 |
| 48242 | No. 2 rear spring clip | 48241-10050 · 48241-10070 · 48241-12070 · 48241-12120 · 48241-12210 · 48241-13050 · 48242-12110 · 48242-22010 · 48243-13050 |
| 48243 | No. 3 rear spring clip | 48242-12230 · 48242-13011 · 48242-13080 · 48242-13090 · 48243-12220 |
| 48247 | rear spring center bolt | 48247-12051 · 48247-12052 · 48247-12190 · 48247-12290 · 48247-12300 · 48247-12320 · 48247-13050 · 48247-13080 · 48247-13100 · 48247-20100 · 48247-20130 · 48247-22010 |
| 48252 | rear spring muffler | 48252-22020 · 48253-23030 |
| 48253 | No. 1 rear spring spacer | 48253-20100 · 48254-10050 |
| 48306 | Rear spring buffer block sub-assembly | 48306-19025 · 48306-19035 · 48341-19015 · 48341-19016 |
| 48351 | Differential case buffer block | 48351-19015 · 48351-19025 · 48351-29015 |
| 48371 | Rear spring pad retainer | 48371-12022 · 48371-12031 · 48371-12040 · 48371-12050 · 48371-12060 · 48371-13010 · 48371-13050 · 48371-20080 |
| 48372 | Rear spring pad | 48372-22010 |
| 48408 | Spring bracket pin sub-assembly | 48409-12031 · 48409-12032 |
| 48530 | Right rear shock absorber assembly | 48531-19295 · 48531-19305 · 48531-19315 · 48531-19325 · 48531-19355 · 48531-19365 · 48531-19375 · 48531-19385 |
| 48530A | Bushing (for rear shock absorber) | 90385-16060 · 90948-01002 · 90948-01003 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-02005 · 90948-02007 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-02002 · 90948-02004 |
| 48530D | Rear shock absorber No. 3 cushion washer | 90948-03004 · 90948-03012 |
| 48530E | Rear shock absorber No. 4 cushion washer | 90948-03004 · 90948-03012 |
| 48540 | Left rear shock absorber assembly | 48531-19295 · 48531-19305 · 48531-19315 · 48531-19325 · 48531-19355 · 48531-19365 · 48531-19375 · 48531-19385 |
