Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

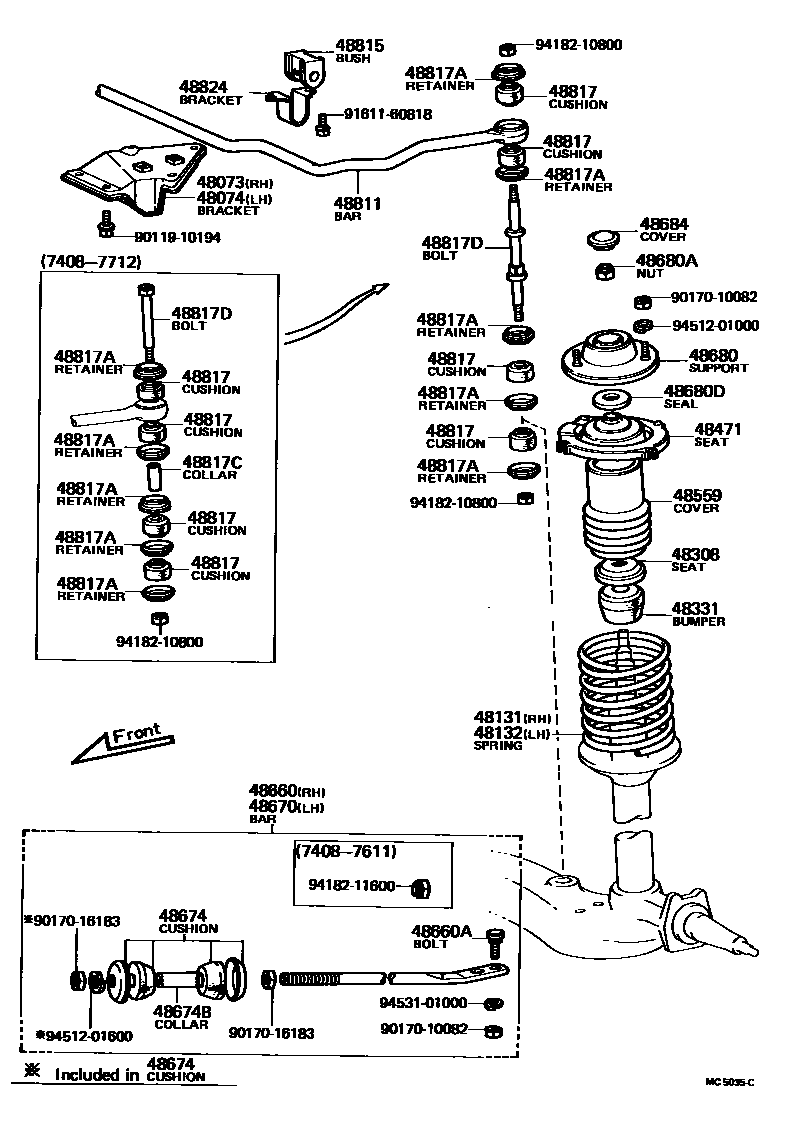

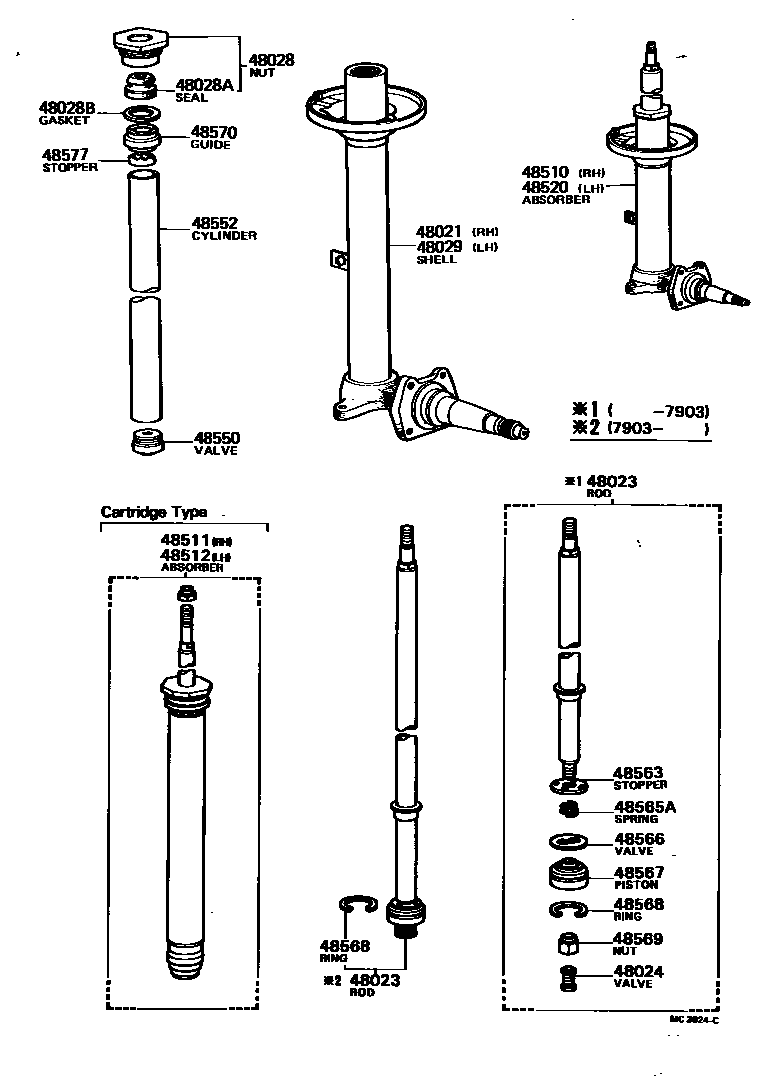

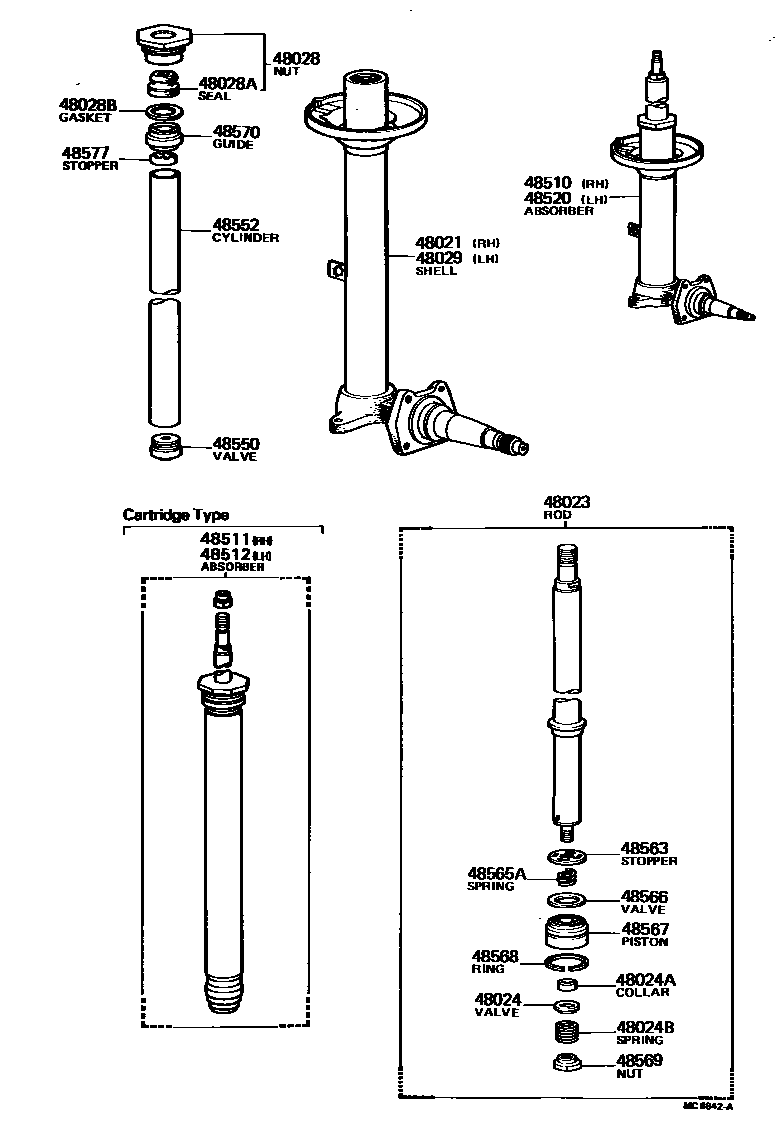

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 3 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48021 | Right side housing sub-assembly with steering knuckle | 48021-12070 · 48021-12080 · 48021-12090 · 48021-12100 · 48021-12110 |
| 48023 | Front shock absorber piston rod sub-assembly | 48023-12050 · 48023-12051 · 48023-12060 · 48023-12061 · 48023-12070 · 48023-12080 · 48023-12090 |
| 48024 | Shock absorber piston valve sub-assembly | 48024-12014 · 48024-12021 · 48571-14010 |
| 48024A | Shock absorber piston valve collar | 90387-10076 |
| 48024B | Shock absorber piston valve spring | 90501-23585 · 90501-23758 · 90501-23761 · 90501-25792 |
| 48028 | Shock absorber ring nut sub-assembly | 48028-12020 · 48028-14010 · 48028-14011 |
| 48028A | Oil seal (for shock absorber ring nut) | 90316-20006 · 90316-22001 · 90316-22007 |
| 48028B | Gasket (for shock absorber ring nut) | 90430-39138 · 90430-43206 |
| 48029 | Left side shell sub-assembly with steering knuckle | 48021-12070 · 48021-12080 · 48021-12090 · 48021-12100 · 48021-12110 |
| 48073 | Right support rod bracket sub-assembly | 57107-12010 |
| 48074 | Left support rod bracket sub-assembly | 57108-12010 |
| 48131 | Right front coil spring | 48131-12200 · 48131-12201 · 48131-12221 · 48131-12230 · 48131-12231 · 48131-12240 · 48131-12241 · 48131-12260 · 48131-12430 · 48131-12450 · 48131-12480 · 48131-12540 · 48131-12590 · 48131-12600 · 48131-13050 |
| 48132 | Left front coil spring | 48131-12171 · 48131-12200 · 48131-12201 · 48131-12221 · 48131-12230 · 48131-12231 · 48131-12240 · 48131-12241 · 48131-12260 · 48131-12430 · 48131-12450 · 48131-12540 · 48131-12570 · 48131-12600 · 48131-12610 · 48131-13050 |
| 48308 | Front buffer block seat sub-assembly | 48334-12020 |
| 48331 | No. 1 front spring buffer block | 48331-12030 · 48331-12050 |
| 48471 | Front spring seat | 48044-12030 |
| 48510 | Right front shock absorber assembly | 48510-12070 · 48510-12080 · 48510-12090 · 48510-12100 · 48510-12110 |
| 48511 | Right front shock absorber (for adhesive cartridge type) | 48511-12010 · 48511-12020 · 48511-12030 · 48511-12050 · 48511-12070 |
| 48512 | Left front shock absorber (for adhesive cartridge type) | 48511-12010 · 48511-12020 · 48511-12030 · 48511-12050 · 48511-12070 |
| 48520 | Left front shock absorber assembly | 48510-12070 · 48510-12080 · 48510-12090 · 48510-12100 · 48510-12110 |
| 48550 | Shock absorber bottom valve assembly | 48550-12019 · 48550-12023 · 48550-12024 · 48550-12090 · 48550-12120 · 48550-14012 · 48550-14030 |
| 48552 | front shock absorber cylinder | 48552-12020 · 48552-12030 |
| 48559 | Shock absorber dust cover | 48559-12030 |
| 48563 | Check valve stop | 48563-12013 · 48563-14011 |
| 48565A | cone spring | 90502-10058 · 90502-10061 |
| 48566 | Shock absorber check valve | 48566-12011 · 48566-14011 |
| 48567 | Shock absorber piston | 48567-12014 · 48567-14011 |
| 48568 | Shock absorber piston ring | 48568-12010 · 48568-14010 |
| 48569 | Shock absorber piston nut | 48569-12012 · 48569-14010 |
| 48570 | Damper rod guide assembly | 48022-12020 · 48022-14010 |
| 48577 | Shock absorber rebound limiter | 48577-10010 · 48579-14011 |
| 48660 | Right support rod assembly | 48660-19045 · 48660-19046 |
| 48660A | Bolts (for securing support rods) | 90114-10075 |
| 48670 | Left support rod assembly | 48670-19045 · 48670-19046 |
| 48674 | Support rod cushion | 48674-19055 · 48674-19056 · 48674-19058 |
| 48674B | Collar (for support rod cushion) | 90387-16108 |
| 48680 | Front suspension support assembly | 48609-12050 |
| 48680A | Nut (for front mount to front shock absorber) | 94182-11400 |
| 48680D | Dust seal (for front suspension mount) | 90303-22049 |
| 48684 | Bearing dust cover | 48684-10010 |
| 48811 | front stabilizer bar | 48811-12130 · 48811-12150 · 48811-12151 · 48811-12170 · 48811-12171 · 48811-12180 · 48811-12181 · 48811-12190 · 48811-12210 · 48811-12211 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-12050 · 48815-12060 · 48815-12080 · 48815-12090 |
| 48817 | Front stabilizer bar cushion | 48817-10010 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02024 · 90948-02025 |
| 48817C | Collar (for stabilizer bar) | 90387-09057 |
| 48817D | Bolt (for front stabilizer bar) | 48818-12010 · 48819-12010 · 90101-08274 |
| 48824 | front stabilizer bar bracket | 48824-12030 |
