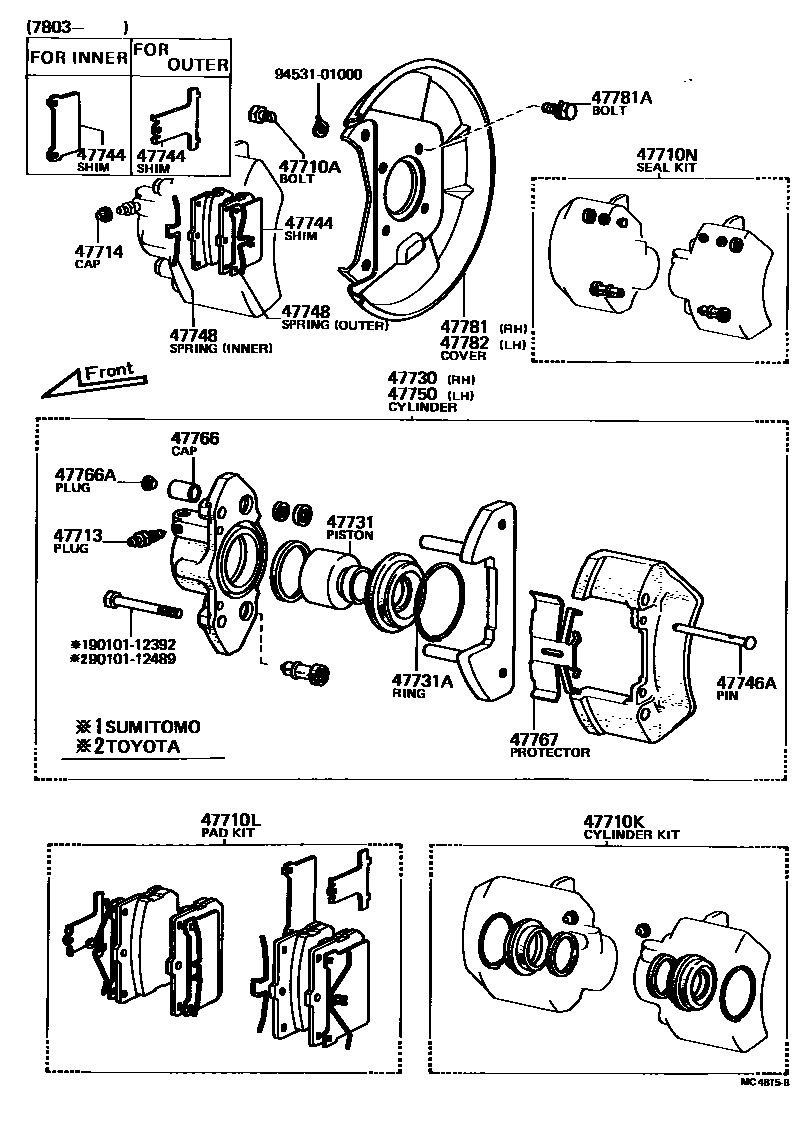

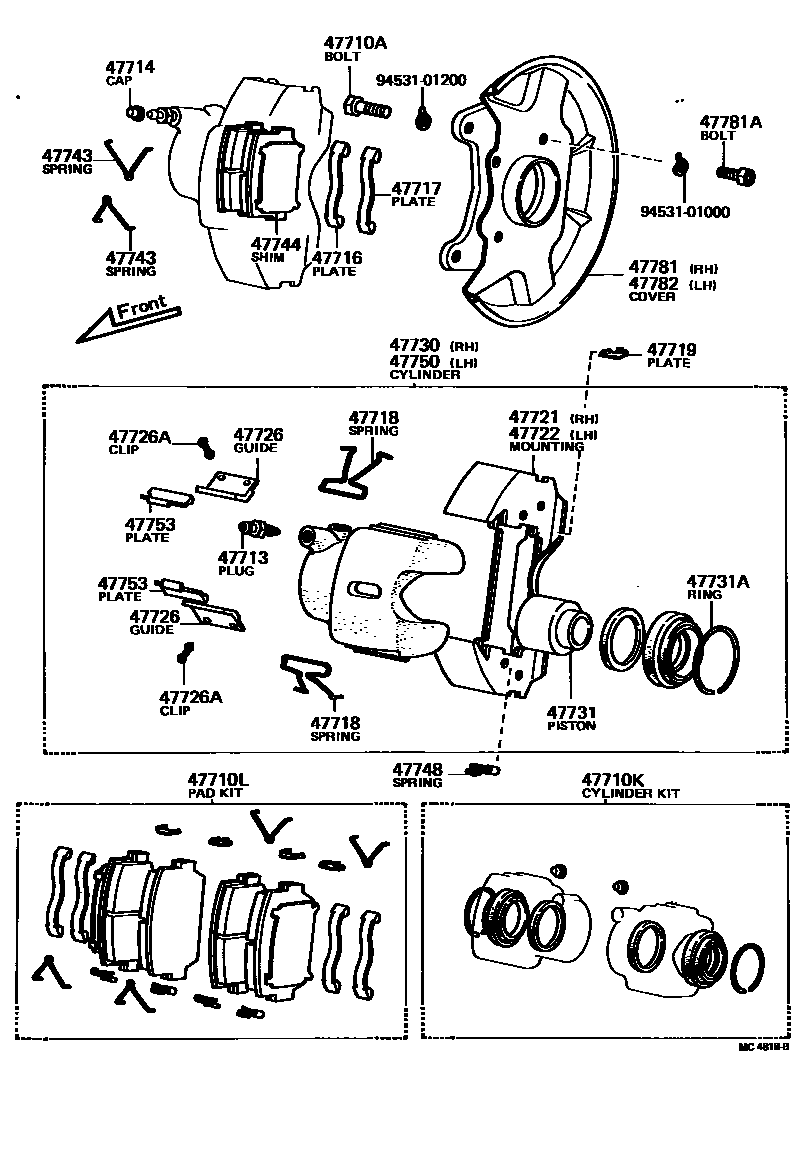

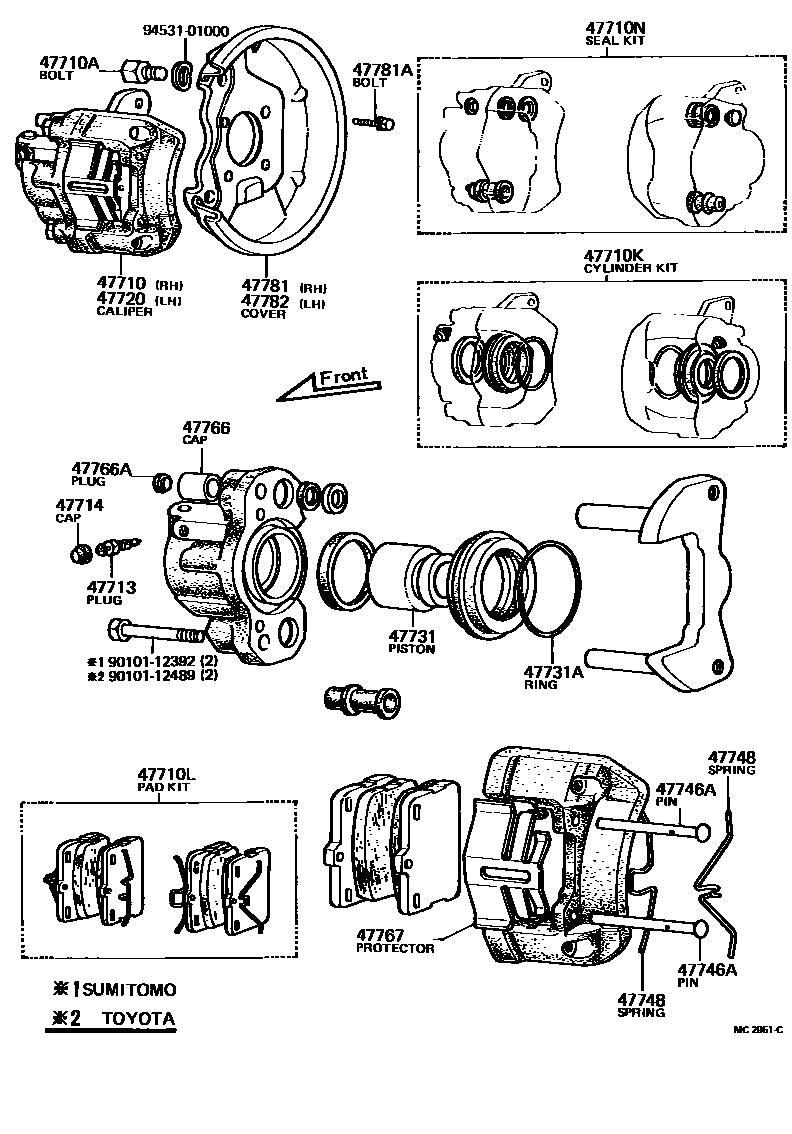

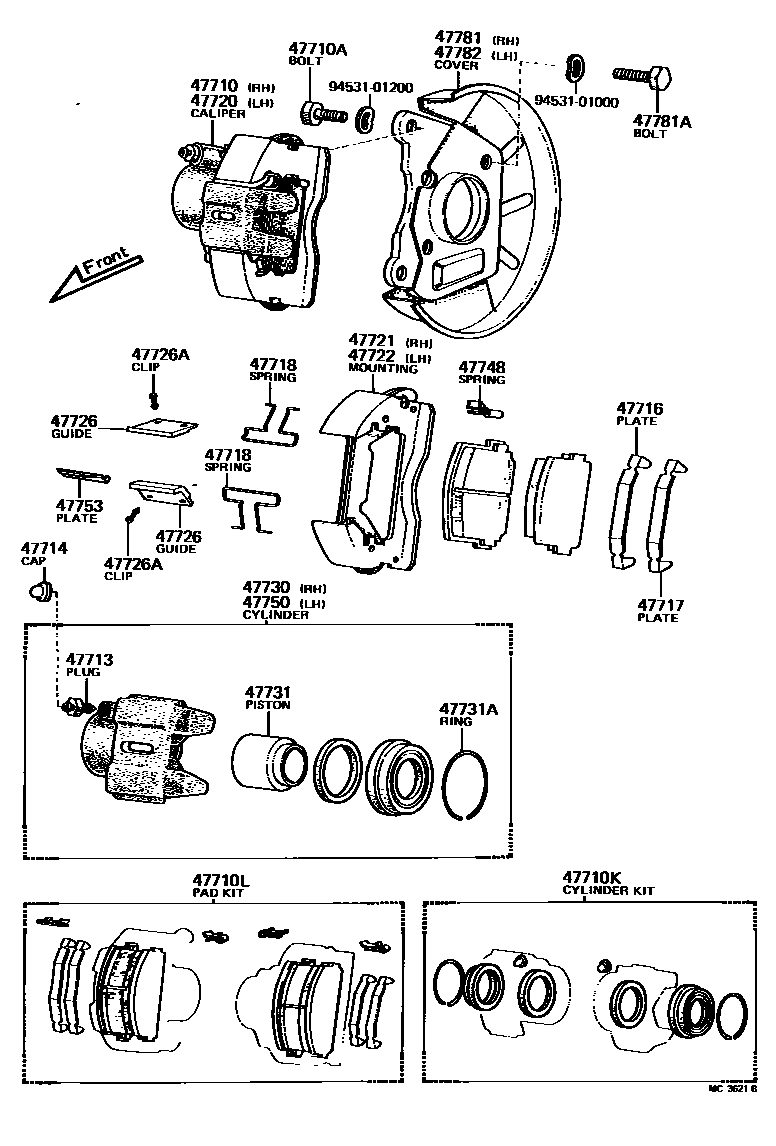

Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 5 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

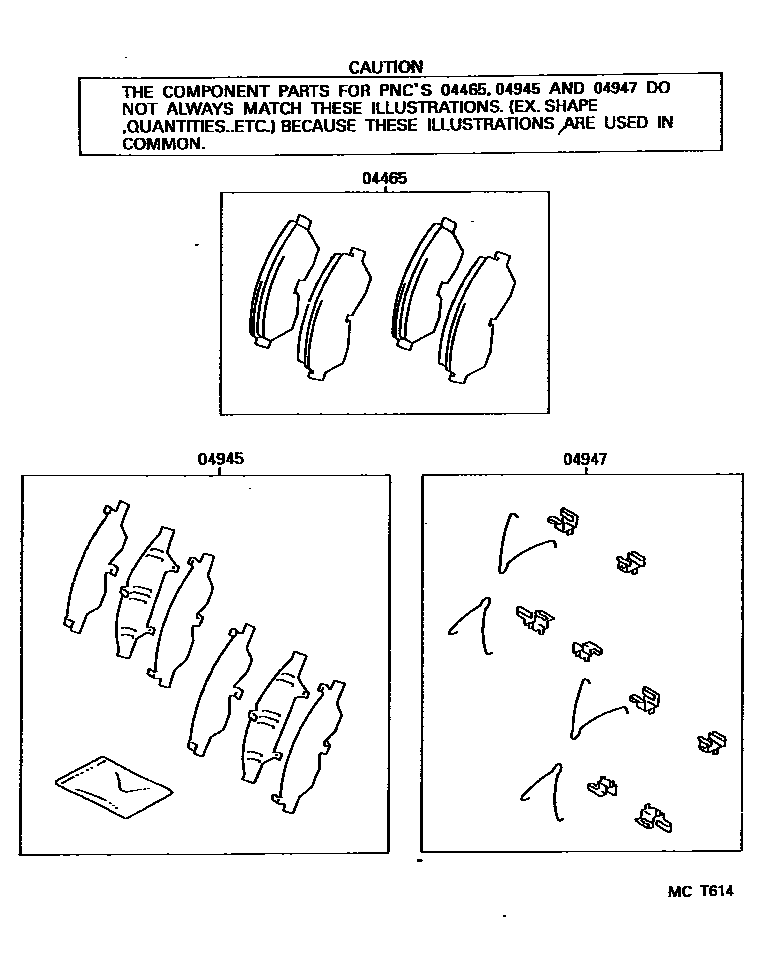

| 04465 | Front disc brake pad assembly | 04465-12320 · 04465-12430 |
| 04945 | Front silencer gasket assembly | 04945-12050 · 04945-14100 |
| 04947 | Front disc brake mounting kit | 04947-12010 · 04947-14100 · 04947-14110 |
| 47710 | Right front disc brake caliper assembly | 47710-12054 · 47710-12100 · 47710-12110 · 47710-12140 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90101-10007 · 90101-10020 · 90101-10236 · 90101-12003 · 90101-12332 |
| 47710K | Front disc brake cylinder assembly | 04479-12040 · 04479-12050 · 04479-14010 |
| 47710L | Front disc brake pad assembly | 04491-12060 · 04491-12061 · 04491-12062 · 04491-12063 · 04491-12080 · 04491-12081 · 04491-12090 · 04491-12091 · 04491-12092 · 04491-12093 · 04491-20110 |
| 47710N | Front disc brake seal assembly | 04498-12010 · 04498-12020 |
| 47713 | Bleed plug (for front disc brake) | 47547-12010 · 47547-12020 · 47547-12030 |
| 47714 | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-14020 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47716-14020 |
| 47718 | Front disc brake cylinder bracket spring | 47718-12030 |
| 47719 | Front disc brake pad guide | 47719-12010 |
| 47720 | Left front disc brake caliper assembly | 47720-12054 · 47720-12100 · 47720-12110 · 47720-12140 |
| 47721 | Right front disc brake cylinder retainer | 47721-12030 |
| 47722 | Left front disc brake cylinder retainer | 47721-12030 |
| 47726 | Front disc brake cylinder guide | 47726-14020 · 47726-20010 |
| 47726A | Clip (for front disc brake cylinder) | 90468-12134 |
| 47730 | Right front disc brake cylinder assembly | 47730-12050 · 47730-12051 · 47730-12060 · 47730-12070 · 47730-12080 · 47730-14030 |
| 47731 | Front disc brake piston | 47731-12030 · 47731-12040 · 47731-20030 |
| 47731A | retaining ring (for front disc brake piston) | 90522-53018 · 90522-53045 · 90522-54038 |
| 47743 | Anti-vibration spring No. 2 (for front disc brake) | 47743-14010 |
| 47744 | No. 1 silencer gasket (for front disc brake) | 47744-12010 · 47744-12020 · 47744-14010 · 47744-14011 · 47745-12010 |
| 47746A | Holed pin (for front disc brake pad) | 90240-06133 · 90240-06161 |
| 47748 | Anti-vibration spring No. 1 (for front disc brake) | 47748-12010 · 47748-12020 · 47748-12030 · 47748-12040 · 47748-14010 |
| 47750 | Left disc brake cylinder assembly | 47750-12050 · 47750-12051 · 47750-12060 · 47750-12070 · 47750-12080 · 47750-14030 |
| 47753 | Brake cylinder guide plate | 47753-14010 |
| 47766 | Front torque plate pin cover (king pin) | 47766-12010 · 47766-12020 |
| 47766A | Hole plug (for front torque plate pin cover) | 90950-01121 · 90950-01186 |
| 47767 | Disc brake pad guard | 47767-12010 · 47767-12020 |
| 47781 | Right front disc brake dust cover | 47703-12041 · 47703-12050 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90101-10020 · 90101-10366 · 90119-10082 · 91111-71020 · 91611-61016 |
| 47782 | Left front disc brake dust cover | 47704-12041 · 47704-12050 |
