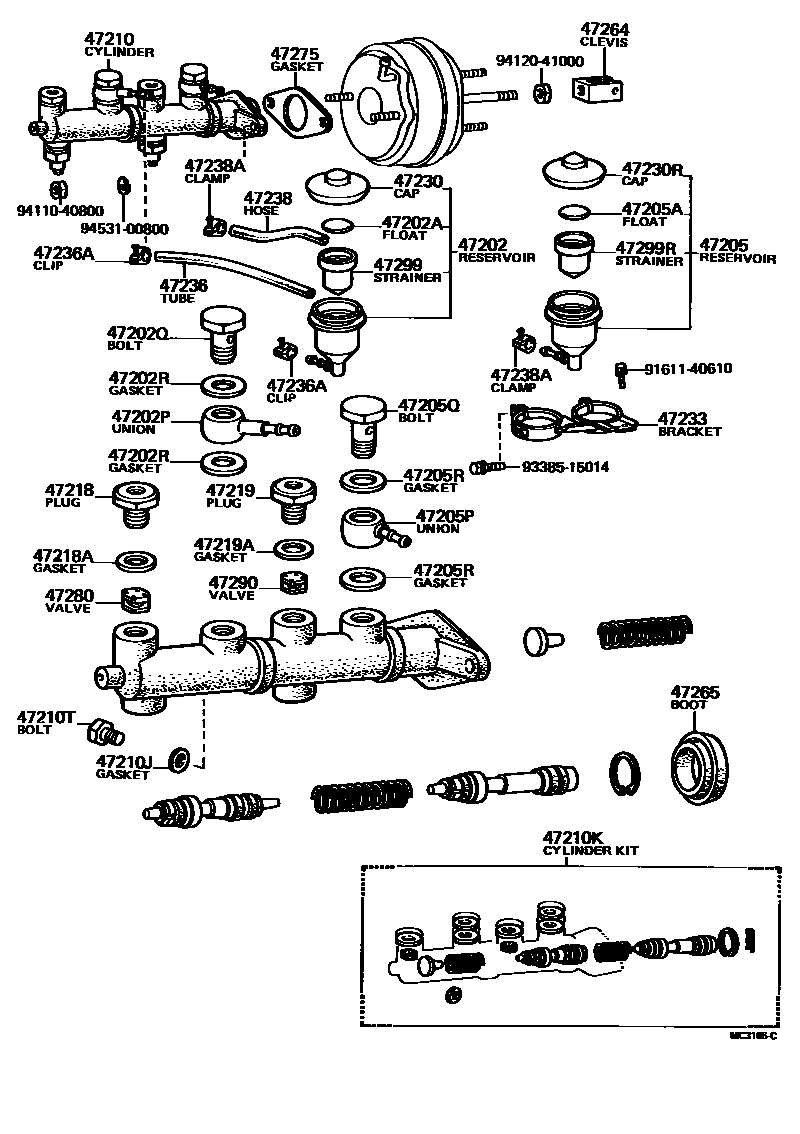

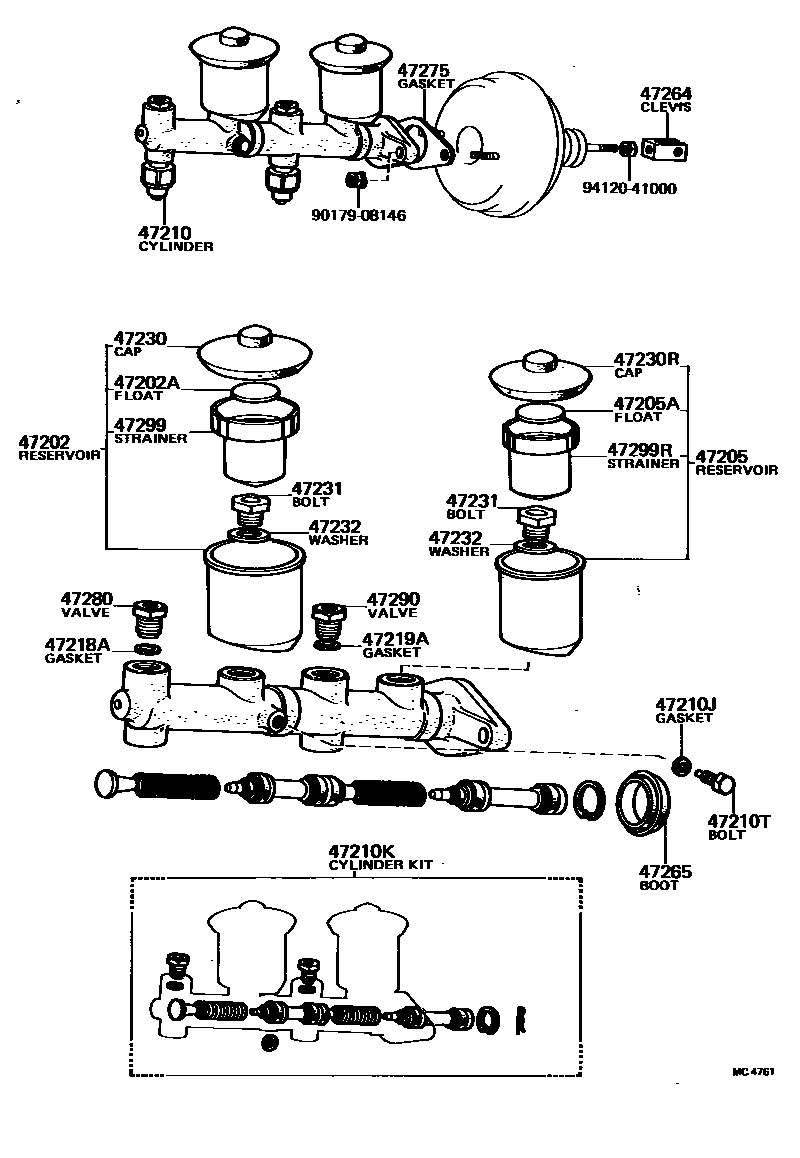

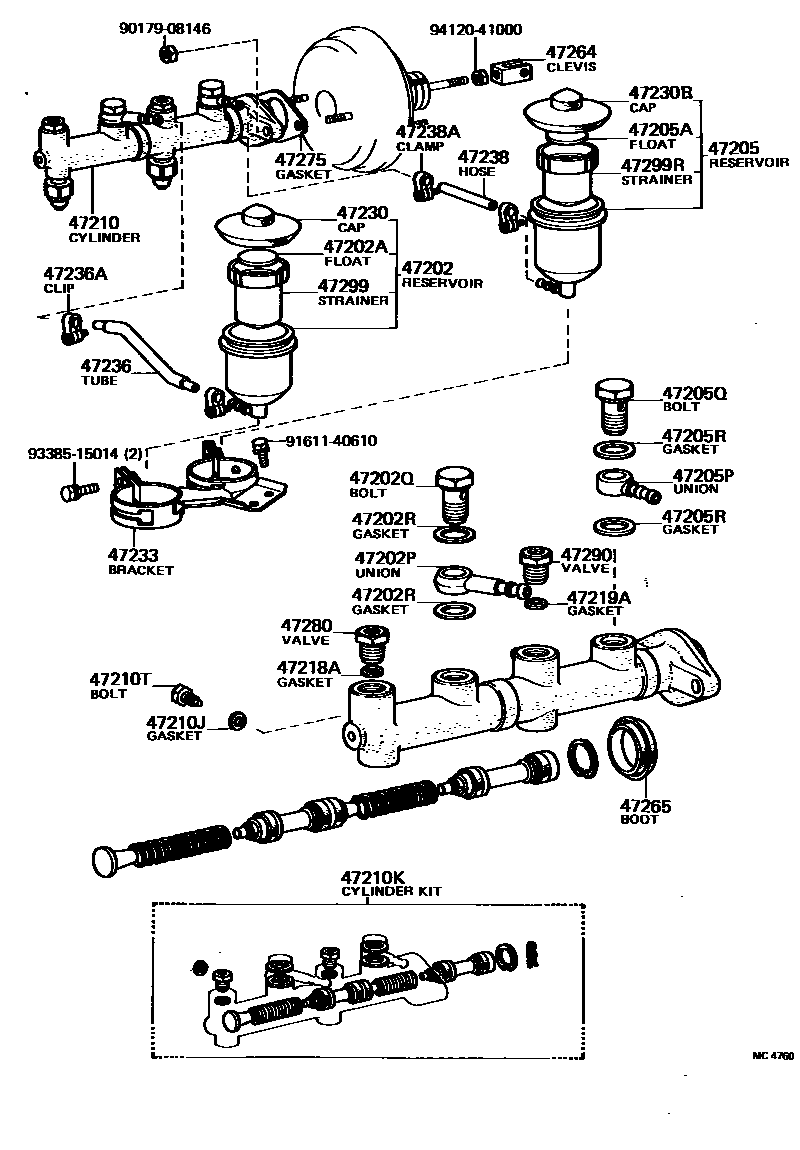

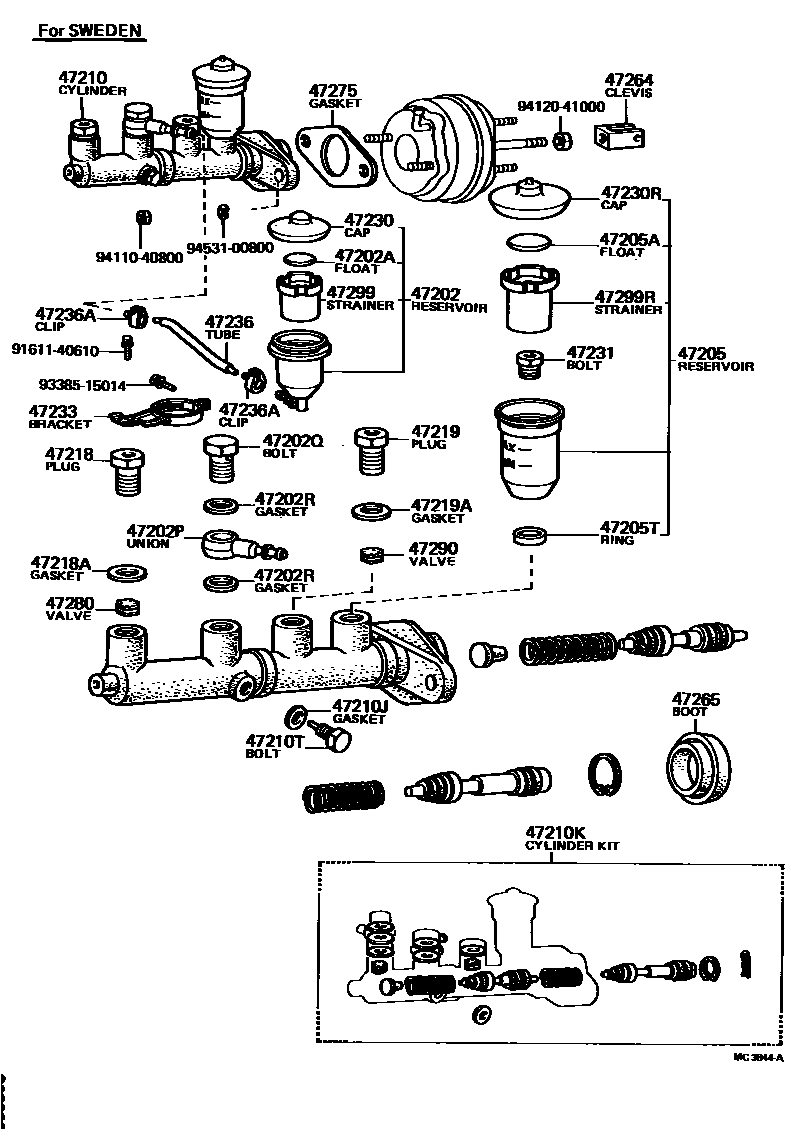

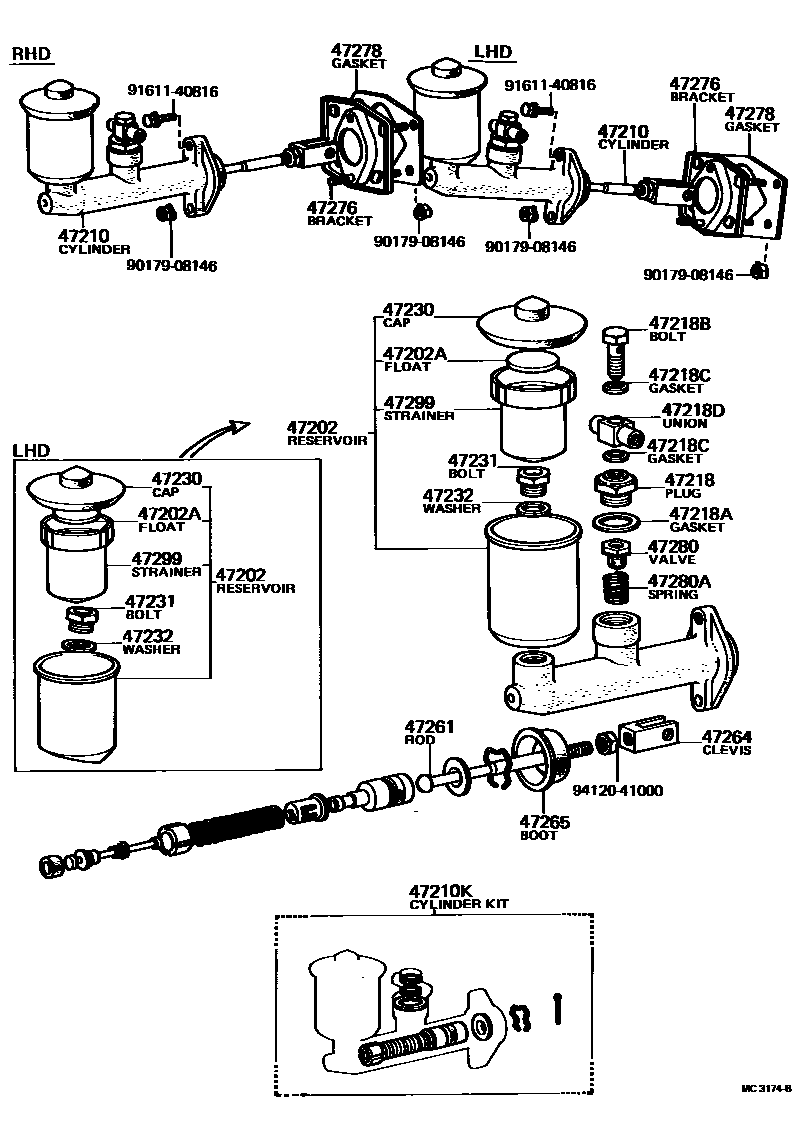

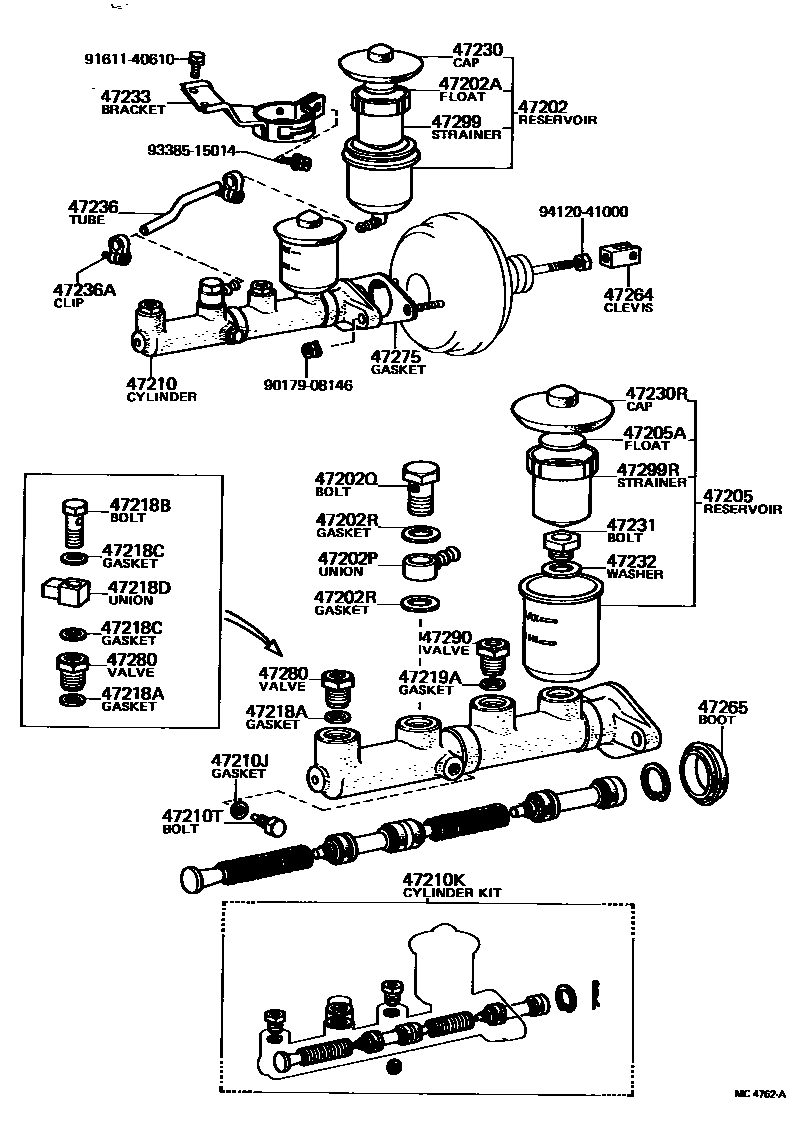

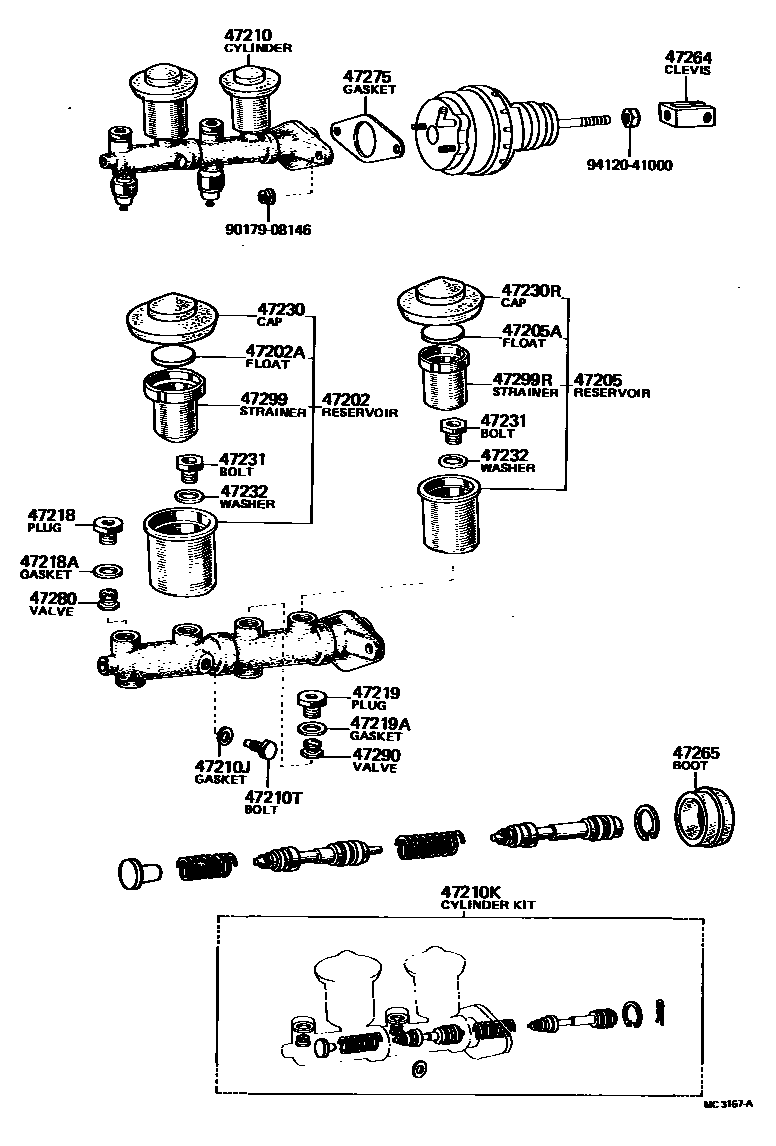

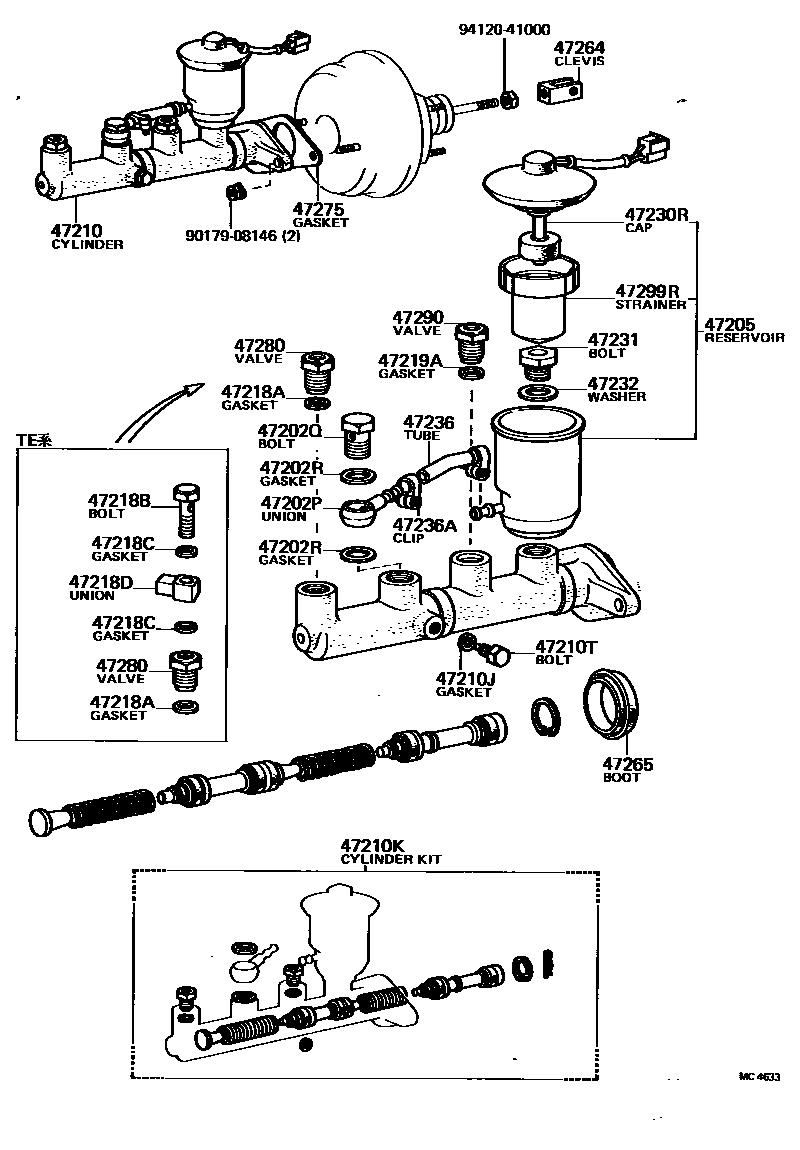

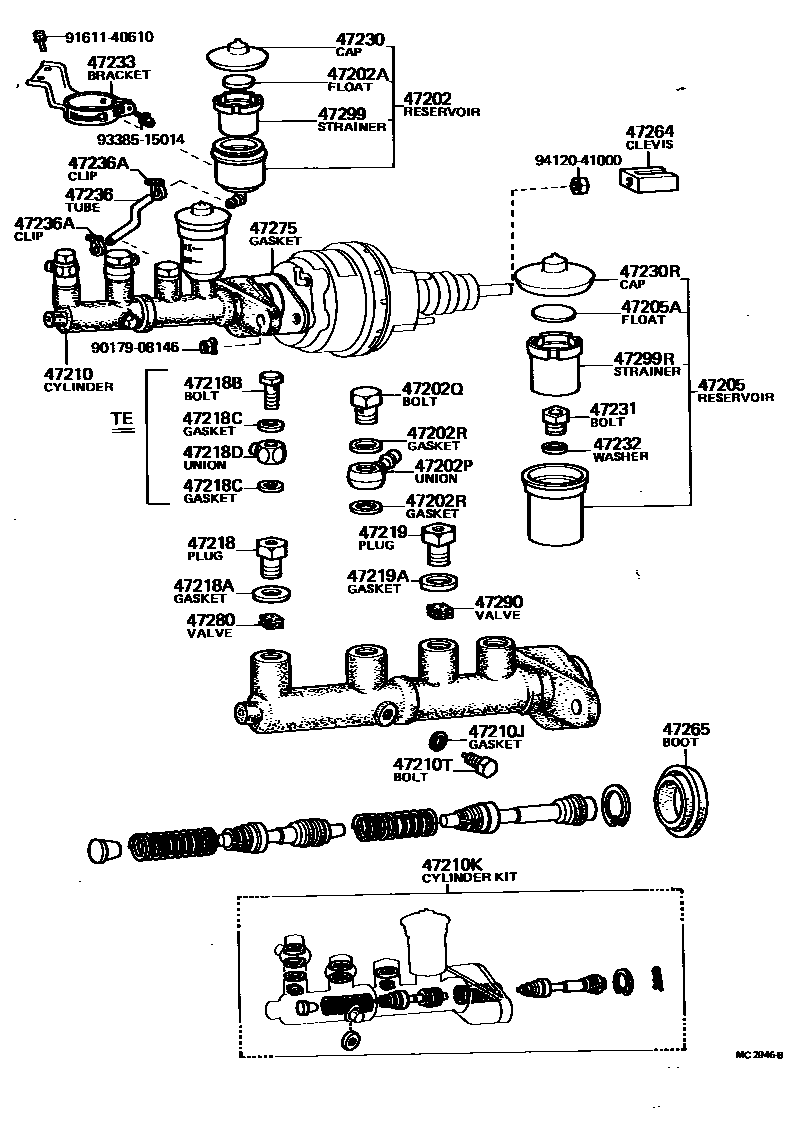

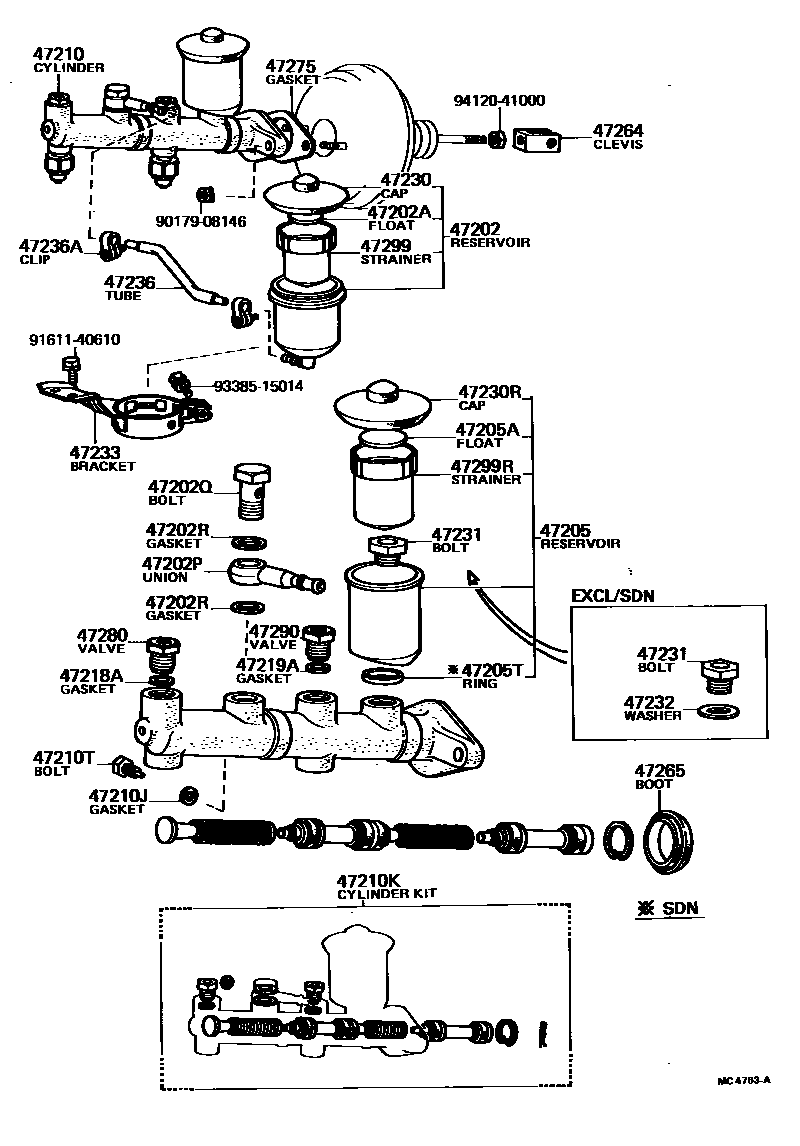

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 10 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47202 | Brake master cylinder reservoir sub-assembly | 47202-12150 · 47202-12151 · 47202-20110 · 47202-20120 · 47202-20121 · 47220-12010 · 47220-12011 · 47220-12020 |
| 47202A | Master pump reservoir float | 31426-20010 |
| 47202P | Reservoir tank connector (for brake master cylinder side) | 90405-10125 · 90405-10173 |
| 47202Q | Reservoir tank joint bolt (for brake master cylinder side) | 90401-16078 |
| 47202R | Reservoir joint gasket (for brake master cylinder side) | 90430-16242 |
| 47205 | Brake master cylinder reservoir assembly (for rear side) | 47202-12150 · 47202-12151 · 47202-12200 · 47202-12220 · 47202-20120 · 47202-20121 · 47202-20140 · 47220-12010 · 47220-12011 · 47220-12020 |
| 47205A | Brake master cylinder reservoir float (for rear side) | 31426-20010 |
| 47205P | Reservoir tank connector (for rear brake master cylinder) | 90405-10125 |
| 47205Q | No. 2 fluid reservoir joint bolt (for rear brake master cylinder) | 90401-16078 |
| 47205R | Reservoir joint gasket (for rear brake master cylinder) | 90430-16242 |
| 47205T | Ring (for No. 2 brake master cylinder reservoir) | 90562-18151 |
| 47210 | Brake master cylinder assembly without booster | 47200-12470 · 47200-12480 · 47200-12610 · 47200-12680 · 47201-12050 · 47201-12051 · 47201-12060 · 47201-12061 · 47201-12090 · 47201-12091 · 47201-12100 · 47201-12101 · 47201-12110 · 47201-12111 · 47201-12140 · 47201-12141 · 47201-12151 · 47201-12161 · 47201-12190 |
| 47210J | Gasket (for master cylinder) | 90430-06104 |
| 47210K | Brake master cylinder assembly | 04471-12043 · 04471-12080 · 04493-12040 · 04493-12041 · 04493-12060 · 04493-20020 · 04493-20021 · 04493-20070 |
| 47210T | Bolt (for brake master cylinder) | 90109-06008 · 90109-06011 |
| 47218 | Brake master cylinder brake fluid outlet screw plug | 47218-11010 · 47218-12010 · 47218-12020 · 47218-20010 |
| 47218A | Gasket (for brake fluid outlet plug) | 90430-09253 · 90430-16242 · 90430-20018 |
| 47218B | Connector bolt (for brake master cylinder fluid outlet) | 90401-10014 · 90401-10037 |
| 47218C | Pad (for brake master cylinder outlet) | 90430-10074 |
| 47218D | Connector (for brake master cylinder outlet) | 90405-10073 · 90405-10119 |
| 47219 | Master cylinder brake fluid outlet screw plug (for rear side) | 47218-12020 · 47218-20010 |
| 47219A | Gasket (for rear master cylinder brake fluid outlet plug) | 90430-09253 · 90430-16242 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-12020 · 47230-12030 · 47230-20030 · 47230-20040 |
| 47230R | No. 2 fluid reservoir cap assembly (for rear side) | 47230-12020 · 47230-12030 · 47230-20030 · 47230-20040 · 84460-12010 · 84460-12011 · 84460-20050 · 84460-20051 |
| 47231 | Brake master cylinder reservoir fixing bolt | 47231-20010 · 47231-30010 |
| 47232 | Brake fluid reservoir retaining bolt washer | 47232-30010 |
| 47233 | Reservoir tank bracket | 47233-12030 · 47233-12040 · 47233-12050 |
| 47236 | Brake fluid reservoir tube | 47234-20010 · 47236-12020 · 47236-12040 |
| 47236A | Clamp (for reservoir tube) | 90460-16069 |
| 47238 | Master pump bridge hose | 90445-17012 |
| 47238A | Hose clamp (for master cylinder bridge hose) | 90460-16069 |
| 47261 | Master cylinder push rod | 47261-12050 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-12040 |
| 47265 | Master pump dust jacket | 47265-12020 · 47265-20050 |
| 47275 | brake master cylinder gasket | 47275-14010 |
| 47276 | brake master cylinder bracket | 47276-12020 · 47276-12030 |
| 47278 | Brake master cylinder bracket gasket | 47278-12010 · 47278-14010 |
| 47280 | Brake master cylinder outlet check valve assembly | 47280-12020 · 47280-12030 · 47280-20020 · 47280-30030 |
| 47280A | compression spring | 90501-10698 |
| 47290 | Master pump outlet valve assembly (for rear side) | 47280-20020 · 47280-30030 |
| 47299 | Brake master cylinder reservoir filter | 47299-20010 · 47299-20020 |
| 47299R | Rear master cylinder reservoir filter | 47299-20010 · 47299-20020 |
