Toyota COROLLA Brake Pedal & Bracket — Figure 4701

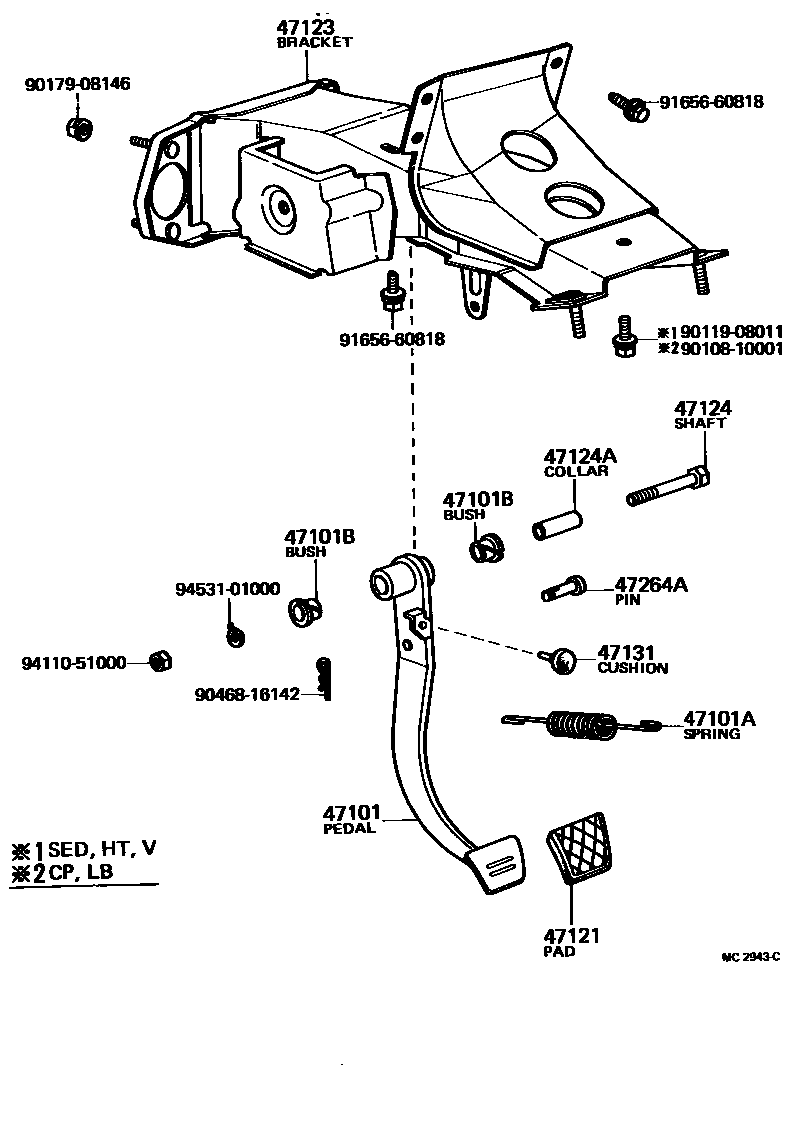

Toyota COROLLA EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-12160 · 47101-12170 · 47101-12180 · 47101-12190 · 47101-12200 · 47101-12210 |
| 47101A | Spring (for brake pedal return) | 90506-16455 |
| 47101B | Bushing (for brake pedal) | 90386-13007 |
| 47121 | brake pedal pad | 31321-12030 · 47121-12020 |
| 47123 | brake pedal bracket | 55106-12140 · 55106-12150 · 55106-12160 · 55106-12170 · 55106-12171 · 55106-12180 · 55106-12181 · 55106-12190 · 55106-12191 · 55106-12200 · 55106-12230 · 55106-12240 · 55106-12241 · 55106-12250 · 55106-12251 · 55106-12260 · 55106-12261 |
| 47124 | brake pedal shaft | 90101-10015 · 90101-10039 · 90101-10043 |
| 47124A | Collar (for brake pedal shaft) | 90387-10002 · 90387-10003 |
| 47131 | Bump pad (for brake light switch) | 90541-06008 |
| 47264A | Pin (for push rod) | 90249-10064 |
