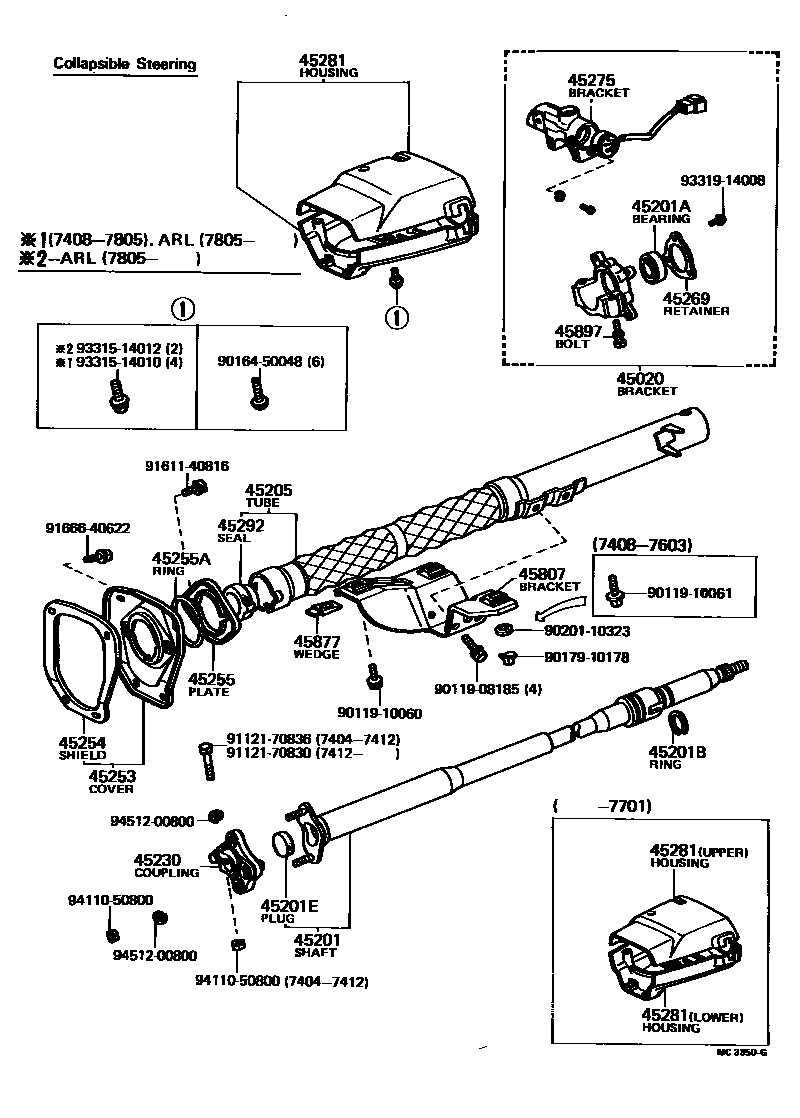

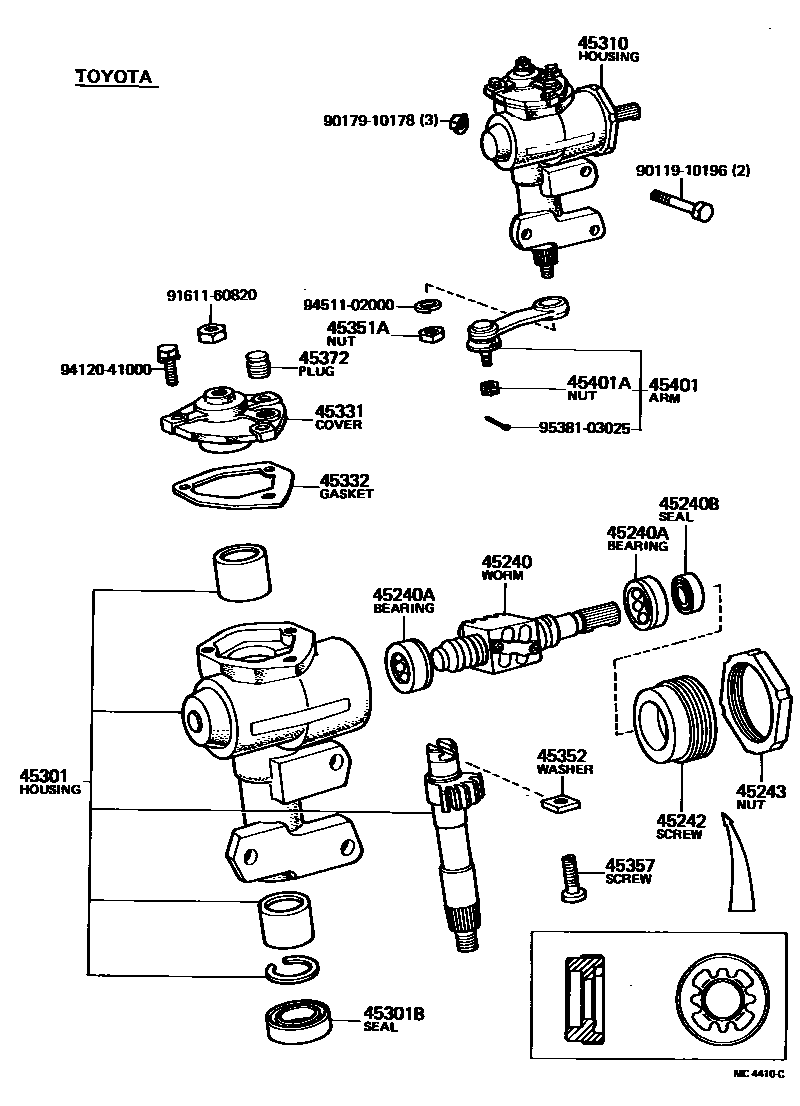

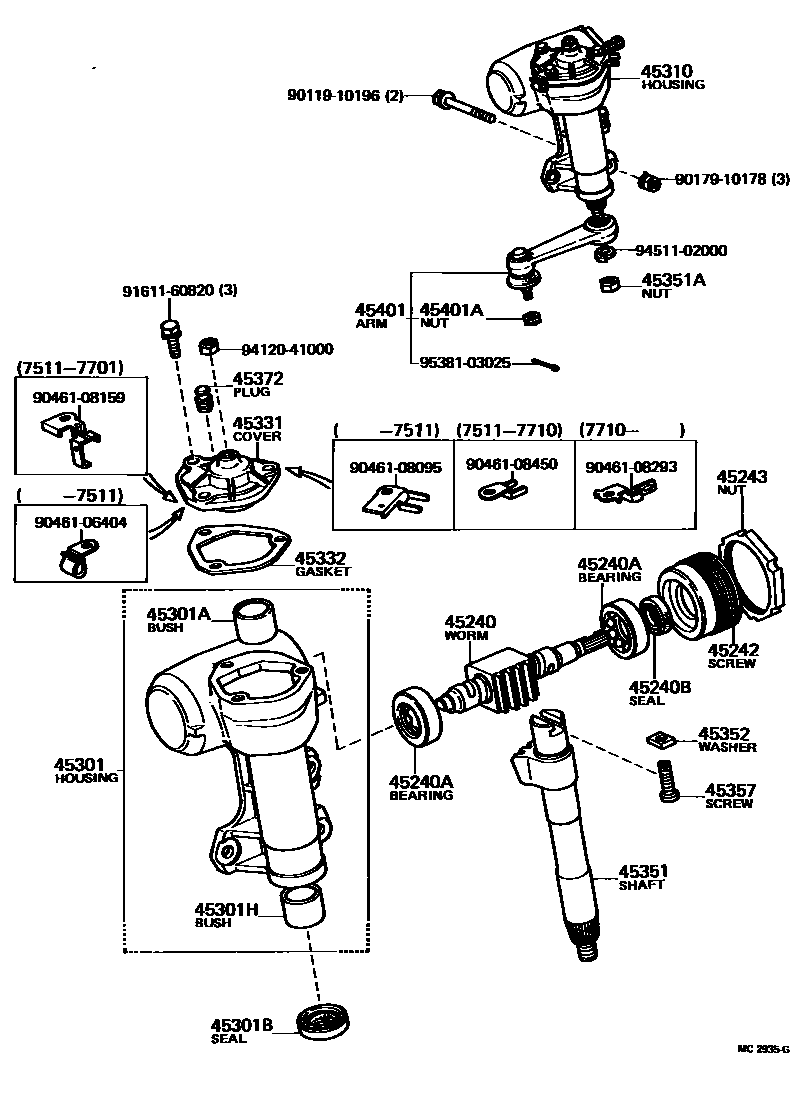

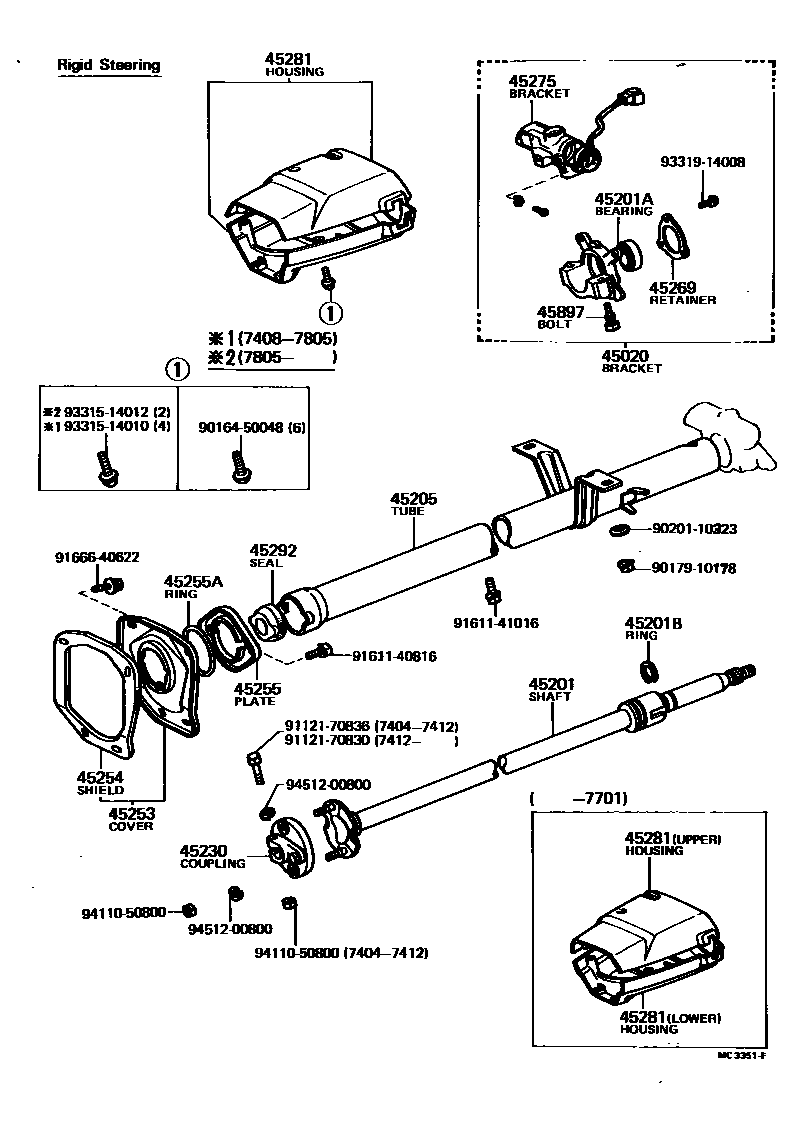

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 7 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020 | Steering column upper bracket assembly with switch | 45020-12100 · 45020-12110 · 45020-12111 · 45020-14020 |
| 45201 | Steering spindle sub-assembly | 45201-13030 · 45201-13031 · 45210-12050 · 45210-12051 |
| 45201A | Bearings (for steering spindle) | 90363-18038 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17196 |
| 45201E | Plate screw plug (for steering spindle) | 90333-21008 |
| 45205 | Steering column tube sub-assembly | 45205-13010 · 45870-12050 · 45870-12051 |
| 45230 | Flexible coupling assembly | 45230-12020 · 45230-14020 · 45230-20010 · 45230-20020 · 45230-22010 |
| 45240 | Steering worm assembly | 45240-12010 · 45240-12020 · 45240-12030 · 45240-12040 · 45240-12130 · 45240-14010 · 45240-22010 |
| 45240A | Bearings (for steering worm) | 90369-40018 · 90369-40037 · 90369-40059 |
| 45240B | Oil seal (for steering worm) | 90311-17062 · 90311-17092 |
| 45242 | Worm bearing adjustment screw | 45242-12040 · 45242-12041 · 45242-22020 |
| 45242A | O-ring (for worm bearing adjustment screw) | 90301-53181 |
| 45243 | Worm bearing adjustment screw lock nut | 45243-22020 |
| 45253 | Steering column hole cover | 45025-12010 · 45025-12020 |
| 45254 | steering column escutcheon | 45254-12010 |
| 45255 | Steering column hole cover | 45255-12020 |
| 45255A | Seal or O-ring (for steering column clamp) | 90301-45202 |
| 45269 | Spindle bearing retainer | 45269-20010 · 45269-35010 |
| 45275 | Steering column upper bracket | 45307-12040 |
| 45281 | Steering column housing | 45286-12070 · 45286-12071 · 45286-12072 · 45286-12080 · 45286-12081 · 45286-12082 · 45286-12918 · 45286-12919 · 45287-12060 · 45287-12061 · 45287-12062 · 45287-12070 · 45287-12071 · 45287-12072 |
| 45292 | Dust-proof sealing ring under spindle | 45292-14030 · 45292-20020 · 45292-20030 |
| 45301 | Steering housing sub-assembly | 45301-12140 · 45301-12150 · 45301-12160 · 45301-12170 · 45301-12180 · 45301-12181 · 45301-12190 · 45301-14060 |
| 45301A | No. 1 sector gear shaft bushing or bearing | 90999-73008 |
| 45301B | Oil seal (for sector gear shaft) | 90310-28014 · 90310-28027 |
| 45301H | No. 2 sector gear shaft bushing or bearing | 90999-73008 |
| 45310 | Steering housing assembly | 45310-12120 · 45310-12121 · 45310-12130 · 45310-12131 · 45310-12140 · 45310-12150 · 45310-12151 · 45310-12160 · 45310-12170 · 45310-14070 |
| 45331 | Sector gear shaft end cover | 45304-12010 · 45304-12020 · 45304-14020 · 45304-20020 · 45304-20040 · 45304-22020 |
| 45332 | Sector gear shaft end cover gasket | 45332-12030 · 45332-22020 |
| 45351 | Steering sector gear shaft | 45351-12040 · 45351-12130 |
| 45351A | Hexagonal nut (used to fix the sector gear shaft to the steering rocker arm) | 90170-20147 |
| 45352 | Sector gear shaft thrust washer | 45352-12010 · 45352-12020 · 45352-12030 · 45352-12040 · 45352-12050 · 45352-12060 · 45352-14010 · 45352-14020 · 45352-14030 · 45352-14040 · 45352-14050 · 45352-14060 |
| 45357 | Sector gear shaft adjustment screw | 45357-12010 · 45357-30040 |
| 45372 | Steering case oil plug | 90930-03027 |
| 45401 | Steering rocker arm sub-assembly | 45401-19085 · 45401-19095 · 45401-19105 · 45401-19115 |
| 45401A | Castle nut (for steering rocker arm) | 90171-12028 |
| 45807 | Steering column upper bracket sub-assembly | 45807-12060 · 45807-12061 |
| 45877 | Caster angle adjustment wedge (used to secure the steering column tube) | 45877-12010 · 45877-30010 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
