Toyota COROLLA Propeller Shaft & Universal Joint — Figure 3701

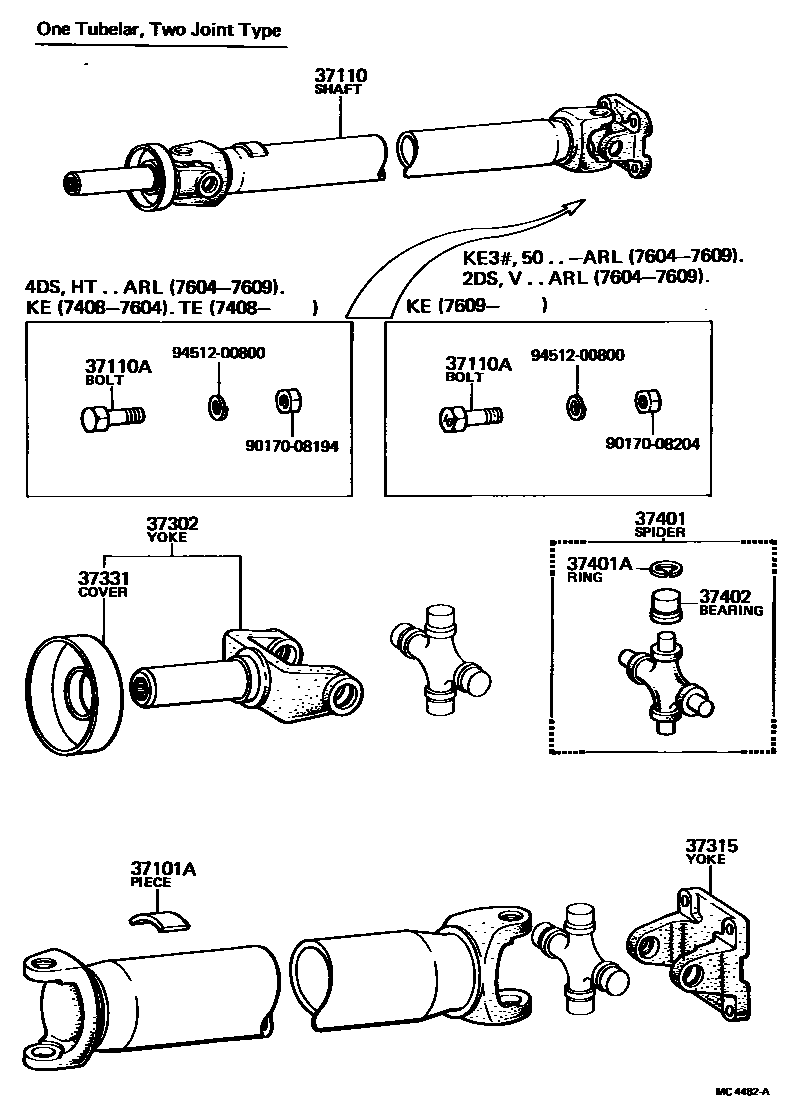

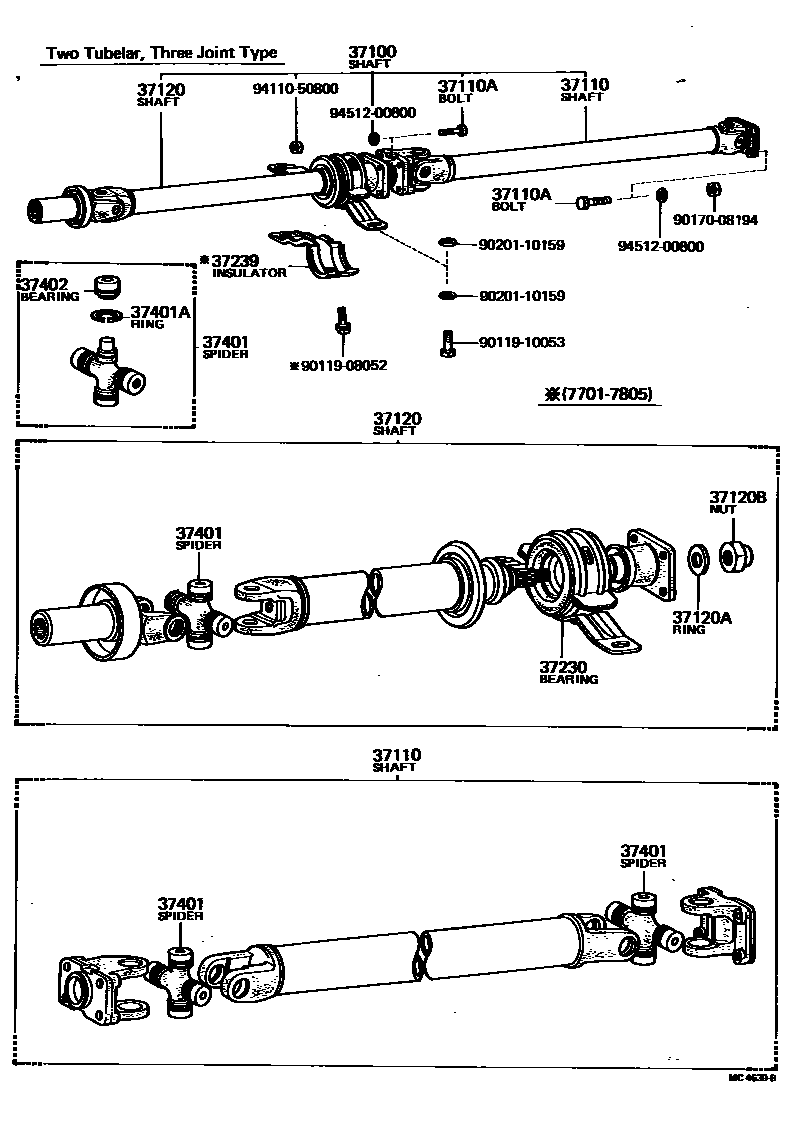

Toyota COROLLA EPC diagram 3701, Propeller Shaft & Universal Joint, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 37100 | Drive shaft assembly with central bearing | 37100-12020 · 37100-12030 · 37100-12040 |
| 37101A | Balance weight No. 1 (for drive shaft) | 90937-01132 · 90937-01136 · 90937-01140 · 90937-01147 · 90937-01148 · 90937-01149 · 90937-01150 · 90937-01151 · 90937-01152 · 90937-01153 · 90937-01154 · 90937-01155 · 90937-01156 · 90937-01157 · 90937-01158 |
| 37110 | Drive shaft assembly | 37110-12090 · 37110-12100 · 37110-12110 · 37110-12120 · 37110-12130 · 37110-12180 · 37110-12220 · 37110-12230 · 37110-12240 · 37110-12260 |
| 37110A | Bolt (for drive shaft) | 90101-08018 · 90101-08214 · 90101-08262 · 90101-08318 |
| 37120 | Intermediate drive shaft assembly | 37120-12020 · 37120-12030 |
| 37120A | Flat Washer (for intermediate drive shaft assembly) | 90201-18182 |
| 37120B | Nut (for fixing the intermediate drive shaft) | 90179-18060 |
| 37230 | No. 1 intermediate support bearing assembly | 37230-12020 · 37230-12021 |
| 37239 | Intermediate support bearing heat insulation pad | 37239-12010 |
| 37302 | Universal joint fork assembly | 37302-12011 · 37302-14010 · 37302-20040 |
| 37315 | Universal joint flange fork | 37315-12010 · 37315-20020 |
| 37331 | Sliding shaft dust cover | 37331-12010 · 37331-30010 |
| 37401 | Universal joint cross shaft assembly | 04371-10011 · 04371-22010 |
| 37401A | Hole snap ring (for cross shaft bearings) | 90521-22011 · 90521-22012 · 90521-22013 · 90521-29070 · 90521-29071 · 90521-29072 · 90521-29073 |
| 37402 | Universal joint cross shaft bearing sub-assembly | 37402-10020 · 37402-22020 |
