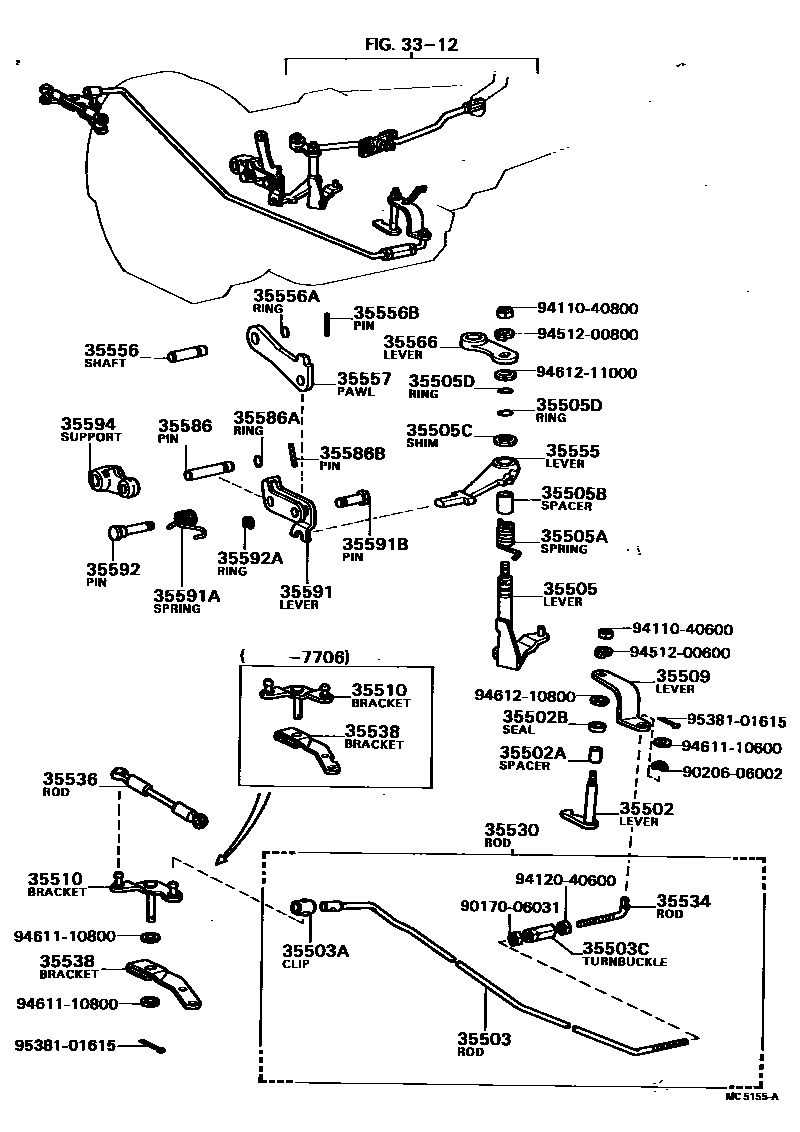

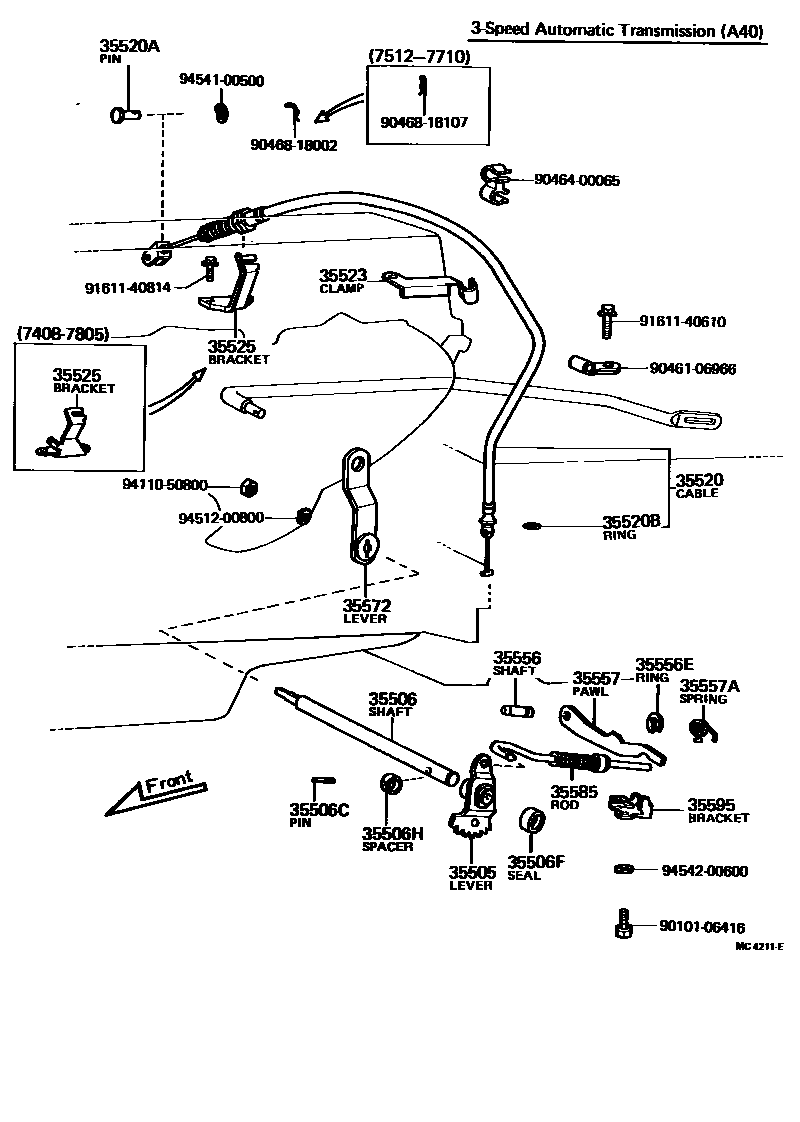

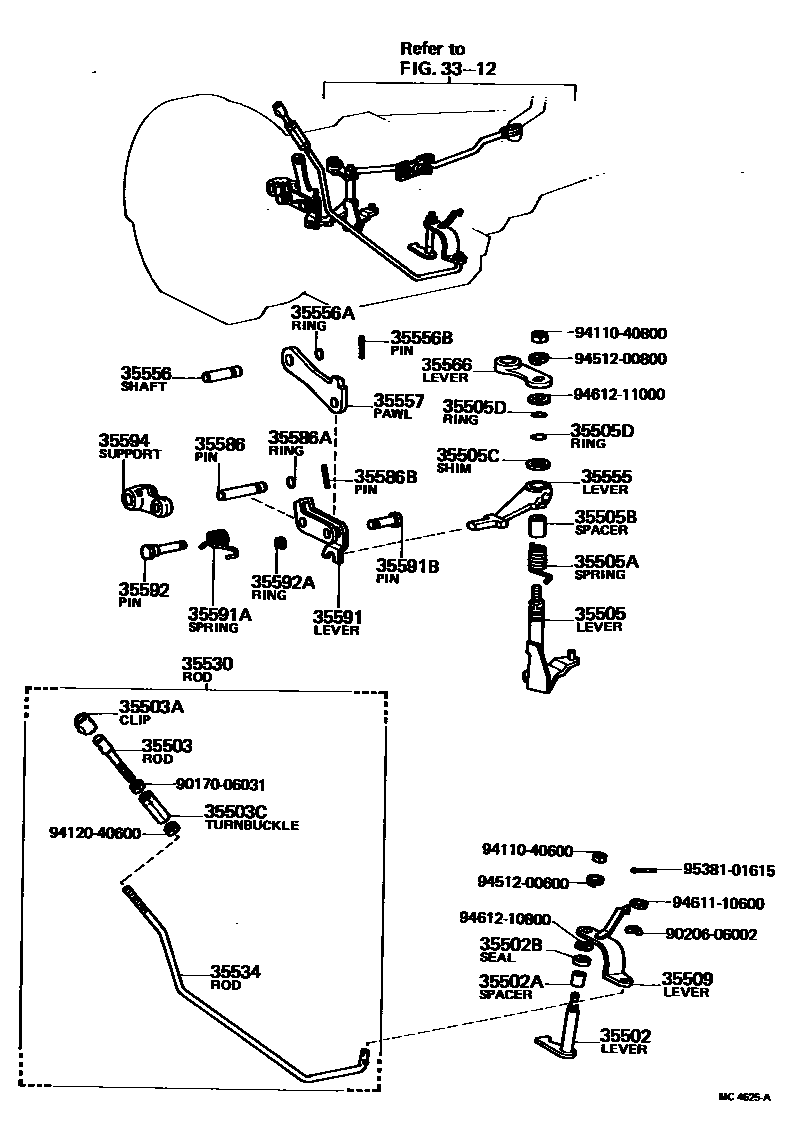

Toyota COROLLA 节气阀连杆和阀杆(ATM) — Figure 3513
Toyota COROLLA EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 3 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35502 | Throttle valve stem sub-assembly | 35502-12010 |
| 35502A | Spacer (for throttle stem) | 90560-09222 |
| 35502B | K-type oil seal (for throttle stem) | 90313-08004 |
| 35503 | Throttle valve stem first gear connecting rod sub-assembly | 35503-12010 · 35503-12021 · 35503-12030 |
| 35503A | Clamp (for throttle stem connecting rod) | 78197-10010 |
| 35503C | Turnbuckle (for throttle stem linkage) | 90587-06001 |
| 35505 | Manual valve stem sub-assembly | 35505-12010 · 35505-22010 |
| 35505A | Torsion spring (for manual valve stem) | 90508-29099 |
| 35505B | Spacer (for manual valve stem) | 90560-11221 |
| 35505C | Gasket (for manual valve stem) | 90564-11111 |
| 35505D | O-ring (for manual valve stem) | 90301-07099 |
| 35506 | Manual valve stem shaft sub-assembly | 35561-20021 |
| 35506C | Slotted spring pin (for manual valve stem shaft) | 90254-03004 · 90254-03044 |
| 35506F | Oil seal (for manual valve stem shaft) | 90311-11128 |
| 35506H | Spacer (for manual valve stem shaft) | 90560-20003 |
| 35509 | Throttle valve outer rod sub-assembly | 35509-12010 |
| 35510 | No. 2 throttle stem right-angle lever bracket assembly | 35055-12012 · 35055-12020 |
| 35520 | Throttle valve cable assembly | 35520-12032 · 35520-12050 · 35520-14020 |
| 35520A | Throttle valve cable pin | 90240-05139 |
| 35520B | O-ring (for throttle valve cable) | 90301-09063 |
| 35523 | Throttle valve cable clamp | 35523-12021 · 35523-12022 |
| 35525 | Throttle valve cable bracket | 35525-12031 · 35525-12040 |
| 35530 | Throttle valve rod connecting rod assembly | 35530-12020 · 35530-12031 · 35530-12050 |
| 35534 | Throttle valve rod first gear connecting rod | 35535-12020 · 35535-12031 |
| 35536 | Throttle valve stem third gear connecting rod | 35536-12010 |
| 35538 | No. 1 throttle valve connecting rod right angle lever bracket | 35538-12022 · 35538-12030 |
| 35555 | Toggle joystick | 35555-12010 |
| 35556 | Parking lock pawl shaft | 35556-12011 · 35556-22010 |
| 35556A | O-ring (for parking lock pawl shaft) | 90301-07099 |
| 35556B | Slotted spring pin (for parking pawl shaft) | 90254-03009 |
| 35556E | E-ring (for parking lock pawl shaft) | 90523-08021 |
| 35557 | Parking pawl | 35557-12010 · 35557-22010 |
| 35557A | Torsion spring (for parking pawl) | 90508-25329 |
| 35566 | Manual valve external control lever | 35566-12010 |
| 35572 | Transmission right control lever | 35572-12020 |
| 35585 | Parking lock lever | 35501-22010 |
| 35586 | Toggle lever bracket pin | 35586-12010 |
| 35586A | O-ring (for toggle lever bracket pin) | 90301-05103 |
| 35586B | Toggle spring pin (for toggle lever bracket pin) | 90254-03010 |
| 35591 | toggle lever | 35591-12010 |
| 35591A | Torsion spring (for toggle lever) | 90508-10098 |
| 35591B | Pin (for toggle lever) | 90249-06021 |
| 35592 | Toggle lever pin | 35592-12010 |
| 35592A | E-ring (for toggle lever pin stop) | 96160-00400 |
| 35594 | Toggle rod bracket | 35594-12010 |
| 35595 | Parking lock pawl bracket | 35595-22010 |
