Toyota COROLLA 后油泵和调速器(ATM) — Figure 3511

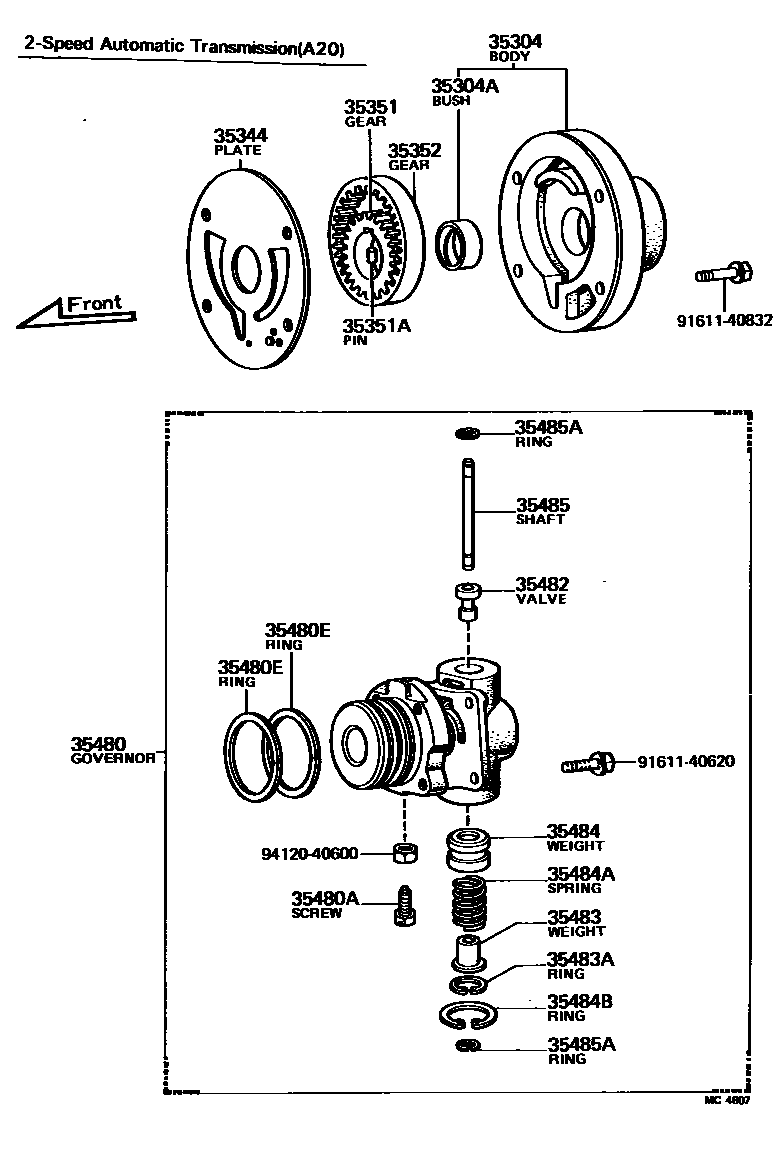

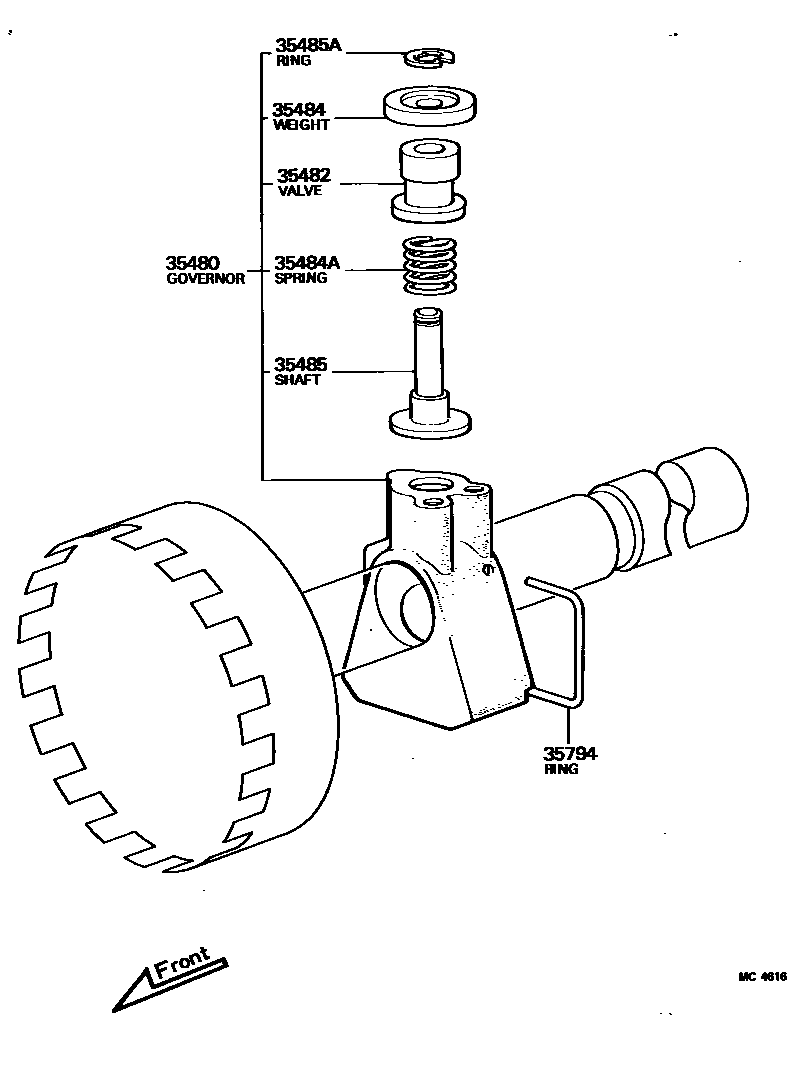

Toyota COROLLA EPC diagram 3511, 后油泵和调速器(ATM), with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35304 | Rear oil pump body sub-assembly | 35304-12010 |
| 35304A | Bimetal bushing (for rear oil pump body) | 90999-72019 |
| 35344 | Rear oil pump piece | 35305-12011 |
| 35351 | Rear oil pump driving gear | 35351-12010 |
| 35351A | Direct sales (for rear oil pump driving gear) | 90250-06133 |
| 35352 | Rear oil pump driven gear | 35352-31010 |
| 35480 | governor | 35480-19015 · 35480-22020 |
| 35480A | Screws (for governor body fixing bolts) | 90143-60017 |
| 35480E | Ring (for rear oil pump governor) | 35617-12010 |
| 35482 | governor valve | 35482-22010 · 35482-31010 |
| 35483 | Counterweight in speed regulator | 35483-31010 |
| 35483A | Hole snap ring (for counterweight in speed regulator) | 96151-01900 |
| 35484 | Speed regulator external weight | 35484-12010 · 35484-22010 |
| 35484A | Compression spring (for governor weight) | 90501-09673 · 90501-12200 |
| 35484B | Hole snap ring (for external counterweight of speed regulator) | 96151-02500 |
| 35485 | governor valve shaft | 35485-12010 · 35485-22010 |
| 35485A | E-ring (for governor valve shaft) | 90523-03007 · 90523-05020 |
| 35794 | governor retaining ring | 35794-22010 |
