Toyota COROLLA 制动带和多片式离合器(ATM) — Figure 3507

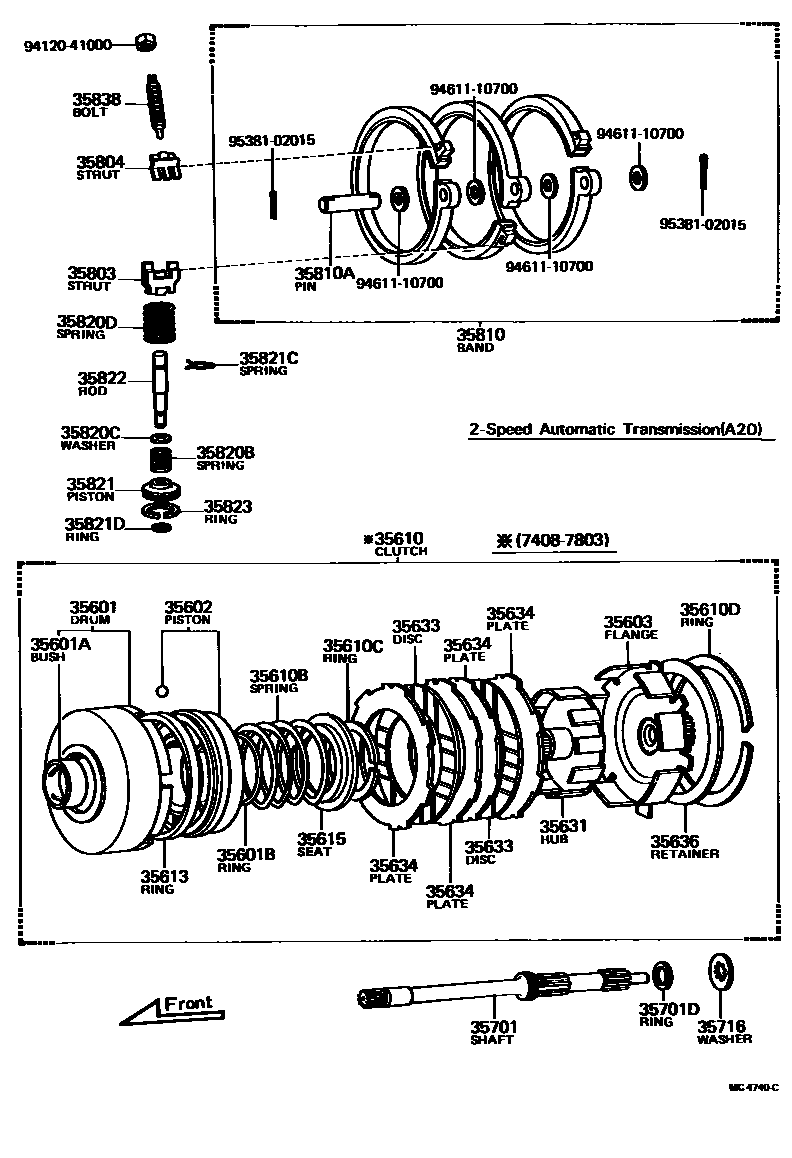

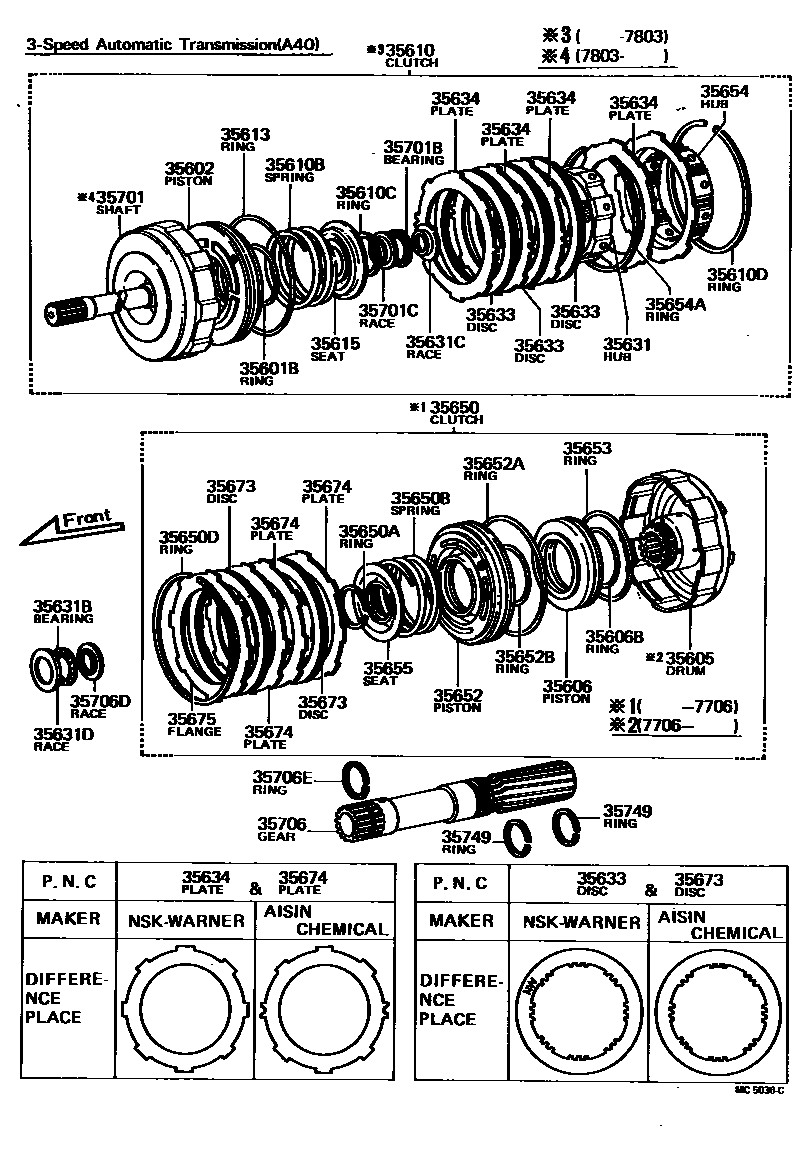

Toyota COROLLA EPC diagram 3507, 制动带和多片式离合器(ATM), with 2 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35601 | Clutch drum sub-assembly | 35601-12010 |
| 35601A | Bimetallic bushing (for clutch drum) | 90999-73038 |
| 35601B | O-ring (for front clutch drum) | 90301-47100 · 90301-57188 |
| 35602 | Front clutch piston sub-assembly | 35602-12011 · 35602-22010 |
| 35603 | Clutch flange sub-assembly with low speed sun gear | 35603-12010 |
| 35605 | Rear clutch drum sub-assembly with second gear sun gear | 35605-22010 |
| 35606 | Rear clutch piston sub-assembly | 35606-22010 |
| 35606B | Inner O-ring (for rear clutch piston) | 90301-57188 |
| 35610 | Front multi-plate clutch assembly | 35610-12010 · 35610-22010 |
| 35610B | Compression spring (for front clutch piston return) | 90501-55620 · 90501-60672 |
| 35610C | Shaft snap ring (for front clutch piston return spring) | 90520-39261 · 90520-52077 |
| 35610D | Hole snap ring (for front multi-plate clutch) | 90521-99093 · 90521-99139 |
| 35613 | Clutch piston outer oil ring | 35653-30010 · 90301-99192 |
| 35615 | Clutch piston return spring seat | 35615-12010 · 35615-22010 |
| 35616 | Clutch drum thrust washer | 35616-12011 |
| 35631 | Clutch hub (for multi-plate clutches) | 35631-12010 · 35631-12011 · 35631-22010 |
| 35631B | Thrust bearing (for front clutch hub) | 90374-28014 |
| 35631C | Front thrust bearing race (for front clutch hub) | 35789-22050 |
| 35631D | Rear thrust bearing race (for front clutch hub) | 35789-22020 |
| 35633 | Clutch disc (for front clutch) | 35633-12011 · 35677-22020 · 35677-22030 |
| 35634 | front clutch plate | 35634-12010 · 35634-22040 · 35634-22070 |
| 35636 | Clutch flange retainer | 35636-12010 |
| 35650 | Rear multi-plate clutch assembly | 35650-22010 |
| 35650A | Shaft snap ring (for rear clutch piston return spring) | 90520-39261 |
| 35650B | Compression spring (for rear clutch piston return) | 90501-60672 |
| 35650D | Hole snap ring (for rear multi-plate clutch) | 90521-99139 |
| 35652 | No. 2 rear clutch piston | 35602-22010 |
| 35652A | Outer O-ring (for rear clutch) | 90301-99192 |
| 35652B | Inner O-ring (for rear clutch piston) | 90301-57188 |
| 35653 | Rear clutch outer oil ring | 90301-84184 |
| 35654 | rear clutch hub | 35654-22010 |
| 35654A | Hole snap ring (for rear clutch hub) | 90521-99146 |
| 35655 | Rear clutch piston return spring seat | 35615-22010 |
| 35673 | rear clutch disc | 35677-22020 · 35677-22030 |
| 35674 | rear clutch plate | 35634-22040 · 35634-22070 |
| 35675 | rear clutch flange | 35675-22010 |
| 35701 | Input shaft sub-assembly | 35701-22010 · 35711-12010 |
| 35701B | Rear thrust needle roller bearing (for input shaft) | 90374-23012 |
| 35701C | Rear thrust bearing race (for input shaft) | 35789-22010 |
| 35701D | Ring (for input shaft) | 35712-12010 |
| 35706 | Planetary gear train sun gear sub-assembly | 35706-20010 · 35706-22010 |
| 35706D | Front thrust bearing race (for sun gear) | 35789-22030 |
| 35706E | Front axle snap ring (for sun gear) | 90520-34260 |
| 35716 | No. 1 low speed sun gear thrust washer | 35716-12010 · 35717-12010 |
| 35749 | Sun gear shaft oil ring | 35749-22010 |
| 35803 | Low speed brake belt oil supply spool sub-assembly | 35803-12010 |
| 35804 | Low speed brake belt anchor slider sub-assembly | 35804-12011 |
| 35810 | Transmission brake band assembly (for front) | 35810-12013 |
| 35810A | Straight pin with hole (for brake band) | 90255-07008 |
| 35820B | Internal compression spring (for low-speed servo piston) | 90501-26317 |
| 35820C | Flat washer (for low-speed assist piston return spring) | 90201-08255 |
| 35820D | Compression spring (for low-speed assist piston return) | 90501-26318 |
| 35821 | Low speed assist piston | 35821-20010 |
| 35821C | Low speed gear assist piston spring lock retainer spring | 90524-08010 |
| 35821D | Locking E-ring (for low-speed power assist piston spring) | 96160-00400 |
| 35822 | Low gear assist piston rod | 35822-12010 |
| 35823 | Booster piston ring | 35823-20010 |
| 35838 | Brake strap anchor bolt | 35838-12010 |
