Toyota COROLLA 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501

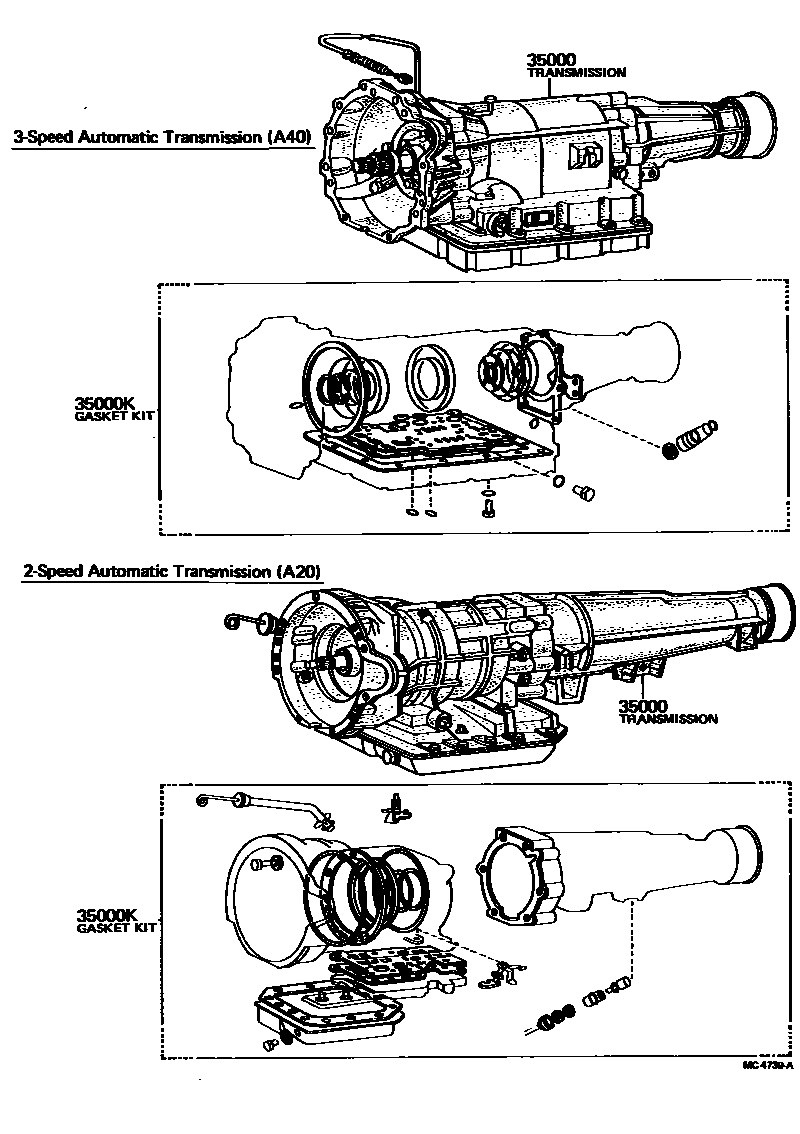

Toyota COROLLA EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35000 | Automatic transmission assembly | 35000-12080 · 35000-12081 · 35000-12120 · 35000-12150 · 35000-12190 · 35000-12200 · 35000-12220 · 35000-12230 · 35000-12270 · 35000-12280 · 35000-12290 · 35000-12300 · 35000-12301 · 35000-12310 · 35000-12380 · 35000-12420 · 35000-12430 · 35000-12462 |
| 35000K | Automatic transmission overhaul gasket assembly | 04351-12011 · 04351-22010 · 04351-22020 |
