Toyota COROLLA Shift Lever & Retainer — Figure 3312

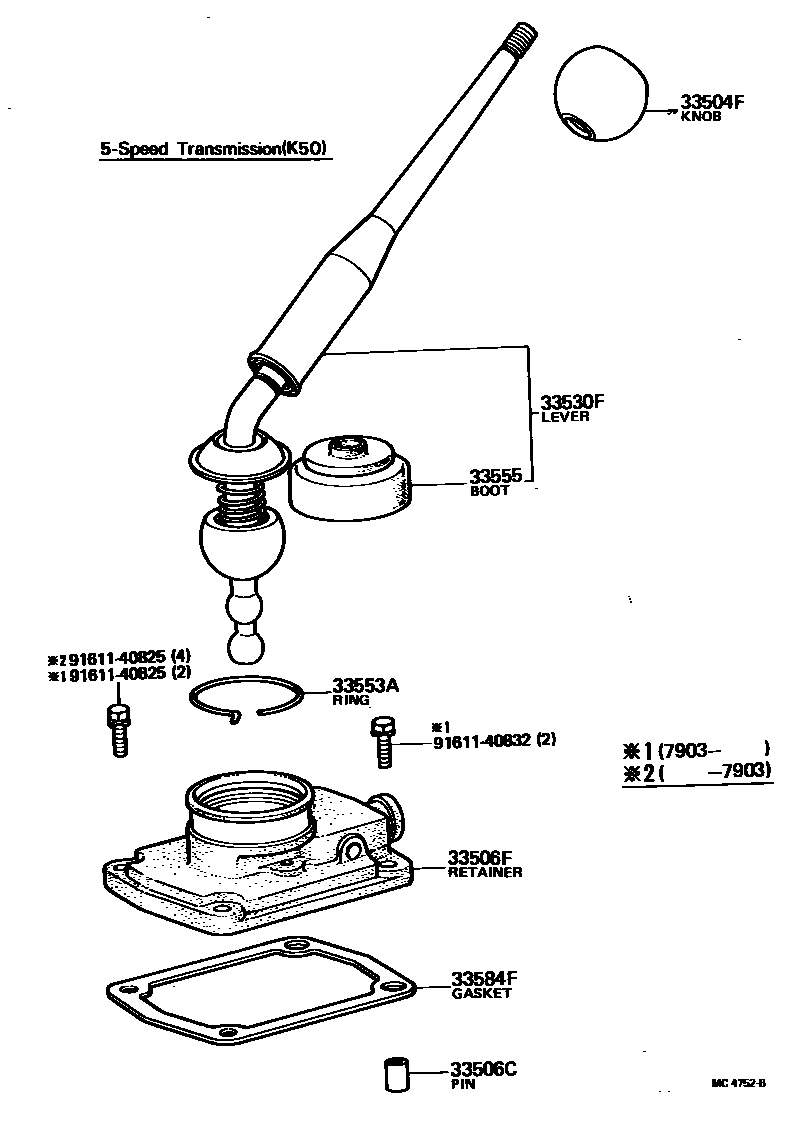

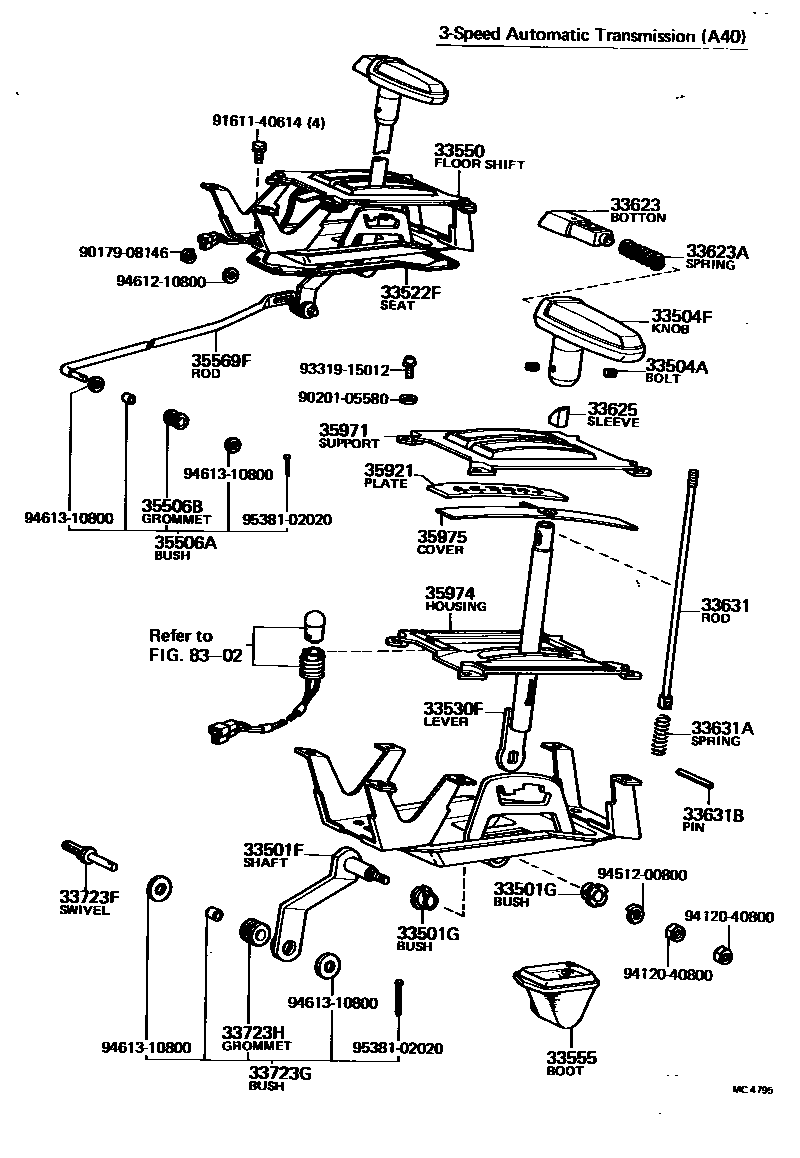

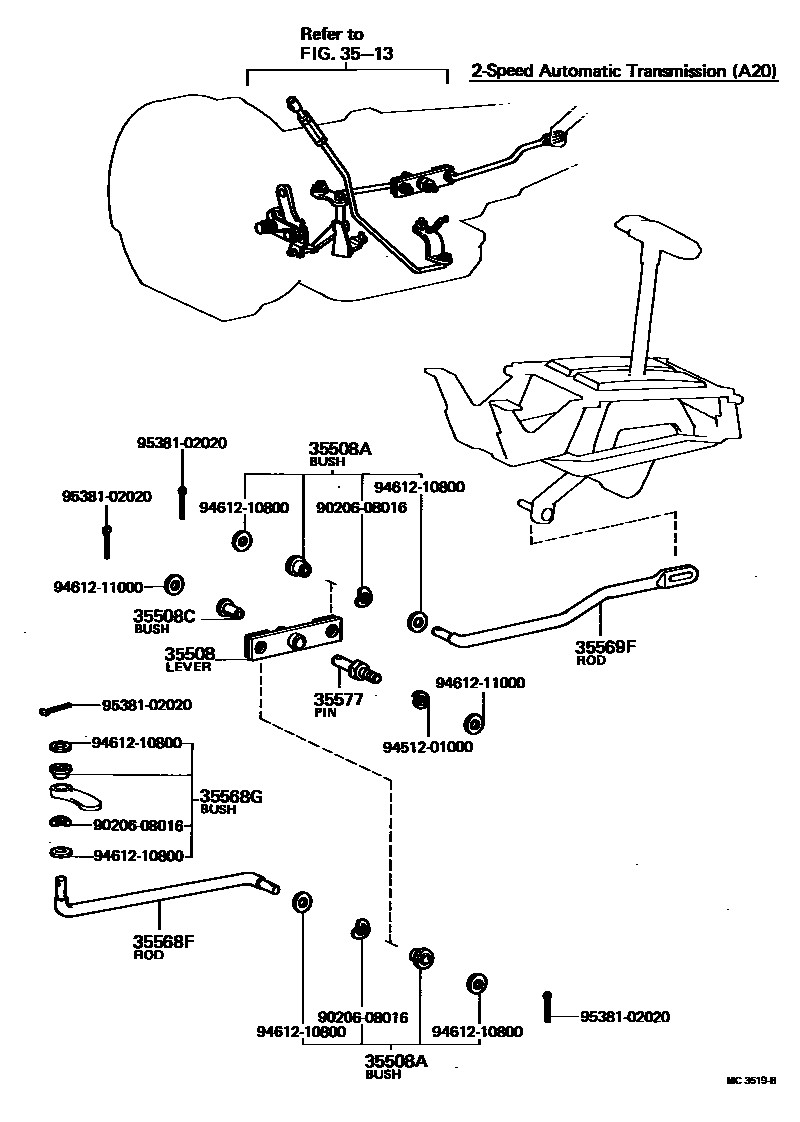

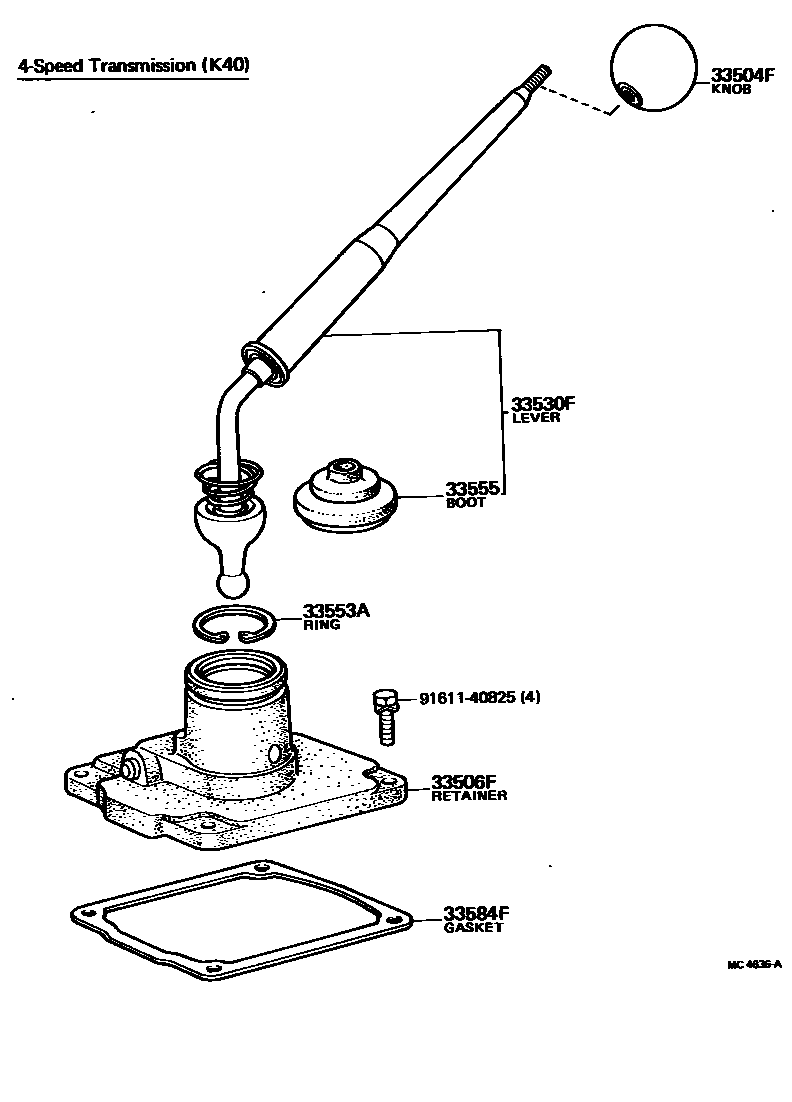

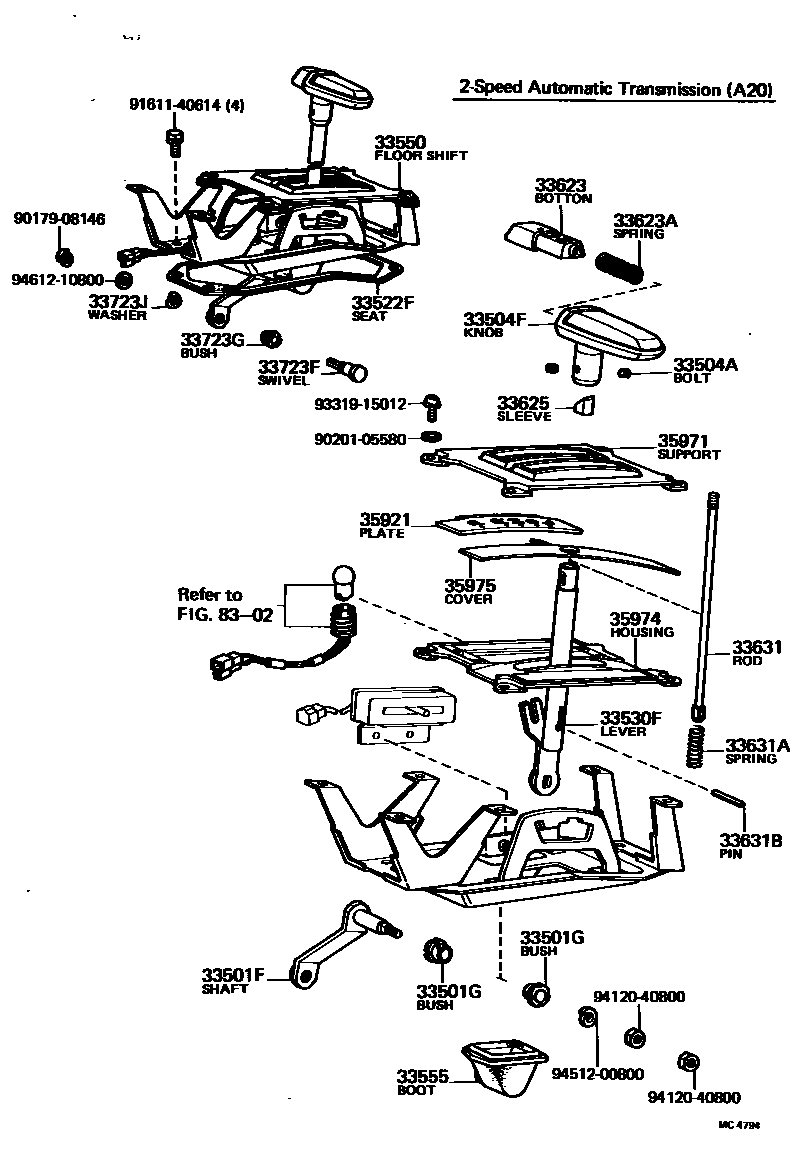

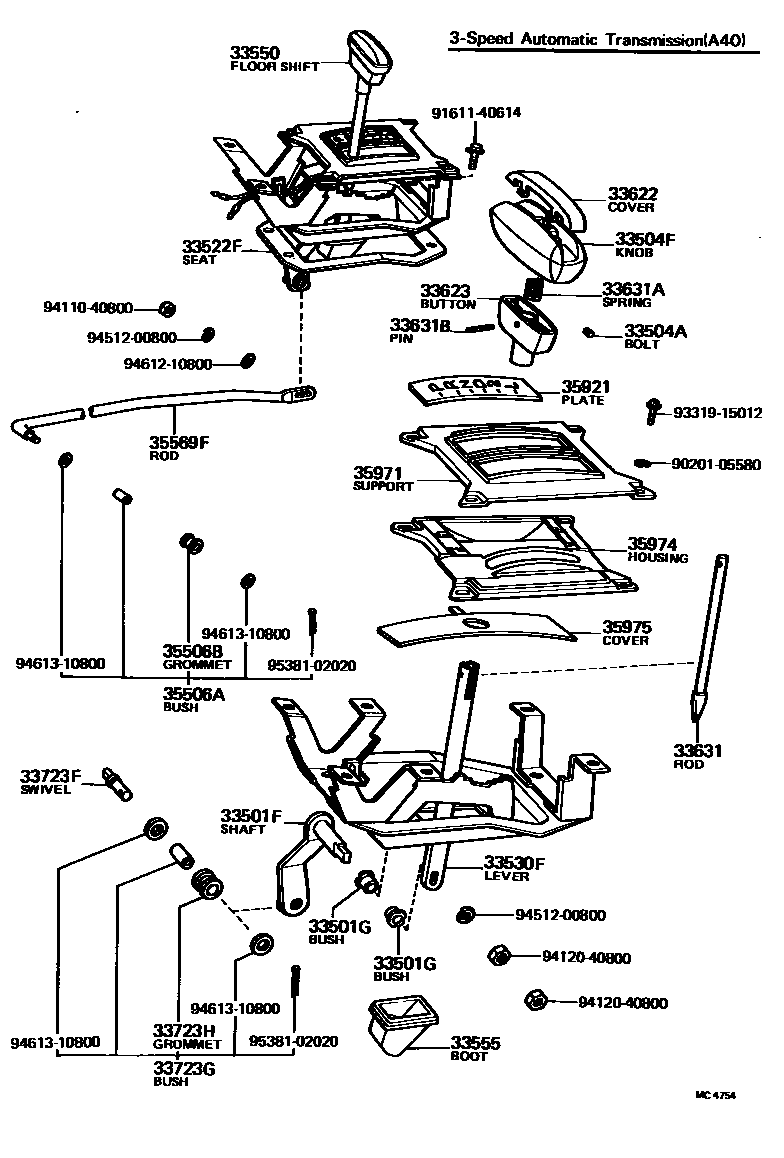

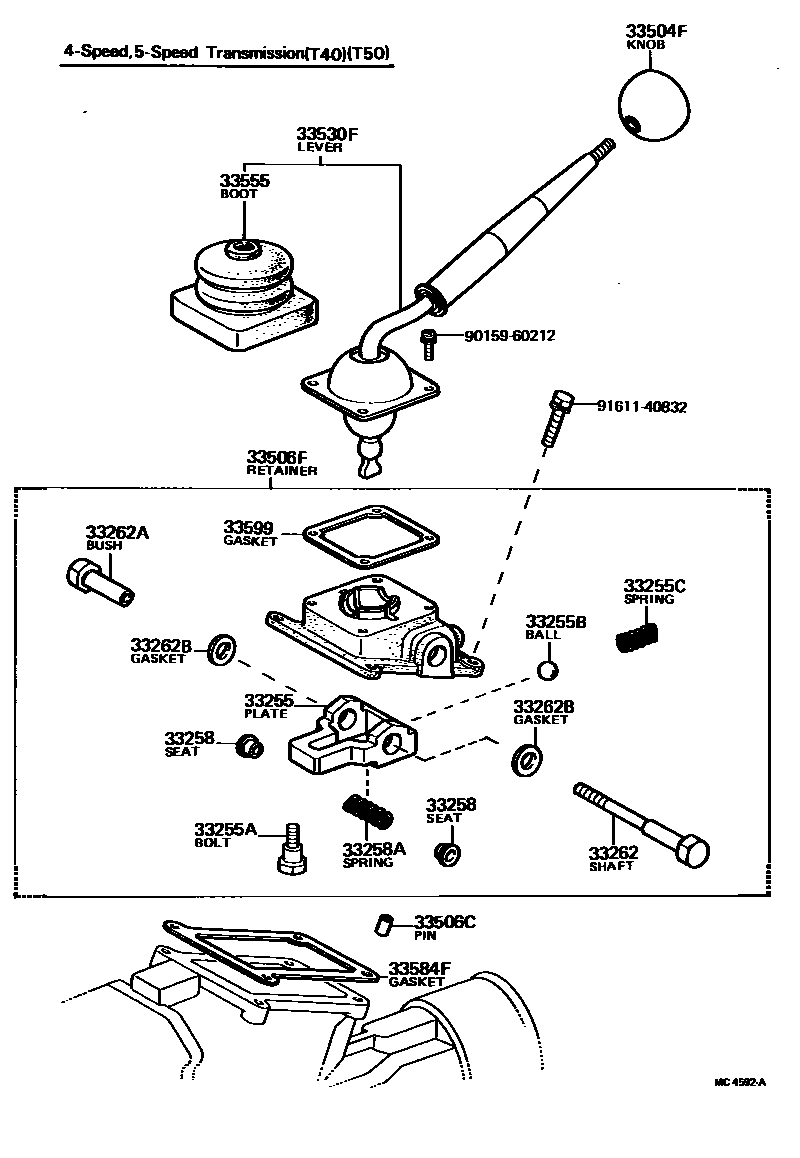

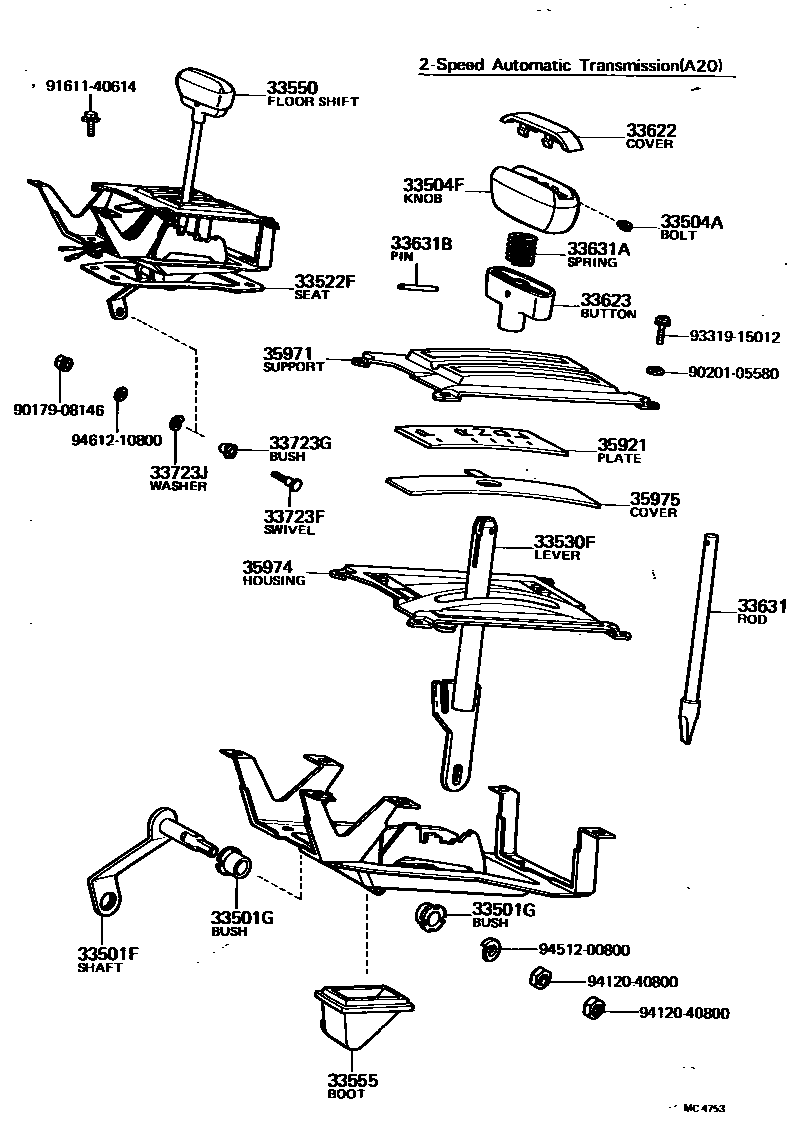

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 8 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33255 | Gear selector return plate | 33255-14011 |
| 33255A | Gear selector return plate fixing bolt | 33267-14010 |
| 33255B | Gear selector return plate steel ball | 90360-10003 |
| 33255C | Gear selector return plate steel ball spring | 90501-16041 |
| 33258 | Gear selector return spring seat | 33258-14010 |
| 33258A | Gear selector return spring | 90501-14583 |
| 33262 | Gear selector return shaft | 33262-14010 |
| 33262A | Gear selector return bushing | 33256-14010 |
| 33262B | Pad (for selector return shaft) | 90430-13201 |
| 33501F | Control shaft sub-assembly (for floor shift) | 33501-12070 · 33501-12071 · 33501-12080 · 33501-12081 · 33501-12090 |
| 33501G | Bushing (for floor mounted shift control shaft) | 90385-12043 · 90385-12044 · 90385-16045 |
| 33504A | Bolt or pin (to secure the shifter knob) | 90113-05034 |
| 33504F | Shift lever handle sub-assembly | 33504-10020 · 33504-10030 · 33504-12050 · 33504-12070 · 33504-12071 · 33504-12080 · 33504-12090 · 33504-12100 · 33504-12110 · 33504-14022 · 33504-22020 · 33542-12070 · 33542-12071 · 33542-12090 |
| 33506C | Shift lever stopper ring pin | 90253-11001 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-10011 · 33506-10020 · 33506-12040 · 33506-14011 |
| 33522F | Shift lever base plate holder (for floor shift) | 33522-12040 |
| 33530F | Shift lever assembly (for floor shift) | 33503-12060 · 33503-12061 · 33503-12070 · 33503-12071 · 33503-12090 · 33503-12091 · 33503-12100 · 33503-12101 · 33530-12091 · 33530-12092 · 33530-12101 · 33530-12102 · 33530-12111 · 33530-12112 · 33530-12121 · 33530-12122 · 33530-12131 · 33530-12132 · 33530-12141 · 33530-12142 · 33530-12151 · 33530-12152 · 33530-12161 · 33530-12162 · 33530-12180 · 33530-12190 |
| 33550 | Transmission floor shift assembly | 33550-12070 · 33550-12071 · 33550-12080 · 33550-12081 · 33550-12082 · 33550-12090 · 33550-12092 · 33550-12093 · 33550-12100 · 33550-12101 · 33550-12120 · 33550-12121 · 33550-12123 |
| 33553A | Snap ring (for shift lever spring seat) | 90521-40124 · 90521-49001 |
| 33555 | Gear shift lever dust cover | 33555-10010 · 33555-12030 · 33555-12060 · 33555-12061 · 33555-14010 |
| 33584F | Shift lever stop pad (for floor shift) | 33584-10010 · 33584-12030 · 33584-14010 |
| 33599 | No. 2 shift lever stopper gasket | 33599-14010 |
| 33622 | No. 1 shift lever handle cover | 33622-12030 |
| 33623 | Shift lever handle button | 33623-12030 · 33623-12031 |
| 33623A | Compression spring (for shift lever knob button) | 90501-09009 |
| 33625 | Shift lever handle sleeve | 33625-22020 |
| 33631 | Locking lever | 33631-12040 · 33631-12041 |
| 33631A | Compression spring (for locking lever) | 90501-07005 · 90501-10564 |
| 33631B | Slotted spring pin (for locking lever) | 90254-02030 · 90254-04017 |
| 33723F | Connecting rod swivel joint (for floor shifting) | 33723-22010 · 33723-30030 |
| 33723G | Bushing (for floor mounted shift control shaft) | 90386-12101 · 90999-99017 |
| 33723H | Retaining ring (for floor mounted shift control shaft) | 90480-17177 |
| 33723J | Wave washer (for securing floor-mounted shift lever) | 90206-12013 |
| 35506A | Bushing (for manual valve stem shaft) | 90999-99017 |
| 35506B | Retaining ring (for manual valve stem shaft) | 90480-17177 |
| 35508 | Control lever joint rod sub-assembly | 35508-12020 |
| 35508A | Bushing (for control rod joint rod) | 90999-99001 |
| 35508C | Bushing (for control rod joint rod pin) | 90386-10011 |
| 35568F | Second gear shift lever | 35568-12010 |
| 35568G | Bushing (for second gear shift lever) | 90999-99001 |
| 35569F | Transmission first gear lever (for floor shift) | 33675-12020 · 33675-12021 · 35569-12030 · 35569-12040 |
| 35577 | Control lever joint lever pin | 35577-12010 |
| 35921 | control position indicator board | 35921-12060 · 35921-12061 · 35921-12070 · 35921-12071 · 35921-12080 · 35921-12081 · 35921-12090 · 35921-12091 |
| 35971 | position indicator bracket | 35971-12040 |
| 35974 | Position indicator light lower shell | 35974-12030 |
| 35975 | Slide cover (for position indicator light) | 35975-12050 · 35975-12051 · 35975-12060 |
