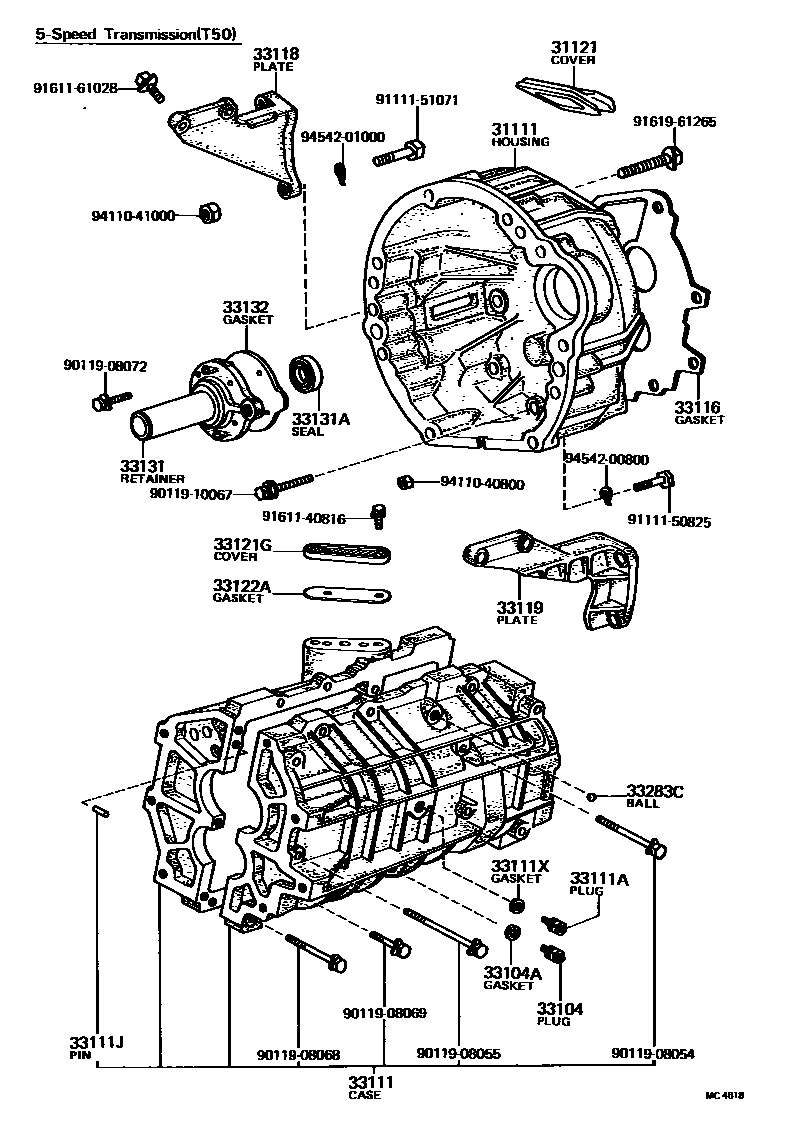

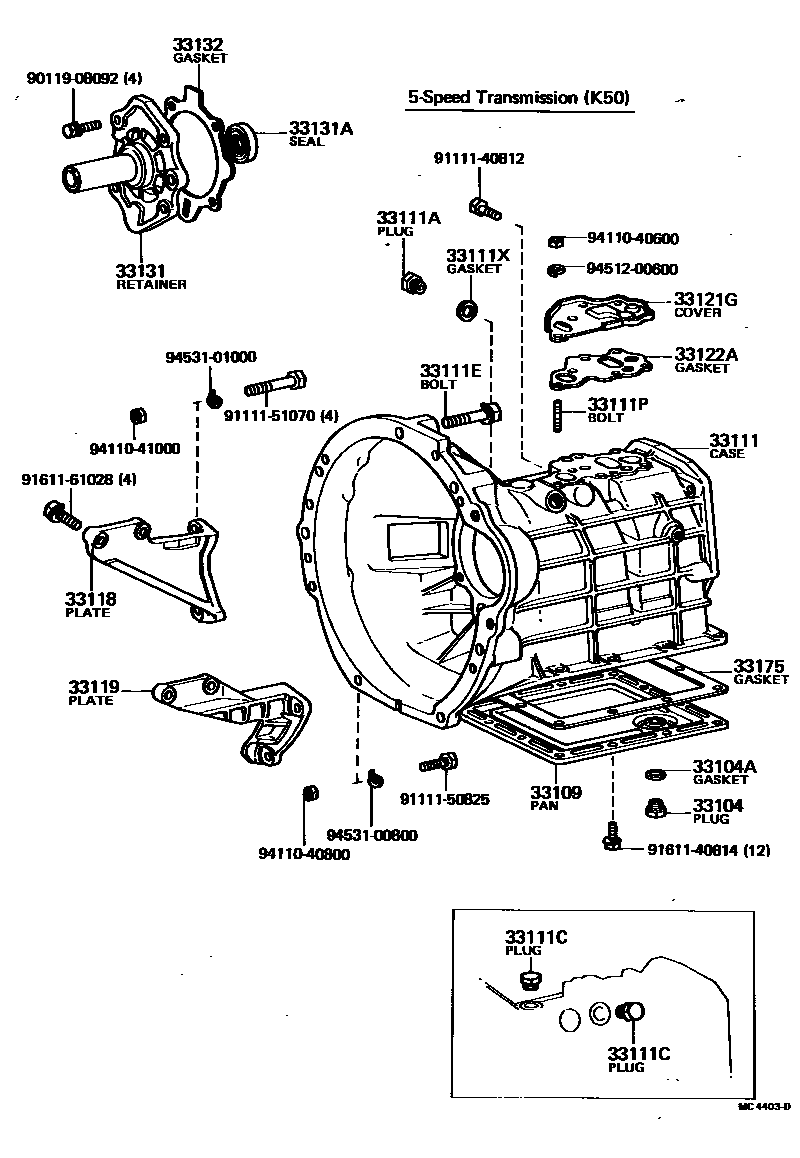

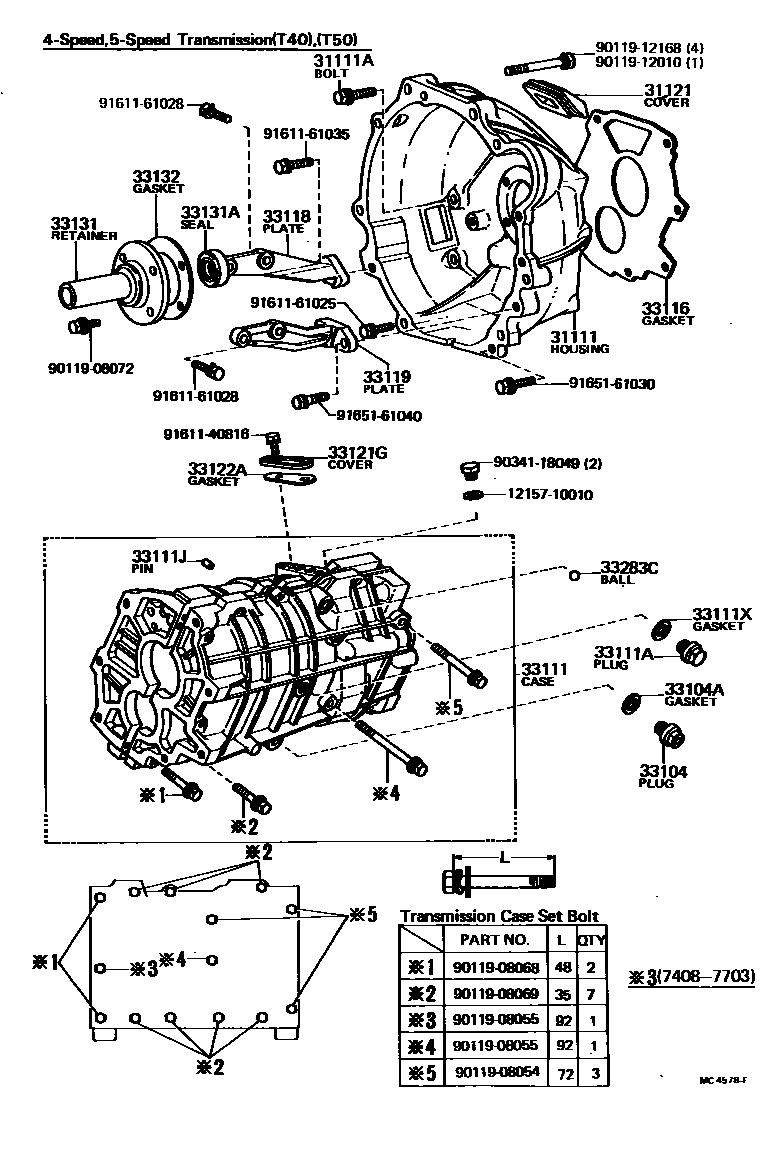

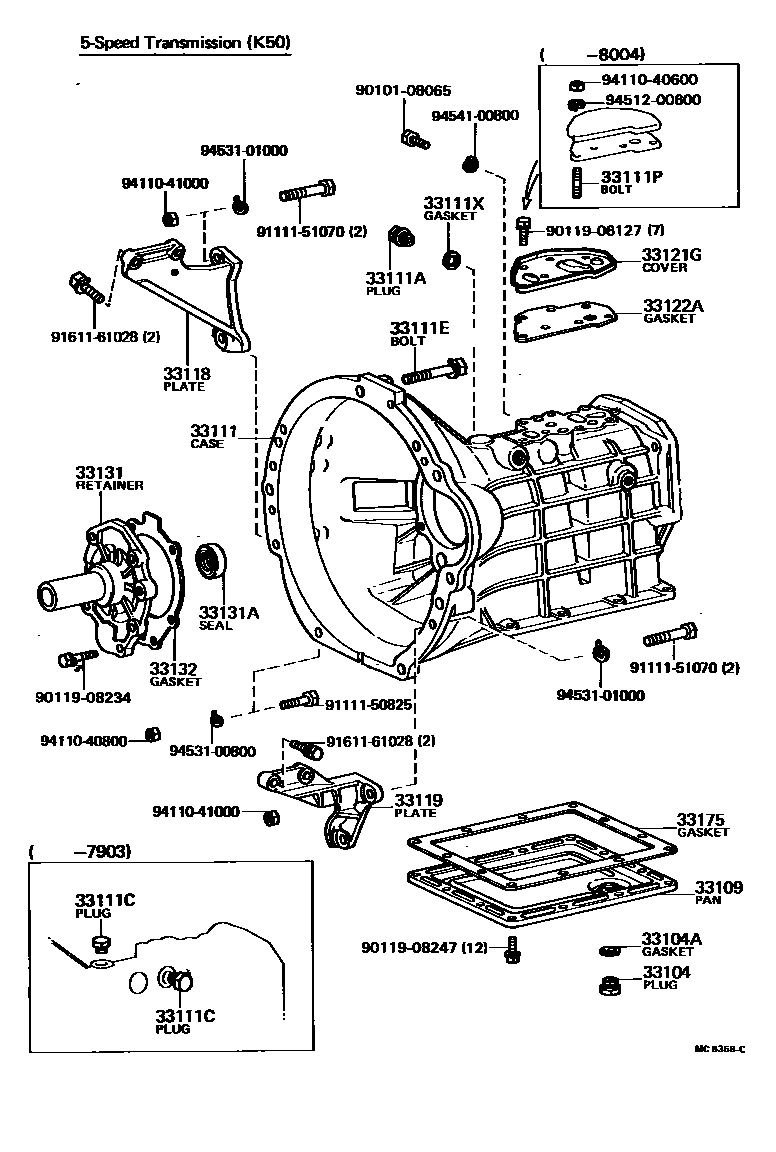

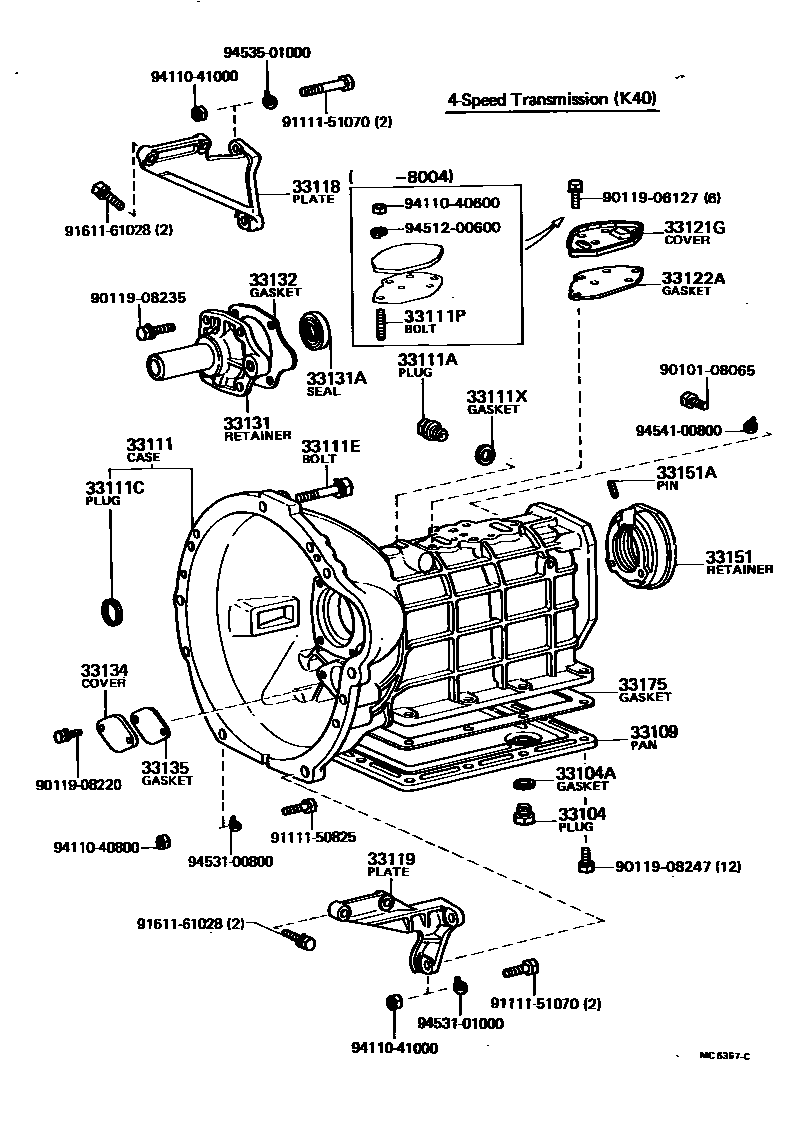

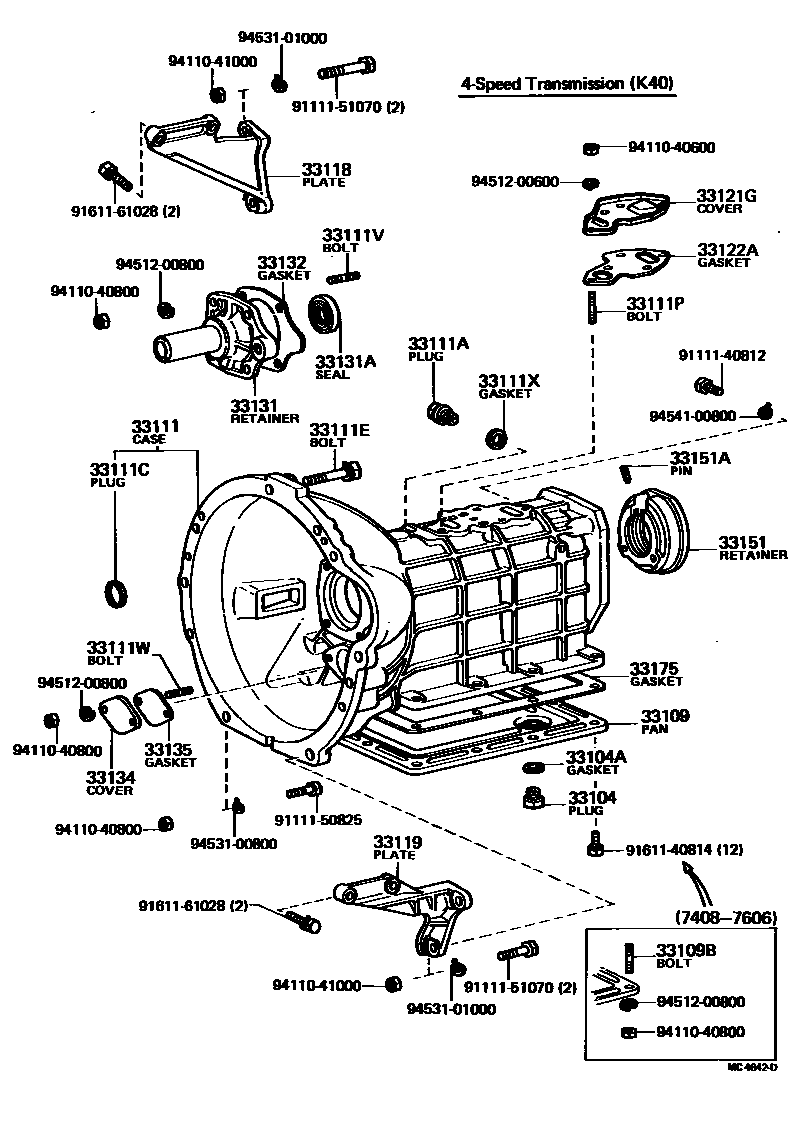

Toyota COROLLA 离合器壳和变速器壳(MTM) — Figure 3302
Toyota COROLLA EPC diagram 3302, 离合器壳和变速器壳(MTM), with 6 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31111 | clutch housing | 31111-12010 · 31111-14010 · 31111-14040 |
| 31111A | Bolts (for securing clutch housing and gearbox) | 90119-10052 · 90119-10067 |
| 31121 | No. 1 clutch housing cover | 31121-14010 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18057 · 90341-18081 |
| 33104A | Drain plug gasket (MTM) | 12157-10010 |
| 33109 | Transmission oil pan sub-assembly (MTM) | 33109-12011 |
| 33109B | Bolt (for securing manual transmission oil pan) | 90116-08039 |
| 33111 | Manual transmission housing | 33101-12040 · 33101-12060 · 33101-12080 · 33101-12100 · 33101-12110 · 33101-12120 · 33101-14011 · 33101-14020 · 33101-14030 · 33111-10031 · 33111-10032 · 33111-10040 · 33111-12110 · 33111-12130 · 33111-12131 |
| 33111A | Manual transmission plug | 90341-18002 |
| 33111C | Screw plug (for gearbox) | 90341-18049 · 96411-11400 |
| 33111E | Bolts (for securing gearbox and engine) | 90119-12004 · 91619-61265 |
| 33111J | Direct sales (for manual transmission) | 90250-08030 |
| 33111P | Stud bolts (for securing transmission cover) | 90116-06200 |
| 33111V | Bolt (for securing front bearing retainer) | 90116-08009 |
| 33111W | Bolts (for fixing the intermediate shaft cover) | 90116-08057 |
| 33111X | Gearbox plug gasket | 12157-10010 |
| 33116 | manual transmission gasket | 33116-14010 |
| 33118 | Right reinforcement plate (MTM) | 33118-12020 · 33118-12050 |
| 33119 | Left reinforcement plate (MTM) | 33119-12010 · 33119-12011 · 33119-12020 · 33119-12021 |
| 33121G | manual gearbox cover | 33121-10011 · 33121-12010 · 33121-12020 · 33121-12031 · 33121-14010 |
| 33122A | Manual transmission cover gasket | 33122-10010 · 33122-12010 · 33122-12020 · 33122-12031 · 33122-14010 |
| 33131 | Front bearing retainer (MTM) | 33131-10040 · 33131-10051 · 33131-10052 · 33131-12030 · 33131-12031 · 33131-12040 · 33131-12050 · 33131-14010 |
| 33131A | Oil seal (for transmission front bearing retainer) | 90311-25003 · 90311-25141 |
| 33132 | Front bearing retainer pad (MTM) | 33132-10020 · 33132-10030 · 33132-12030 · 33132-12050 · 33132-14010 · 33133-12030 |
| 33134 | Gearbox intermediate shaft cover | 33134-12010 |
| 33135 | Intermediate shaft cover gasket (MTM) | 33135-12010 |
| 33151 | Output shaft rear bearing retainer (MTM) | 33151-12010 |
| 33151A | Slotted spring pin (for output shaft rear bearing retainer) | 90254-05005 |
| 33175 | Manual transmission oil pan gasket | 33175-12010 |
| 33283C | Reverse gear positioning steel ball | 90360-10003 |
