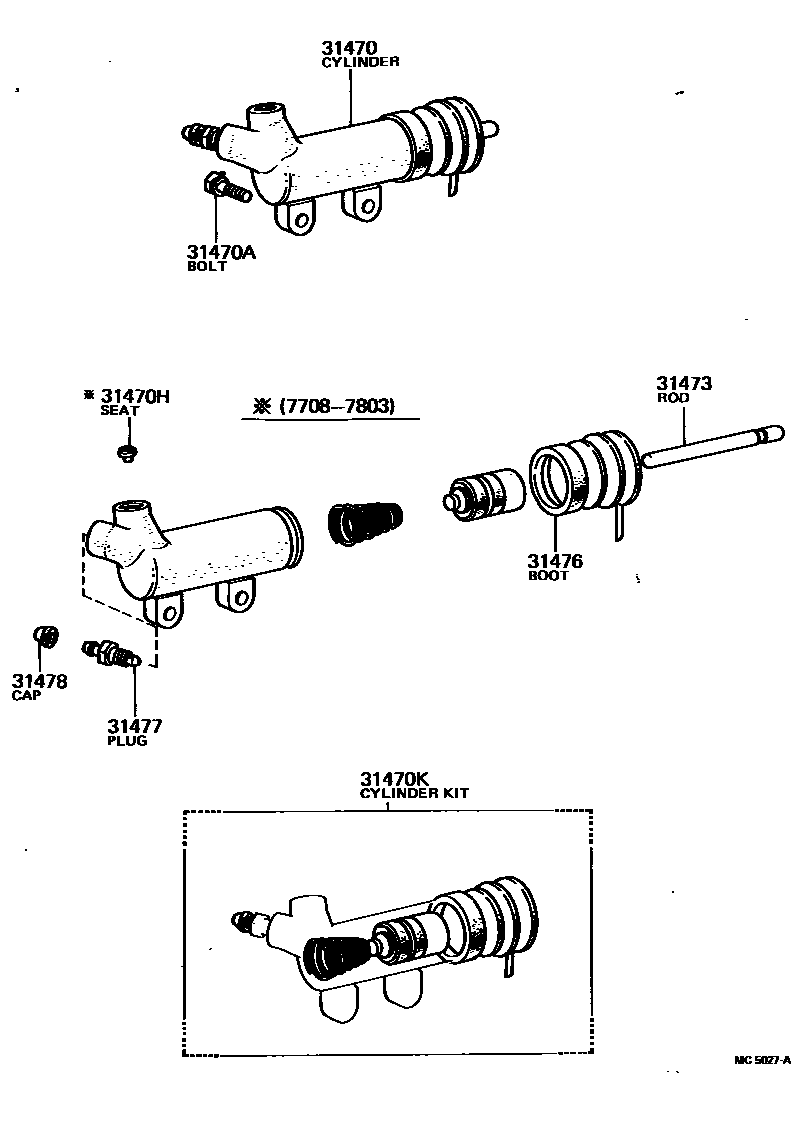

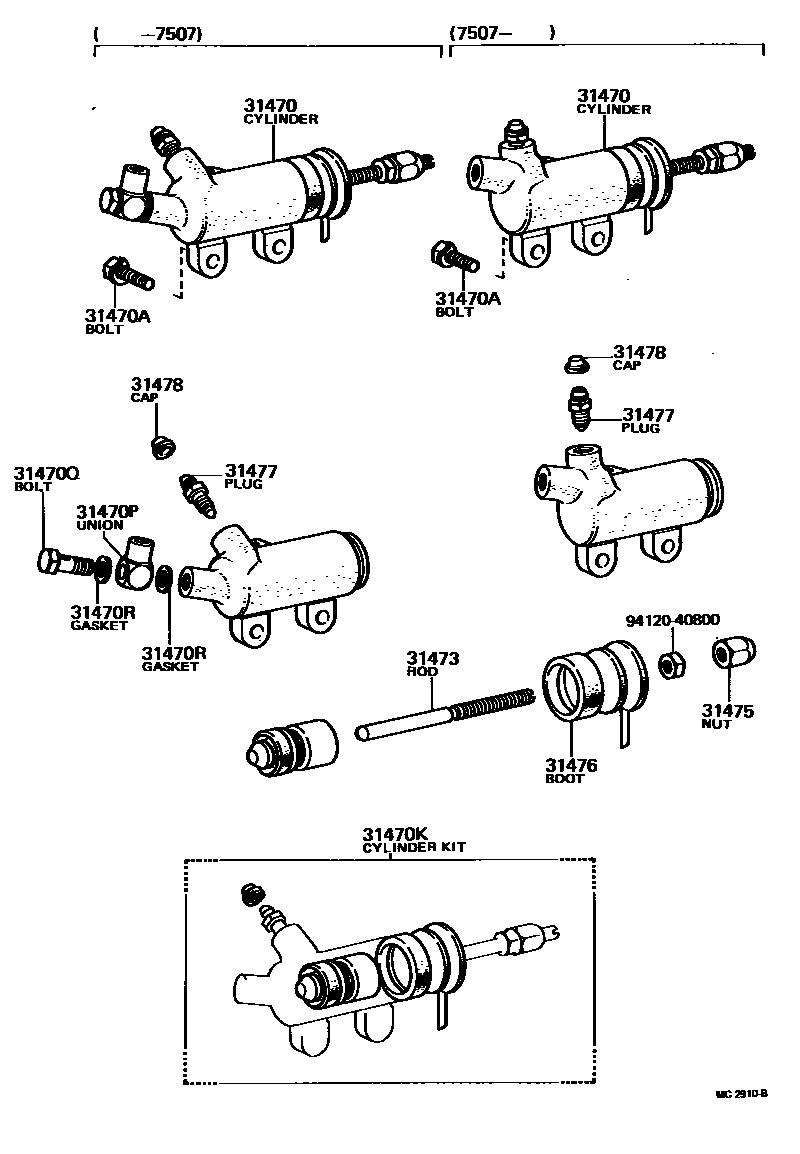

Toyota COROLLA 离合器分离缸 — Figure 3105
Toyota COROLLA EPC diagram 3105, 离合器分离缸, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31470 | Clutch release cylinder assembly | 31470-12020 · 31470-12021 · 31470-14020 |
| 31470A | Bolt (for securing clutch release cylinder) | 91611-40825 |
| 31470H | Joint seat (for clutch release cylinder) | 90410-03015 |
| 31470K | Clutch release cylinder assembly | 04313-30054 · 04313-30100 |
| 31470P | Connector (for clutch release cylinder) | 90405-10165 |
| 31470Q | Joint bolt (for clutch release cylinder) | 90401-10047 |
| 31470R | Gasket (for clutch release cylinder) | 90430-10074 |
| 31473 | No. 1 clutch release cylinder push rod | 31473-14010 · 31473-30021 |
| 31475 | Clutch release cylinder push rod nut | 31475-30011 |
| 31476 | Clutch release cylinder dust boot | 31476-20040 · 31476-30040 |
| 31477 | Bleed plug (for separation cylinder) | 47547-12010 |
| 31478 | Bleed plug cap (for separator cylinder) | 31478-30010 |
