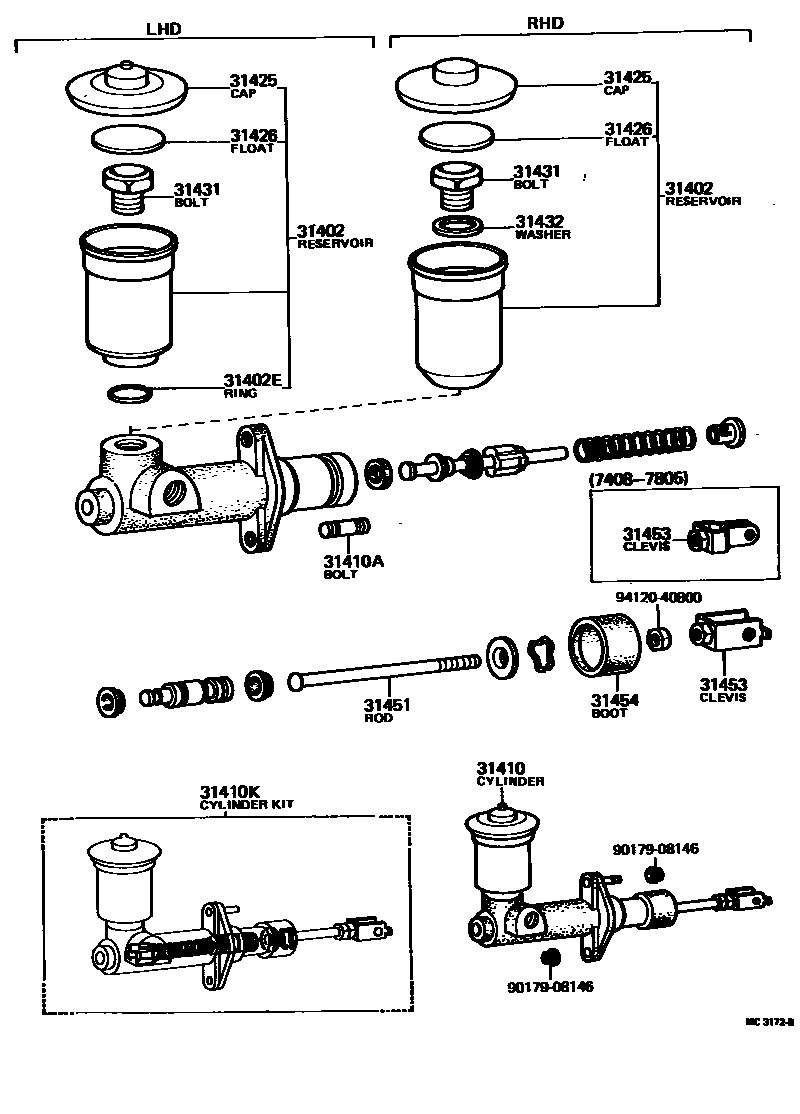

Toyota COROLLA 离合器总泵 — Figure 3103
Toyota COROLLA EPC diagram 3103, 离合器总泵, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31402 | Clutch master cylinder fluid reservoir sub-assembly | 31402-20010 · 47202-12010 |
| 31402E | Ring (for clutch master cylinder reservoir) | 90562-18151 |
| 31410 | Clutch master cylinder assembly | 31410-12030 · 31410-12031 · 31410-12050 · 31410-14030 |
| 31410A | Bolt (for securing clutch master cylinder) | 90116-08097 · 90116-08205 |
| 31410K | Clutch master cylinder assembly | 04311-12020 · 04311-14010 |
| 31425 | Clutch master cylinder reservoir tank filler cap | 31440-35010 · 47230-12011 · 47230-20040 |
| 31426 | Clutch master cylinder reservoir float | 31426-30011 |
| 31431 | Clutch master cylinder reservoir fixing bolt | 47231-20010 · 47231-30010 |
| 31432 | Clutch reservoir retaining bolt washer | 47232-30010 |
| 31451 | Clutch master cylinder push rod | 31451-12030 · 31451-14010 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31453-22010 · 47264-10011 |
| 31454 | Clutch master cylinder dust boot | 31454-14010 |
