Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102

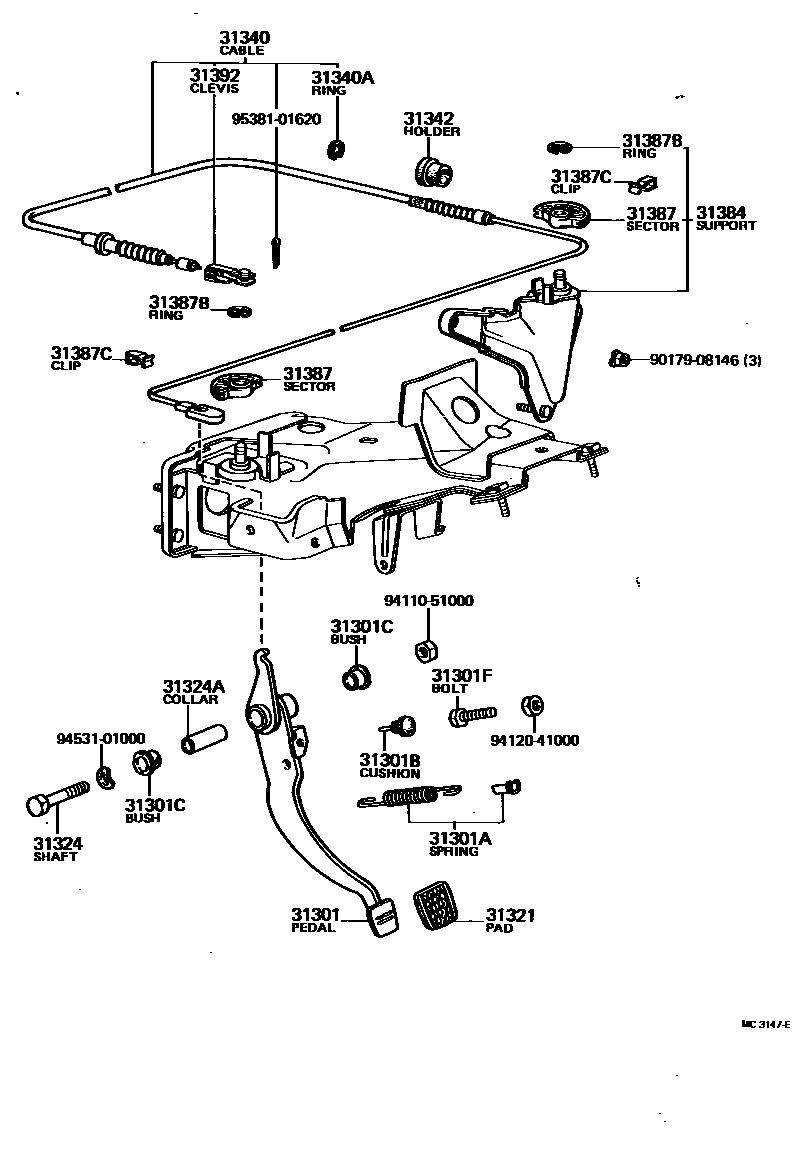

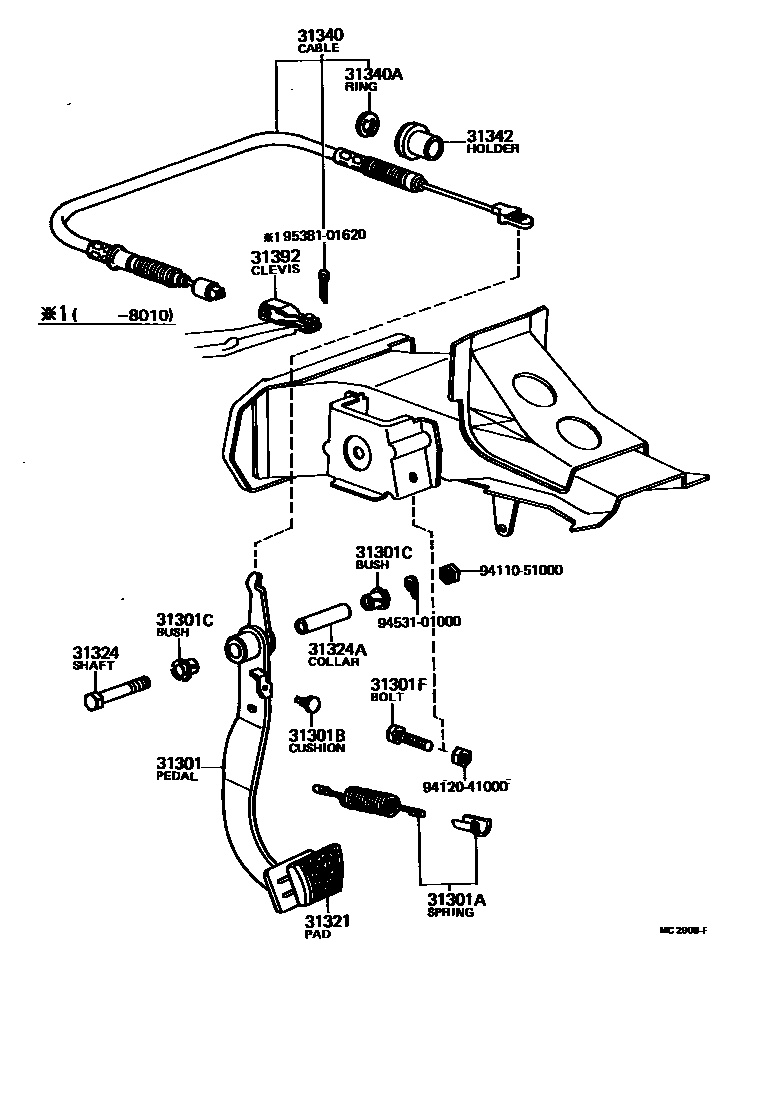

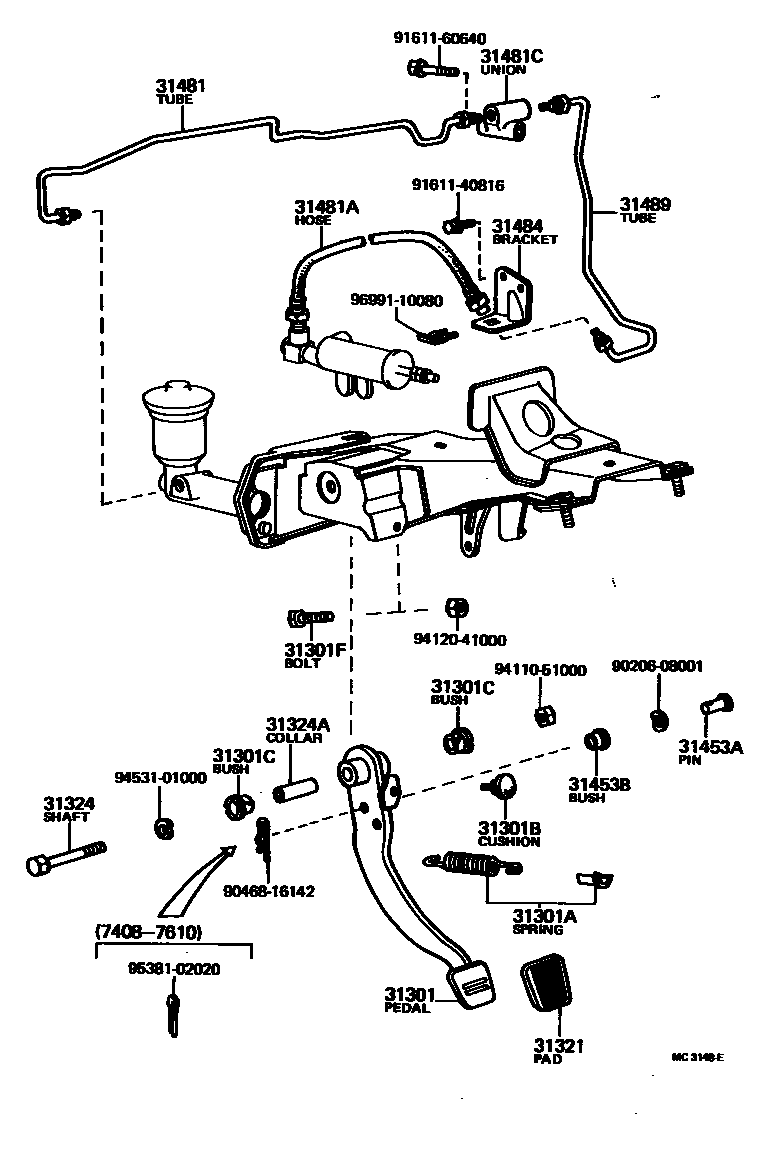

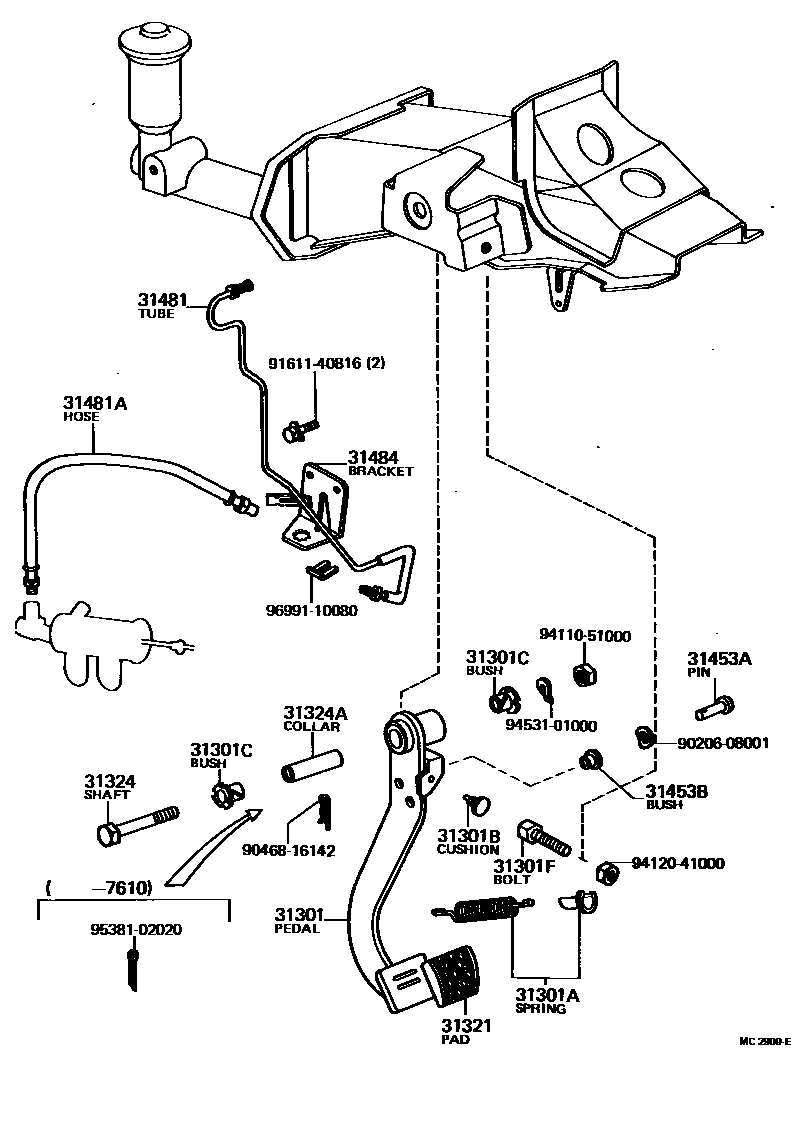

Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-12080 · 31301-12090 · 31301-12091 · 31301-12100 · 31301-12110 · 31301-12111 |
| 31301A | Spring (for clutch pedal) | 90506-16477 · 90507-16001 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06008 |
| 31301C | Bushing (for clutch pedal) | 90386-13007 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10085 |
| 31321 | clutch pedal pad | 31321-12030 |
| 31324 | clutch pedal shaft | 90101-10015 · 90101-10039 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31340 | Clutch release cable assembly | 31340-19145 · 31340-19155 |
| 31340A | E-ring (for clutch release cable) | 96160-01200 |
| 31342 | Clutch cable internal retainer | 31342-12901 |
| 31384 | Clutch release sector gear bracket assembly | 31030-12030 |
| 31387 | Clutch release sector gear | 31387-10010 |
| 31387B | E-ring (for clutch release sector gear) | 96160-00800 |
| 31387C | Catch (for clutch release sector gear) | 90468-06008 |
| 31392 | Clutch cable clevis | 31392-10010 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90240-08006 · 90240-08040 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-12030 · 31481-12040 |
| 31481A | No. 1 clutch hose | 96940-31262 · 96940-31264 · 96940-31282 · 96940-32604 |
| 31481C | Fitting (tube for clutch master cylinder to flex hose) | 90412-10086 |
| 31484 | Flexible hose bracket (for clutch) | 31484-12010 |
| 31489 | Pipe connector to flexible hose pipe | 31489-12010 · 31489-12011 |
