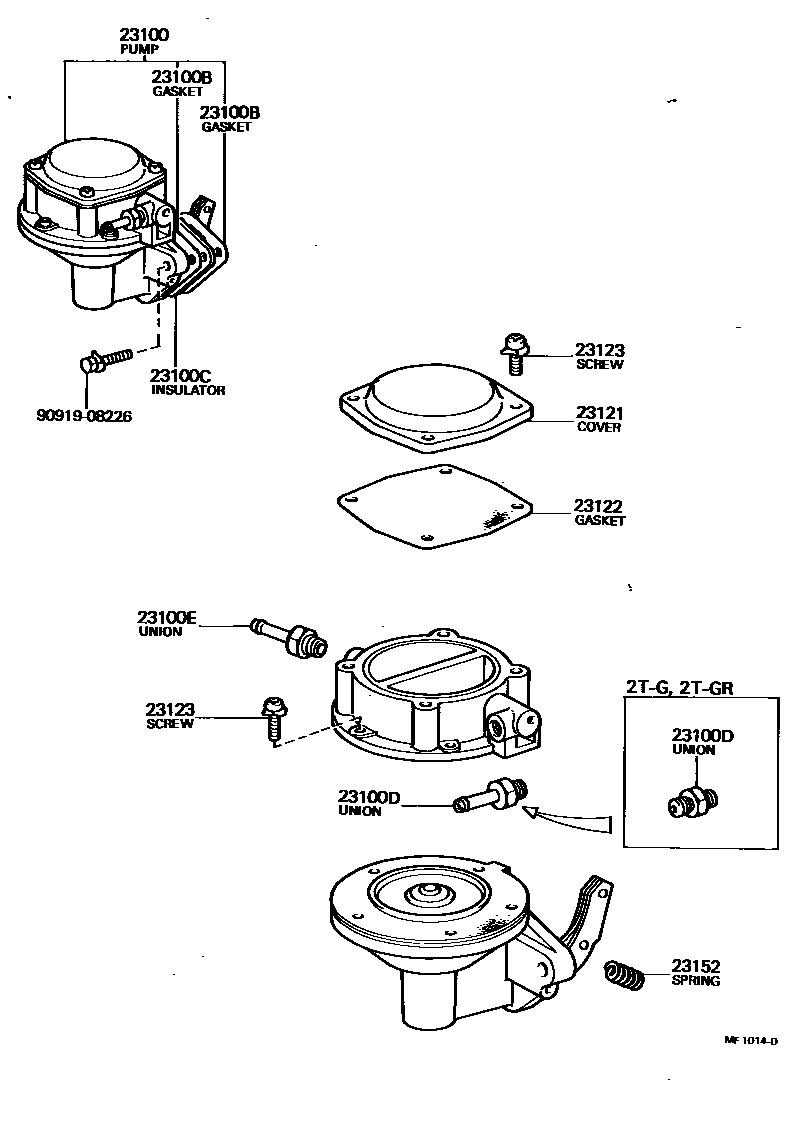

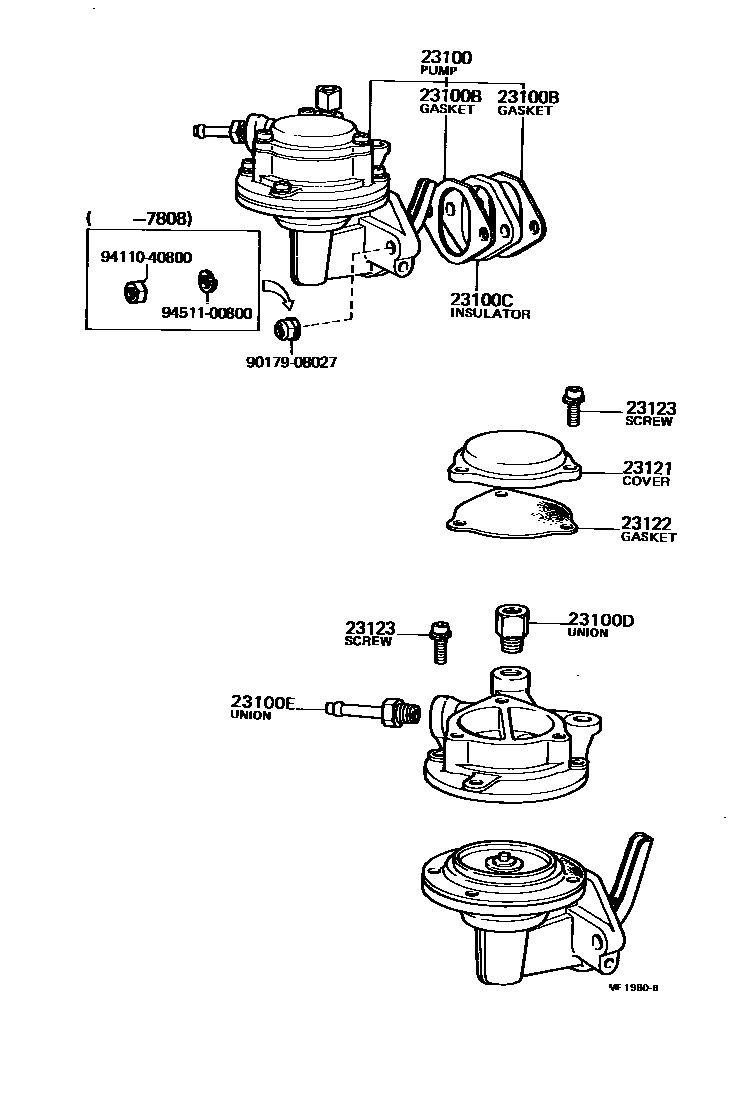

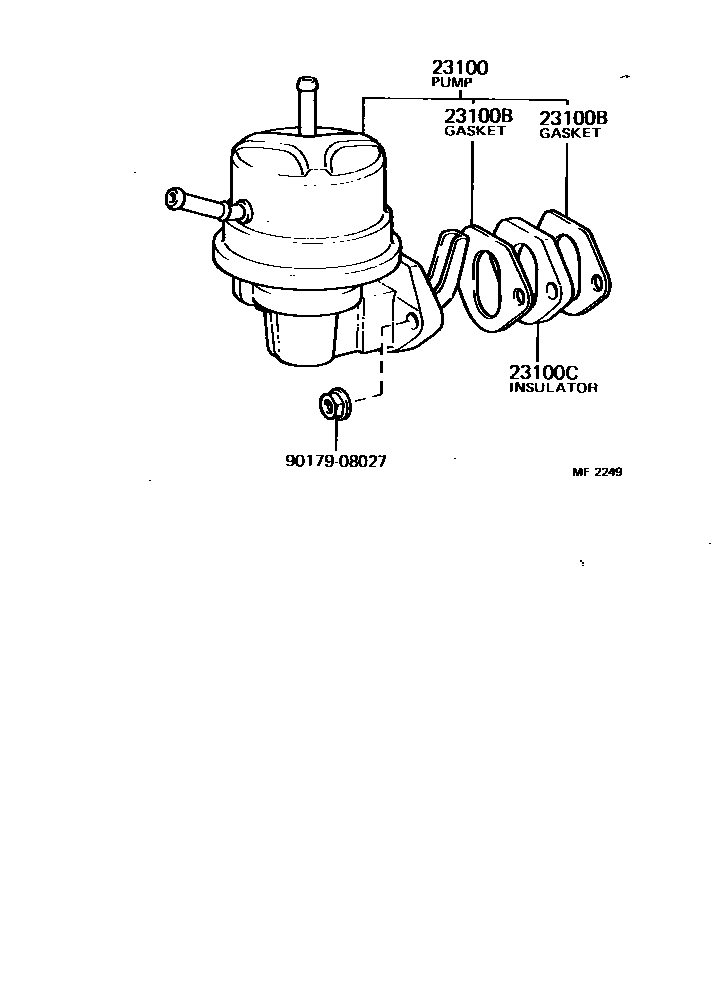

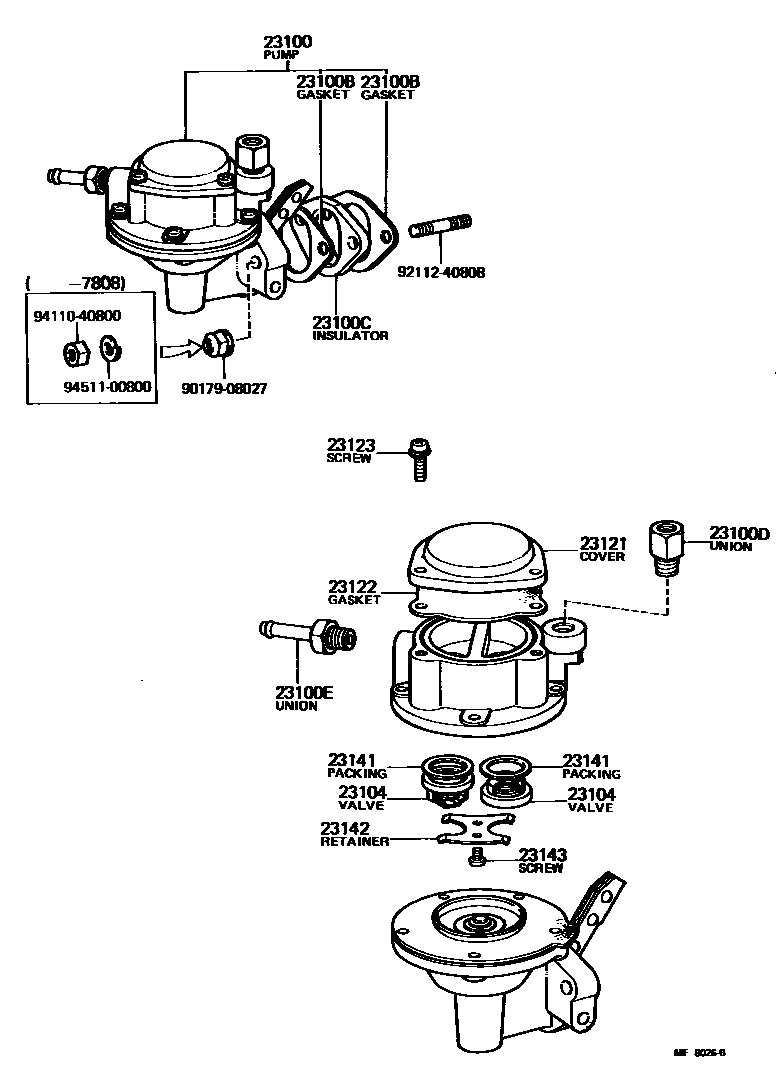

Toyota COROLLA 燃油泵和燃油管 — Figure 2301
Toyota COROLLA EPC diagram 2301, 燃油泵和燃油管, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23100 | fuel pump assembly | 23100-19045 · 23100-19125 · 23100-29085 · 23100-29096 · 23100-29106 · 23100-29107 · 23100-29108 |
| 23100B | fuel pump gasket | 90923-05005 · 90923-05006 |
| 23100C | Fuel pump vibration isolation pad | 90923-06001 · 90923-06003 |
| 23100D | Oil pipe joint (for fuel outlet pipe) | 23116-24010 · 23116-34030 · 90404-13105 · 90404-51244 · 90404-51266 |
| 23100E | Fuel pipe joint (for fuel inlet pipe) | 90404-51003 · 90404-51244 |
| 23104 | Valve sub-assembly | 23104-40010 |
| 23121 | fuel pump cover | 23121-24010 · 23121-24040 · 23121-34020 |
| 23122 | fuel pump cover gasket | 23122-24010 · 23122-24040 · 23122-34020 |
| 23123 | No. 1 cover fixing screw | 23123-33011 · 93319-15014 · 93319-15019 |
| 23141 | valve seal | 23141-60010 |
| 23142 | Valve seat ring | 23142-30020 |
| 23143 | Valve seat ring fixing screw | 23143-60021 |
| 23152 | rocker spring | 23152-30020 |
