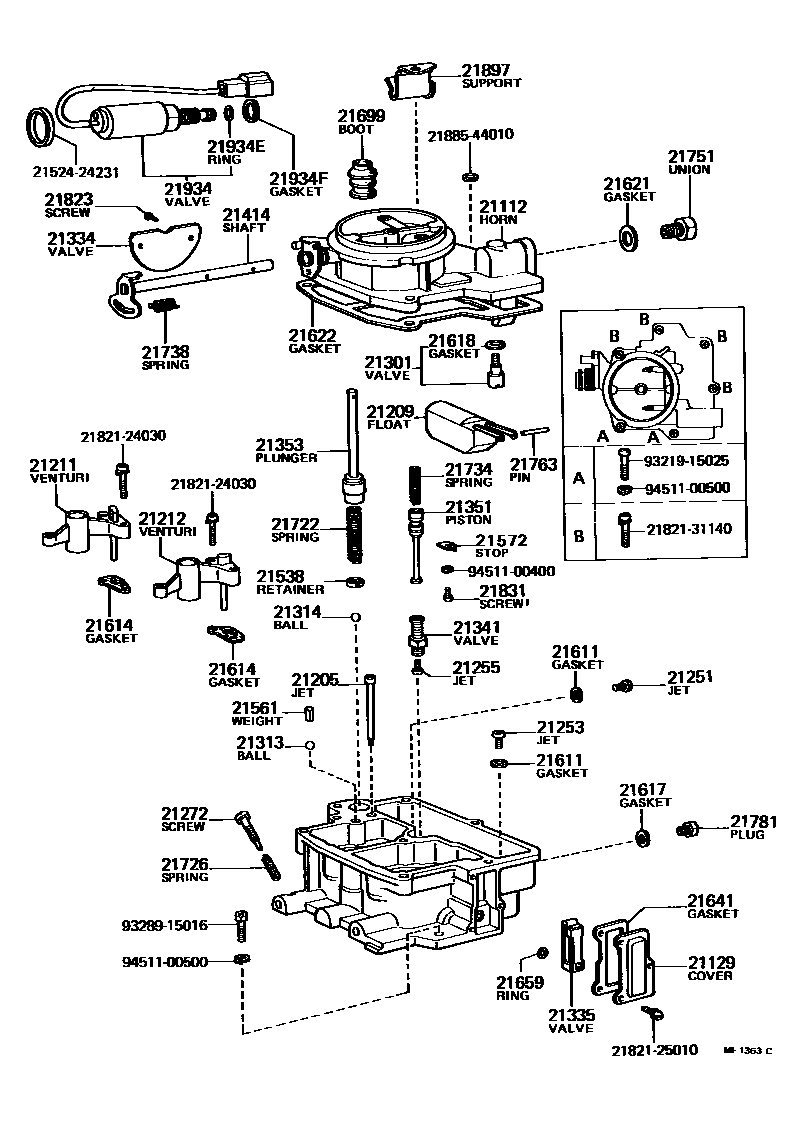

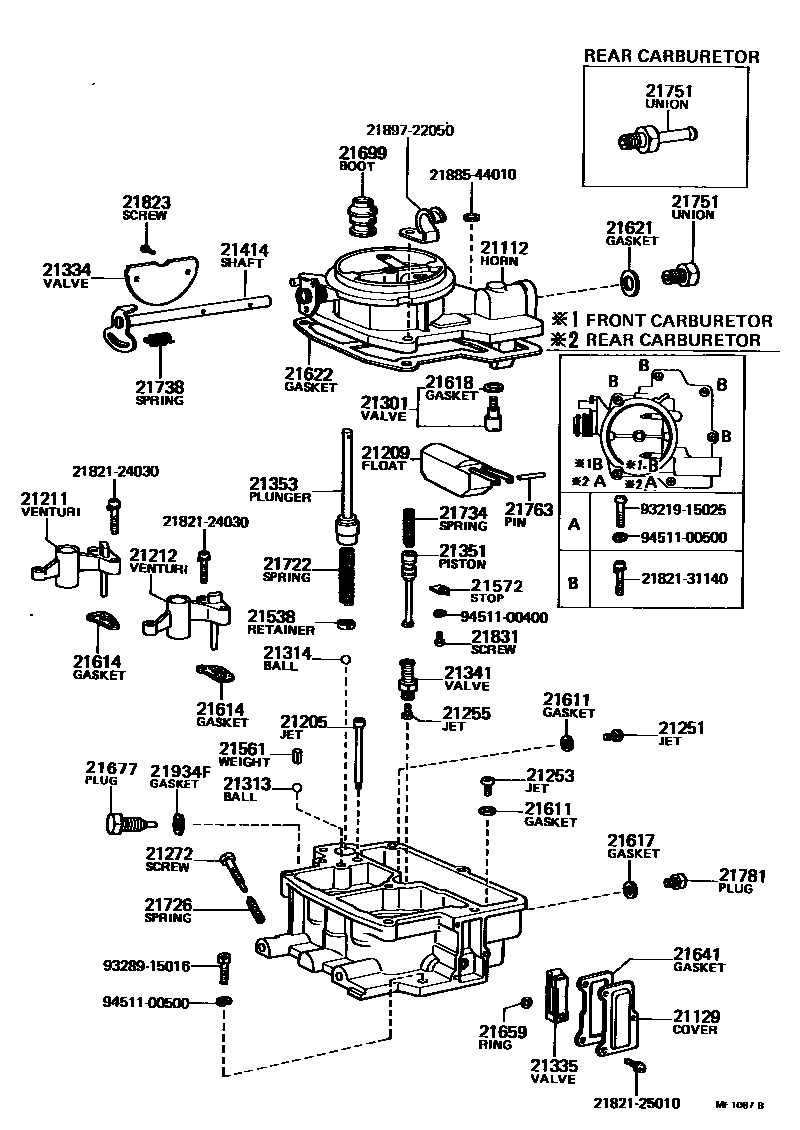

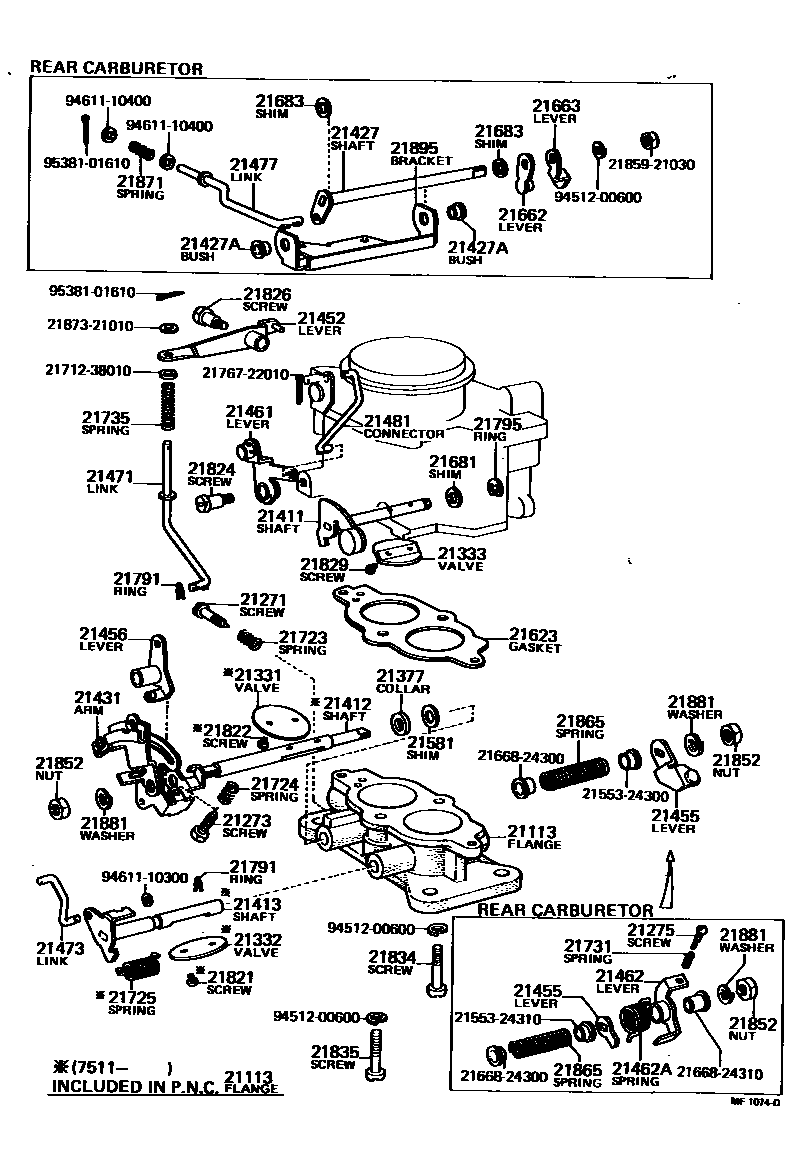

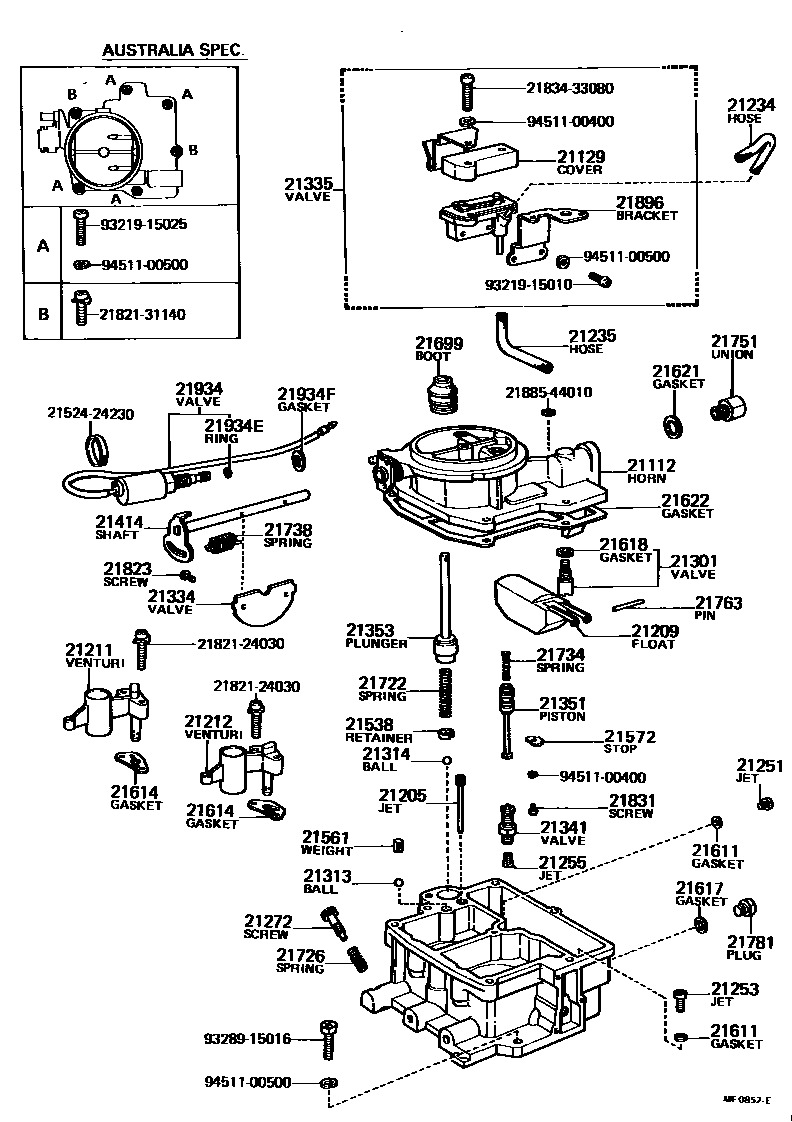

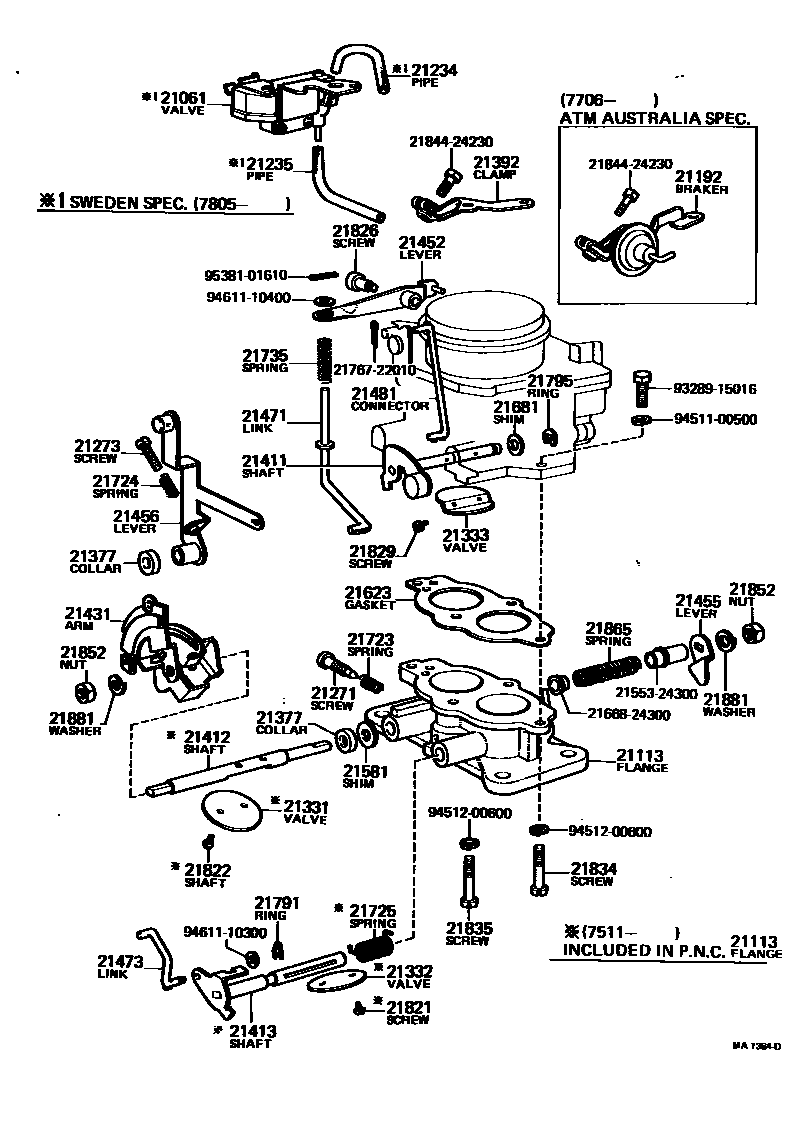

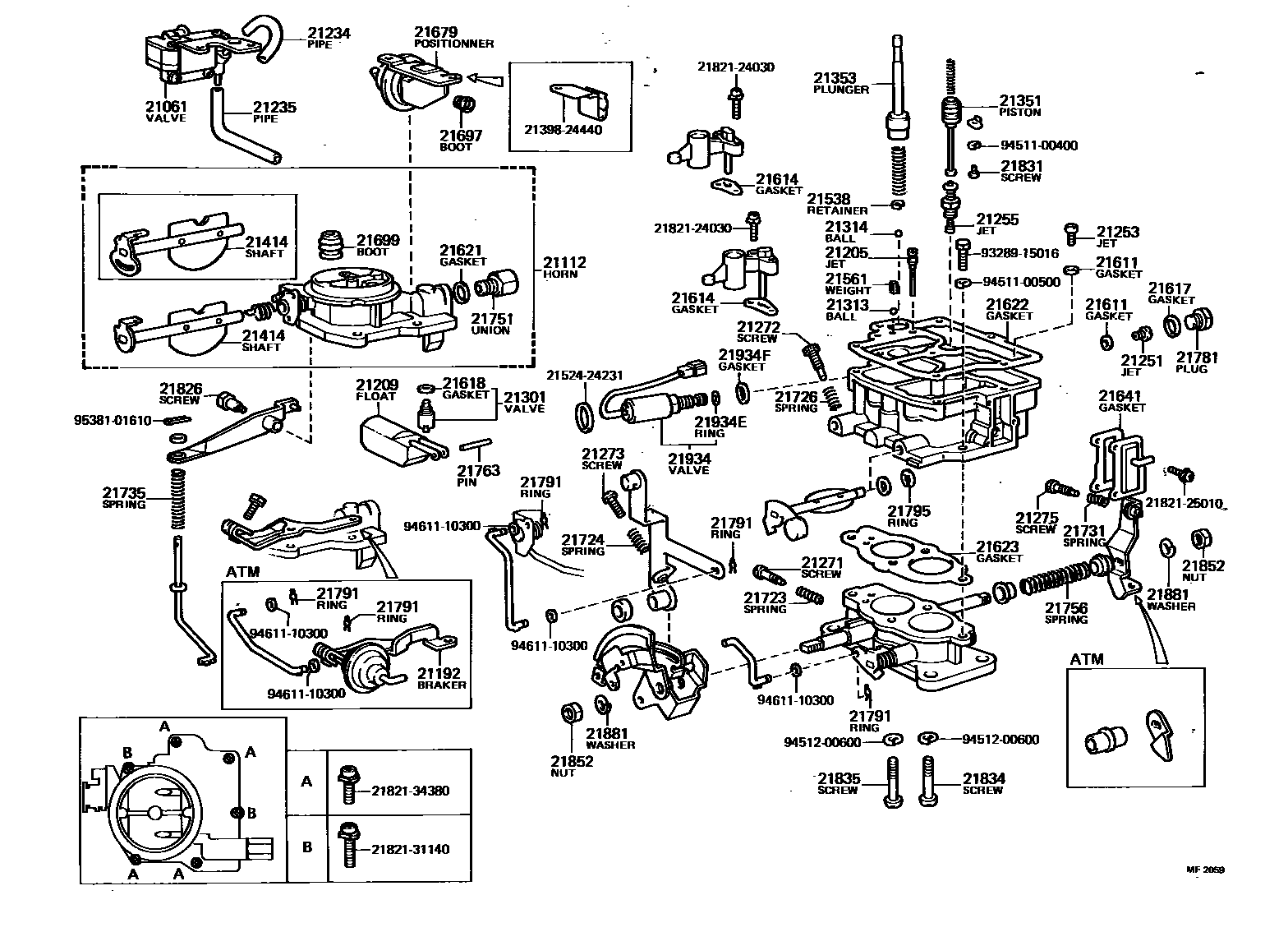

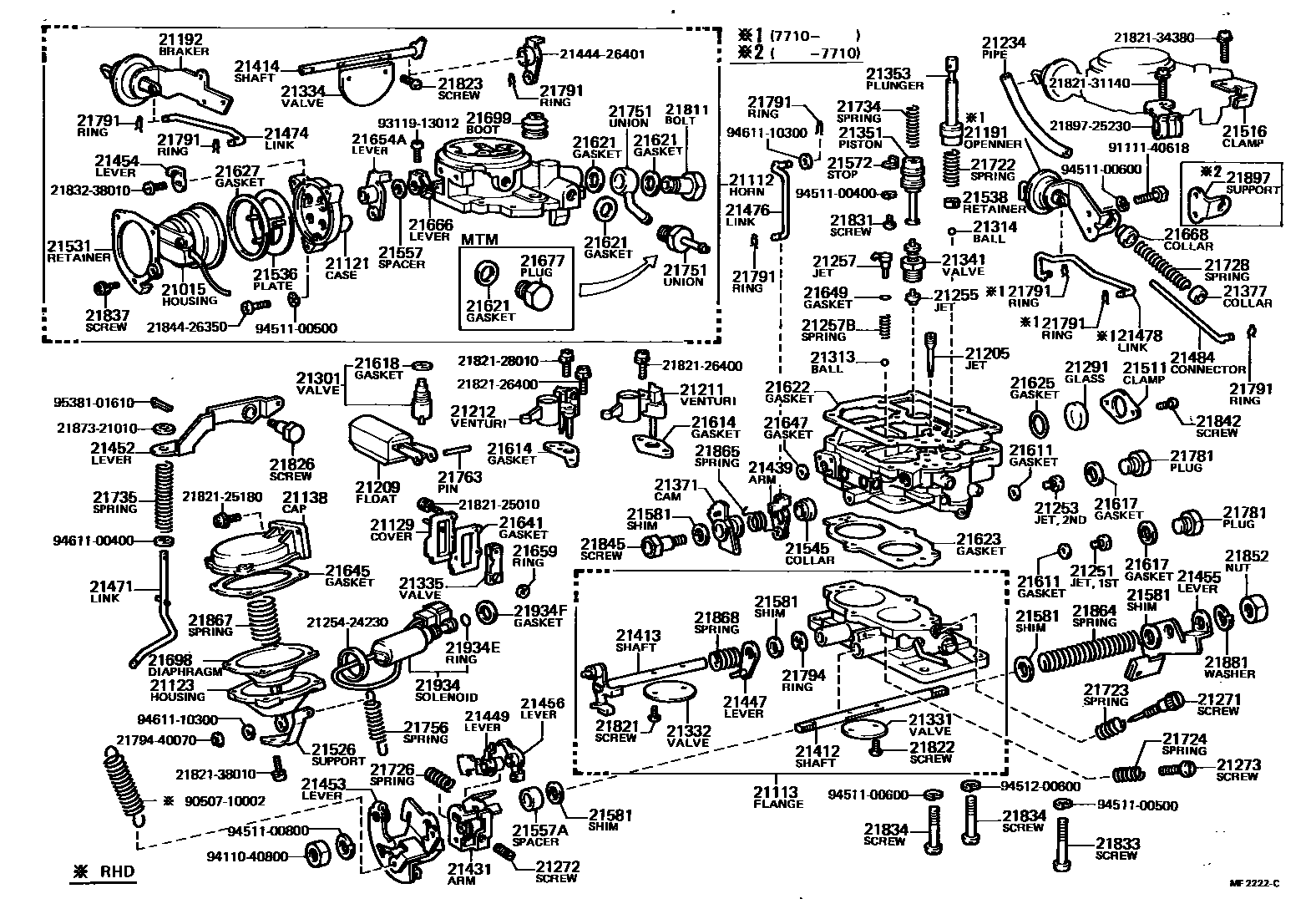

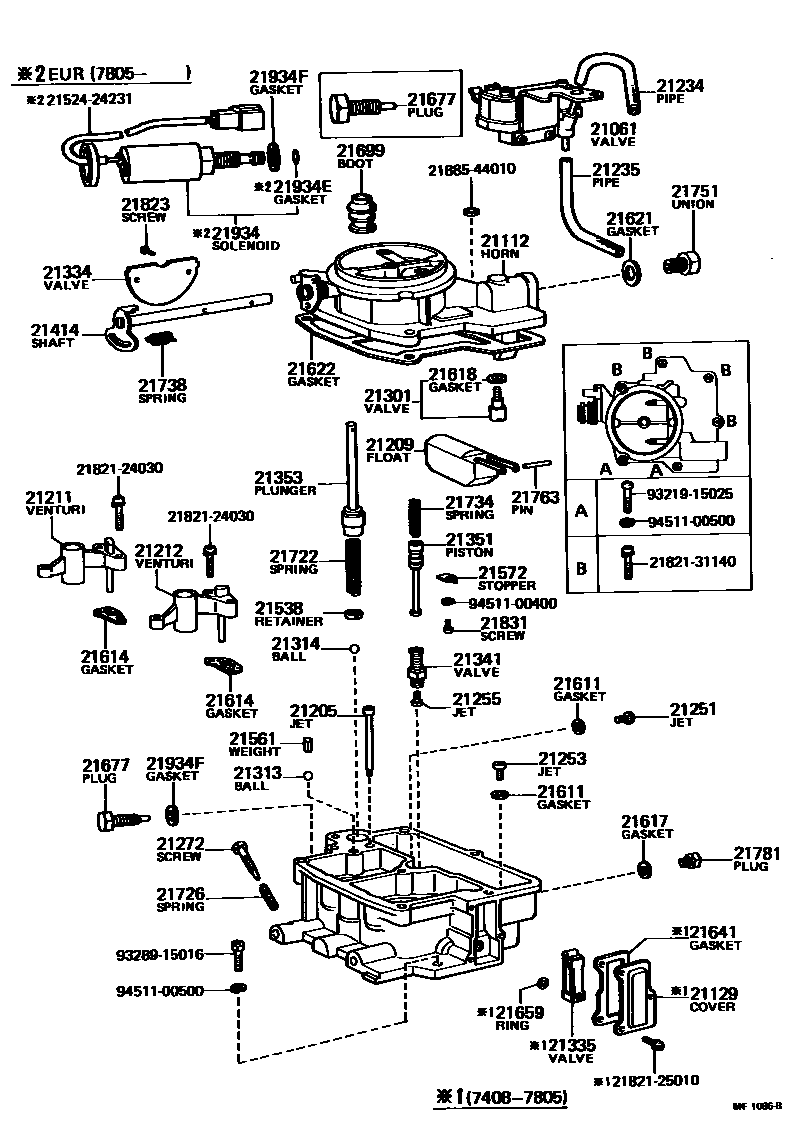

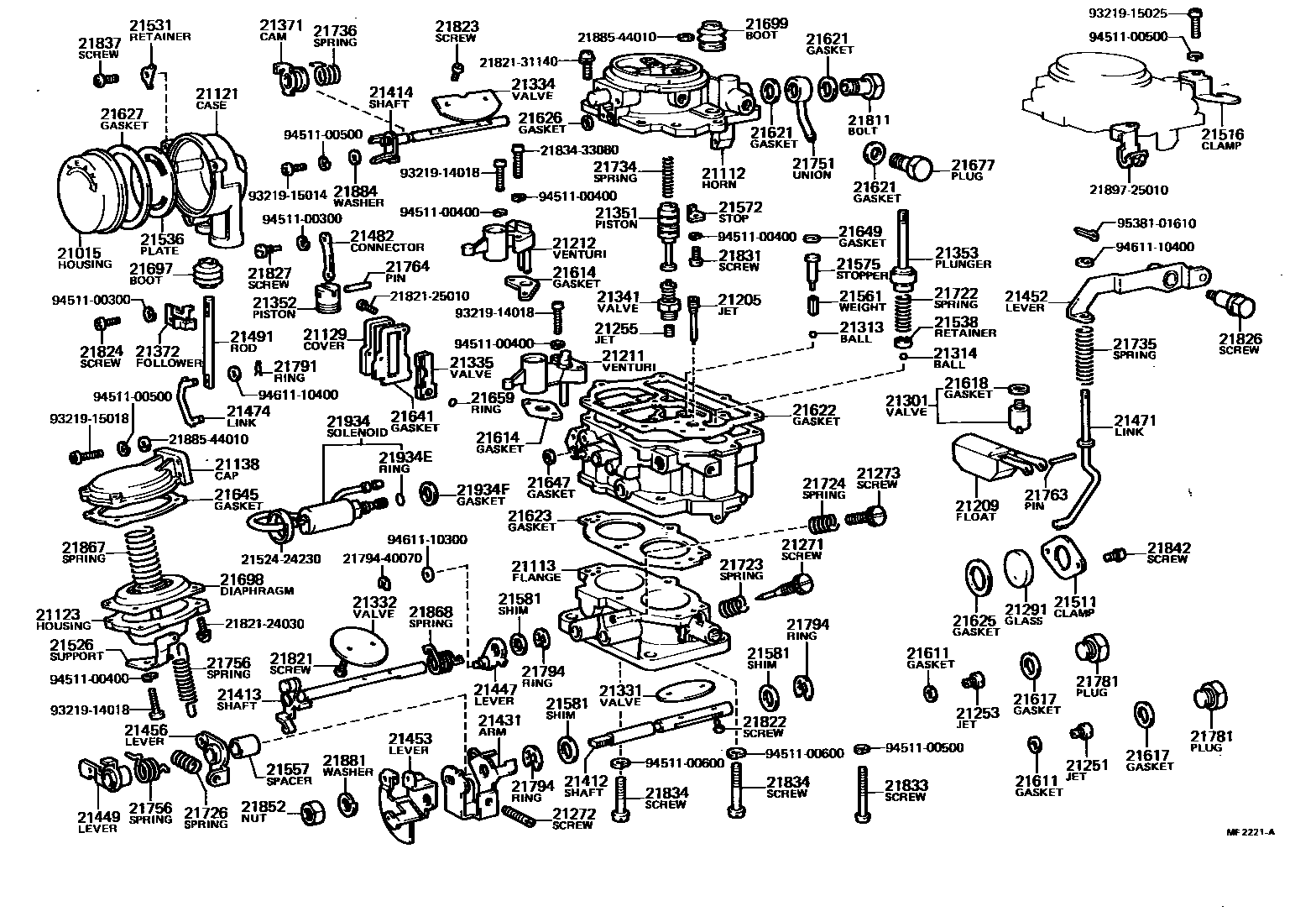

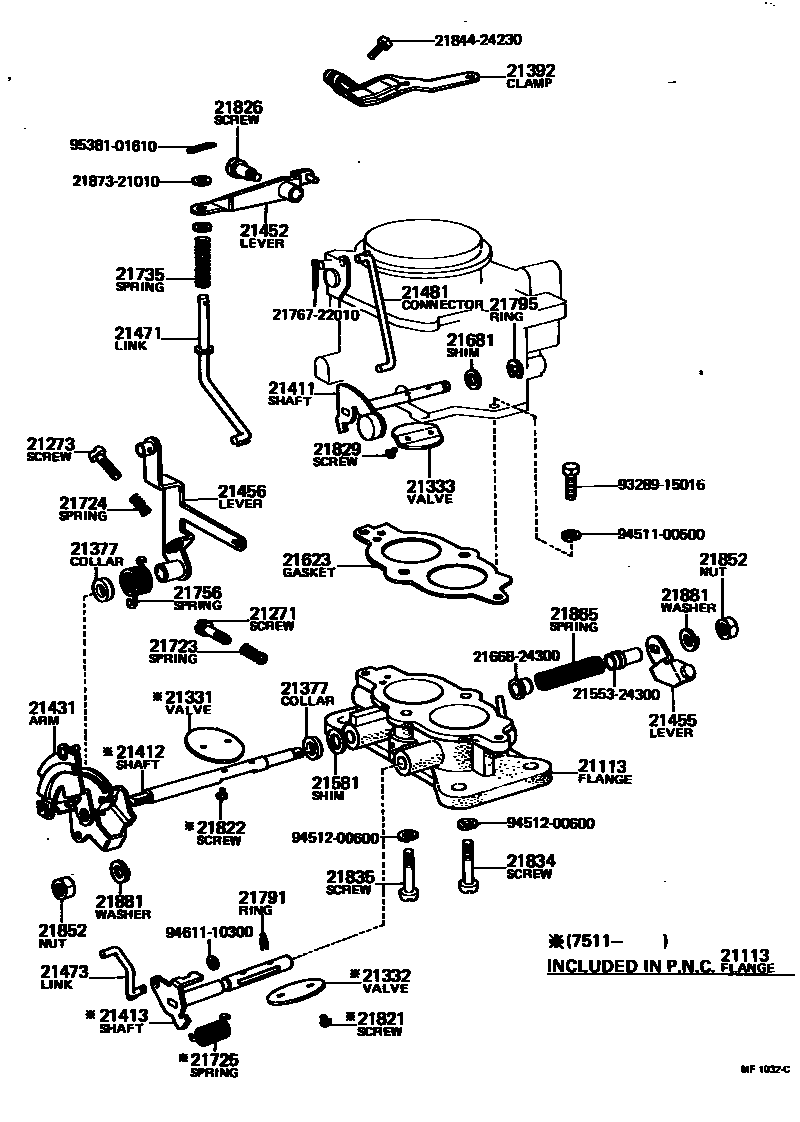

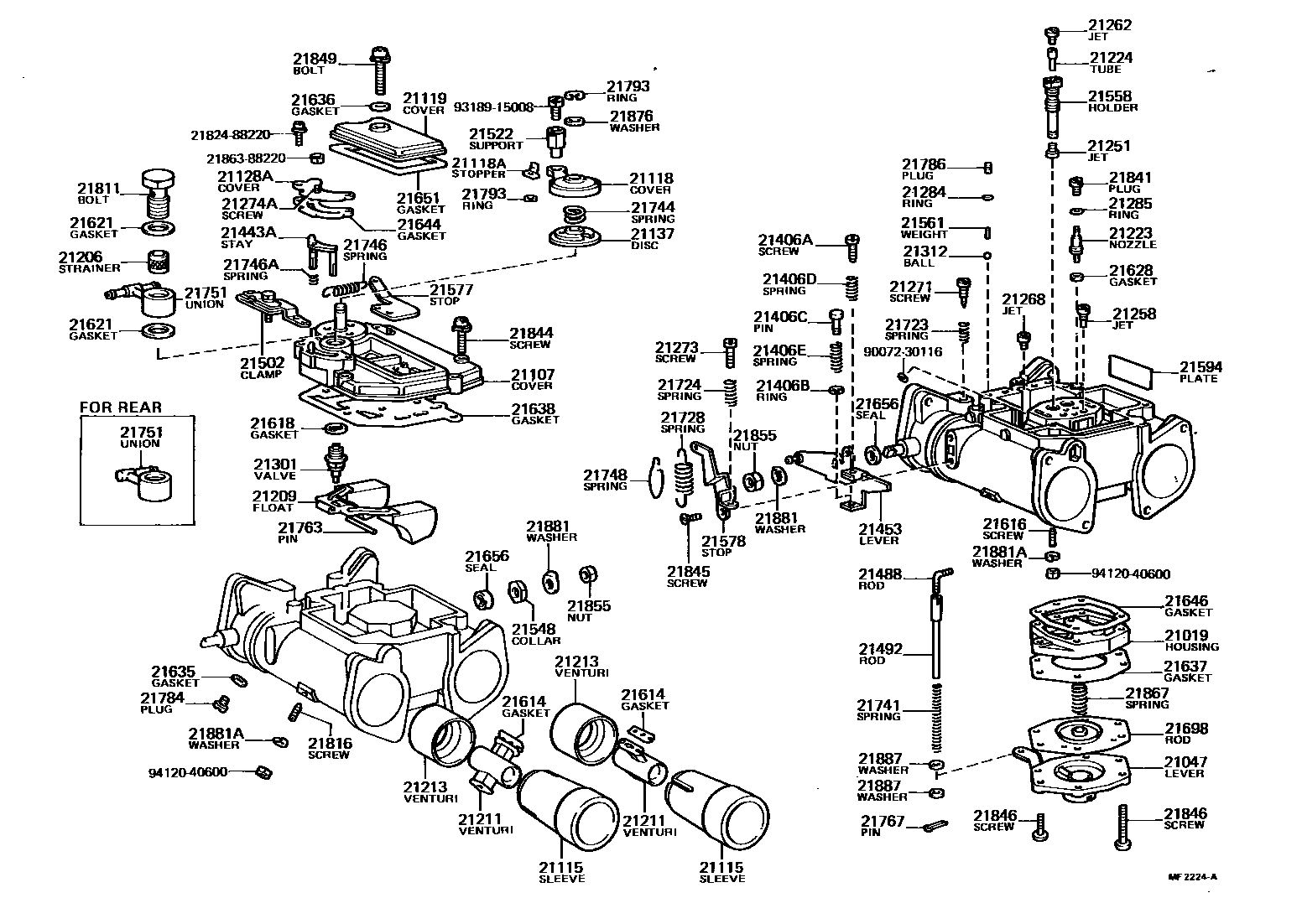

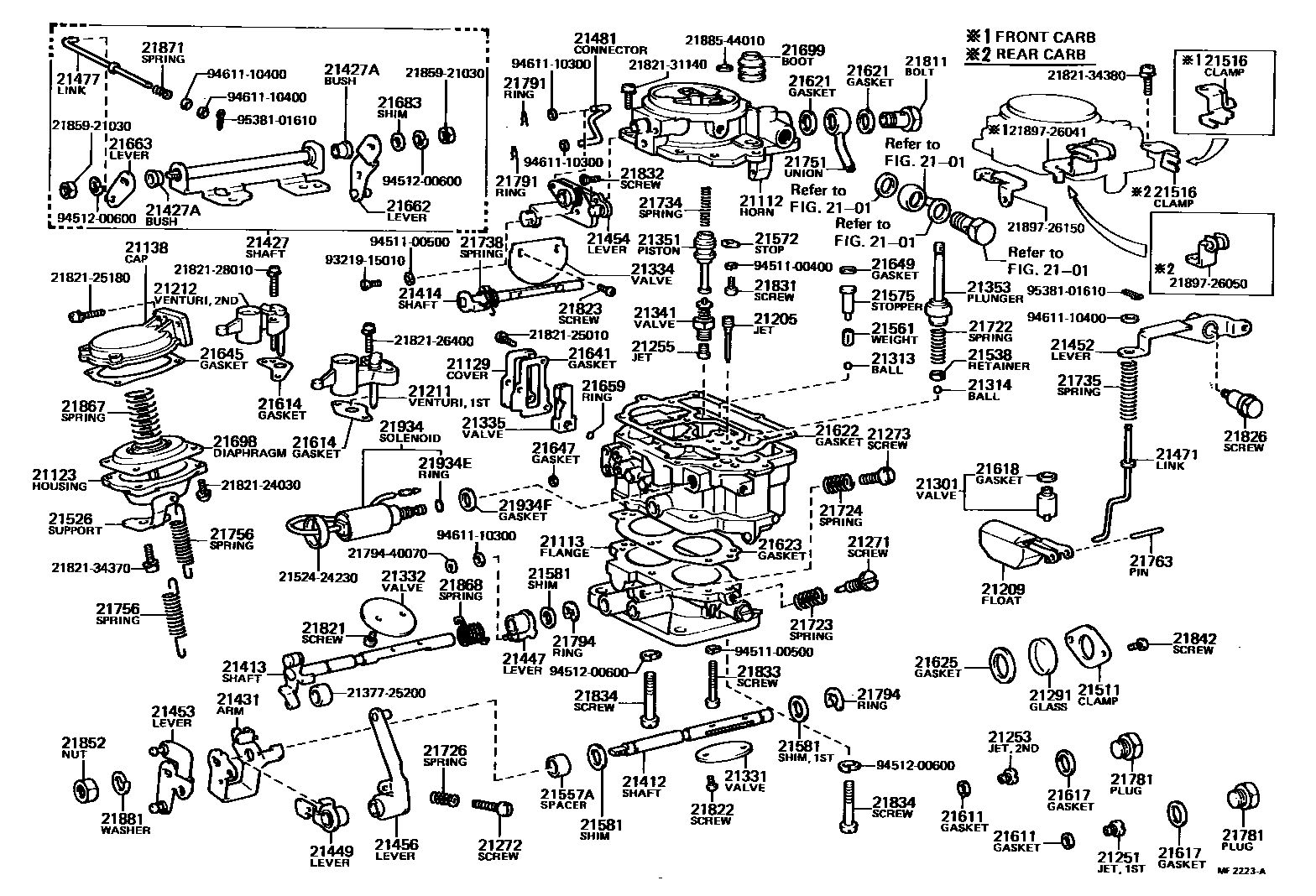

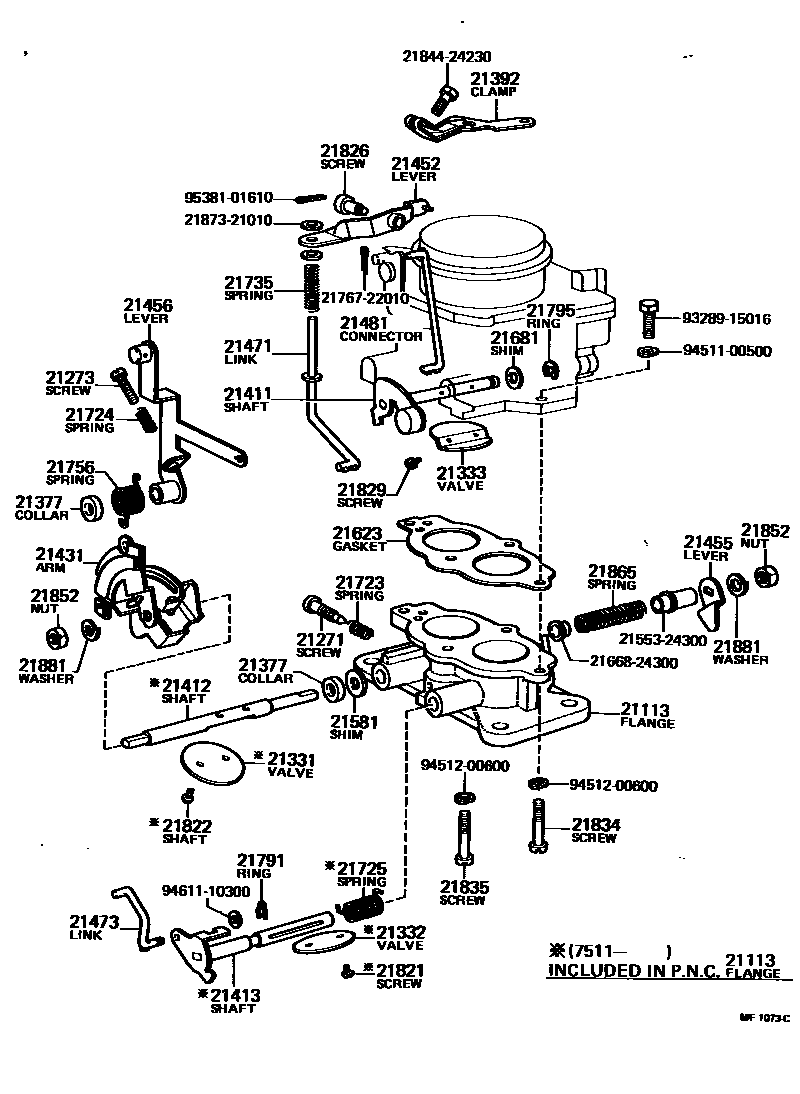

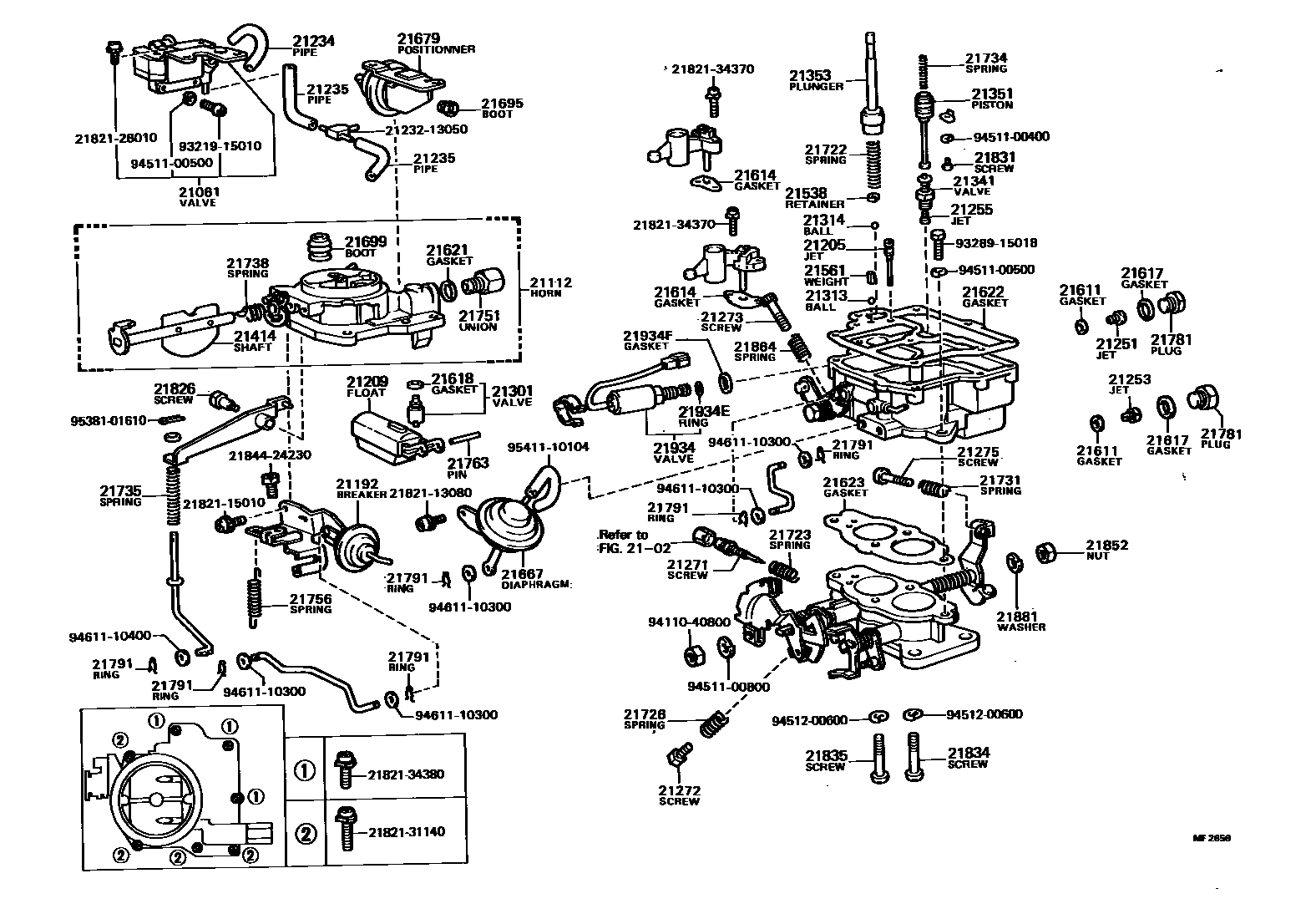

Toyota COROLLA 化油器 — Figure 2103
Toyota COROLLA EPC diagram 2103, 化油器, with 14 images and 224 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21015 | Coil housing sub-assembly | 21015-25181 · 21015-27040 · 21015-28010 · 21015-40012 |
| 21019 | Diaphragm housing sub-assembly | 21019-88101 |
| 21047 | Pump rod sub-assembly | 21047-88110 |
| 21061 | Thermostat valve sub-assembly | 21061-13060 · 21061-24230 · 21061-24500 · 21061-24510 |
| 21107 | Float chamber cover sub-assembly | 21107-88220 |
| 21112 | Air intake bell mouth | 21112-12070 · 21112-13060 · 21112-13250 · 21112-24032 · 21112-24100 · 21112-24310 · 21112-24340 · 21112-24370 · 21112-24490 · 21112-24530 · 21112-24550 · 21112-25012 · 21112-26042 · 21112-26052 · 21112-26350 · 21112-26440 · 21112-26441 · 21112-26721 · 21112-26722 |
| 21113 | carburetor flange | 21103-24030 · 21103-24060 · 21103-24070 · 21103-24370 · 21103-24380 · 21103-26440 · 21103-26441 · 21103-26770 · 21103-26780 · 21113-24015 · 21113-24032 · 21113-24062 · 21113-24072 · 21113-24251 · 21113-24372 · 21113-24510 · 21113-24520 · 21113-24550 · 21113-26016 · 21113-26046 · 21113-26053 · 21113-26340 · 21113-26720 |
| 21115 | carburetor sleeve | 21114-88220 |
| 21118 | carburetor starter cover | 21118-88201 |
| 21118A | Fast idle block | 21574-88220 |
| 21119 | Spray chamber cover | 21119-88220 |
| 21121 | thermostat shell | 21121-34080 · 21121-38010 |
| 21123 | diaphragm housing | 21123-44100 |
| 21128A | Float adjustment chamber cover | 21128-88220 |
| 21129 | Cover (thermostat valve) | 21129-24030 · 21129-24160 · 21129-25181 · 21129-38010 |
| 21137 | carburetor starter plate | 21138-88102 |
| 21138 | Diaphragm cover | 21138-26350 · 21138-44100 |
| 21191 | opener | 21191-26461 |
| 21192 | breaker | 21192-13040 · 21192-13250 · 21192-24440 · 21192-25180 · 21192-25181 · 21192-26400 |
| 21205 | Idle speed measuring hole assembly | 21205-13060 · 21205-13250 · 21205-24510 · 21205-26040 · 21205-33010 · 90999-44047 · 90999-44144 · 90999-44145 · 90999-44147 |
| 21206 | Filter sub-assembly | 21294-88110 |
| 21209 | Float sub-assembly | 21209-24010 · 21209-24480 · 21209-33080 · 21209-88220 |
| 21211 | first small venturi | 21211-22040 · 21211-24010 · 21211-24230 · 21211-25180 · 21211-26011 · 21211-26042 · 21211-88111 |
| 21212 | Second small venturi | 21202-22010 · 21212-24231 · 21212-24300 · 21212-25180 · 21212-26010 · 21212-26040 |
| 21213 | The first large venturi | 21213-88111 |
| 21223 | Injection pump nozzle | 21223-88220 |
| 21224 | main bleeder pipe | 21224-88110 |
| 21234 | pipe or hose | 21234-13150 · 21234-24230 · 95411-19930 |
| 21235 | Connecting pipe or connecting hose | 21234-13080 · 21235-13051 · 21235-13080 · 21235-24231 |
| 21251 | first main measuring hole | 21251-88201 · 90999-41080 · 90999-41083 · 90999-41100 · 90999-41105 · 90999-41106 · 90999-41108 · 90999-41110 · 90999-41112 |
| 21253 | Deputy main measuring hole | 90999-42126 · 90999-42132 · 90999-42141 · 90999-42150 · 90999-42153 · 90999-42162 |
| 21255 | Power measuring hole | 21255-26040 · 21255-41081 · 21255-60200 · 90999-43047 · 90999-43055 · 90999-43060 · 90999-43080 · 90999-43090 |
| 21257 | Accelerate nozzle | 21257-25180 |
| 21257B | Spring (for accelerating the nozzle) | 21864-38010 |
| 21258 | Idle speed measuring hole | 21258-88101 · 21258-88110 |
| 21262 | Main air release hole | 21262-88220 |
| 21268 | starter measuring hole | 21267-88220 |
| 21271 | Idle speed adjustment screw | 21207-88250 · 21271-24012 · 21271-24100 · 21271-24390 · 21271-24470 · 21271-25180 · 21271-26100 · 21271-26440 · 21271-44010 · 21271-88110 |
| 21272 | First gear idle speed adjustment screw | 21273-24230 · 21273-24231 · 21273-30052 · 21814-33010 · 21828-25180 |
| 21273 | Throttle adjustment screw | 21273-24231 · 21273-50010 · 21273-88110 · 21273-88250 · 21814-44010 · 21844-33010 |
| 21274A | Float adjustment screw | 21274-88220 |
| 21275 | Adjustment screw | 21275-24360 · 21275-24361 · 21842-24230 |
| 21284 | O-ring (for oil passage plug) | 21284-88101 |
| 21285 | O-ring (for injection pump injector plug) | 21285-88101 |
| 21291 | oil level gauge glass | 21291-60200 |
| 21301 | Needle valve sub-assembly | 21301-13080 · 21301-14010 · 21301-24030 · 21301-24360 · 21301-24500 · 21301-24501 · 21301-24580 · 21301-26350 · 21301-31320 · 21301-33081 · 21301-88220 |
| 21312 | steel ball | 21311-88110 |
| 21313 | No. 1 steel ball (for oil drain counterweight) | 21313-11020 |
| 21314 | No. 2 steel ball (for pump plunger) | 21314-11020 · 21314-60010 |
| 21331 | first throttle | 21331-24230 · 21331-26350 · 21331-33080 |
| 21332 | second throttle | 21332-21060 · 21332-33080 |
| 21333 | High speed valve | 21333-22010 · 21333-22050 |
| 21334 | choke | 21334-25030 · 21334-26350 · 21334-33080 |
| 21335 | thermostat valve | 21061-24230 · 21335-22060 · 21335-24030 · 21335-25010 · 21335-26040 |
| 21341 | enrichment valve | 21304-30010 · 21341-24030 · 21341-24031 |
| 21351 | enrichment piston | 21351-33080 |
| 21352 | vacuum piston | 21352-34060 |
| 21353 | pump plunger | 21305-22011 · 21353-24010 · 21353-33010 |
| 21371 | First gear idle cam | 21371-25180 · 21371-26010 |
| 21372 | First gear idle cam lifter | 21372-44100 |
| 21377 | Collar (for second throttle shaft) | 21377-24230 · 21377-26160 · 21668-24100 · 21668-24101 |
| 21392 | Choke harness clip | 21392-24231 · 21392-24232 |
| 21406A | 1st throttle screw | 21275-88250 · 90072-14908 |
| 21406B | E-ring (for first throttle valve) | 96160-00300 |
| 21406C | first throttle pin | 90072-24108 |
| 21406D | No. 1 compression spring (for first throttle valve) | 90072-50126 |
| 21406E | No. 2 compression spring (for first throttle valve) | 90072-50127 |
| 21411 | High speed axis | 21411-24010 · 21432-24030 · 21432-24061 |
| 21412 | first throttle shaft | 21412-24300 · 21412-24310 · 21412-25012 · 21412-26371 |
| 21413 | Second throttle shaft | 21413-24030 · 21413-24031 · 21413-24061 · 21413-24420 · 21413-24440 · 21413-25200 · 21413-26100 · 21413-26350 · 21413-33080 |
| 21414 | choke shaft | 21054-24010 · 21054-24440 · 21403-22011 · 21414-24440 · 21414-25010 · 21414-26351 · 21414-26402 · 21414-26440 · 21414-31022 |
| 21427 | choke connector shaft | 21414-26250 · 21427-24310 |
| 21427A | choke connector shaft bushing | 21895-22060 |
| 21431 | first throttle shaft arm | 21431-12040 · 21431-24012 · 21431-24042 · 21431-24232 · 21431-24300 · 21431-24301 · 21431-24370 · 21431-24371 · 21431-24390 · 21431-24420 · 21431-24440 · 21431-25011 · 21431-25180 · 21431-26041 · 21431-26400 |
| 21439 | First gear idle arm | 21439-26350 · 21439-27010 |
| 21443A | Float adjustment stay | 21443-88220 |
| 21447 | diaphragm rod | 21447-44100 |
| 21449 | Second gear starting pedal | 21449-25010 · 21449-25180 · 21449-25200 · 21449-26041 |
| 21452 | pump rod | 21452-24010 · 21452-24230 · 21452-24300 · 21452-25010 · 21452-25180 · 21452-26220 |
| 21453 | first throttle lever | 21042-88221 · 21453-25110 · 21453-25180 · 21453-26042 · 21453-26330 · 21453-26331 · 21453-26352 · 21453-26361 · 21453-26510 · 21453-26511 · 21453-26512 · 21453-27011 · 21453-27060 · 21455-88221 |
| 21454 | choke lever | 21414-26351 · 21454-26042 |
| 21455 | Throttle lever | 21444-24310 · 21444-25200 · 21455-24230 · 21575-24340 · 21664-25231 · 21664-26460 |
| 21456 | No. 1 first throttle idle speed adjustment lever | 21456-24102 · 21456-24103 · 21456-24230 · 21456-24260 · 21456-25010 · 21456-26041 · 21456-26350 · 21456-27010 · 21461-24442 |
| 21461 | First gear idle lever | 21458-24060 |
| 21462 | Idle speed adjustment lever | 21462-24310 |
| 21462A | Idle speed adjustment screw | 21866-24311 |
| 21471 | pump connecting rod | 21471-25010 · 21471-25180 · 21471-26040 · 21471-26510 · 21471-27011 · 21474-11060 · 21474-24011 · 21474-24012 · 21474-24101 |
| 21473 | Throttle valve shaft connecting rod | 21473-24060 · 21473-24230 |
| 21474 | connecting rod | 21474-26350 · 21474-31011 |
| 21476 | First gear idle connecting rod | 21476-26351 |
| 21477 | Choke lever link | 21477-24310 · 21478-26051 |
| 21478 | connecting rod | 21478-25181 |
| 21481 | First gear idle connector | 21481-22012 · 21481-24060 · 21481-24441 · 21481-26040 |
| 21482 | Piston connector | 21482-31010 · 21482-33040 · 21482-34060 |
| 21484 | Connector (for opener) | 21484-26350 |
| 21488 | Diaphragm connecting rod | 21487-88220 |
| 21491 | sliding link | 21491-44100 |
| 21492 | pump rod | 21492-88111 |
| 21502 | Choke door wiring harness clamp sub-assembly | 21502-88220 |
| 21511 | Oil level gauge clip | 21511-33010 |
| 21516 | Connector clip | 21574-26140 · 21574-26200 · 21574-26220 · 21574-26350 |
| 21522 | Wire harness bracket | 21522-88220 |
| 21526 | return spring bracket | 21526-44100 |
| 21531 | Coil housing fixings | 21531-26350 · 21531-30010 |
| 21536 | coil housing plate | 21536-25180 · 21536-44100 |
| 21538 | One way ball fixing | 21538-31010 |
| 21545 | First gear idle camshaft ring | 21545-25180 |
| 21548 | Throttle rod collar | 21548-88111 |
| 21557 | Spacer (for first gear idle cam) | 21557-26350 |
| 21557A | No. 2 septa | 21557-60200 |
| 21558 | Main measuring hole fixing piece | 21558-88110 |
| 21561 | Pump drain counterweight | 21561-22010 · 21561-88220 |
| 21572 | Enrichment piston block | 21572-33080 |
| 21575 | Stopper B (for oil drain counterweight) | 21575-33011 |
| 21577 | Starter return spring stop | 21579-88210 |
| 21578 | Throttle return spring stop | 21578-88222 · 21578-88223 |
| 21581 | First throttle shaft gasket | 21581-25010 · 21581-32010 · 21581-41010 · 21582-25010 · 21583-21010 · 21583-25010 · 21583-41010 · 21585-25010 |
| 21594 | float chamber plate | 21594-88220 |
| 21611 | Main gage hole gasket | 21611-22010 |
| 21614 | Venturi gasket | 21614-22010 · 21614-24360 · 21614-33010 · 21614-33080 · 21614-88110 |
| 21616 | Small venturi set screw | 21832-88110 |
| 21617 | Main oil gallery plug gasket | 21617-30010 |
| 21618 | Needle seat gasket | 21618-14010 · 21618-24030 · 21618-88220 |
| 21621 | Oil pipe joint gasket | 21621-30010 · 21621-88110 · 21633-24030 |
| 21622 | Air intake bell gasket | 21622-24011 · 21622-24360 · 21622-24440 · 21622-26510 · 21622-33082 · 21622-33083 |
| 21623 | Body hem pads | 21623-13080 · 21623-24300 · 21623-25180 · 21623-31141 |
| 21625 | oil level gauge gasket | 21655-60200 |
| 21626 | shell liner | 21649-33080 |
| 21627 | Coil housing gasket | 21627-34080 |
| 21628 | Acceleration nozzle screw gasket | 21628-88101 |
| 21635 | Idle oil gallery plug gasket | 21618-88120 |
| 21636 | Float chamber plug gasket | 21636-88101 |
| 21637 | plunger sleeve gasket | 21637-88101 |
| 21638 | Float chamber rod gasket | 21638-88220 |
| 21641 | Gasket (for thermostat valve cover) | 21641-23010 · 21641-23012 |
| 21644 | Float adjustment chamber cover gasket | 21644-88220 |
| 21645 | Diaphragm cover gasket | 21645-33080 |
| 21646 | No. 1 diaphragm housing gasket | 21646-88111 |
| 21647 | Diaphragm housing cover gasket | 21649-33080 |
| 21649 | Gasket (for pump drain weight stop) | 21641-33011 · 21655-11040 |
| 21651 | Spray chamber cover gasket | 21649-88111 |
| 21654A | pressure relief lever | 21654-26400 |
| 21656 | Throttle shaft seal | 21657-88110 |
| 21659 | O-ring (for thermostat valve) | 21641-24030 |
| 21662 | No. 1 choke connector shaft | 21454-24310 · 21454-26051 |
| 21663 | No. 2 choke connector shaft | 21464-24310 · 21664-26041 |
| 21666 | Throttle shaft tie rod | 21666-26350 · 21666-26400 |
| 21667 | Diaphragm | 21667-13010 |
| 21668 | collar | 21668-31280 |
| 21677 | Screw plug | 21677-24100 · 21677-25020 |
| 21679 | locator | 21679-13060 · 21679-24360 |
| 21681 | Spacers (for high speed shafts) | 21681-21060 · 21682-21060 |
| 21683 | Choke Connector Shaft Spacer | 21681-21060 · 21682-21060 |
| 21695 | Dust boot (for deceleration buffer) | 21699-24360 |
| 21697 | Dust boot (for sliding link) | 21699-24360 · 21699-33010 |
| 21698 | Diaphragm | 21669-25010 · 21669-26040 · 21707-88220 |
| 21699 | Dust boot (for pump plunger) | 21699-21061 |
| 21722 | Pump damping spring | 21722-22010 |
| 21723 | Idle speed adjustment spring | 21723-21030 · 21724-88110 |
| 21724 | Throttle valve adjustment spring | 21723-21030 · 21724-88110 · 21724-88251 · 21726-40010 |
| 21725 | Second throttle return spring | 21725-24030 |
| 21726 | First gear idle speed adjustment spring | 21723-21030 · 21726-40010 · 21864-24230 |
| 21728 | Throttle return spring | 21729-88220 · 21756-25180 · 21756-25181 |
| 21731 | Deceleration buffer or positioner adjustment spring | 21723-21030 · 21864-24010 |
| 21734 | Thickening piston spring | 21734-22050 · 21734-24010 · 21734-24030 · 21734-24031 · 21734-33080 · 21734-33081 |
| 21735 | Pump rod spring | 21735-21032 · 21735-22010 · 21735-24030 · 21735-24360 |
| 21736 | First gear idle cam spring | 21736-40010 |
| 21738 | Choke pressure reducing spring | 21738-22013 · 21738-24030 · 21738-24060 · 21738-26040 |
| 21741 | pump spring | 21741-88110 |
| 21744 | Carburetor starter disc spring | 21738-88110 |
| 21746 | starter return spring | 21737-88201 |
| 21746A | Float adjustment spring | 21746-88220 |
| 21748 | Throttle return spring damper | 21748-88230 |
| 21751 | Oil pipe joint | 21751-24032 · 21751-24033 · 21751-24034 · 21751-24290 · 21751-88220 · 21755-88220 · 90405-06167 |
| 21756 | Return spring (for throttle shaft) | 21756-24230 · 21756-24300 · 21756-26040 · 21756-31270 · 21756-33080 · 21864-13080 |
| 21763 | floating lever pin | 21763-26350 · 21763-29270 · 21763-38010 · 21763-88111 |
| 21764 | Piston pin (for vacuum piston) | 21764-40010 |
| 21767 | Diaphragm rod pin | 21767-88110 |
| 21781 | Main oil gallery screw plug (for carburetor measuring hole) | 21781-30020 |
| 21784 | Idle oil passage plug | 21784-88110 |
| 21786 | Pump oil passage plug | 21787-88110 |
| 21791 | No. 1 snap ring (for carburetor connecting rod) | 21791-60010 |
| 21793 | Carburetor starter snap ring | 21792-88110 |
| 21794 | No. 1 retaining ring (for throttle shaft) | 21794-40010 |
| 21795 | No. 2 retaining ring (for high-speed shaft) | 21795-30010 |
| 21811 | Oil pipe joint bolt | 21811-11060 · 21811-88110 |
| 21816 | No. 1 Mini Venturi Set Screw | 21832-88220 |
| 21821 | Second throttle fixing screw | 21821-34031 · 21821-60011 |
| 21822 | First throttle fixing screw | 21822-44101 |
| 21823 | Choke door fixing screw | 21821-34031 · 21822-10011 |
| 21824 | Set screw (for first idle cam lifter assembly) | 21824-24060 · 21824-33010 |
| 21826 | Pump rod fixing screw | 21826-25010 · 21826-31012 |
| 21827 | Connector fixing screw | 21827-33010 |
| 21829 | High speed valve fixing screw | 21823-60011 |
| 21831 | Enrichment piston limit screw | 21842-33010 |
| 21832 | Screw (for choke lever adapter assembly) | 21832-31020 |
| 21833 | No. 1 fixing screw (for carburetor body assembly) | 21833-33010 |
| 21834 | No. 2 fixing screw (for carburetor body assembly) | 21834-25180 · 21834-31010 · 21834-31140 |
| 21835 | No. 3 fixing screw (for carburetor body assembly) | 21835-40010 |
| 21837 | Coil housing fixing screws | 21821-25010 |
| 21841 | Injection pump injector screw plug | 21829-88101 |
| 21842 | Fixing screw (for carburetor oil level gauge clamp assembly) | 21842-33010 |
| 21844 | Choke lever screw | 21844-88110 |
| 21845 | Screws (for rod assembly) | 21845-26350 · 21845-88111 |
| 21846 | Diaphragm housing fixing screws | 21847-88220 · 21849-88220 |
| 21849 | Combustion chamber cover butterfly bolt | 21842-88221 |
| 21852 | Throttle lever retaining nut | 21852-30010 |
| 21855 | Throttle shaft nut | 21854-88110 |
| 21864 | Spring (for first throttle arm) | 21864-24230 · 21864-26351 |
| 21865 | spring | 21756-24300 · 21756-24310 · 21864-25180 |
| 21867 | diaphragm spring | 21867-25012 · 21867-26400 · 21867-41010 · 21867-88110 |
| 21868 | Diaphragm pressure reducing spring | 21868-33080 |
| 21871 | Choke link spring | 21864-22060 · 21864-24070 |
| 21876 | carburetor starter gasket | 21876-88110 |
| 21881 | Lock washer (for throttle shaft) | 21881-60010 · 21881-88110 |
| 21881A | No. 2 lock washer | 94511-00600 |
| 21884 | Thermostat housing retaining gasket | 21885-44010 |
| 21887 | Washer (for securing connecting rod) | 21887-88110 |
| 21895 | Choke connector shaft bracket | 21896-24310 |
| 21896 | Thermostat valve bracket | 21896-24230 |
| 21897 | Front bracket (for choke shaft) | 21897-24310 · 21897-26440 |
| 21934 | Throttle solenoid valve | 21062-12030 · 21062-24360 · 21062-24380 · 21062-25010 · 21062-25180 · 21062-26100 · 21062-26130 |
| 21934E | O-ring (for solenoid valve) | 21655-44101 |
| 21934F | padding | 21617-10010 |
