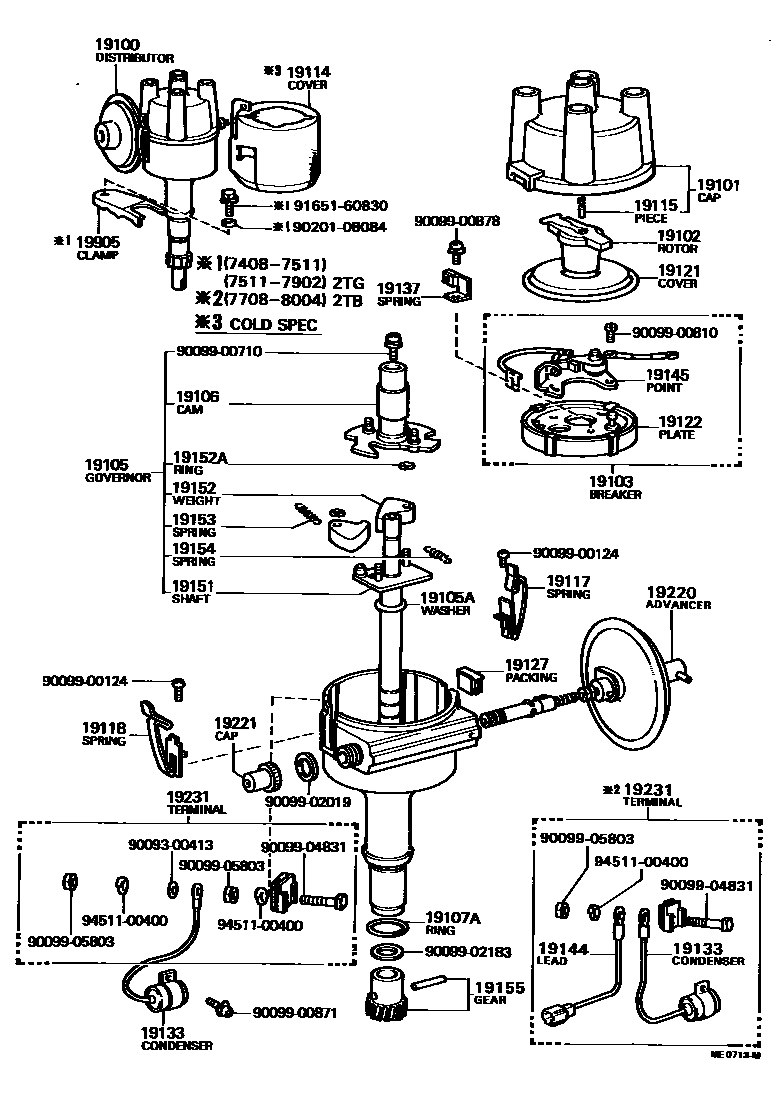

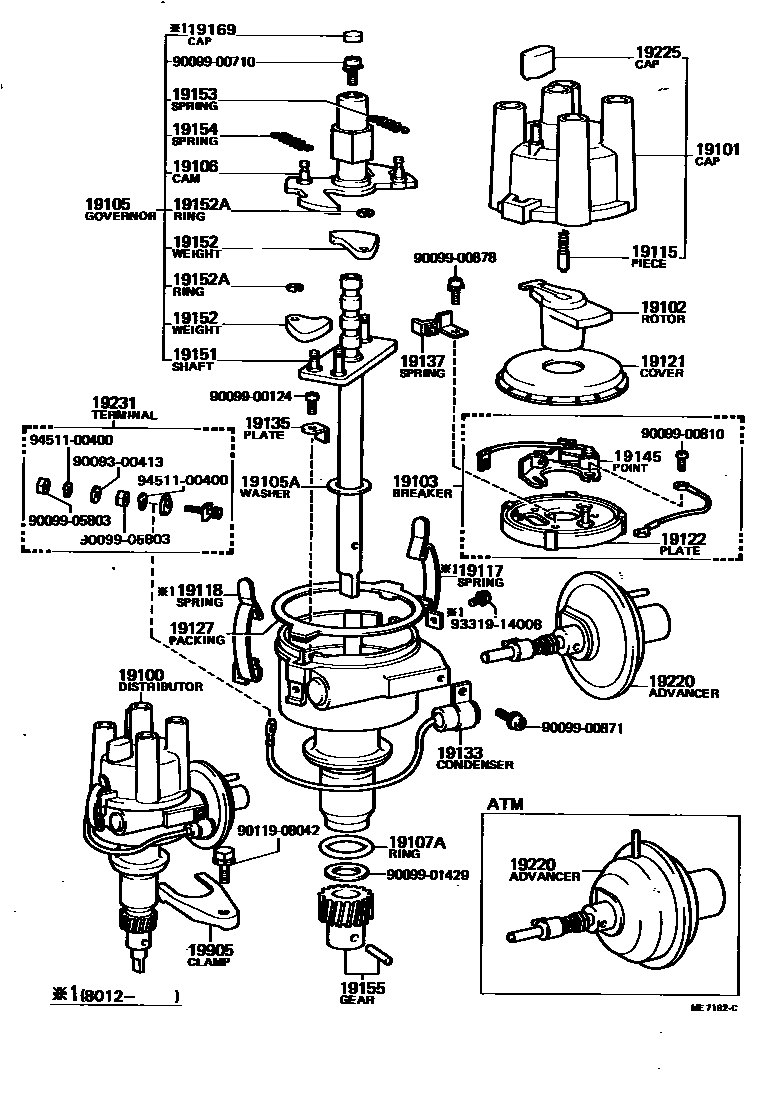

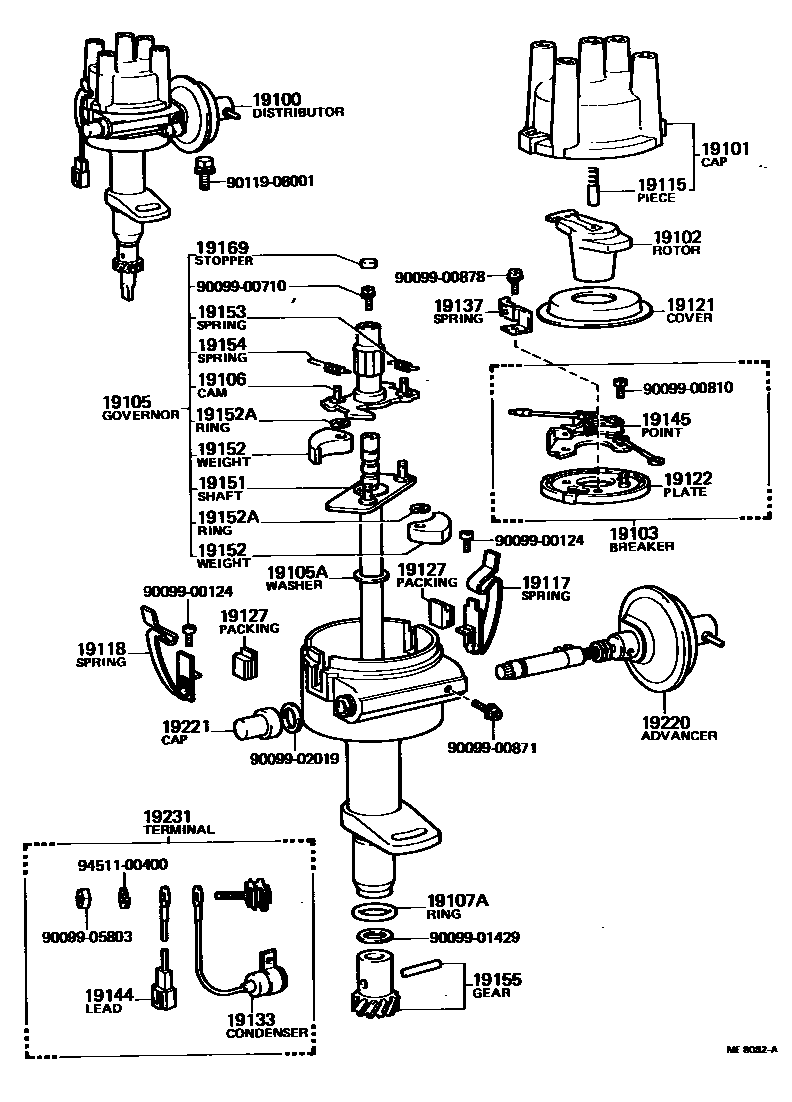

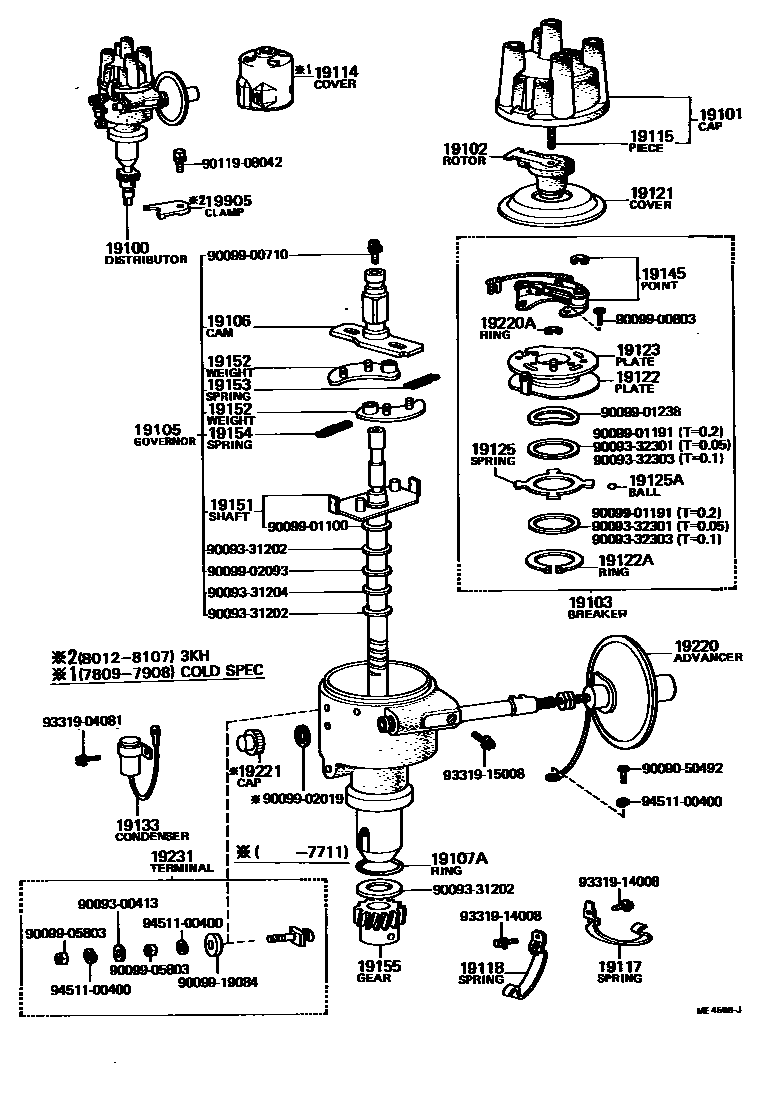

Toyota COROLLA 分电器 — Figure 1902
Toyota COROLLA EPC diagram 1902, 分电器, with 4 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19100-13030 · 19100-13031 · 19100-13040 · 19100-24013 · 19100-24050 · 19100-24060 · 19100-24061 · 19100-24120 · 19100-24190 · 19100-25030 · 19100-26140 · 19100-26150 · 19100-26160 · 19100-26161 · 19100-26162 · 19100-26163 · 19100-26210 · 19100-26310 · 19100-88222 · 19100-88223 |
| 19101 | Distributor cover sub-assembly | 19101-21011 · 19101-25070 · 19101-31013 · 19101-33012 · 19101-33013 |
| 19102 | Distributor flame head sub-assembly | 19102-22010 · 19102-22012 · 19102-24120 · 19102-24121 · 19102-26150 · 19102-33012 |
| 19103 | Distributor breaker sub-assembly | 19103-13070 · 19103-22011 · 19103-26210 · 19103-33013 |
| 19105 | Speed governor sub-assembly | 19105-13030 · 19105-24013 · 19105-24030 · 19105-24060 · 19105-25012 · 19105-25030 · 19105-26022 · 19105-26162 · 19105-26190 · 19105-88222 |
| 19105A | Thrust washer (for governor shaft) | 90099-01385 · 90099-01386 · 90099-01387 · 90099-01412 |
| 19106 | Distributor cam sub-assembly | 19106-24050 · 19106-26010 · 19106-26022 · 19106-34010 · 19106-34013 · 19106-34090 · 19106-38011 · 19106-40021 · 19106-88220 |
| 19107A | Distributor housing O-ring | 90099-14020 |
| 19114 | Waterproof cover (for distributor) | 19114-24030 · 19114-25011 |
| 19115 | Distributor cover center piece | 19115-50010 |
| 19117 | Distributor cover spring A | 19117-24080 · 19117-30030 · 19117-33011 |
| 19118 | Distributor cover spring B | 19117-24080 · 19118-30030 · 19118-33011 |
| 19121 | dust cover | 19121-10010 · 19121-33011 · 19121-38030 |
| 19122 | Distributor fixing plate | 19122-26210 · 19122-29021 · 19122-33013 |
| 19122A | Snap ring (for distributor fixing plate) | 90099-07081 |
| 19123 | Distributor breaker board | 19123-41011 |
| 19125 | Spring (for distributor fixing plate) | 19125-30010 |
| 19125A | Distributor fixing plate steel ball | 90099-12003 |
| 19127 | Dust seal | 19127-25010 · 19127-88220 · 19127-88222 · 19127-88251 |
| 19133 | Distributor capacitor | 19133-10010 · 90099-52050 · 90099-52059 · 90099-52060 |
| 19135 | fixed plate | 19135-24080 |
| 19137 | Shock absorber spring sub-assembly | 19137-33011 · 19137-33012 |
| 19144 | Distributor breaker lead | 19144-34180 |
| 19145 | Distributor contacts | 19145-26060 |
| 19151 | governor shaft | 19151-22031 · 19151-24081 · 19151-25011 |
| 19152 | Speed regulator weight | 19152-32010 · 19152-33011 · 19152-45060 · 19152-87104 |
| 19152A | Snap ring (for governor weight) | 90099-07011 · 90099-07104 · 90099-07109 |
| 19153 | A governor spring | 19153-13030 · 19153-24012 · 19153-24020 · 19153-25012 · 19153-25030 · 19153-25070 · 19153-26022 · 19153-26162 · 19153-26190 · 19153-88222 |
| 19154 | B governor spring | 19153-24012 · 19153-25012 · 19153-88222 · 19154-13030 · 19154-22010 · 19154-24060 · 19154-25030 · 19154-26022 · 19154-26162 · 19154-26190 |
| 19155 | Distributor spiral gear | 19195-22031 · 19195-24020 · 19195-24081 · 19195-25011 · 19195-88220 |
| 19169 | Cam grease stop | 19169-32010 |
| 19220 | Distributor vacuum advance device assembly | 19220-13030 · 19220-13031 · 19220-13032 · 19220-13040 · 19220-24012 · 19220-24060 · 19220-24070 · 19220-24170 · 19220-25010 · 19220-25011 · 19220-26021 · 19220-26163 · 19220-26190 · 19220-26310 · 19220-88220 · 19220-88221 |
| 19220A | Snap ring (for distributor vacuum advance device) | 90099-07104 |
| 19221 | Distributor regulator cover | 19221-30030 |
| 19225 | rubber cap | 19225-25070 |
| 19231 | Distributor terminals | 19132-36020 · 19231-22010 · 19231-25060 · 19231-33011 · 19231-38011 |
| 19905 | Distributor clip sub-assembly | 19955-24010 · 19955-25010 · 19955-33010 |
