Toyota COROLLA 点火线圈和火花塞 — Figure 1901

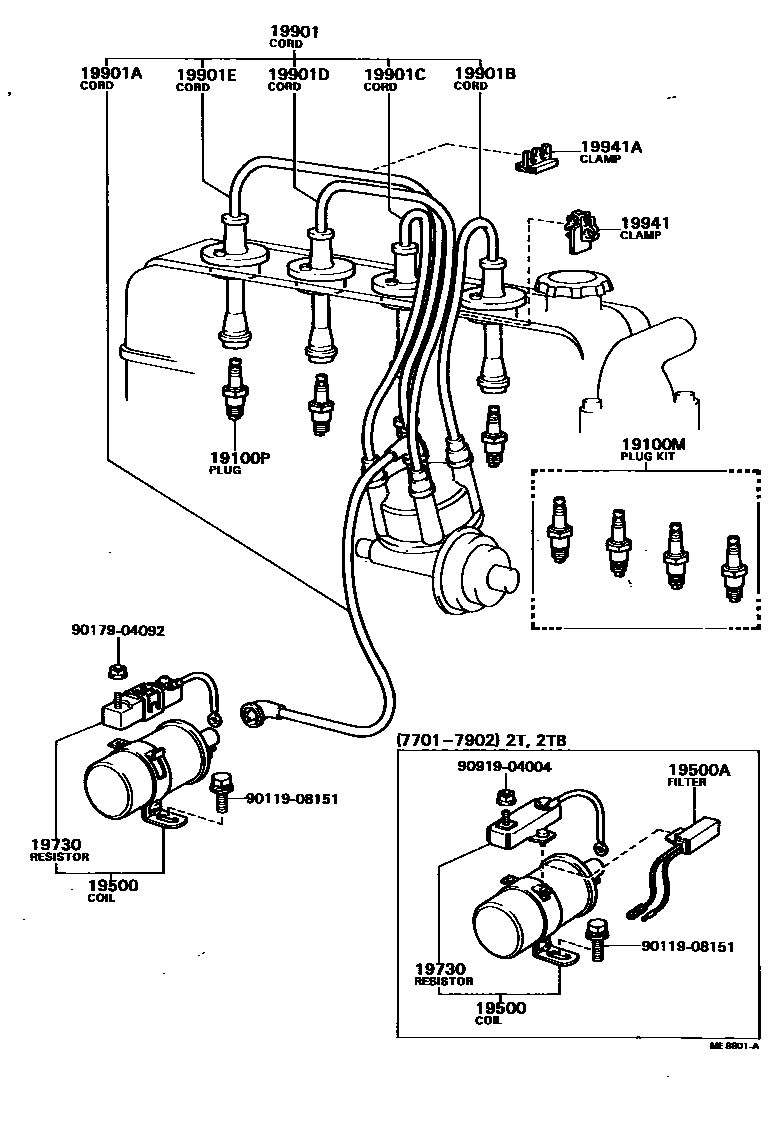

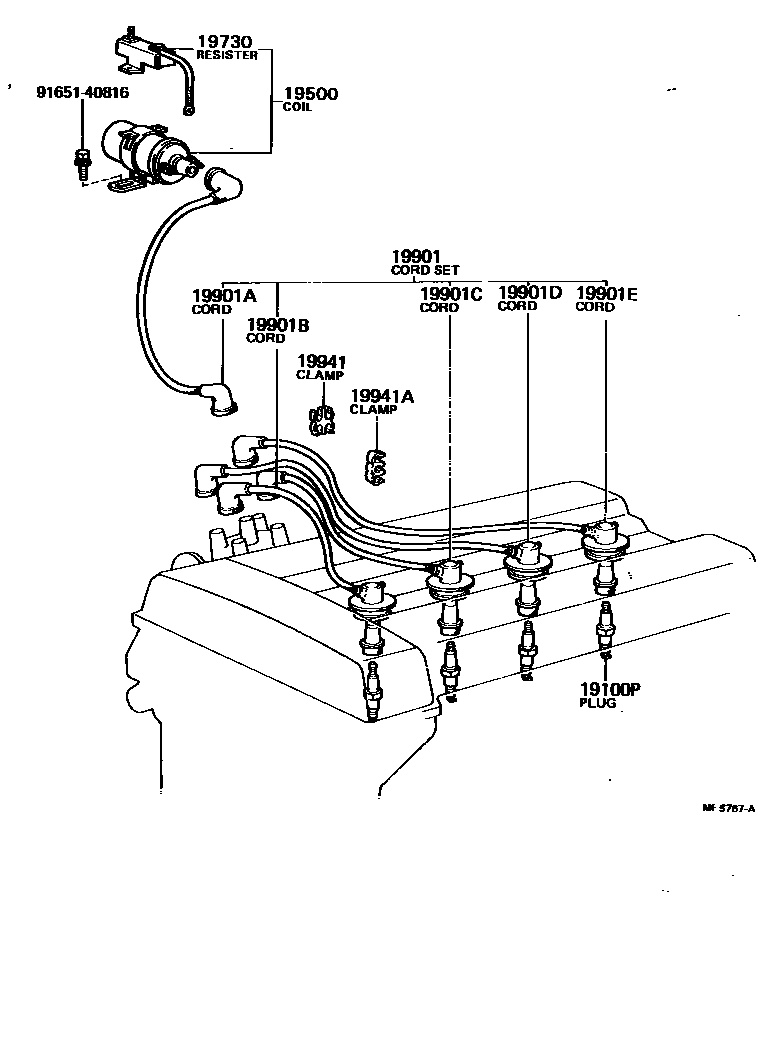

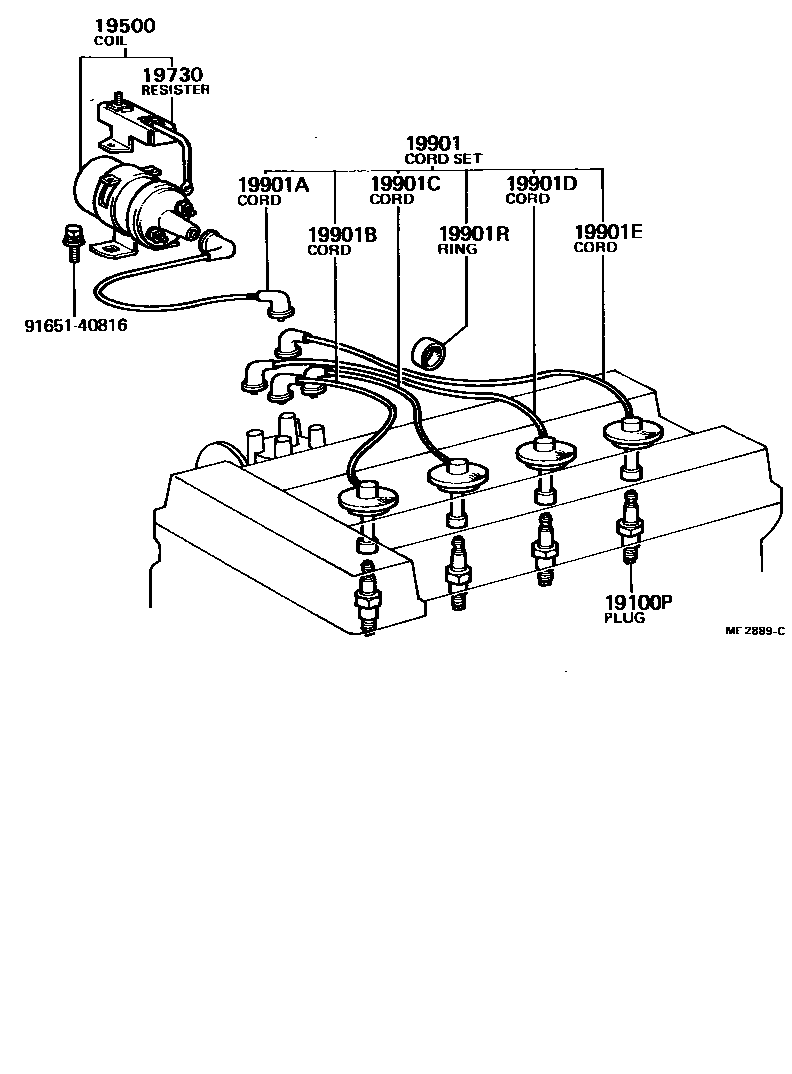

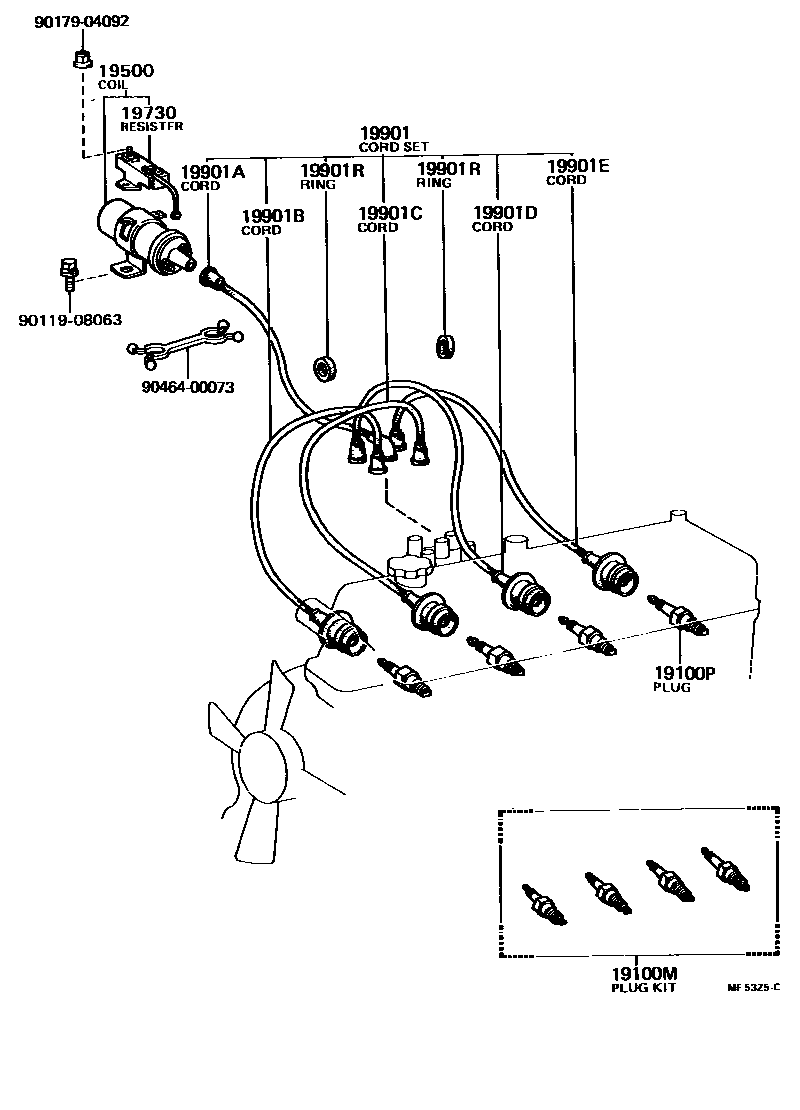

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100M | spark plug assembly | 04195-34010 |
| 19100P | spark plug | 90919-01027 · 90919-01041 · 90919-01045 · 90919-01046 · 90919-01051 · 90919-01056 |
| 19500 | Ignition coil assembly | 90919-02022 · 90919-02033 · 90919-02037 · 90919-02058 |
| 19500A | Noise filter | 90980-05009 |
| 19730 | Ignition coil resistor | 90919-04005 · 90919-04032 |
| 19901 | Coil and spark plug assembly with damper wire | 90072-77602 · 90072-77613 · 90919-21070 · 90919-21071 · 90919-21073 · 90919-21142 · 90919-21166 · 90919-21188 · 90919-21194 |
| 19901A | coil damping line | 90072-77405 · 90919-13031 · 90919-13046 · 90919-13048 · 90919-13073 · 90919-13102 · 99231-10570 · 99252-11055 |
| 19901B | No. 1 spark plug damper wire | 90072-76828 · 90072-76840 · 90919-12055 · 90919-12084 · 90919-12265 |
| 19901C | No. 2 spark plug damper wire | 90072-76829 · 90072-76841 · 90919-12056 · 90919-12083 · 90919-12266 |
| 19901D | No. 3 spark plug damper wire | 90072-76830 · 90072-76842 · 90919-12065 · 90919-12083 · 90919-12267 |
| 19901E | No. 4 spark plug damper wire | 90072-76831 · 90072-76843 · 90919-12066 · 90919-12080 · 90919-12084 · 90919-12268 · 90919-12269 |
| 19901R | Rubber spark plug damping wire ring | 90072-77901 · 90202-11067 |
| 19941 | No. 1 damping wire clip | 90072-46413 · 90464-00002 · 90464-00053 |
| 19941A | Clamp (for damping wire) | 90072-46414 · 90464-00001 |
