Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 7 images and 26 PNC and OE references.

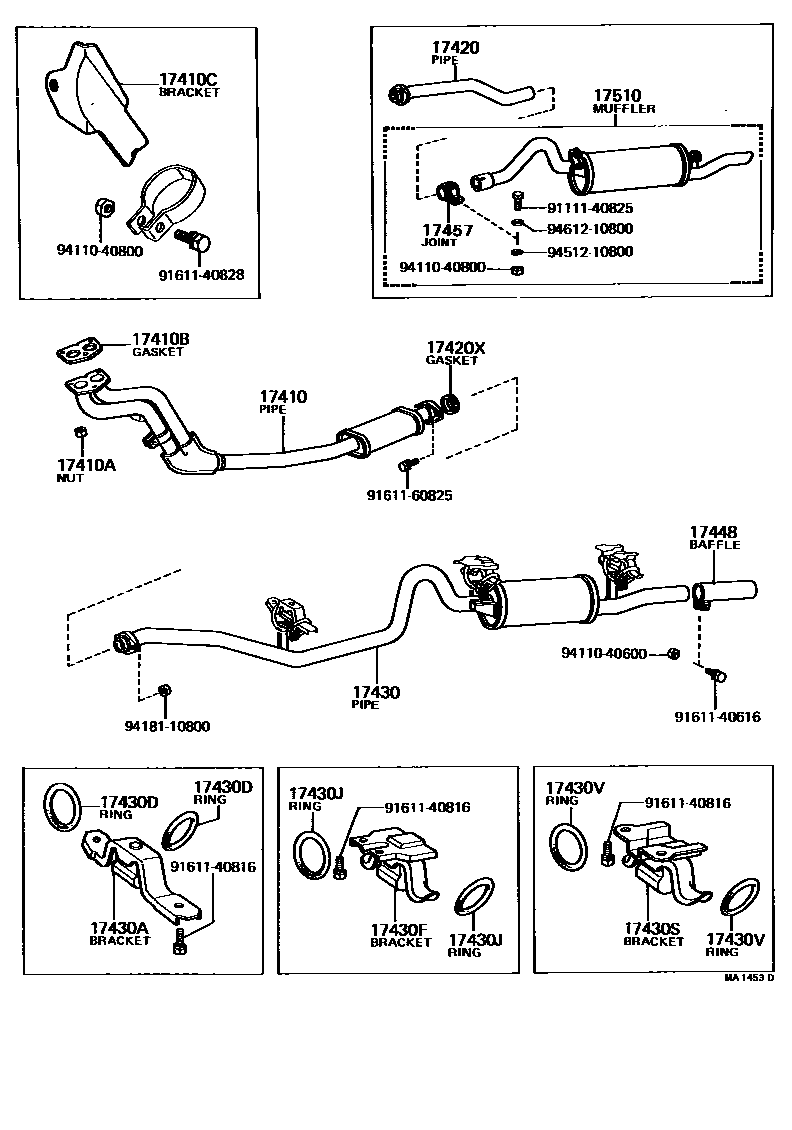

Toyota COROLLA Exhaust Pipe EPC diagram — MA1453D — Exhaust Pipe — MA1453D (197408 – 197511)

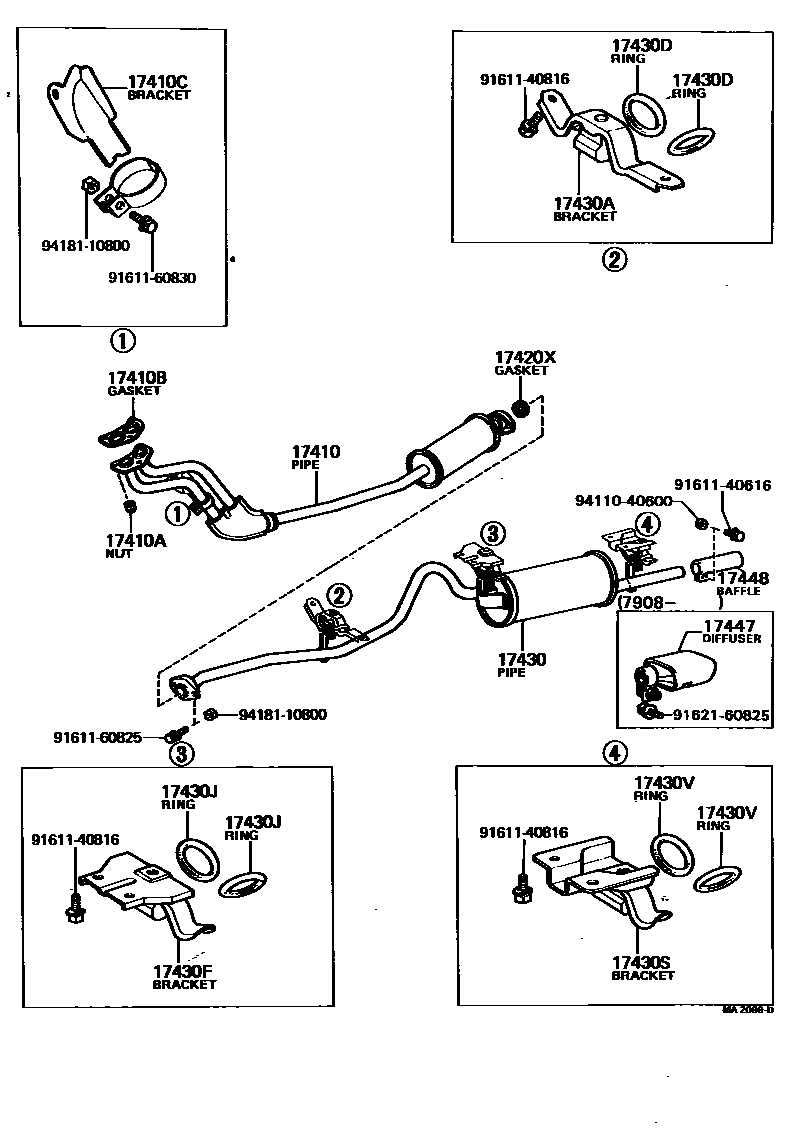

Toyota COROLLA Exhaust Pipe EPC diagram — MA2099D — Exhaust Pipe — MA2099D (197511 – 198004)

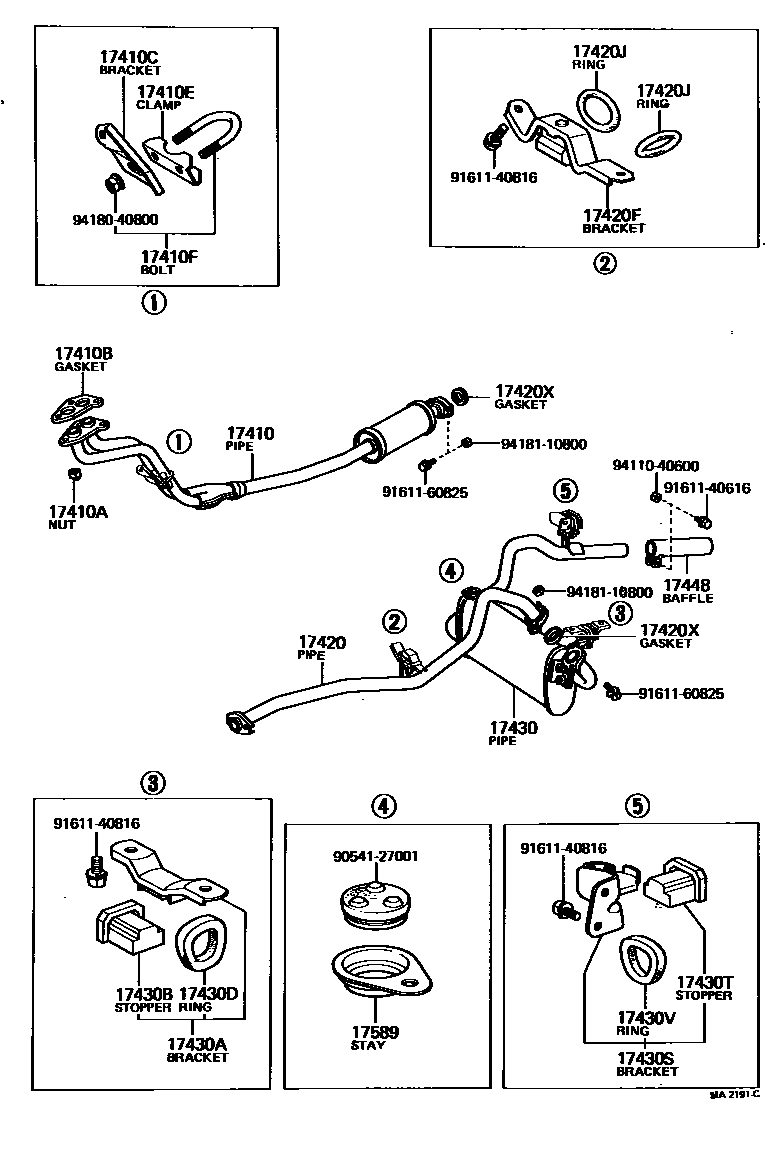

Toyota COROLLA Exhaust Pipe EPC diagram — MA2191C — Exhaust Pipe — MA2191C (197603 – 197908)

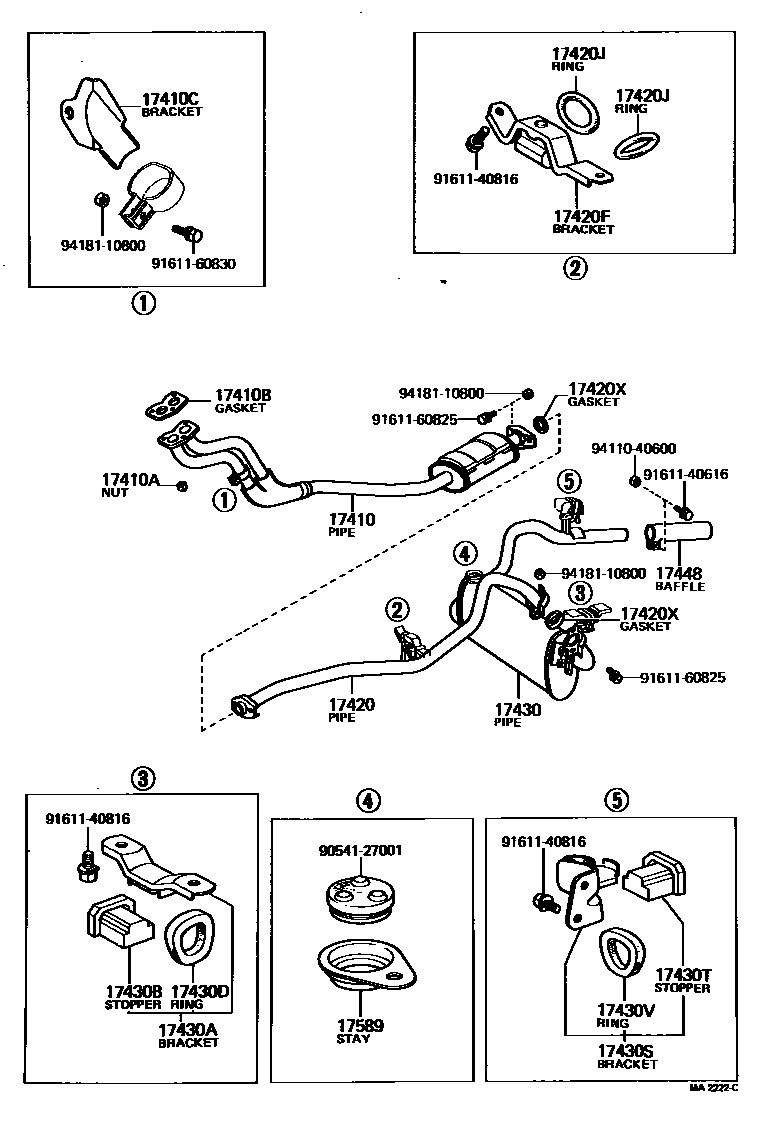

Toyota COROLLA Exhaust Pipe EPC diagram — MA2222C — Exhaust Pipe — MA2222C (197603 – 197908)

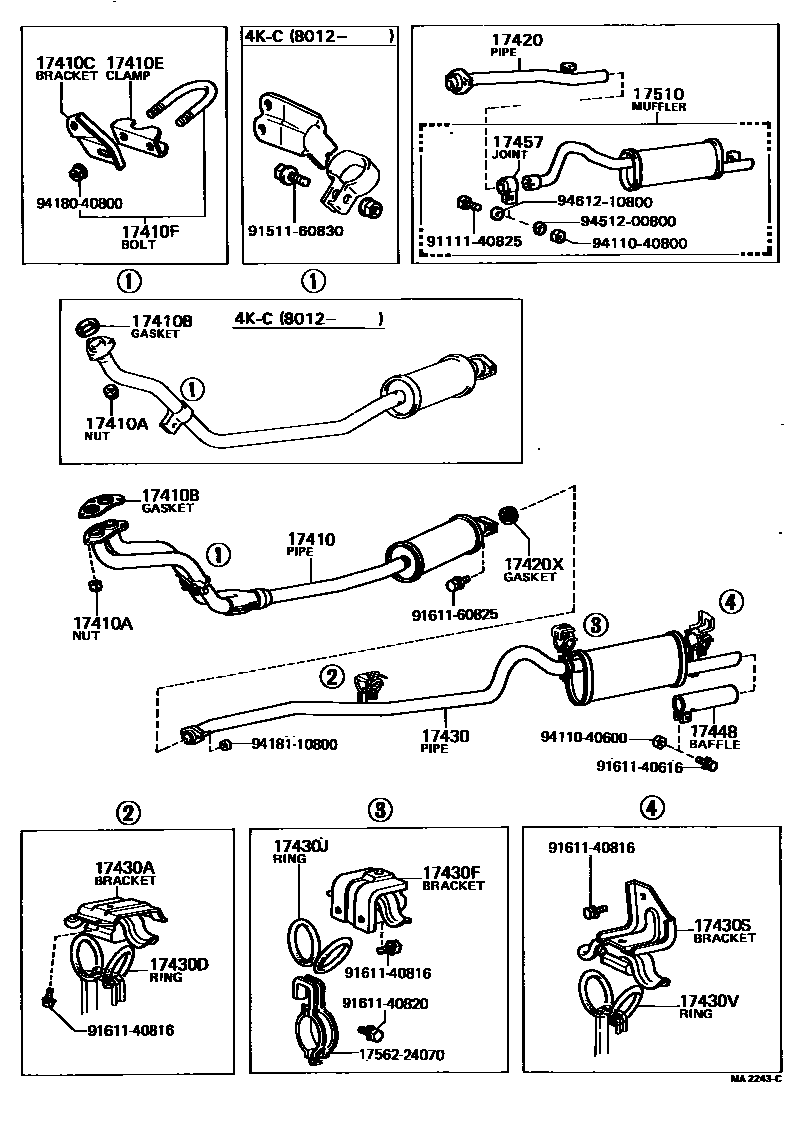

Toyota COROLLA Exhaust Pipe EPC diagram — MA2243C — Exhaust Pipe — MA2243C (197408 – 999999)

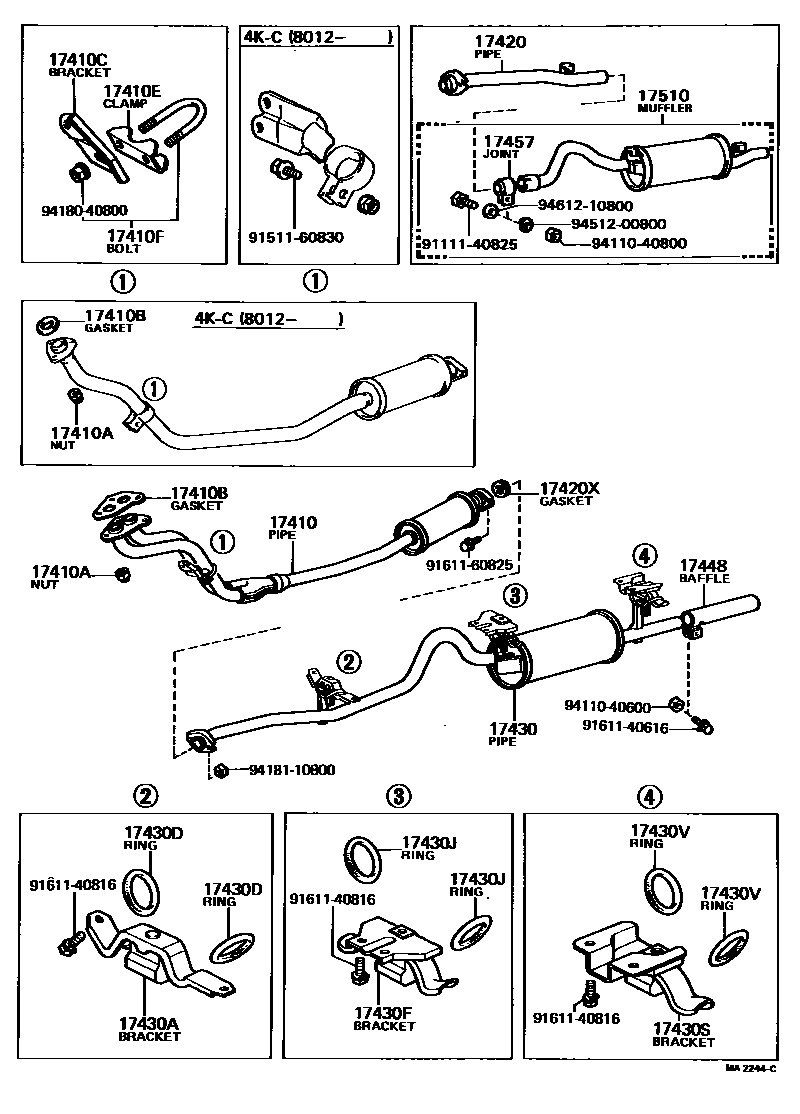

Toyota COROLLA Exhaust Pipe EPC diagram — MA2244C — Exhaust Pipe — MA2244C (197408 – 999999)

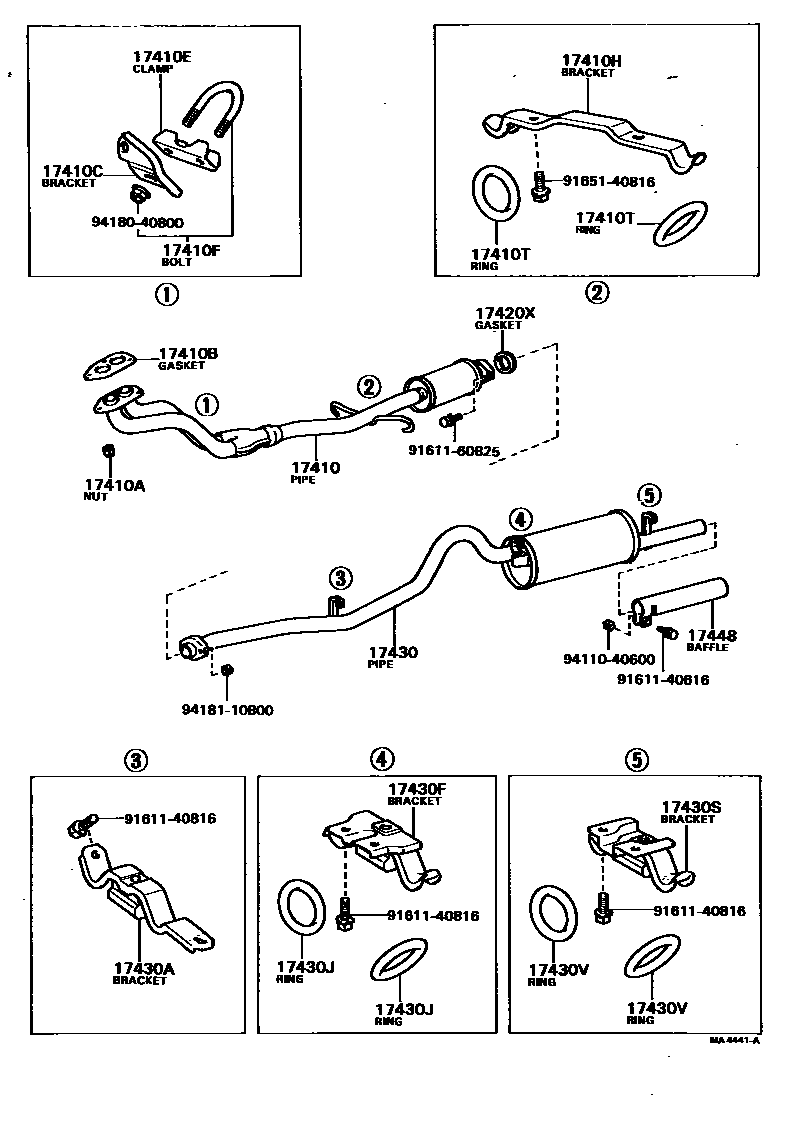

Toyota COROLLA Exhaust Pipe EPC diagram — MA4441A — Exhaust Pipe — MA4441A (197902 – 197908)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17410-13040 · 17410-24100 · 17410-24101 · 17410-24220 · 17410-25060 · 17410-26070
17410A	Exhaust pipe fixing studs and nuts	90170-10199 · 90179-10010 · 90179-10118
17410B	Exhaust pipe gasket	17451-22010 · 17451-41020 · 90917-06020
17410C	Front exhaust pipe bracket (for front)	17571-13040 · 17571-24040 · 17571-24041 · 17571-25030
17410E	No. 1 front exhaust pipe clamp (for front)	90917-04019
17410F	Front exhaust pipe bolt or ring (for front)	90117-08199 · 90118-08136
17410H	Front exhaust pipe bracket (for center)	17587-26011
17410T	Front exhaust pipe bolt or ring (for center)	90301-34207
17420	Central exhaust pipe assembly	17403-24030 · 17403-24040 · 17456-24040 · 17456-24050 · 17456-26010
17420F	Central exhaust pipe bracket	17506-24010
17420J	Center exhaust pipe bolt or ring	90301-34172 · 90301-34207
17420X	Center exhaust pipe liner	90917-06001 · 90917-06004
17430	Exhaust tailpipe assembly	17405-24040 · 17405-24050 · 17430-24090 · 17430-24100 · 17430-24140 · 17430-24150 · 17430-24310 · 17430-25110 · 17430-26080 · 17430-26190 · 17430-26200 · 17430-26590
17430A	Exhaust tailpipe bracket (for front)	17506-24010 · 17506-24020 · 17507-24060
17430B	Exhaust tailpipe bumper (for front)	17591-45010
17430D	Exhaust tailpipe bolts or rings (for front)	17565-41010 · 90301-34172 · 90301-34207
17430F	Exhaust tailpipe bracket (for center)	17507-24010 · 17507-24020
17430J	Exhaust tailpipe bolt or ring (for center)	90301-34172 · 90301-34207
17430S	Exhaust tailpipe bracket (for rear)	17508-24030 · 17508-24040 · 17508-24050 · 17508-36011
17430T	Exhaust tailpipe cushion (for rear)	17591-45010
17430V	Exhaust tailpipe bolts or rings (for rear)	17565-41010 · 90301-34172 · 90301-34207
17447	exhaust diffuser	17406-15010
17448	Exhaust pipe tail throat	17448-22010 · 17448-25010
17457	Exhaust pipe joint	17504-40010
17510	muffler assembly	17540-24050 · 17540-24060 · 17540-25040 · 17540-26010
17589	Exhaust pipe stay	17589-26010
