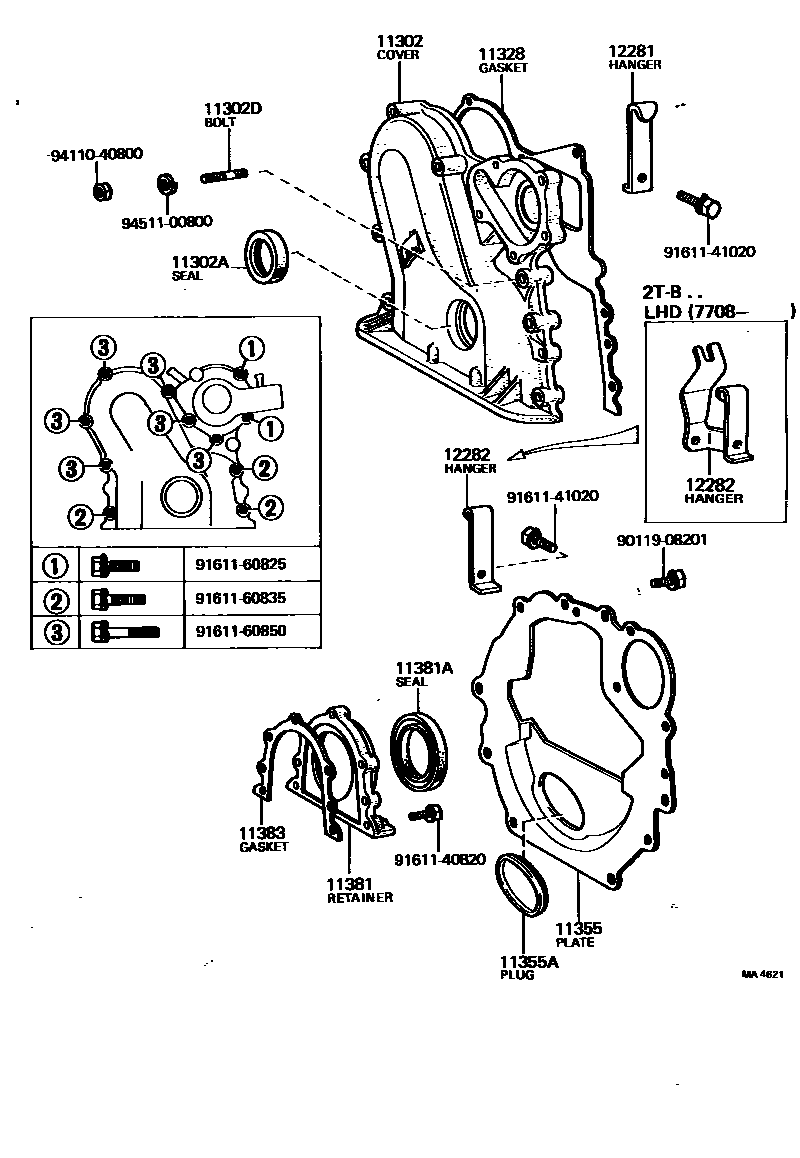

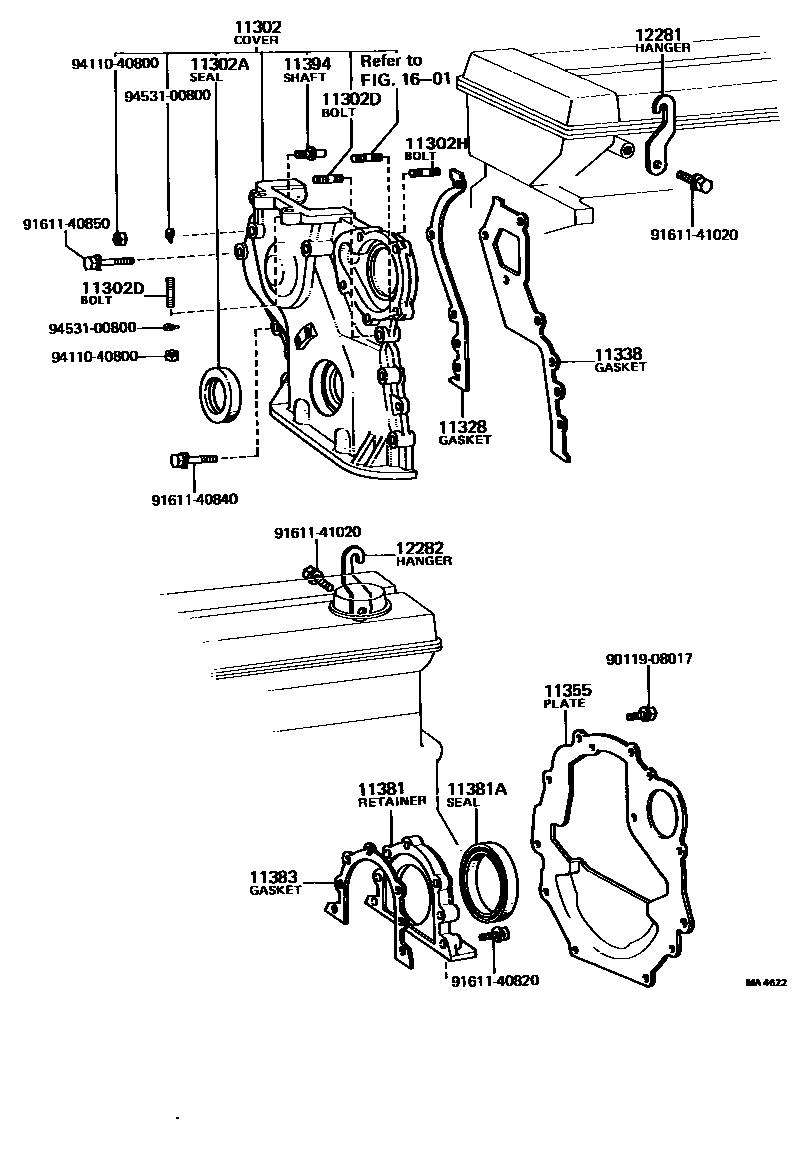

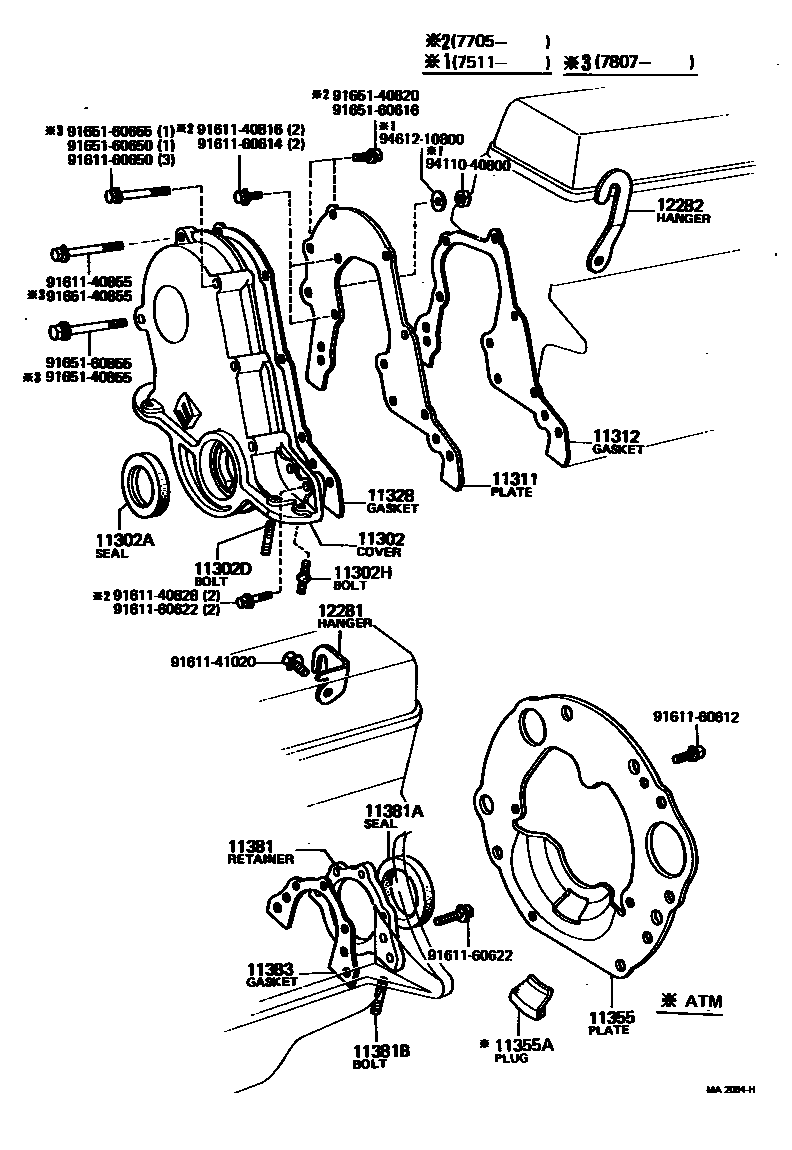

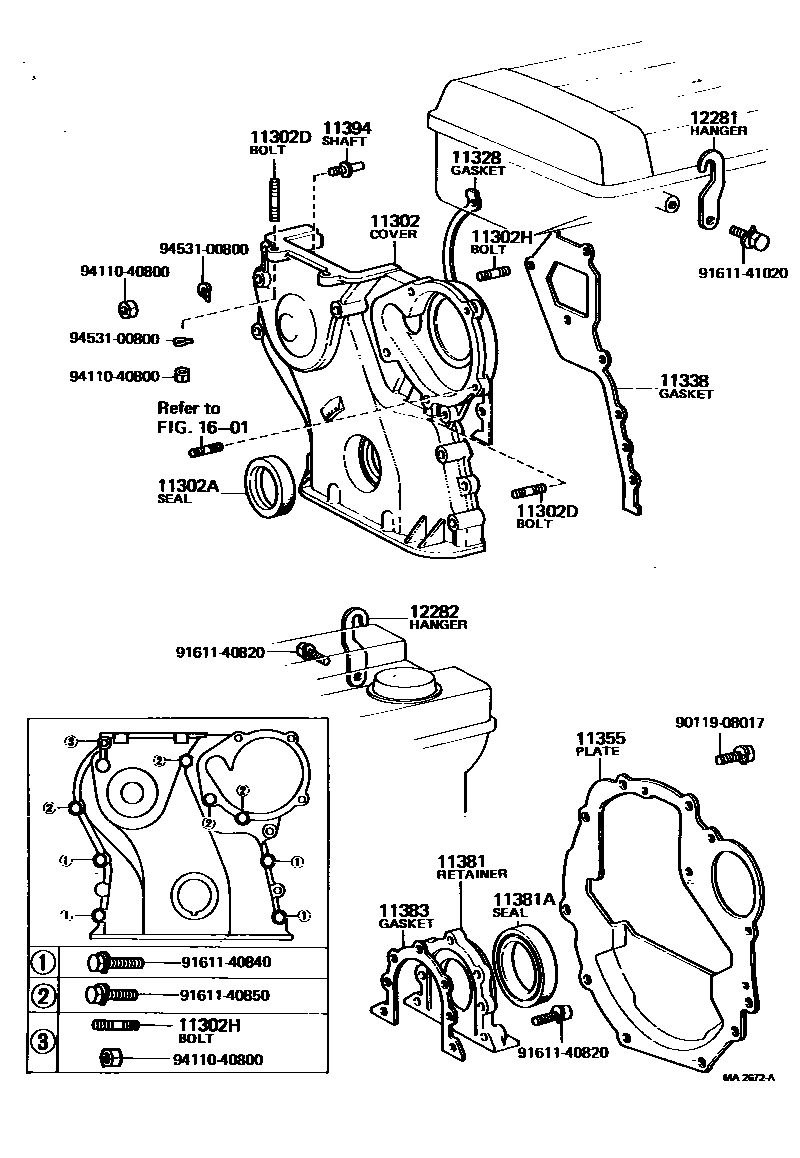

Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106
Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11302-88220 · 11321-13010 · 11321-13030 · 11321-22012 · 11321-24030 · 11321-24031 · 11321-25010 · 11321-26010 · 11321-28010 · 11321-88220 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90311-38002 · 90311-38013 · 90311-38024 · 90311-38111 |
| 11302D | Studs (for timing gear cover) | 90116-06012 · 90116-08015 · 90116-08057 · 92132-40616 · 92132-60614 |
| 11302H | Studs (for timing gear cover) | 90072-11618 · 90116-06006 |
| 11311 | front board | 11311-13010 · 11311-22010 · 11311-22011 |
| 11312 | front panel gasket | 11312-13010 · 11312-13011 · 11312-22010 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-13010 · 11328-13011 · 11328-22010 · 11328-22011 · 11328-25010 · 11328-25011 · 11328-88220 |
| 11338 | No. 2 timing chain cover gasket | 11338-88220 |
| 11355 | rear end plate | 11355-13010 · 11355-13011 · 11355-24030 · 11355-24040 · 11355-24041 · 11355-24042 · 11355-25011 · 11355-25022 |
| 11355A | Hole plug (for rear end plate) | 90950-01069 · 90950-01160 · 90950-01215 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-13010 · 11381-24010 · 11381-25010 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-70001 · 90311-70120 · 90311-75113 |
| 11381B | Stud bolts (for engine rear oil seal race) | 90116-06035 |
| 11383 | Engine rear oil seal seat gasket | 11383-13010 · 11383-22010 · 11383-25010 |
| 11394 | timing chain tensioner shaft | 11394-34010 · 11394-88210 |
| 12281 | Engine No. 1 hanger | 12281-13010 · 12281-13011 · 12281-24011 · 12281-25010 · 12281-26010 · 12281-88220 |
| 12282 | ENGINE HANGER, NO.2 | 12281-25010 · 12281-26010 · 12281-26020 · 12281-88220 · 12282-22011 · 12282-22012 · 12282-88220 |
