Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 4 images and 2 PNC and OE references.

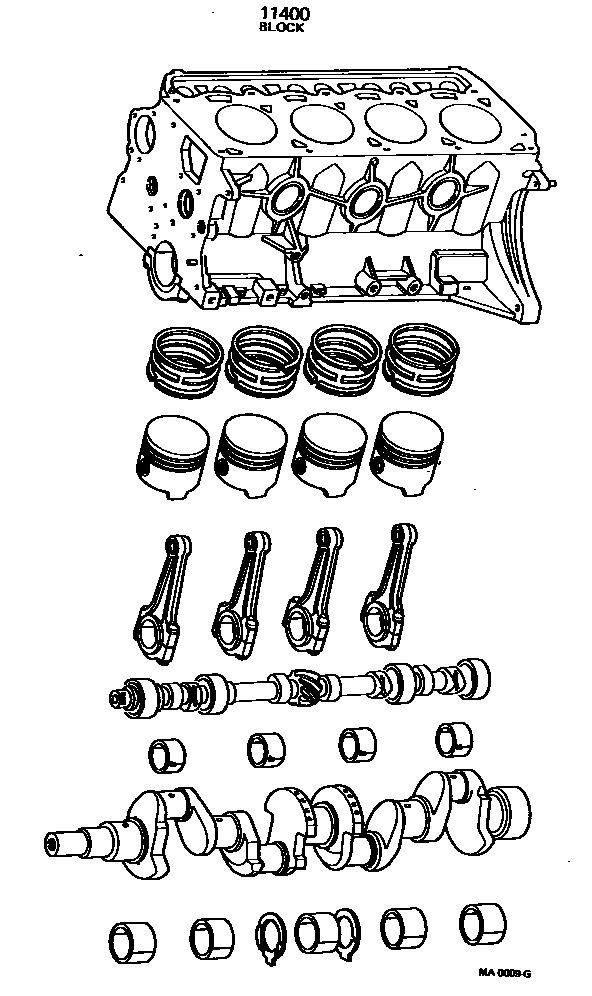

Toyota COROLLA Short Block Assembly EPC diagram — MA0009G
Short Block Assembly — MA0009G (197408 – 999999)

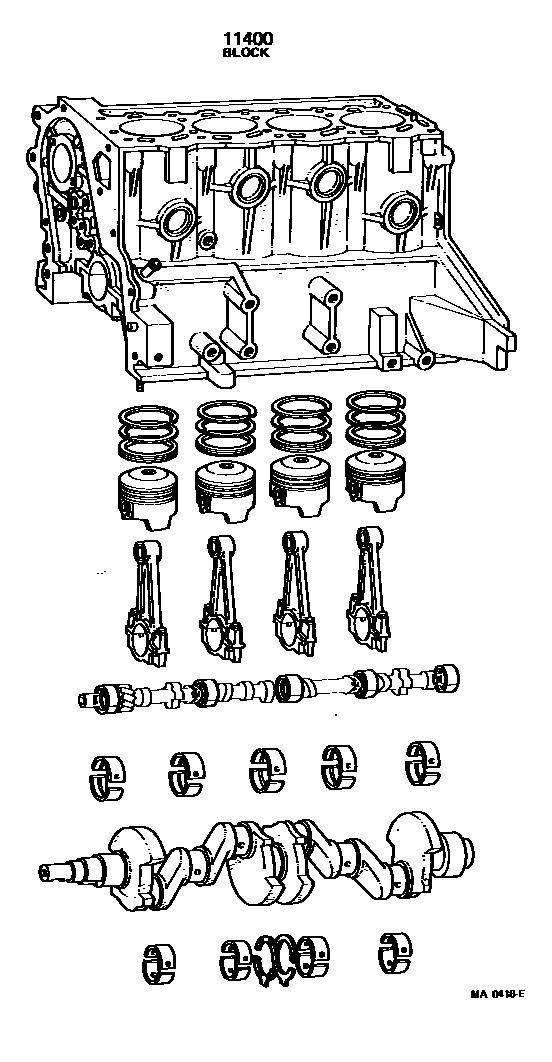

Toyota COROLLA Short Block Assembly EPC diagram — MA0418E
Short Block Assembly — MA0418E (197408 – 197908)
Toyota COROLLA Short Block Assembly EPC diagram — MA0511C
Short Block Assembly — MA0511C (197408 – 197611)

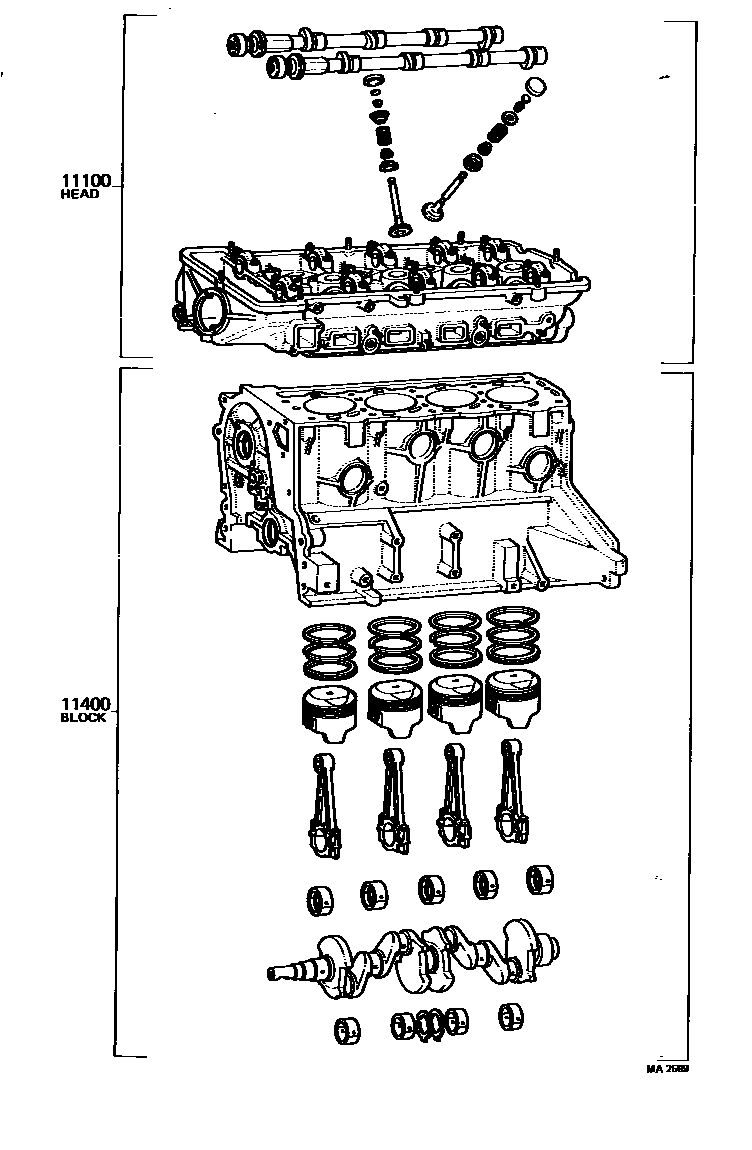

Toyota COROLLA Short Block Assembly EPC diagram — MA2599
Short Block Assembly — MA2599 (197611 – 197902)

PNC and OE references

PNCPart nameOE numbers
11100Short Block Assembly11100-27011 · 11100-27020
11400Short Block Assembly11400-13010 · 11400-24020 · 11400-24021 · 11400-26010 · 11400-26012 · 11400-26013 · 11400-26030 · 11400-26031 · 11400-26050 · 11400-26060 · 11400-26061 · 11400-27012 · 11400-27013
