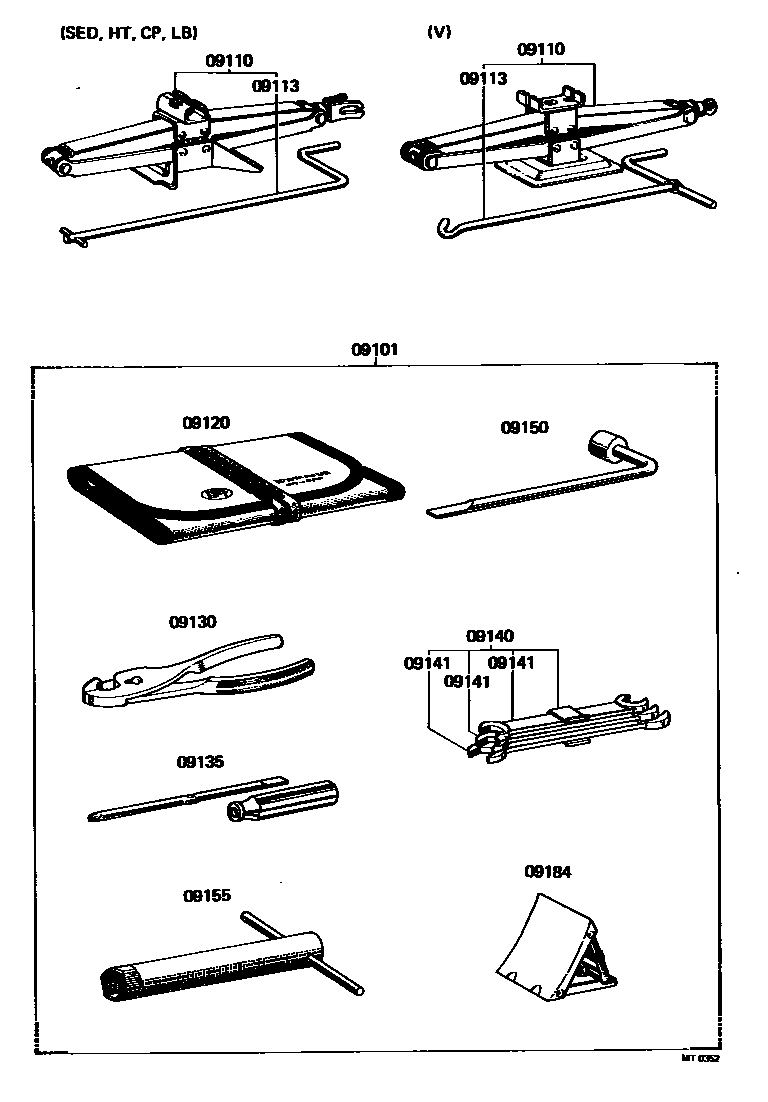

Toyota COROLLA Standard Tools — Figure 0901
Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09101 | Standard kit without jack | 09101-12012 · 09101-12041 |
| 09110 | Jack Assembly | 09110-12030 · 09110-13020 |
| 09113 | Jack Handle | 09113-11011 · 09113-13021 |
| 09120 | Tool Bag | 09120-12011 |
| 09130 | Pliers | 09130-00010 |
| 09135 | Screwdriver | 09135-00010 |
| 09140 | Wrench assembly | 09140-12011 |
| 09141 | Wrench | 09141-00032 · 09141-12011 · 09141-12020 |
| 09150 | Wheel Nut Wrench | 09150-00010 |
| 09155 | Spark Plug Wrench | 09155-12010 · 09155-51010 |
| 09184 | Wheel Chock | 09184-00010 |
