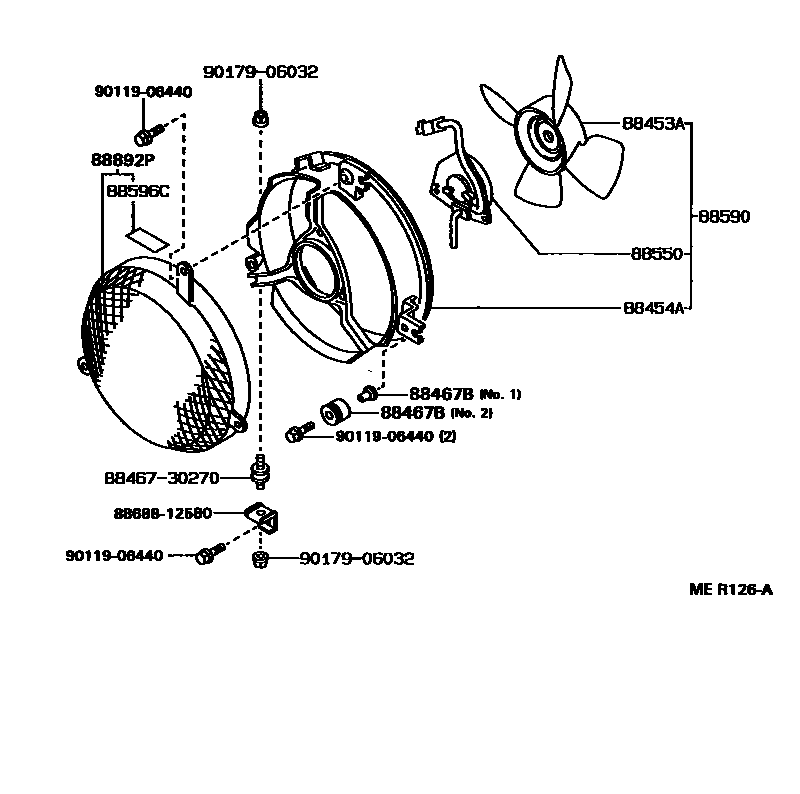

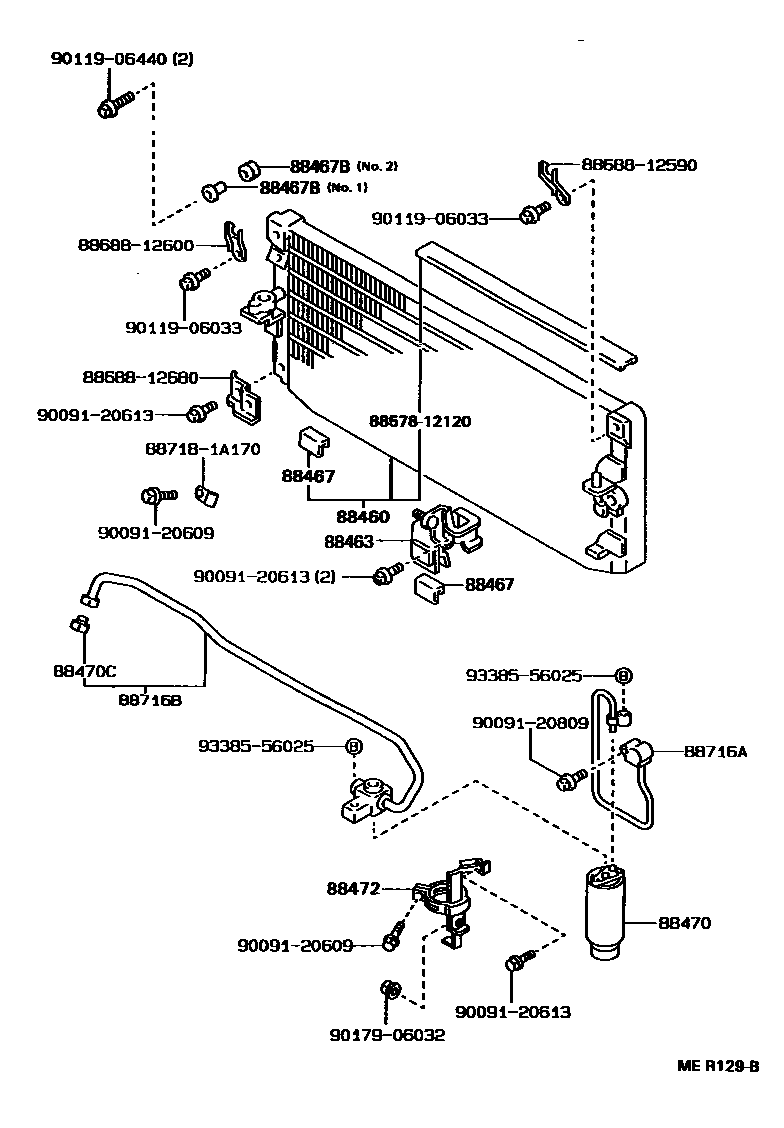

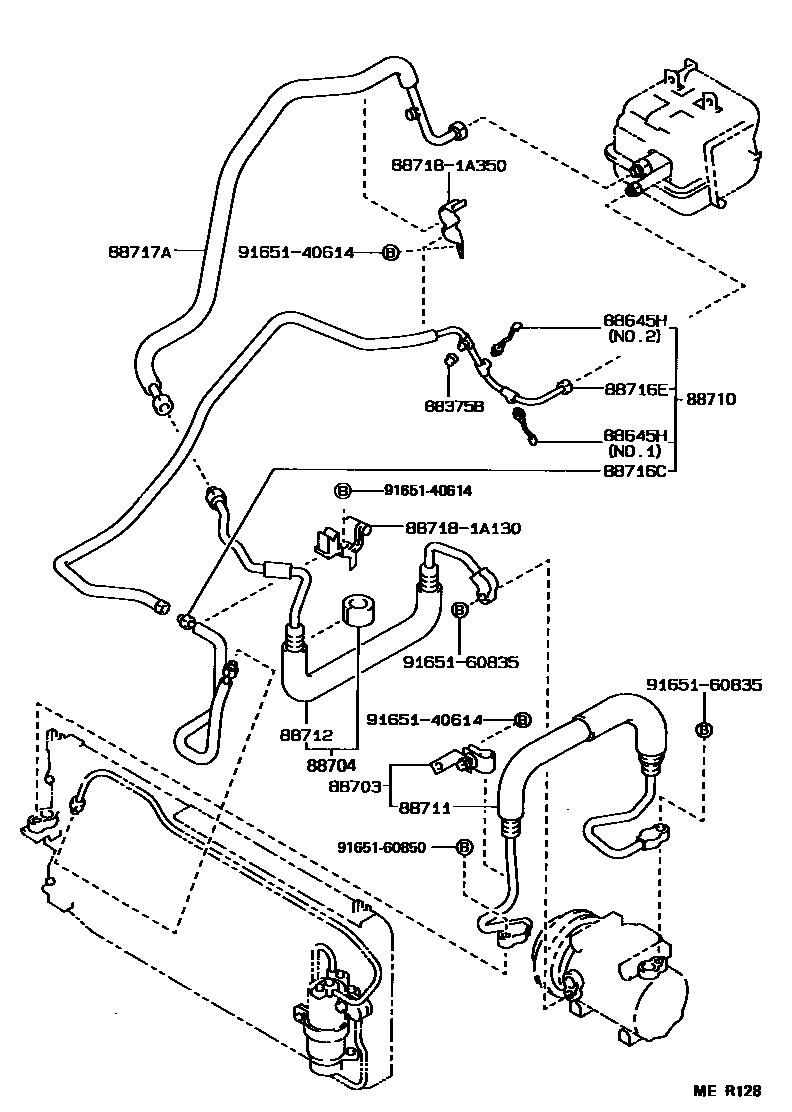

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88375B | No. 1 maintenance valve cover | 88375-20010 · 88375-24010 |
| 88453A | cooling fan | 88453-12050 |
| 88454A | fan cover | 88454-12100 |
| 88460 | Air conditioning condenser assembly | 88460-12370 |
| 88463 | No. 1 air conditioner condenser bracket | 88463-12041 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12081 |
| 88467B | Air conditioning condenser fixed vibration isolation pad | 88467-14070 · 88467-20040 |
| 88470 | Cooler reservoir and dryer assembly | 88471-16040 |
| 88470C | fuse bolt | 88475-12020 |
| 88472 | No. 1 liquid storage tank bracket | 88473-12070 |
| 88550 | Blower motor assembly (for condenser) | 88550-12120 |
| 88590 | Blower assembly with hood | 88590-12170 |
| 88596C | No. 2 warning nameplate | 88723-12030 |
| 88645H | No. 1 pressure switch | 88645-10020 · 88645-16050 |
| 88703 | Discharge hose sub-assembly | 88703-12070 |
| 88704 | Oil suction hose sub-assembly | 88704-12071 |
| 88710 | Air conditioning pipe assembly | 88706-12032 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-12460 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-12651 |
| 88716A | Cooler refrigerant liquid pipe A | 88726-12340 |
| 88716B | Cooler refrigerant liquid pipe B | 88726-12251 |
| 88716C | Cooler refrigerant liquid pipe C | 88726-12291 |
| 88716E | Cooler refrigerant liquid pipe E | 88726-12271 |
| 88717A | Cooler refrigerant suction pipe A | 88717-12410 |
| 88892P | fan cover mesh | 88892-12180 |
