Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

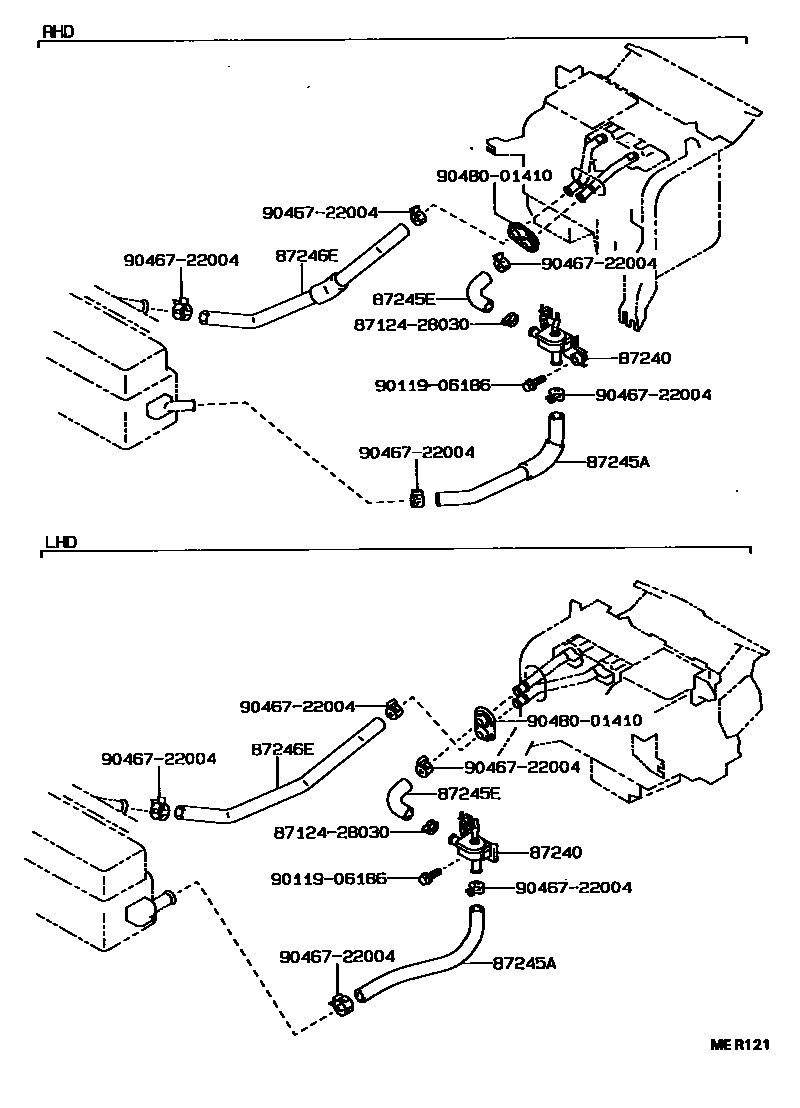

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87240 | Heater water valve assembly | 87240-12230 · 87240-12240 |
| 87245A | Heater water inlet hose A | 87245-12841 · 87245-1A390 |
| 87245E | Heater water inlet hose E | 87245-1A300 · 87245-1A380 |
| 87246E | Heater outlet hose E | 87245-1A410 · 87245-1A411 · 87245-1A420 · 87245-1A421 |
