Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714

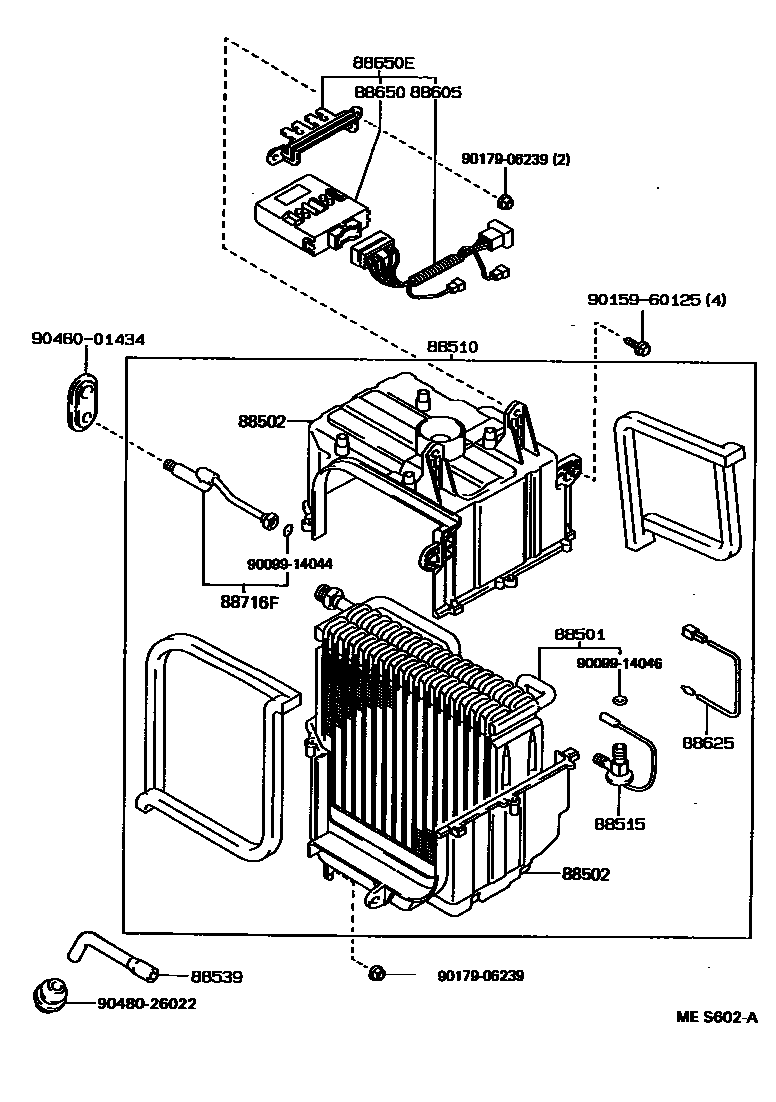

Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12340 |
| 88502 | Cooling device shell sub-assembly | 88502-12100 · 88502-12110 |
| 88510 | Cooler device assembly | 88510-12790 |
| 88515 | Cooler expansion valve | 88515-16040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12100 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-1E172 |
| 88625 | Cooler No. 1 Thermistor | 88625-12230 |
| 88650 | Cooler stabilized amplifier assembly | 88650-12670 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-12463 |
| 88716F | Cooler refrigerant liquid pipe F | 88726-12310 |
