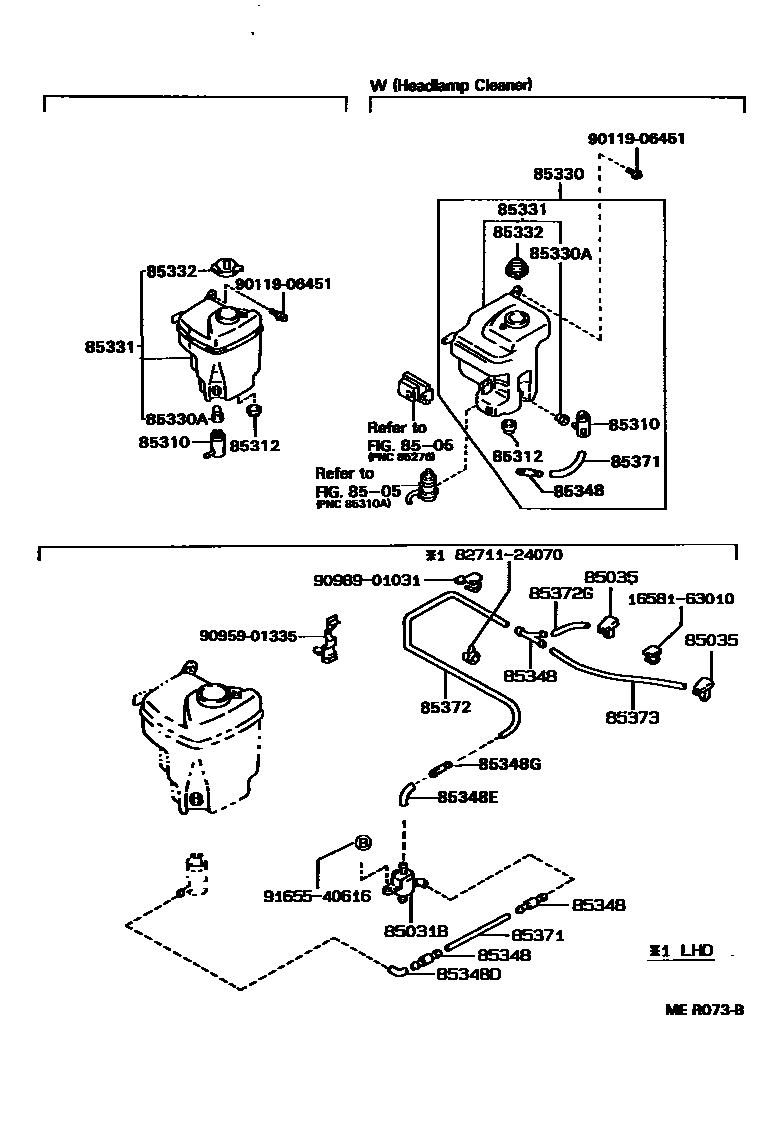

Toyota COROLLA 挡风玻璃清洗器 — Figure 8503
Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85031-12121 |
| 85035 | Cleaner nozzle sub-assembly | 85035-12400 · 85035-12410 |
| 85310 | Windshield washer motor and pump assembly | 85310-12180 · 85310-22080 |
| 85312 | Windshield washer tank seal | 85312-12650 |
| 85330 | Windshield washer fluid tank assembly | 85330-12210 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85331 | Windshield washer fluid tank sub-assembly | 85331-12660 · 85331-12710 |
| 85332 | Windshield washer fluid tank cap | 85316-34040 · 85316-34050 · 85332-12660 · 85332-22470 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 · 85349-89122 |
| 85348D | No. 1 windshield washer elbow joint | 85355-14481 |
| 85348E | No. 2 windshield washer elbow joint | 85355-14481 |
| 85348G | Windshield washer hose connector No. 2 | 85349-89122 |
| 85371 | Windshield washer hose (from motor to connector) | 90099-33185 · 90446-07001 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 85343-12420 |
| 85372G | Rubber tube | 90099-33080 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90099-33080 |
