Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

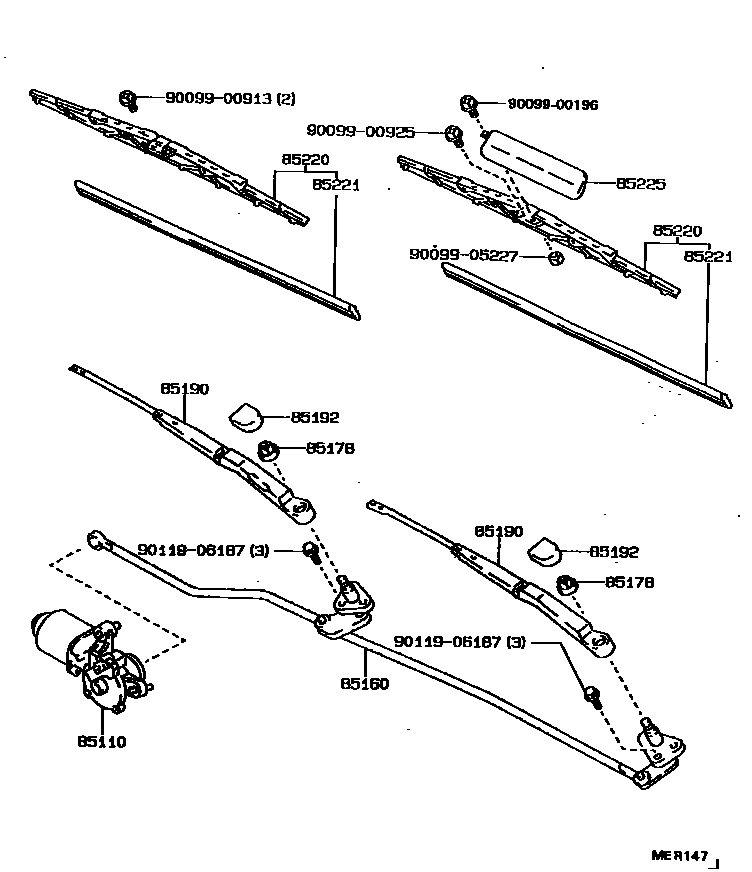

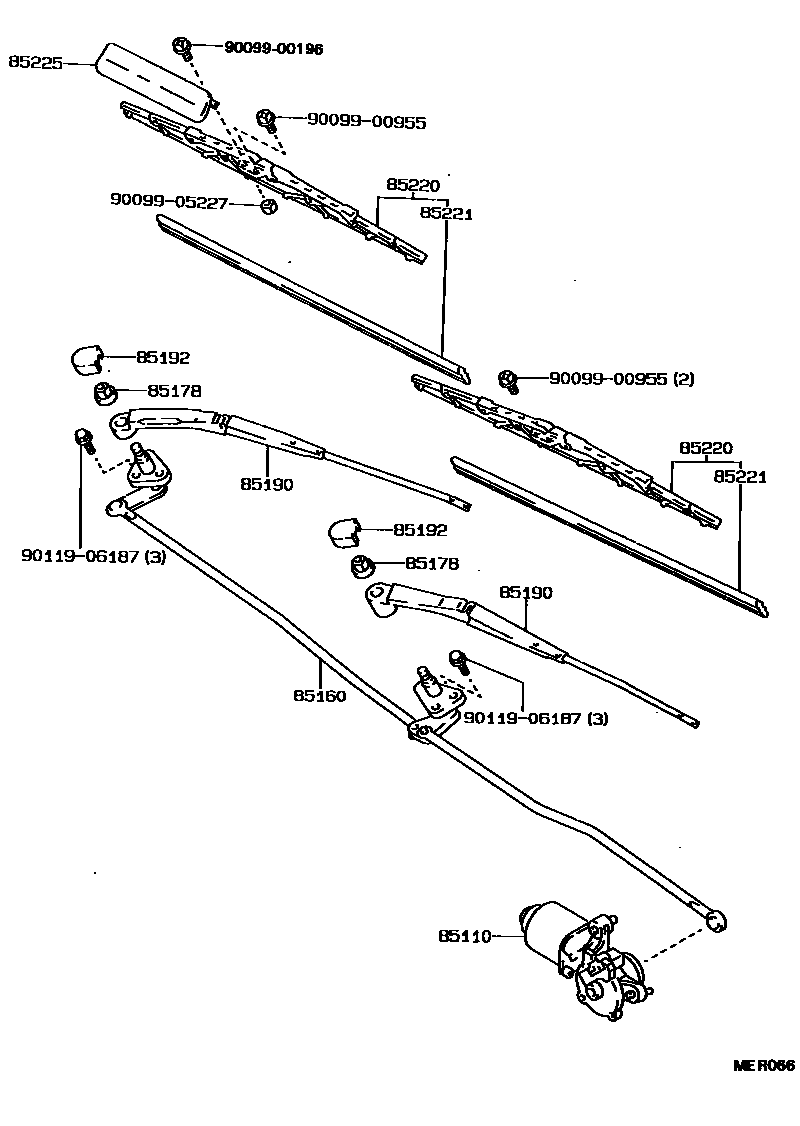

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-12712 · 85110-12722 |
| 85160 | Windshield wiper connecting rod assembly | 85160-12541 · 85160-12542 · 85160-12551 · 85160-12552 |
| 85178 | Nut (for securing front wiper arm) | 90179-08113 |
| 85190 | Windshield wiper arm assembly | 85190-12822 · 85190-12831 · 85210-12242 · 85210-12243 · 85210-12251 |
| 85192 | windshield wiper arm cover | 85192-12800 · 85292-12020 |
| 85220 | Windshield wiper blade assembly | 85212-12290 · 85220-16880 · 85220-3A200 · 85222-12700 |
| 85221 | Windshield wiper blade | 85213-12290 · 85221-30100 · 85221-32050 · 85223-12690 · 85223-22700 |
| 85225 | wiper blade wing | 85225-12821 · 85225-12831 |
