Toyota COROLLA 仪表 — Figure 8301

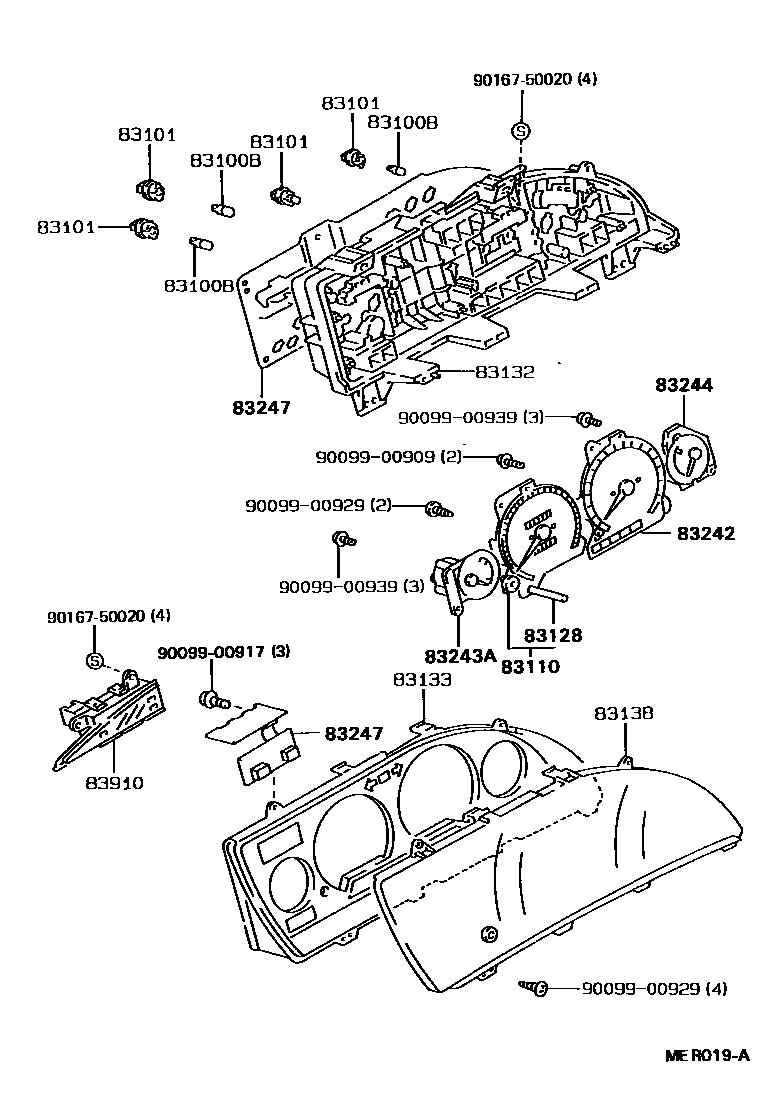

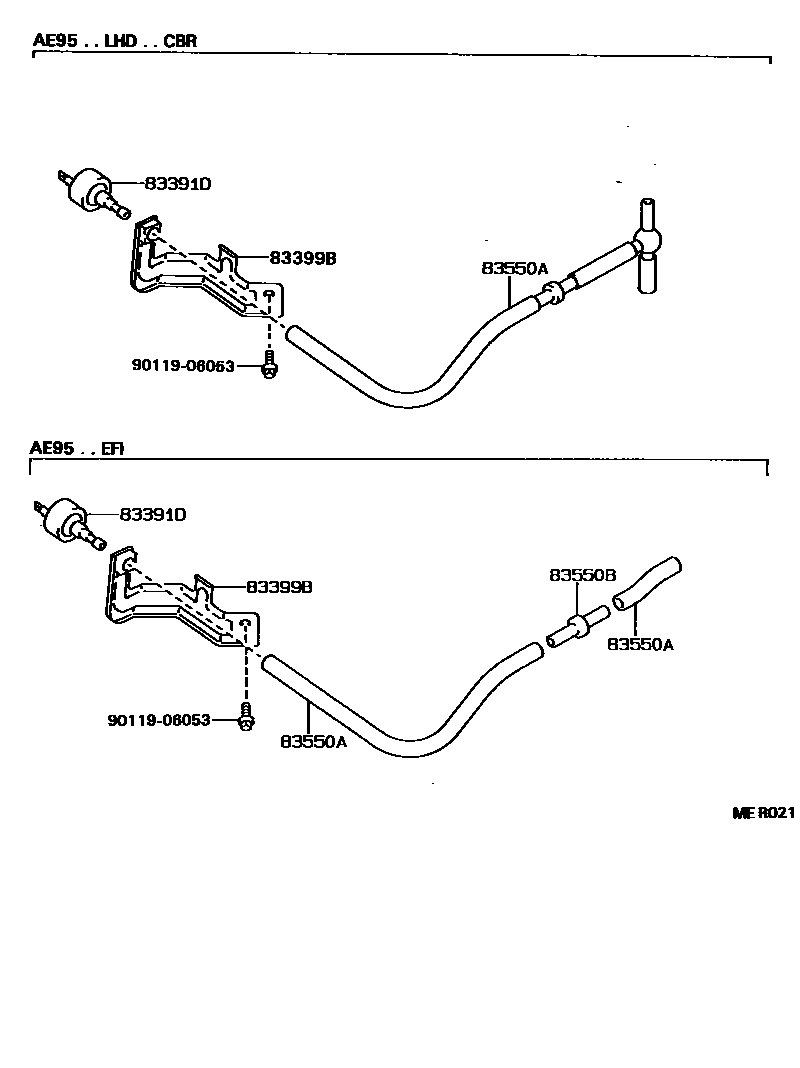

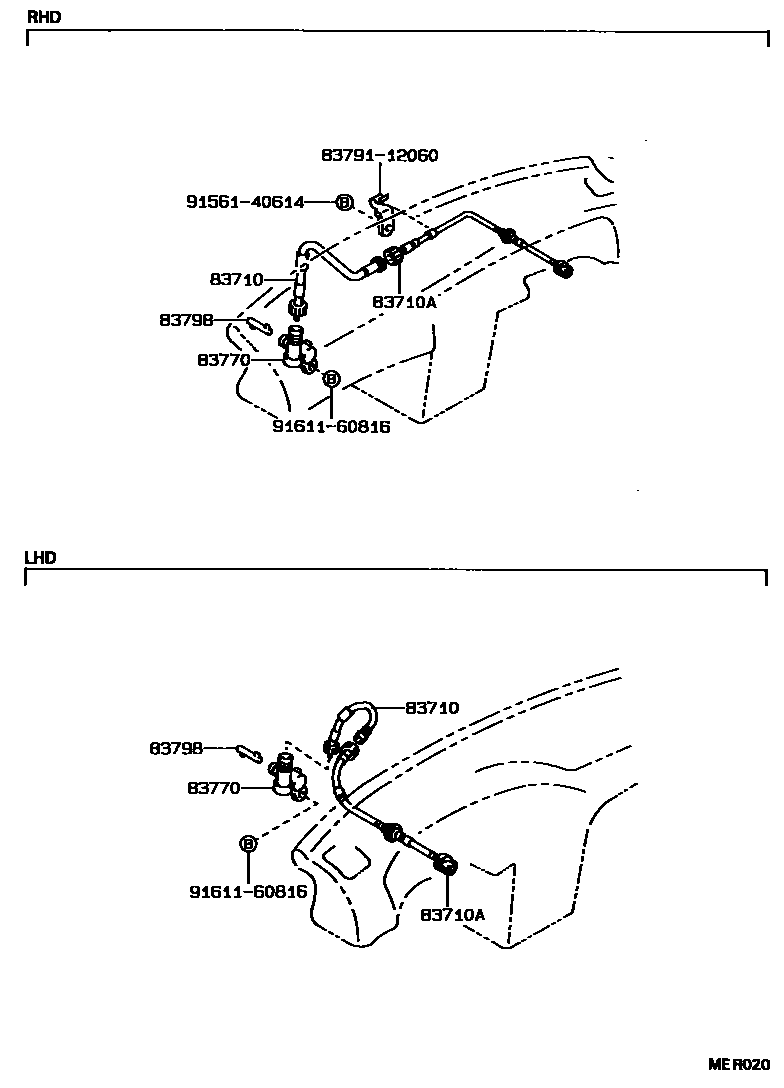

Toyota COROLLA EPC diagram 8301, 仪表, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 83101-20060 · 83109-12030 · 90981-11018 · 99132-12034 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 |
| 83110 | Speedometer assembly | 83110-1E321 · 83110-1E361 · 83110-1E411 |
| 83128 | trip odometer handle | 83128-14630 |
| 83132 | Instrument cluster housing | 83132-1A250 · 83132-1A270 |
| 83133 | Combined instrument panel No. 1 | 83133-13090 · 83133-13110 · 83133-13250 |
| 83138 | speedometer glass | 83138-1A010 · 83138-1A030 |
| 83242 | Engine tachometer assembly | 83242-1E031 · 83242-1E051 |
| 83243A | Fuel gauge sub-assembly | 83243-1A231 · 83243-1A251 |
| 83244 | Water temperature meter sub-assembly | 83244-1A651 · 83244-1A671 |
| 83247 | Instrument circuit board | 83247-13710 · 83247-13730 · 83247-1E561 · 83247-1E700 |
| 83391D | Vacuum switch | 83391-16020 |
| 83399B | Vacuum switch bracket | 83399-12140 |
| 83550A | ED monitor hose | 83090-12030 · 83090-12040 · 90999-92002 |
| 83550B | ED monitor connector or tube | 90412-05001 |
| 83710 | No. 1 speedometer transmission cable assembly | 83710-12581 |
| 83710A | No. 2 speedometer transmission cable assembly | 83710-12561 · 83710-12640 |
| 83770 | Speedometer transmission flexible shaft joint assembly | 83770-17010 |
| 83798 | Speedometer transmission flexible shaft adapter key | 83798-17010 |
| 83910 | clock assembly | 83910-12400 · 83910-12410 · 83910-12450 |
