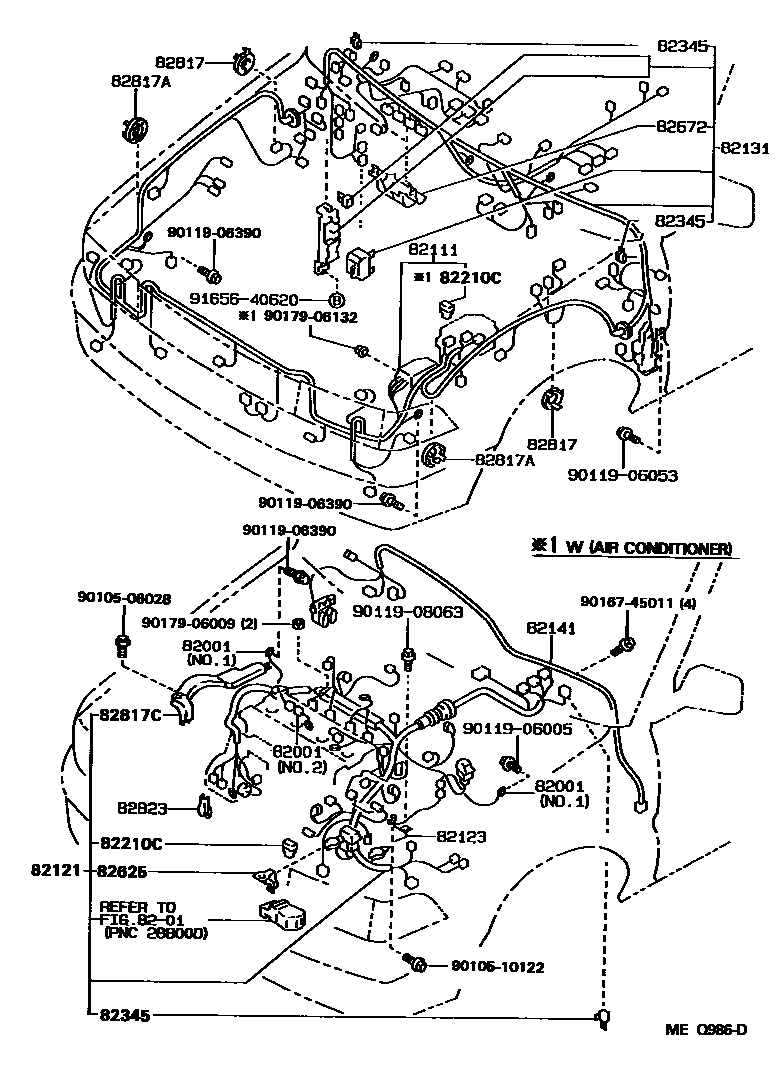

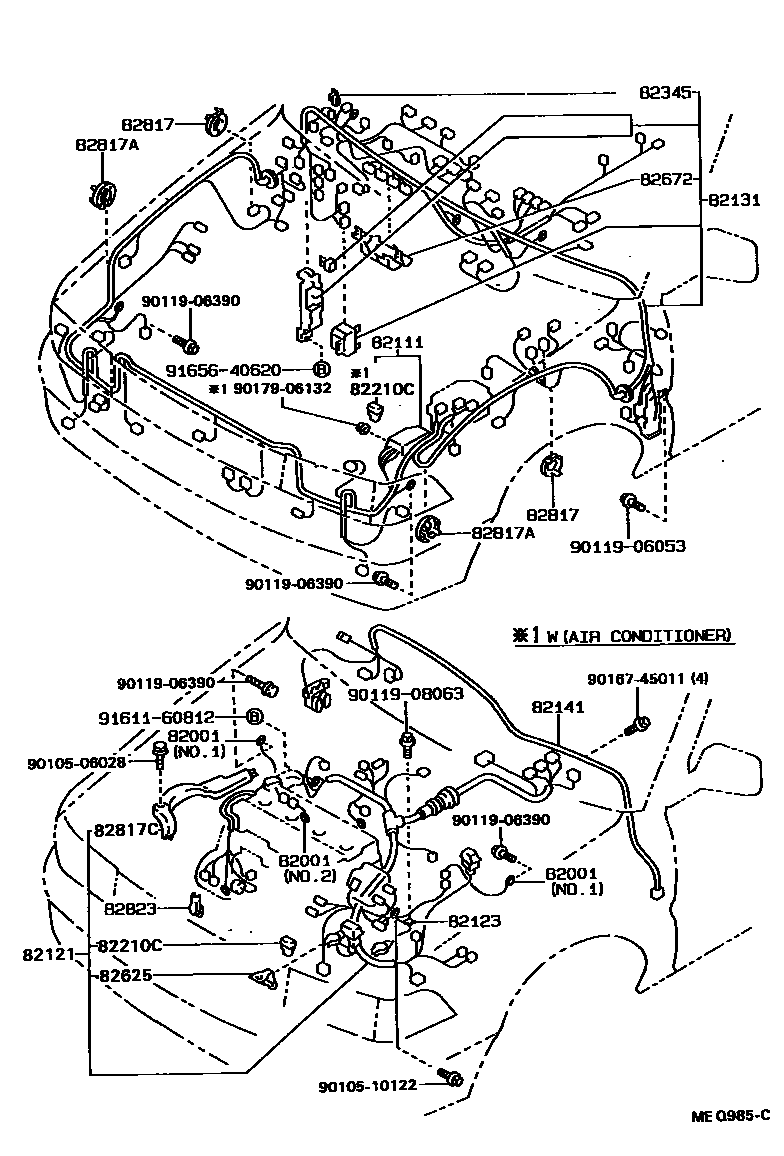

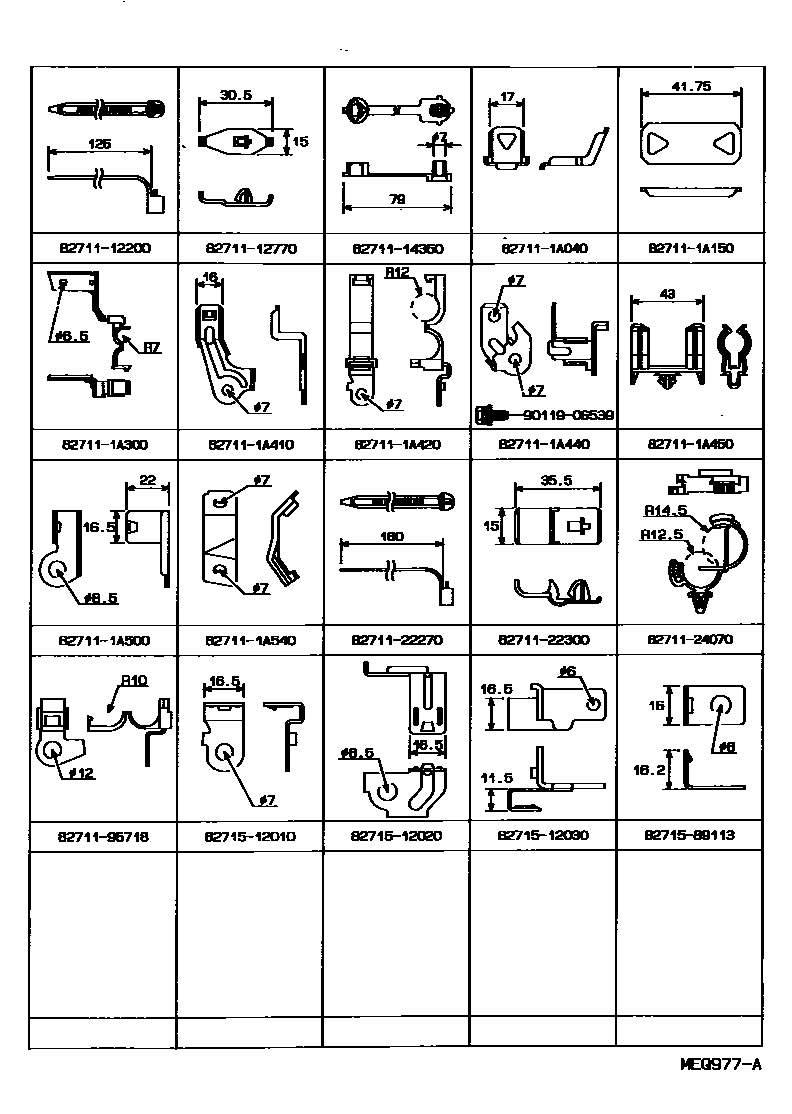

Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 7 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82001 | Connection cable No. 1 | 90980-07206 · 90980-07299 |
| 82111 | Engine room main wiring harness | 82111-13170 · 82111-13200 · 82111-13210 · 82111-13220 · 82111-13230 · 82111-1A720 |
| 82121 | Engine wiring harness | 82121-1E502 · 82121-1E692 · 82121-1E712 · 82121-1E720 |
| 82123 | Engine No. 3 wiring harness | 82123-12170 |
| 82131 | Front panel wiring harness | 82131-13620 · 82131-13630 · 82131-13640 · 82131-13650 · 82131-13660 · 82131-13670 · 82131-13680 · 82131-13690 |
| 82141 | Dashboard wiring harness | 82141-12070 · 82141-12080 |

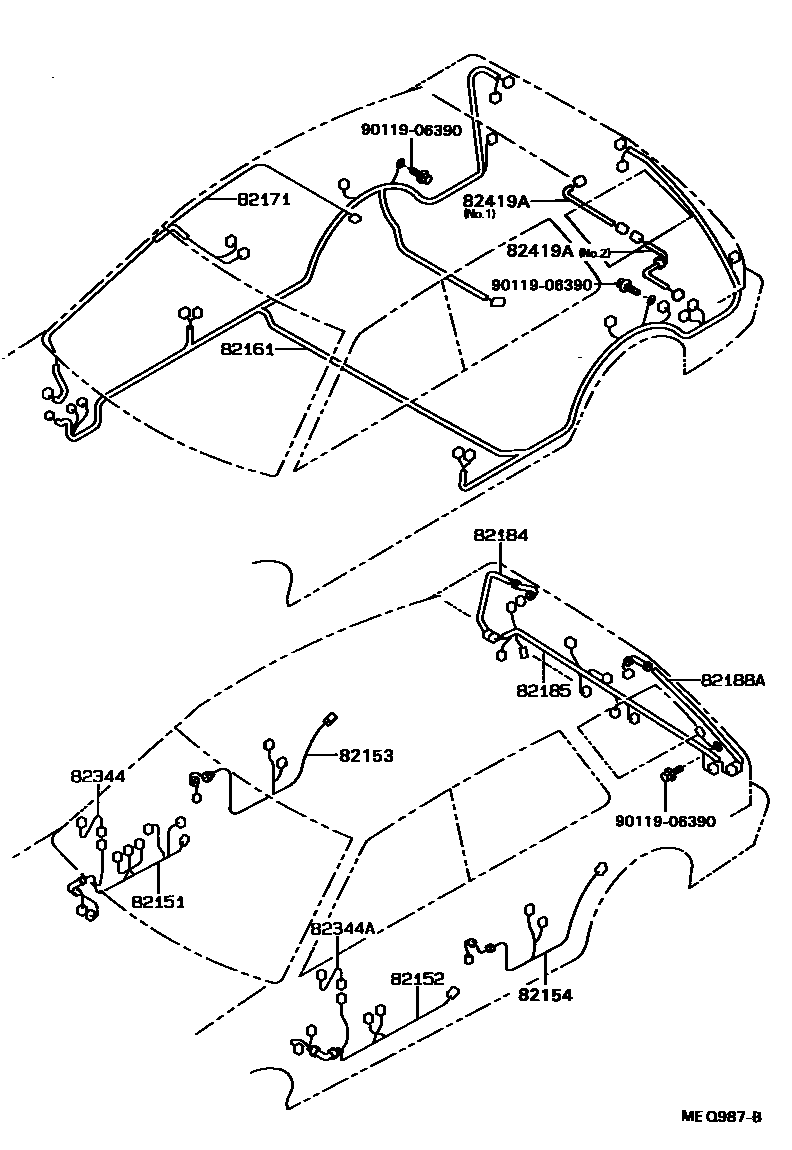

| 82151 | Right front door wiring harness | 82151-12260 · 82151-12600 · 82151-12650 · 82151-12750 · 82151-12760 |
| 82152 | Left front door wiring harness | 82152-12400 · 82152-12510 · 82152-12650 · 82152-12670 · 82152-12760 |
| 82153 | Rear door wiring harness No. 1 | 82153-12140 · 82153-12150 |
| 82154 | Rear door wiring harness No. 2 | 82154-12140 · 82154-12150 |
| 82161 | floor wiring harness | 82161-1H260 · 82161-1H280 · 82161-1H300 · 82161-1H310 |
| 82171 | Roof No. 1 wiring harness | 82171-12400 · 82171-12410 · 82171-12420 · 82171-12430 · 82171-13060 · 82171-13070 · 82171-13080 · 82171-13090 |
| 82184 | Rear door No. 1 wiring harness | 82184-12280 |
| 82185 | Rear door wiring harness No. 2 | 82185-13130 · 82185-13160 · 82185-13180 · 82185-13190 |
| 82188A | Rear door No. 3 wiring harness | 82188-12010 · 82188-12020 |
| 82210C | fuse | 90982-08188 · 90982-08189 · 90982-08223 · 90982-08246 |
| 82344 | Right rearview mirror wiring harness | 82344-12010 |
| 82344A | Left rearview mirror wiring harness | 82344-12010 |
| 82345 | diode | 82345-12030 · 82345-12050 · 82345-32020 |
| 82419A | Rear fog light wiring harness | 82419-12010 · 82419-12040 |
| 82625 | Fuse terminal | 82625-12020 · 82625-12060 |
| 82672 | Junction box cover | 82672-12081 · 82672-12111 |
| 82817 | No. 1 wire harness protection device | 82817-14350 |
| 82817A | No. 2 wire harness protection device | 82817-32010 |
| 82817C | No. 4 wire harness protection device | 82817-12700 |
| 82823 | No. 1 terminal cover | 82823-22050 |

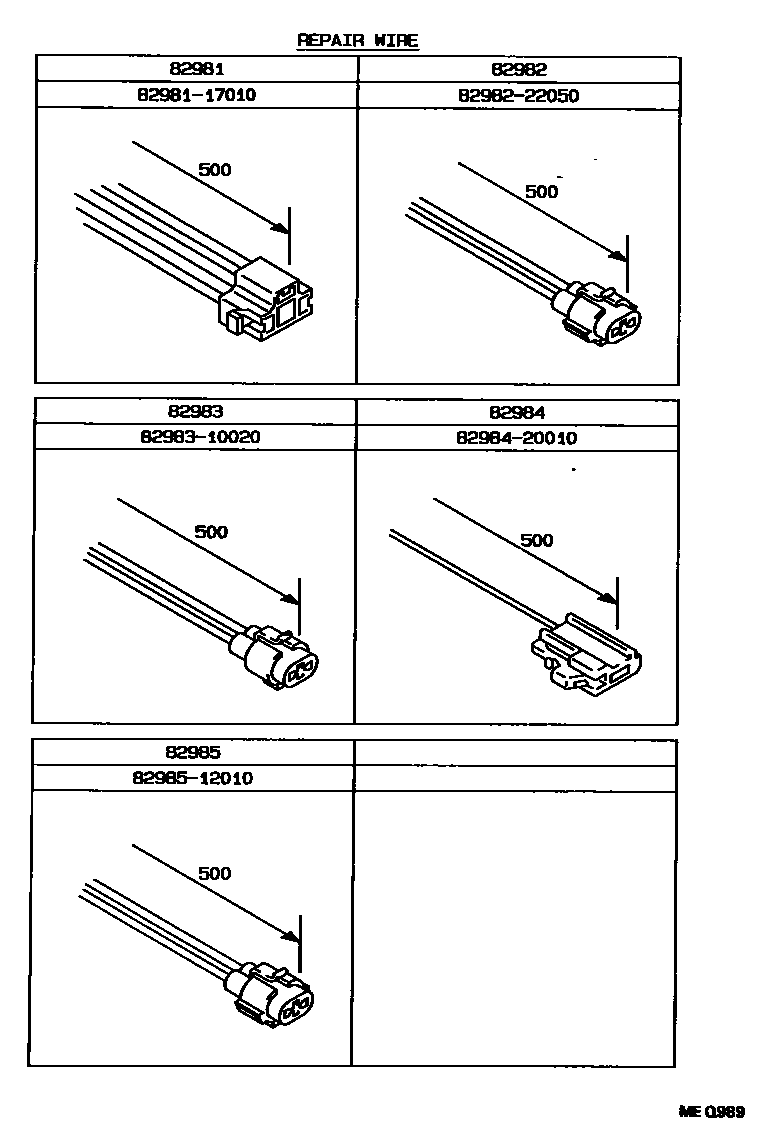

| 82981 | Headlight repair line | 82981-17010 |
| 82982 | Width light repair line | 82982-22050 |
| 82983 | Front turn signal lamp repair line | 82983-10020 |
| 82984 | Speaker repair line | 82984-20010 |
| 82985 | Side turn signal lamp repair line | 82985-12010 |

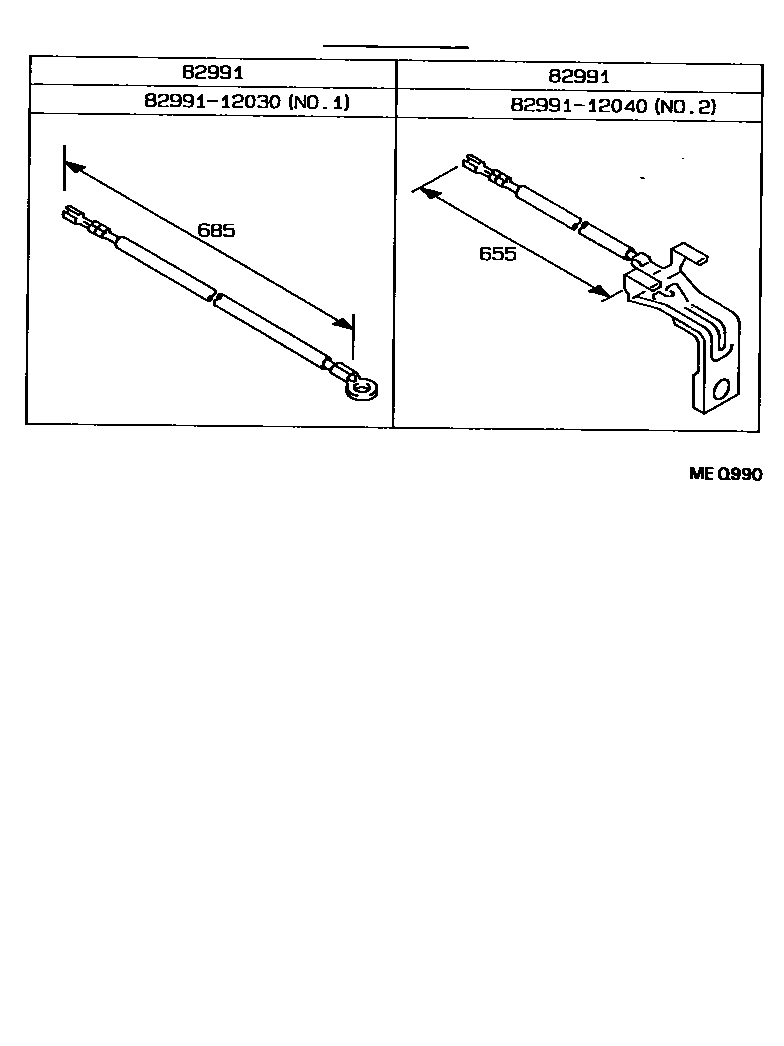

| 82991 | Fuse repair line | 82991-12030 · 82991-12040 |
