Toyota COROLLA 后牌照灯 — Figure 8113

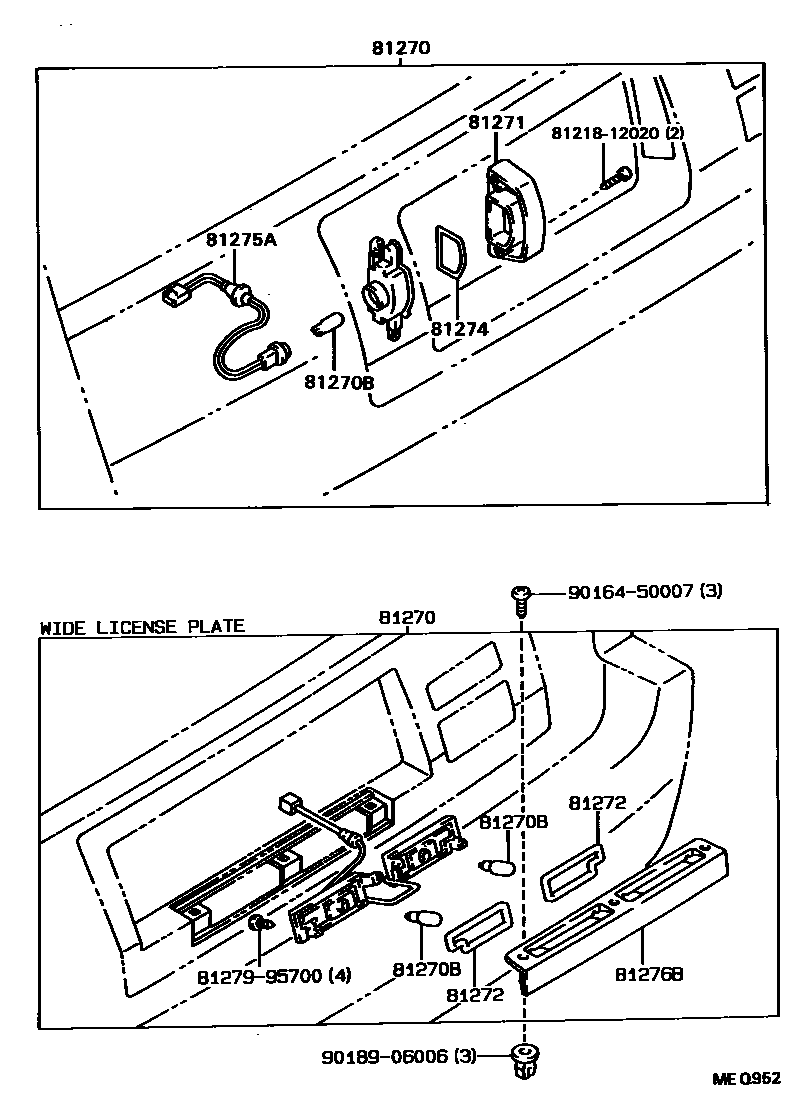

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-12380 · 81270-13230 · 81690-13010 |
| 81270B | Bulb (for license plate light) | 99132-12050 |
| 81271 | license plate lamp shade | 81271-13230 · 81691-13010 |
| 81272 | License plate lamp shade gasket | 81272-20240 |
| 81274 | License plate light body gasket | 81274-13230 |
| 81275A | License plate light wire | 81275-13230 |
| 81276B | license plate light cover | 81276-12380 |
