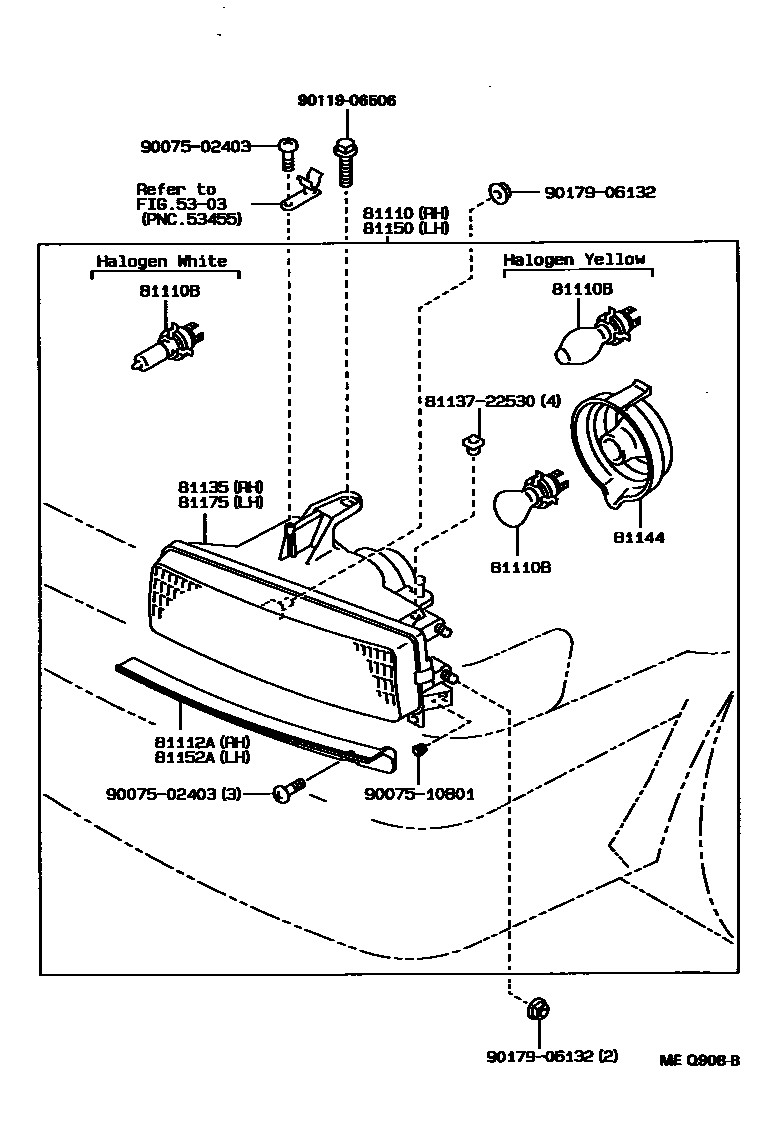

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-1A870 · 81110-1A880 · 81110-1A890 · 81110-1E010 · 81110-1E130 |
| 81110B | Bulb (for headlight No. 1) | 90981-13013 · 90981-13015 · 90981-13016 · 90981-22004 |
| 81112A | Right headlight frame | 81116-1A850 |
| 81135 | Right headlight assembly | 81130-1A710 · 81130-1A720 · 81130-1A730 · 81130-1E120 |
| 81144 | No. 1 headlight cover | 81139-20730 |
| 81150 | Left headlight assembly | 81160-1A870 · 81160-1A880 · 81160-1A890 · 81160-1E010 · 81160-1E130 |
| 81152A | Left headlight frame | 81156-1A850 |
| 81175 | Left headlight assembly | 81170-1A710 · 81170-1A720 · 81170-1A730 · 81170-1E120 |
