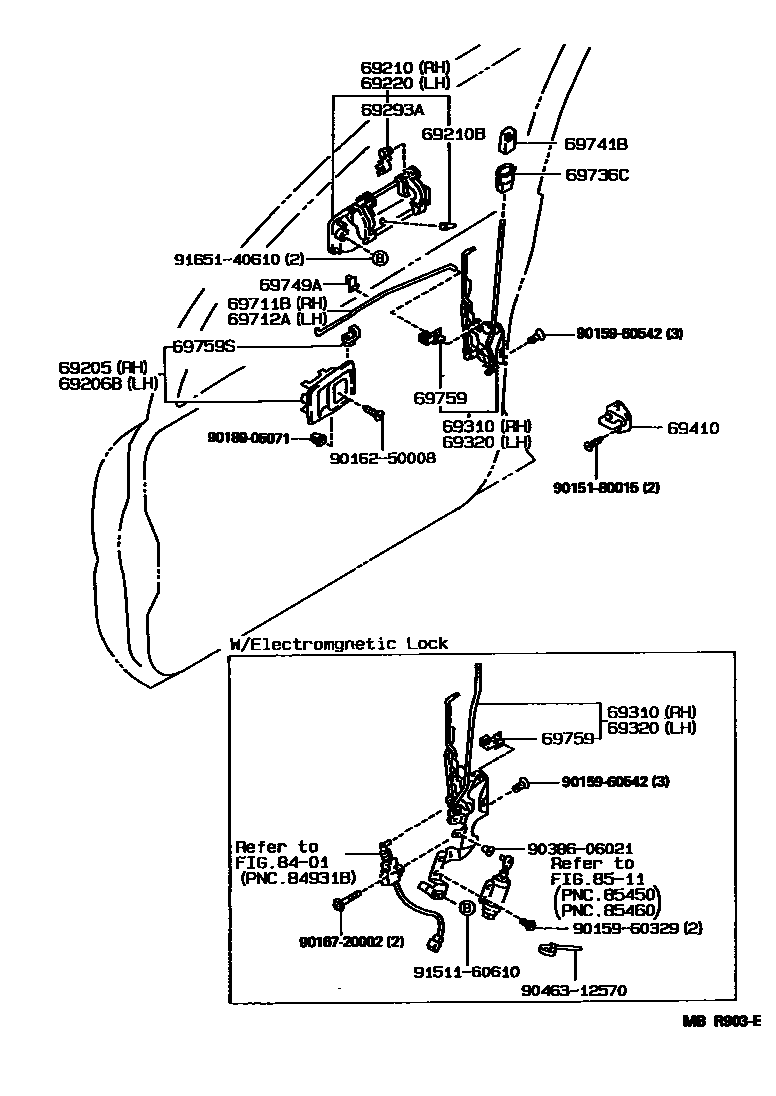

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69210 | Right front door outer handle assembly | 69210-12110 |
| 69210B | Cushion pad (for front door outer handle) | 90541-04014 |
| 69220 | Left front door outer handle assembly | 69220-12110 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69310-12261 · 69310-12371 · 69310-12381 |
| 69320 | Left front door lock assembly | 69320-12281 · 69320-12391 · 69320-12401 |
| 69410 | Front door lock plate assembly | 69410-87001 |
| 69711B | Right front door lock remote control lever | 69711-12100 |
| 69712A | Left front door lock remote control lever | 69712-12110 |
| 69736C | Front door locking link guide block | 69736-20090 |
| 69749A | Front door lock No. 1 link clamp | 69749-20010 · 69749-30020 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-20040 · 69759-20050 |
| 69759S | Front door inner handle buckle | 69759-20060 · 69759-20070 |
