Toyota COROLLA 侧梁 — Figure 6101

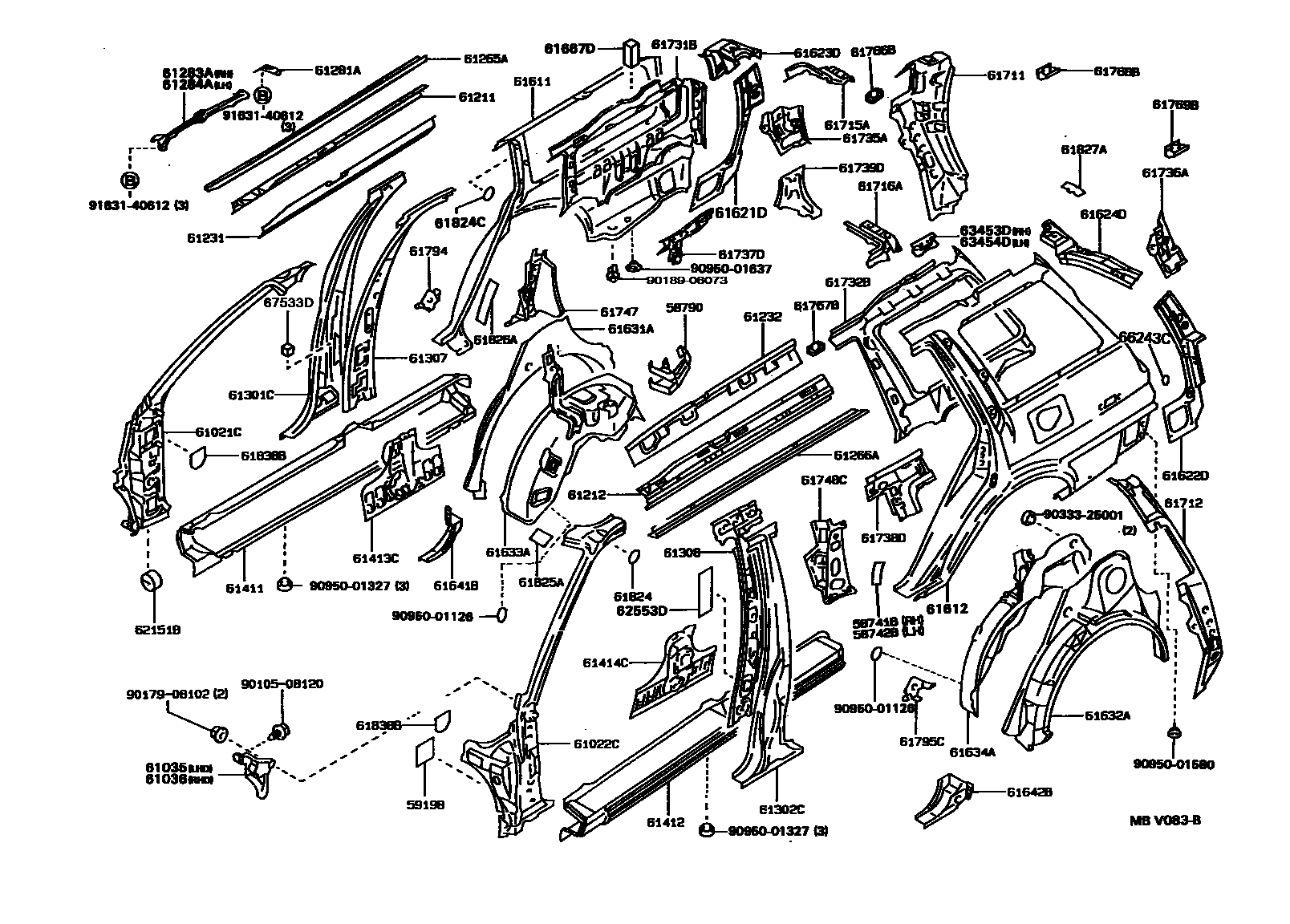

Toyota COROLLA EPC diagram 6101, 侧梁, with 1 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741B | Right side enclosure protection panel | 58741-12040 · 58741-13010 |
| 58742B | Left side enclosure protection panel | 58742-12040 · 58743-12010 |
| 58790 | Jack bracket assembly | 58790-12040 |
| 59198 | Silencer panel seal | 59198-12010 |
| 61021C | Right body front pillar sub-assembly | 61021-1A020 · 61021-1A030 |
| 61022C | Left body front pillar sub-assembly | 61022-1A020 · 61022-1A040 |
| 61035 | Instrument panel to right front wall side bracket sub-assembly | 61035-12040 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61036-12040 |
| 61211 | Roof right outer longitudinal beam | 61211-12270 |
| 61212 | Roof left outer longitudinal beam | 61212-12270 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-13120 |
| 61232 | Roof left inner longitudinal beam | 61232-13100 |
| 61265A | Drainage channel in the middle section on the right side of the roof | 61265-12170 |
| 61266A | Drainage channel in the middle section of the left side of the roof | 61266-12170 |
| 61281A | Sliding sunroof frame No. 1 side mounting bracket | 61281-12050 |
| 61283A | Sliding sunroof frame No. 3 right side mounting bracket | 61283-12060 |
| 61284A | Sliding sunroof frame No. 3 left mounting bracket | 61284-12060 |
| 61301C | Right body outer center pillar sub-assembly | 61301-12190 |
| 61302C | Left body outer center pillar sub-assembly | 61302-12250 |
| 61307 | Right body inner center pillar sub-assembly | 61307-13010 |
| 61308 | Left body inner center pillar sub-assembly | 61308-13020 |
| 61411 | Right door outer sill panel | 61411-12370 |
| 61412 | Left door outer sill panel | 61412-12360 |
| 61413C | Right side door sill panel No. 2 reinforcement | 61413-12040 |
| 61414C | Left side door sill panel No. 2 reinforcement | 61414-12060 |
| 61611 | Right side hoarding | 61601-1E909 |
| 61612 | left side panel | 61602-1E916 |
| 61621D | Back door right opening slot | 61621-12904 |
| 61622D | Rear door left opening slot | 61622-12904 |
| 61623D | Right front side panel extension | 61623-12080 |
| 61624D | Left front side panel extension | 61624-12080 |
| 61631A | Right wheel cover outer panel | 61631-13060 |
| 61632A | Left side wheel cover outer panel | 61632-12270 |
| 61633A | Right wheel housing lining panel | 61607-12400 |
| 61634A | Left side wheel housing lining panel | 61608-12420 |
| 61641B | Right wheel housing corner panel | 61641-12040 |
| 61642B | Left side wheel housing corner panel | 61642-12040 |
| 61667D | Side panel seals | 61667-12060 |
| 61711 | Roof right side outer panel | 61711-12300 |
| 61712 | Roof left outer panel | 61712-12330 |
| 61715A | Roof right inner upper extension | 61715-12030 |
| 61716A | Roof left inner upper extension | 61716-12030 |
| 61731B | Roof right inner panel | 61731-12490 |
| 61732B | Roof left inner panel | 61732-12450 |
| 61735A | Right rear roof inner panel | 61735-12290 |
| 61736A | Left rear roof inner panel | 61736-12260 |
| 61737D | Roof right inner reinforcement | 61737-12110 |
| 61738D | Roof left inner reinforcement | 61738-12120 |
| 61739D | Jack bracket bracket reinforcement | 61739-12110 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-12160 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-12160 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-12220 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-12180 |
| 61768B | Rear right seat belt anchor to roof inner reinforcement | 61768-32010 |
| 61769B | Rear left seat belt anchor to roof inner reinforcement | 61768-32010 |
| 61794 | No. 1 radio speaker stand | 61794-12010 |
| 61795C | No. 2 radio speaker bracket | 61795-12030 |
| 61824 | Noise Control Panel No. 1 | 61824-12040 |
| 61824C | No. 1 silencer panel gasket | 61824-12040 |
| 61825A | Noise Control Panel No. 2 | 61825-12010 |
| 61826A | Noise Control Panel No. 3 | 61826-12040 |
| 61827A | Noise Control Panel No. 4 | 61827-12020 |
| 61838B | No. 5 Noise Control Panel | 61838-12010 |
| 62151B | Front cowl side silencer pads | 62151-12100 · 62151-12130 |
| 62553D | No. 3 column pad | 62553-12120 |
| 63453D | Right rear roof rack reinforcement | 63453-13020 |
| 63454D | Left rear roof rack reinforcement | 63454-13020 |
| 66243C | Rear body protection piece No. 1 | 66243-20010 |
| 67533D | Right front door lower door frame decorative pad | 67533-12010 |
