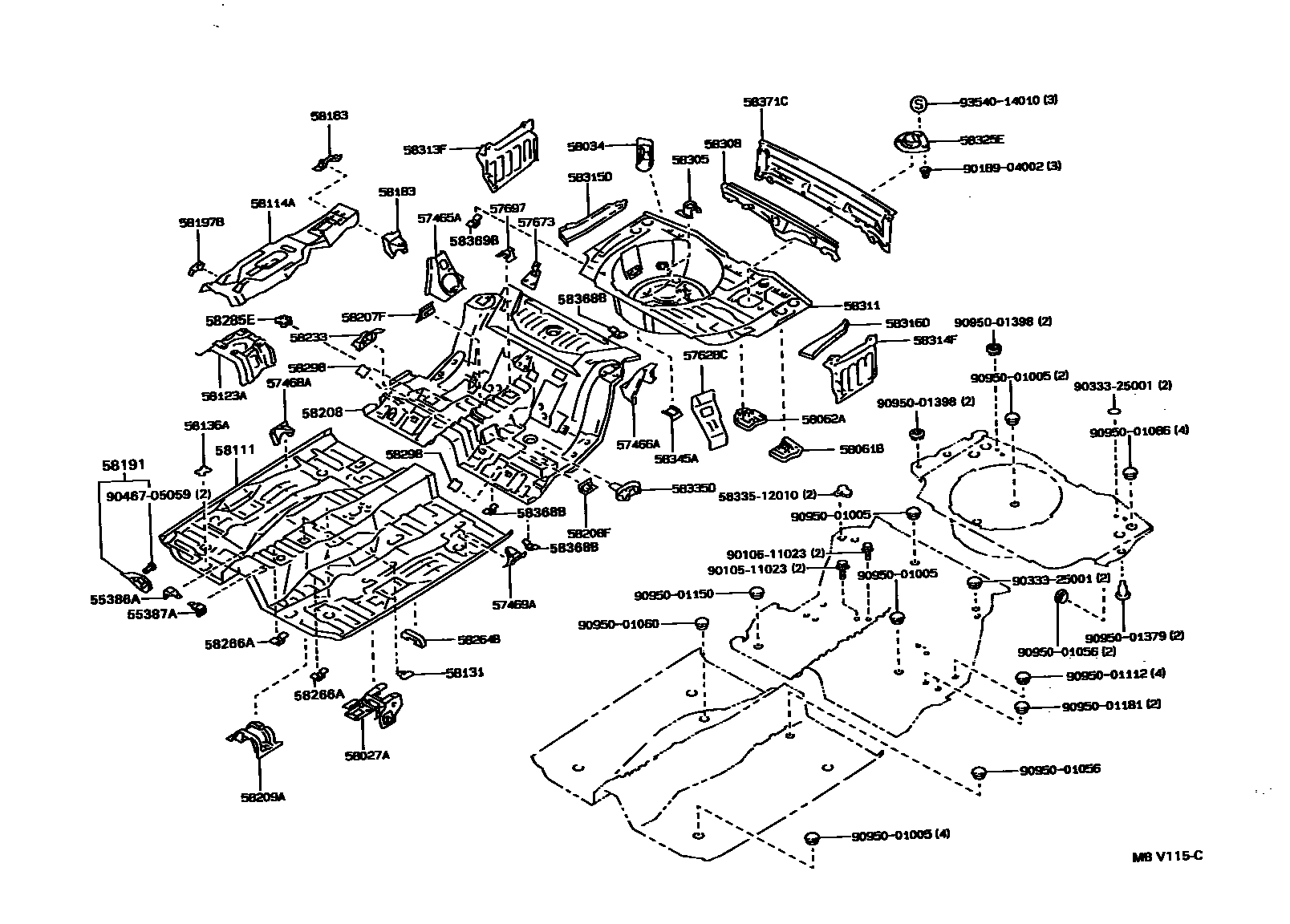

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55386A | No. 1 ECU mounting bracket | 55386-12050 |
| 55387A | No. 2 ECU mounting bracket | 55387-12050 |
| 57465A | Center floor right beam corner panel | 57465-12030 |
| 57466A | Center floor left transom corner panel | 57466-12010 |
| 57468A | Front right seat outer rear bracket | 57468-12040 |
| 57469A | Front left seat outer rear bracket | 57469-12040 |
| 57628C | Rear floor left longitudinal member cover | 57628-12051 |
| 57673 | Rear seat back hinge mounting bracket | 57607-12030 |
| 57697 | Rear seat cushion fixings | 57697-12020 |
| 58027A | Seat belt anchor reinforcement sub-assembly | 58027-12040 |
| 58034 | Rear exhaust pipe bracket sub-assembly | 58034-12020 |
| 58061B | Fuel tank right mounting bracket sub-assembly | 58061-12020 |
| 58062A | Fuel tank rear mounting bracket sub-assembly | 58062-12020 |
| 58111 | front floor pan | 58111-12211 |
| 58114A | front floor reinforcement | 58114-12061 |
| 58123A | shift lever bracket | 58123-12050 |
| 58131 | Front floor insulation pad bracket No. 1 | 58131-12050 |
| 58136A | Front floor access hole cover | 58136-12020 |
| 58183 | Front seat inner mounting bracket | 58183-12110 · 58184-12120 |
| 58191 | Front floor footrest | 58191-12100 · 58192-12040 |
| 58197B | Dashboard Bracket Mounting Bracket Fixture | 58197-12010 |
| 58207F | Right parking brake cable clip sub-assembly | 58207-12050 |
| 58208 | central floor base | 58211-12241 |
| 58208F | Left parking brake cable clip sub-assembly | 58208-12050 |
| 58209A | Drive shaft center bracket reinforcement sub-assembly | 58209-12030 |
| 58233 | Exhaust pipe mounting bracket | 58233-12020 |
| 58264B | Parking brake cable guide bracket | 58264-12050 · 58264-12060 |
| 58266A | Fuel pipe clamp bracket | 58266-22040 |
| 58285E | Center floor hole cover | 58285-12030 |
| 58298 | Center floor hole cover No. 2 | 58298-12020 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-12050 |
| 58308 | Body inner lower back panel sub-assembly | 58308-12140 |
| 58311 | rear floor pan | 58311-12190 |
| 58313F | Rear floor pan to right side apron extension | 58313-12230 |
| 58314F | Rear floor pan to left side apron extension | 58314-12230 |
| 58315D | Rear floor pan right extension | 58315-12050 |
| 58316D | Rear floor pan left extension | 58316-12050 |
| 58325E | Rear floor access hole cover | 58325-12060 |
| 58335D | Rear floor right access hole seal | 58335-12010 |
| 58345A | Rear floor insulation pad bracket No. 1 | 58345-12040 |
| 58368B | No. 2 fuel pipe bracket | 58266-22040 |
| 58369B | No. 3 fuel pipe bracket | 58266-22040 |
| 58371C | Upper body and lower back panel | 58371-12710 |
