Toyota COROLLA Floor stringers — Figure 5305

Toyota COROLLA EPC diagram 5305, Floor stringers, with 2 images and 28 PNC and OE references.

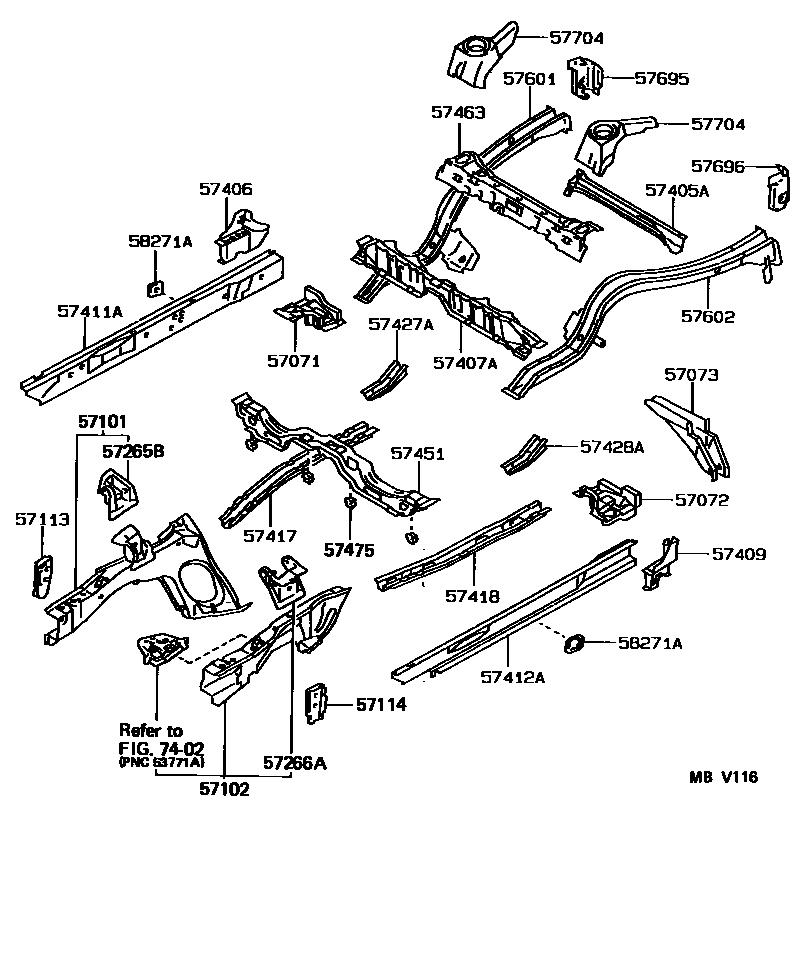

Toyota COROLLA Floor stringers EPC diagram — MBV116 — Floor stringers — MBV116 (199009 – 999999)

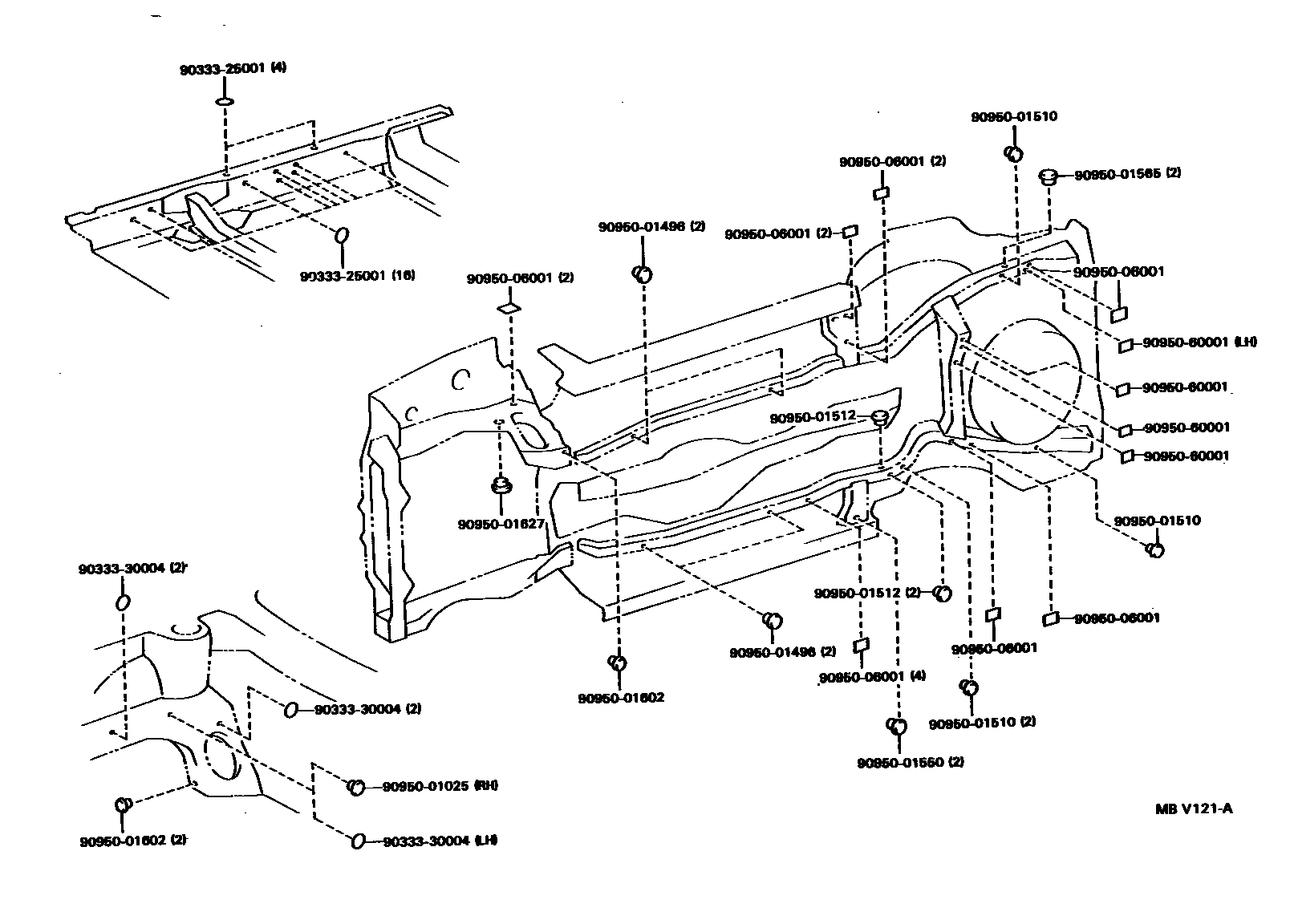

Toyota COROLLA Floor stringers EPC diagram — MBV121A — Floor stringers — MBV121A (199009 – 999999)

PNC and OE references

PNC	Part name	OE numbers
57071	Right rear anti-torsion box-section sub-assembly	57071-12030
57072	Left rear anti-torsion box-section sub-assembly	57072-12030
57073	Transverse thrust rod bracket sub-assembly	57073-12041
57101	Right front longitudinal beam sub-assembly	57101-12380
57102	Left front longitudinal beam sub-assembly	57102-12360
57113	Right front longitudinal beam extension	57113-12110
57114	Left front longitudinal beam extension	57114-12110
57265B	Engine right side mounting bracket	57265-12030
57266A	Engine left mounting bracket	57208-12080
57405A	Center floor No. 2 beam sub-assembly	57405-12050
57406	Main floor right longitudinal beam sub-assembly	57406-12020
57407A	Center floor beam sub-assembly	57407-12030
57409	Main floor left longitudinal beam sub-assembly	57409-12020
57411A	Floor right inner longitudinal beam	57411-12160
57412A	Floor left inner longitudinal beam	57412-12160
57417	Front floor lower right reinforcement	57417-12090
57418	Front floor lower left reinforcement	57418-12050
57427A	Front floor No. 3 right reinforcement	57427-12010
57428A	Front floor No. 3 left reinforcement	57428-12030
57451	front floor cross member	57451-12121
57463	Center floor beam No. 3	57463-12050
57475	Front floor cross member panel	57475-32010
57601	Rear floor right longitudinal beam sub-assembly	57601-12630
57602	Rear floor left longitudinal beam sub-assembly	57602-12530
57695	Rear floor cross member rear right extension	57695-12010
57696	Rear floor cross member rear left extension	57696-12010
57704	Rear suspension spring bracket sub-assembly	57701-12060 · 57704-12070
58271A	Seat belt anchor No. 3 to floor pan reinforcement	58271-12050
