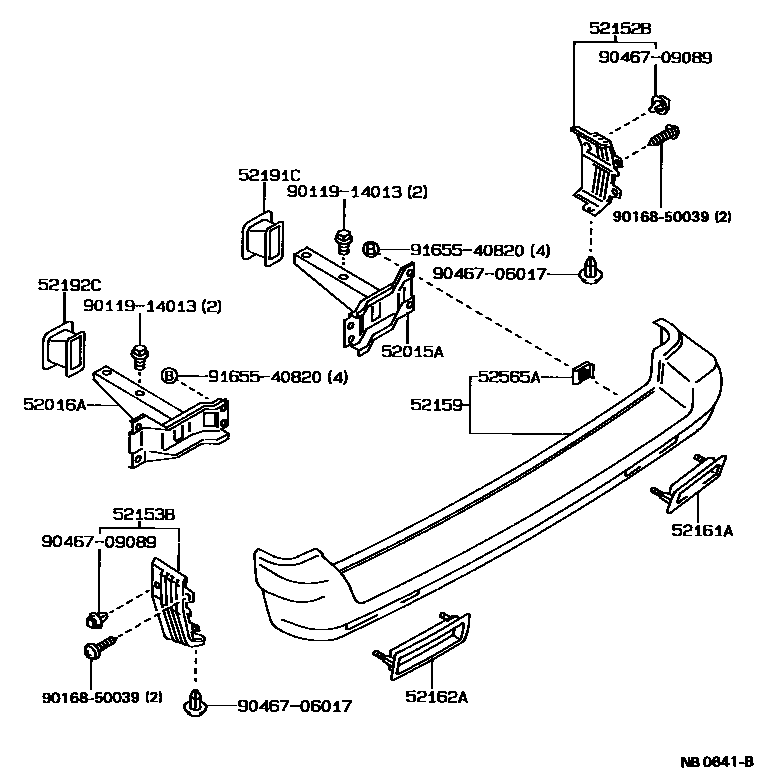

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-12210 |
| 52016A | Rear bumper left arm sub-assembly | 52016-12210 |
| 52152B | Rear bumper right extension | 52152-12250 |
| 52153B | Rear bumper left extension | 52153-12250 |
| 52159 | rear bumper cover | 52159-1A080 |
| 52161A | Rear bumper right side gap filler | 52161-12010 |
| 52162A | Rear bumper left insert | 52162-12030 |
| 52191C | Rear bumper right arm seal | 52191-12020 |
| 52192C | Rear bumper left arm seal | 52192-12010 |
| 52565A | Rear bumper lower fixing bracket | 52565-16020 |
