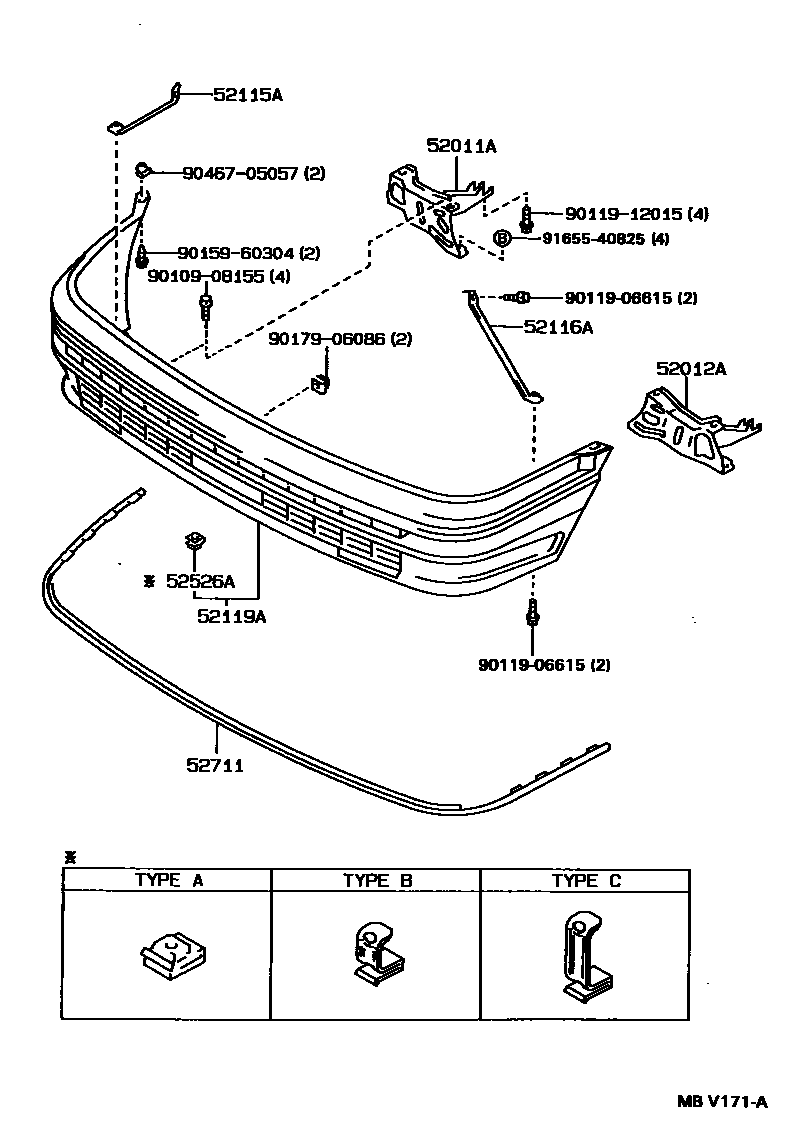

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-12370 |
| 52012A | Front bumper left arm sub-assembly | 52012-12380 |
| 52115A | Front bumper right side bracket | 52115-12260 |
| 52116A | Front bumper left bracket | 52116-12200 |
| 52119A | front bumper cover | 52119-1A230 · 52119-1A390 |
| 52526A | Front bumper No. 1 lower fixing bracket | 52565-12090 · 52565-12110 · 52565-16020 |
