Toyota COROLLA Front Axle Hub — Figure 4303

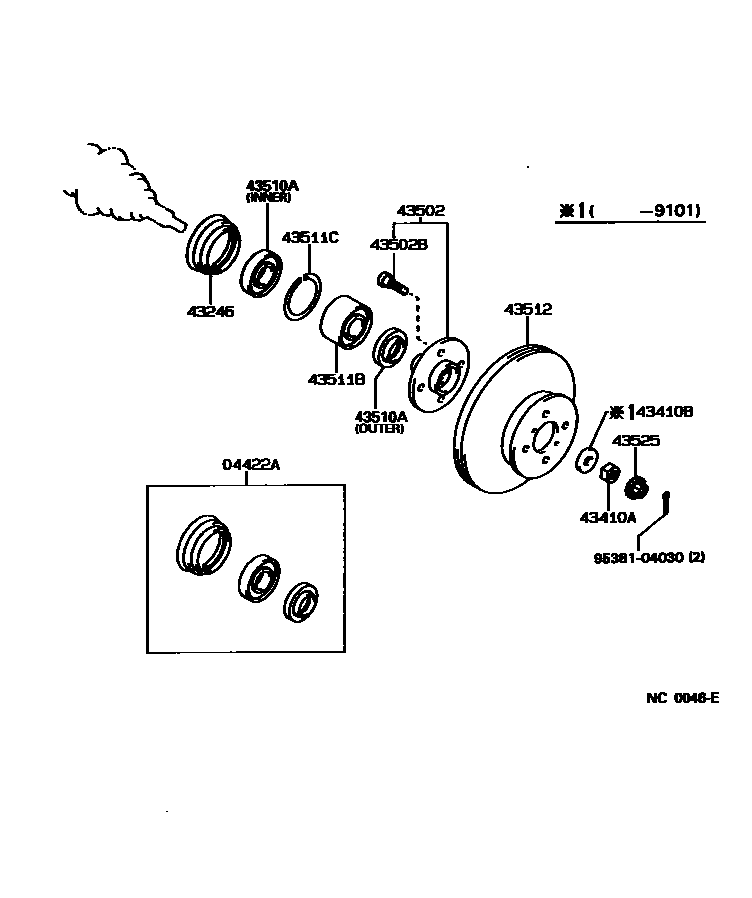

Toyota COROLLA EPC diagram 4303, Front Axle Hub, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04422A | Front axle oil seal assembly | 04422-12020 · 04422-12070 |
| 43246 | No. 1 front wheel bearing dust cover | 43246-12010 · 43246-12040 |
| 43410A | Nuts (for securing axle hubs and driveshafts) | 90170-19001 · 90179-22020 |
| 43410B | Washers (for securing axle hubs and driveshafts) | 90201-20012 |
| 43502 | Front axle hub sub-assembly | 43502-12100 · 43502-12110 · 43502-20030 |
| 43502B | Hub bolts (for front axle) | 90942-02047 · 90942-02049 |
| 43510A | Oil seal (for front axle hub) | 90311-52006 · 90311-52012 · 90311-56008 · 90311-56018 |
| 43511B | Bearings (for front axle hub) | 90363-38006 · 90369-38011 |
| 43511C | Hole snap ring (for front axle hub) | 90521-77001 |
| 43512 | front brake disc | 43512-12480 |
| 43525 | Front wheel adjustment lock cover | 43525-16010 · 43525-20030 |
