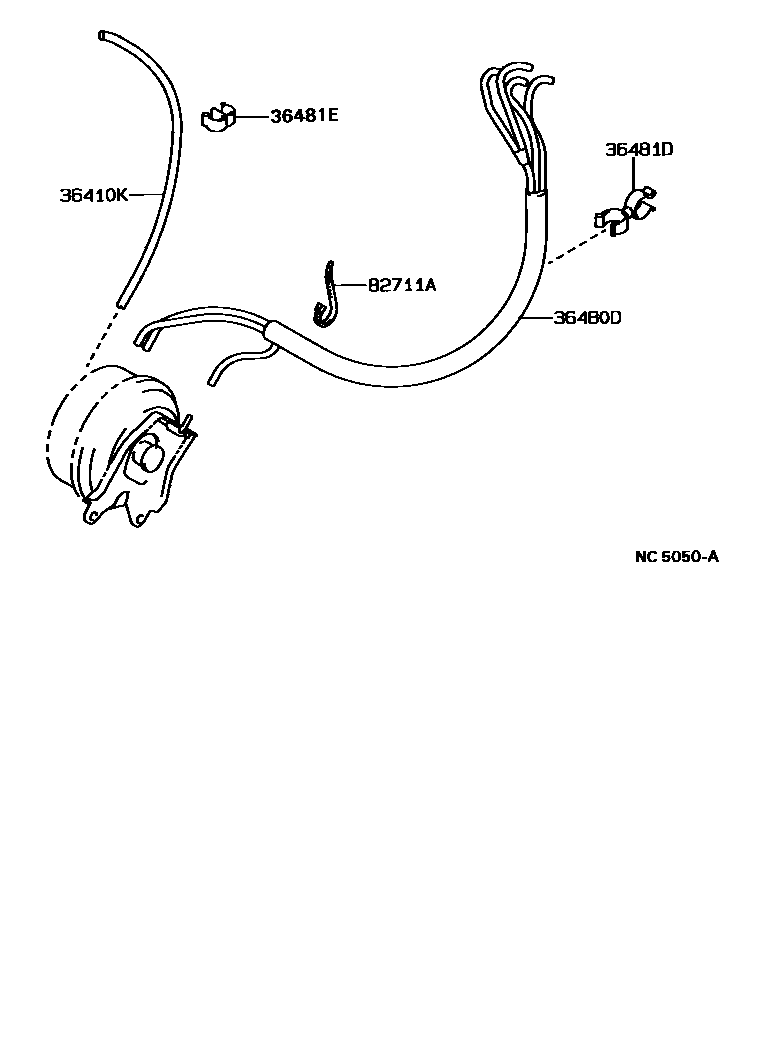

Toyota COROLLA 分动器真空管 — Figure 3616
Toyota COROLLA EPC diagram 3616, 分动器真空管, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 36410K | Vacuum hose (for transfer case) | 90999-92003 |
| 36480D | Transfer case vacuum tube assembly | 36480-12011 · 36480-12021 |
| 36481D | No. 1 vacuum tube clamp (for transfer case) | 90464-00497 |
| 36481E | No. 2 vacuum tube clamp (for transfer case) | 90464-00082 |
| 82711A | Clamp (for transfer case vacuum hose) | 82711-22270 |
