Toyota COROLLA Shift Lever & Retainer — Figure 3312

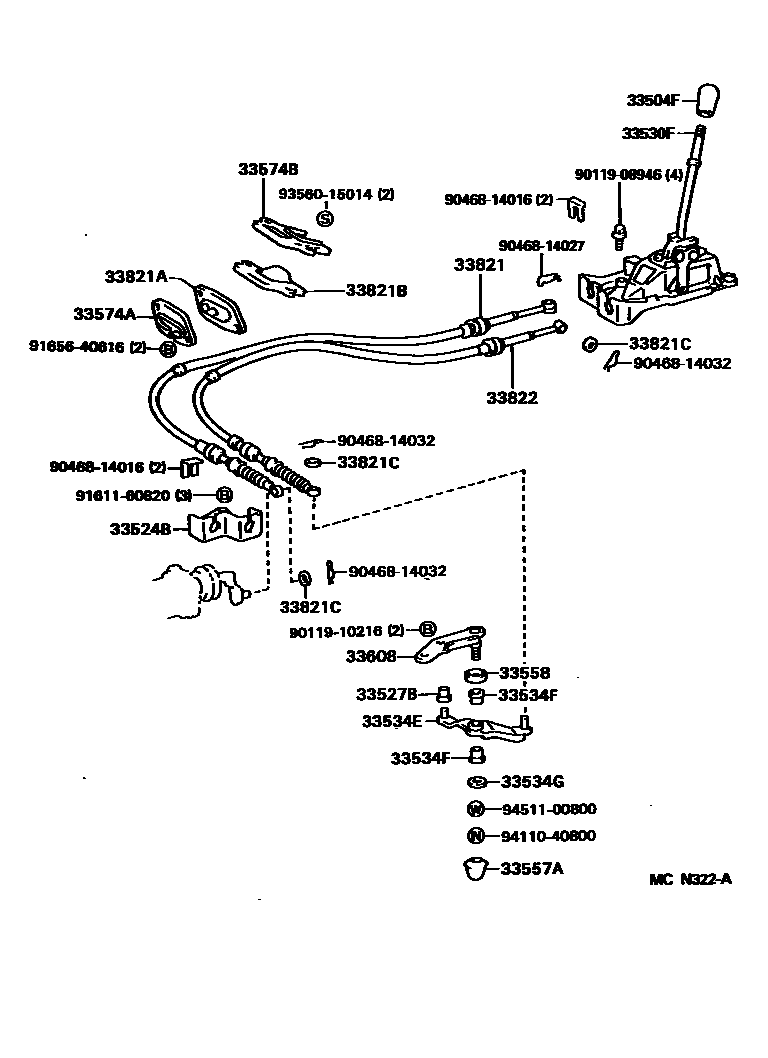

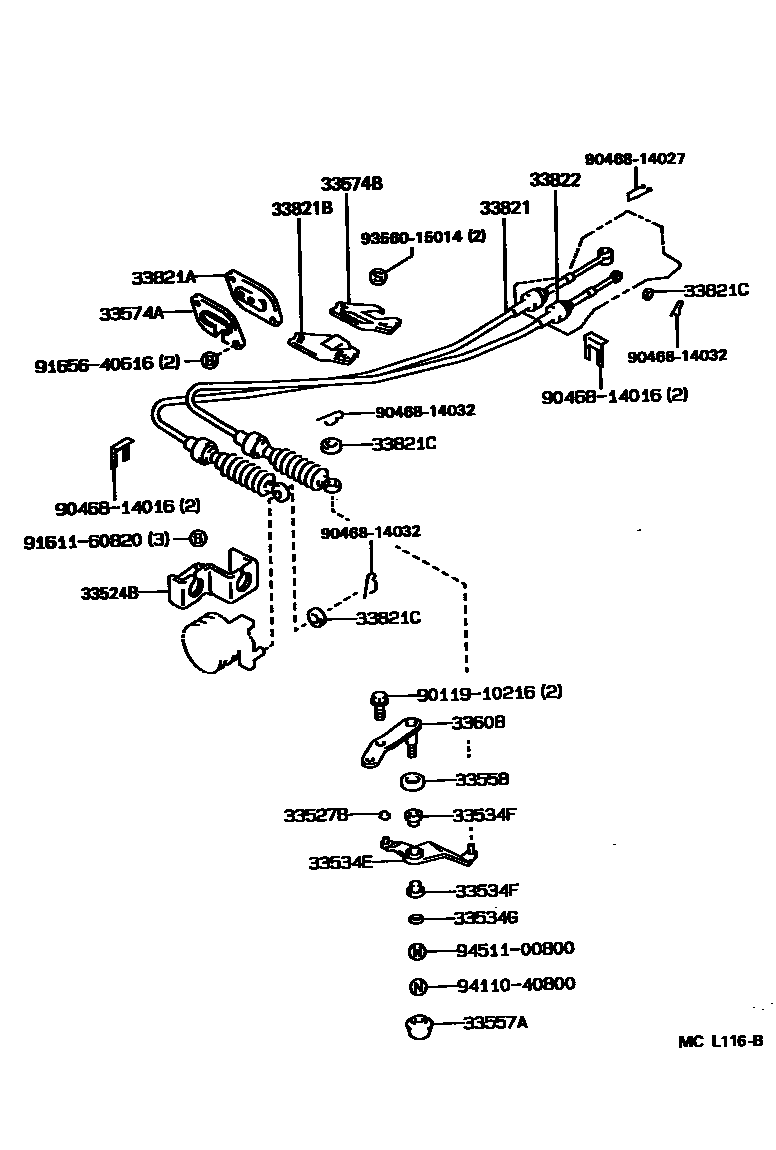

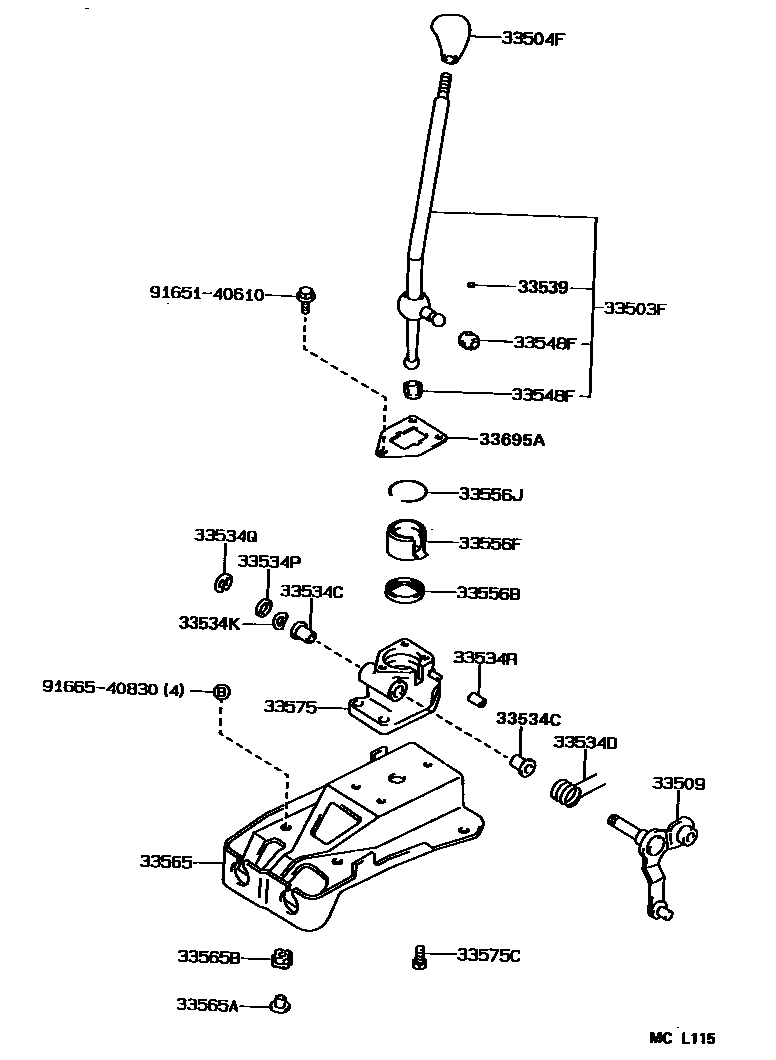

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33503F | Shift lever sub-assembly (for floor shift) | 33503-12382 · 33503-12402 |
| 33509 | No. 1 gear selection right-angle lever sub-assembly | 33509-12071 |
| 33524B | Control cable bracket | 33524-20010 |
| 33527B | Bushing (for shift control lever) | 33557-33010 · 90389-10009 |
| 33530F | Shift lever assembly (for floor shift) | 33530-13020 · 33530-13030 |
| 33534C | Bushing (for No. 1 gear selector right-angle lever) | 90386-12034 |
| 33534D | Torsion spring (for No. 1 gear selector right-angle lever) | 90508-20084 |
| 33534E | No. 2 gear selection right-angle lever | 33534-12090 · 33534-12091 · 33534-20020 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33534K | Wave washer (for No. 1 gear selection right-angle lever) | 90206-12003 |
| 33534P | Flat washer (for No. 1 gear selector right-angle lever) | 90201-12052 |
| 33534Q | E-ring (for No. 1 gear selection right-angle lever) | 96160-00900 |
| 33534R | Cushion pad (for No. 1 gear selector right-angle lever) | 90540-06029 |
| 33539 | Gear shifter anti-vibration cushion | 33539-12010 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-12040 |
| 33556B | Bushing (for transmission shift lever ball seat) | 90385-34001 |
| 33556F | Transmission shift lever ball seat | 33556-20020 |
| 33556J | Shaft snap ring (for transmission shift lever ball seat) | 90520-36018 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 · 33558-12010 |
| 33565 | Shift control lever cover | 33565-12030 |
| 33565A | Bushing No. 1 (for shift lever cover) | 90389-08031 |
| 33565B | Bushing No. 2 (for shift lever cover) | 90389-10020 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-12080 |
| 33574B | No. 2 shift cable seal | 33574-12060 |
| 33575 | Shift lever stop (for floor shift) | 33575-12133 |
| 33575C | Bolt (for shift lever stop) | 90119-08622 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12030 · 33608-12031 · 33608-20010 |
| 33695A | shift lever ball cover | 33695-12031 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-12282 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 90480-01400 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 90480-01398 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08077 · 90201-08267 · 90201-10042 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-12131 |
