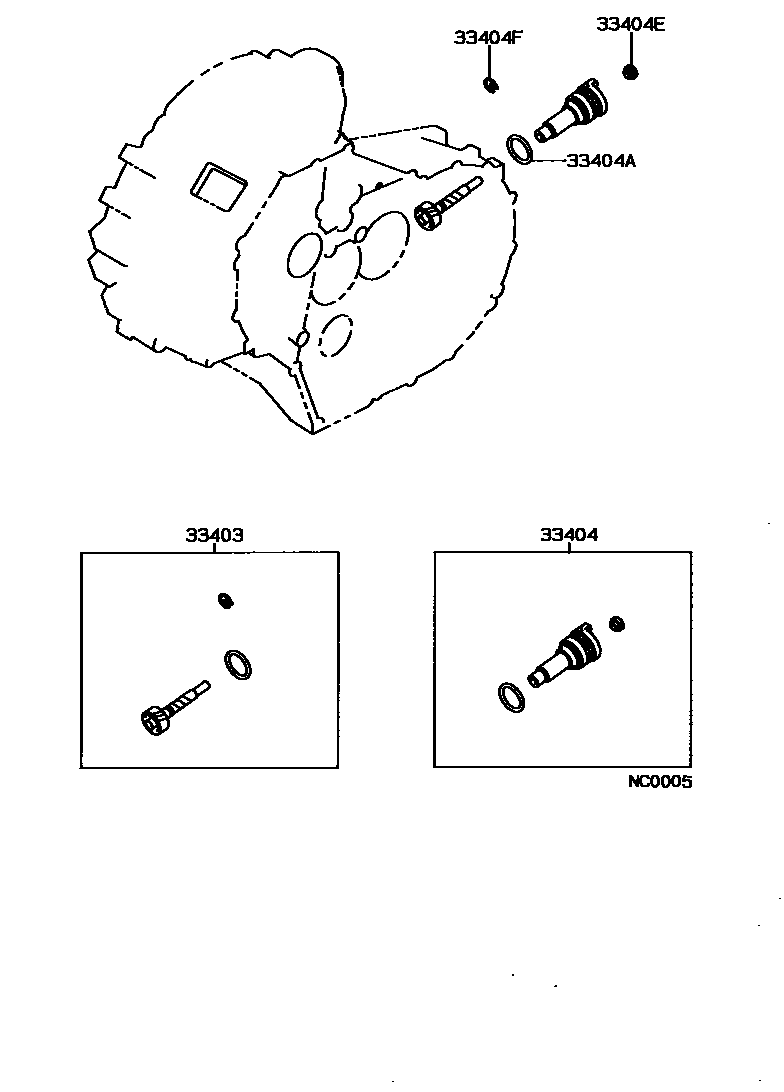

Toyota COROLLA 速度表从动齿轮(MTM) — Figure 3304
Toyota COROLLA EPC diagram 3304, 速度表从动齿轮(MTM), with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33403 | Speedometer driven gear sub-assembly (MTM) | 33403-19405 · 33403-19406 |
| 33404 | Speedometer shaft sleeve sub-assembly (MTM) | 33404-17010 |
| 33404A | O-ring (for manual transmission speedometer shaft sleeve) | 96721-24030 |
| 33404E | Oil seal (for manual transmission speedometer shaft sleeve) | 90310-09003 |
| 33404F | Clamp (for manual transmission speedometer shaft sleeve) | 90468-12005 |
