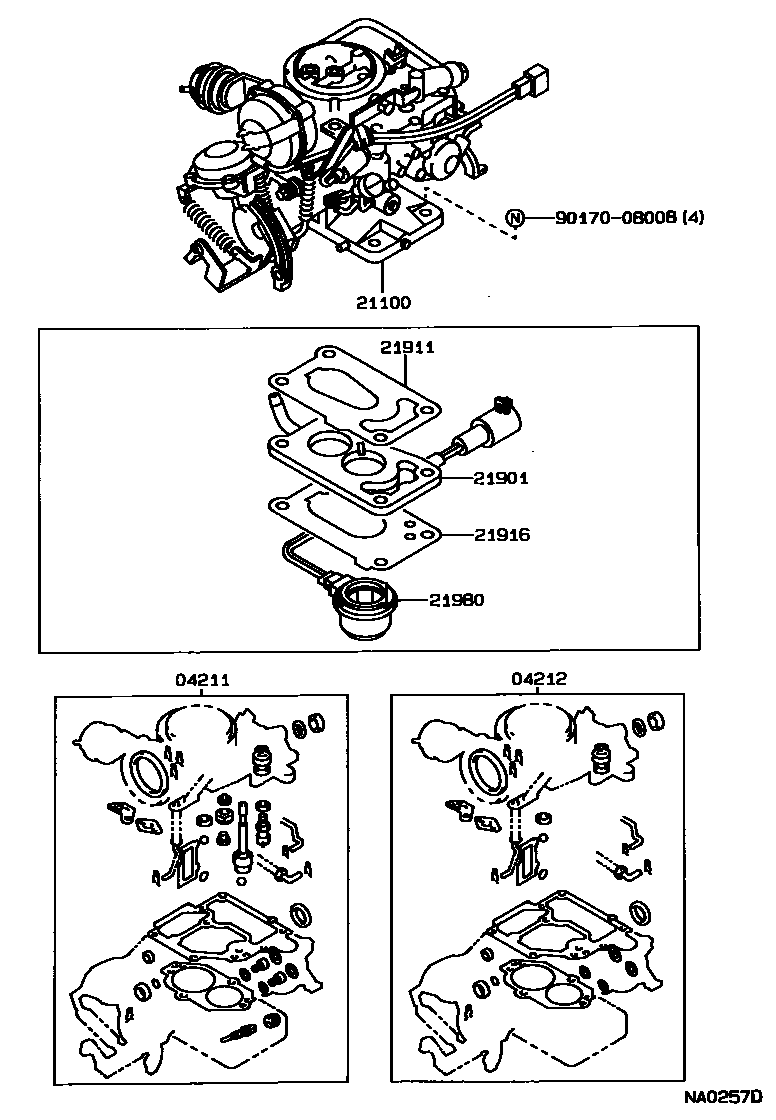

Toyota COROLLA carburetor assembly — Figure 2102
Toyota COROLLA EPC diagram 2102, carburetor assembly, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04211 | carburetor components | 04211-16132 |
| 04212 | carburetor gasket assembly | 04212-16071 |
| 21100 | carburetor assembly | 21100-16410 |
| 21901 | No. 1 carburetor heat insulation pad sub-assembly | 21901-16010 |
| 21911 | carburetor gasket | 21911-16011 |
| 21916 | No. 2 carburetor gasket | 21916-15041 |
| 21980 | Cold mixture heater assembly | 21980-16020 |
