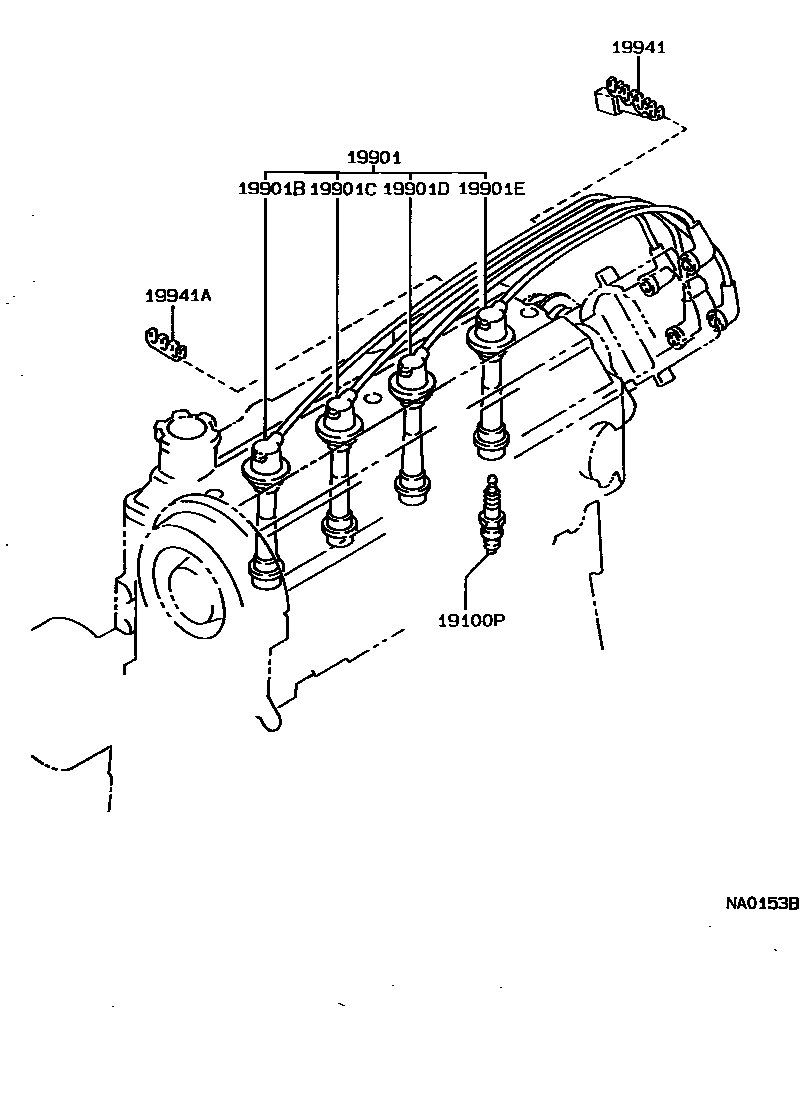

Toyota COROLLA 点火线圈和火花塞 — Figure 1901
Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01153 · 90919-01155 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-22211 · 90919-22284 · 90919-22285 |
| 19901B | No. 1 spark plug damper wire | 90919-12779 · 90919-15058 |
| 19901C | No. 2 spark plug damper wire | 90919-12780 · 90919-15059 |
| 19901D | No. 3 spark plug damper wire | 90919-12781 · 90919-15060 |
| 19901E | No. 4 spark plug damper wire | 90919-12782 · 90919-15061 |
| 19941 | No. 1 damping wire clip | 90929-01274 |
| 19941A | Clamp (for damping wire) | 90464-00287 |
