Toyota COROLLA Exhaust Pipe — Figure 1702

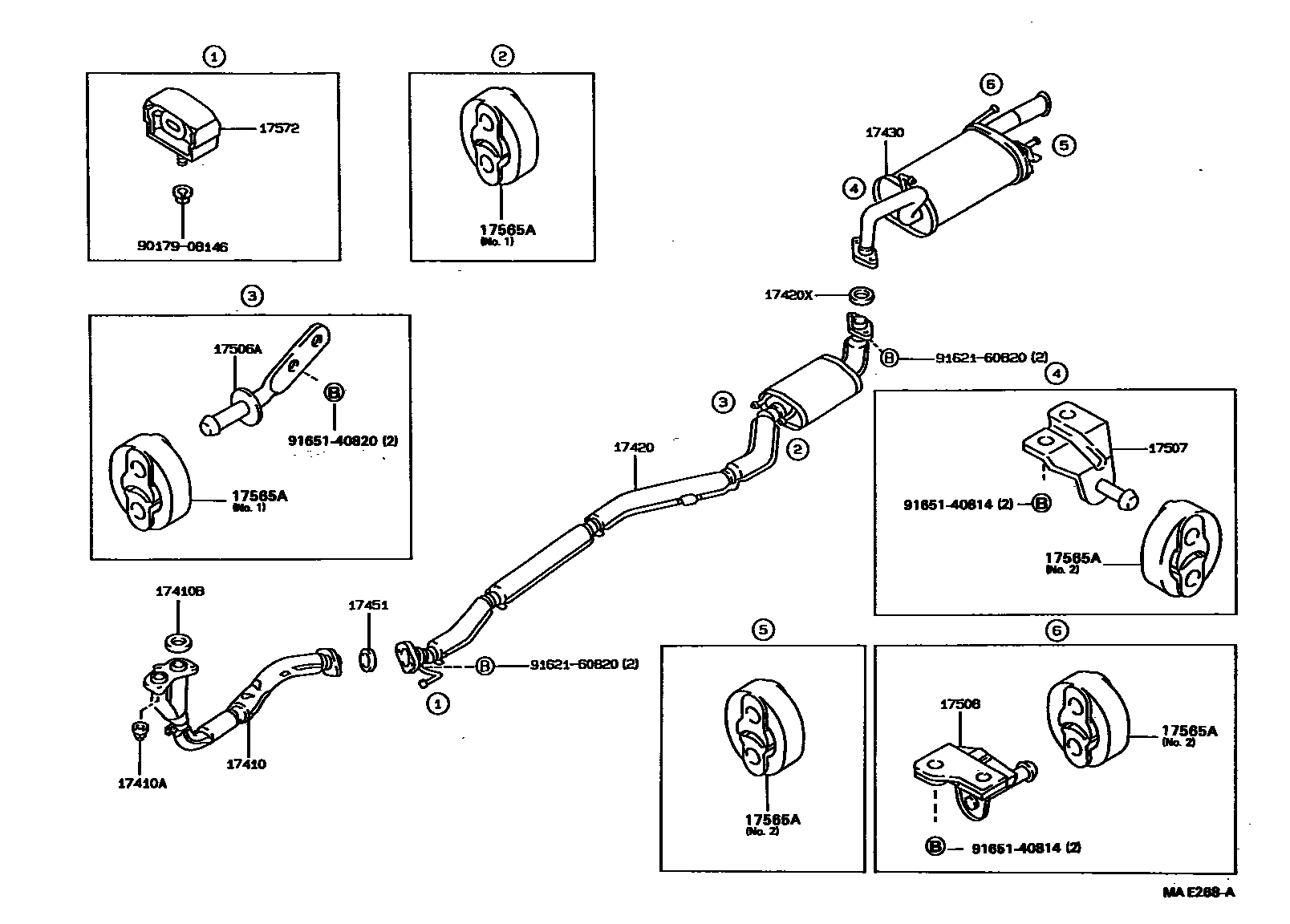

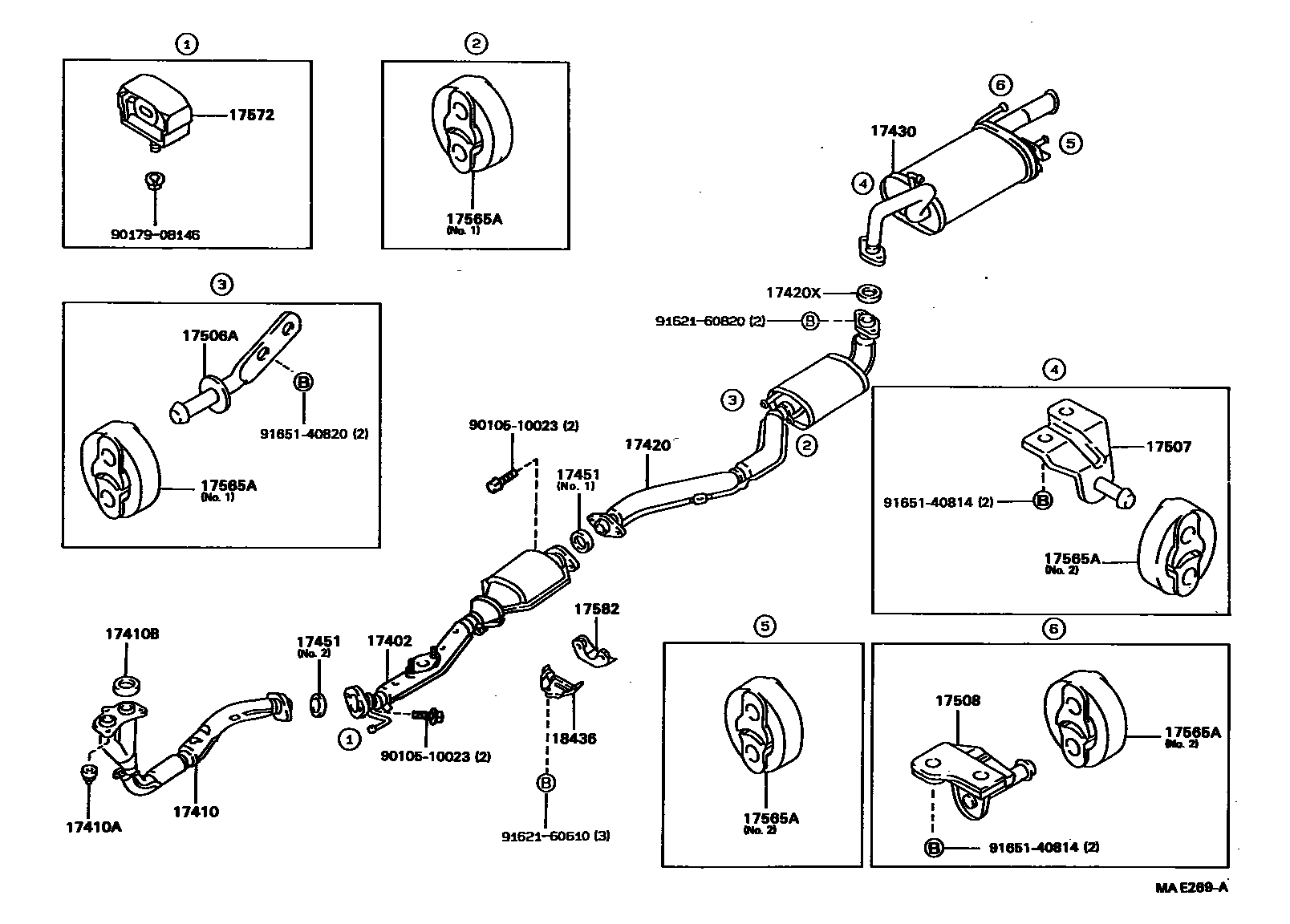

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17402 | No. 2 front exhaust pipe sub-assembly | 17402-16141 |
| 17410 | Front exhaust pipe assembly | 17410-16561 · 17410-16640 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06038 · 90917-06064 |
| 17420 | Central exhaust pipe assembly | 17420-16191 · 17420-16192 · 17420-16242 |
| 17420X | Center exhaust pipe liner | 90917-06039 |
| 17430 | Exhaust tailpipe assembly | 17430-16542 · 17430-16543 · 17430-16870 |
| 17451 | Exhaust pipe gasket | 90917-06039 · 90917-06045 · 90917-06047 · 90917-06074 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-16040 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-16020 |
| 17508 | No. 3 exhaust pipe bracket sub-assembly | 17508-16040 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-63030 · 17565-63071 |
| 17572 | No. 1 exhaust pipe bracket | 17572-15050 |
| 17582 | Three-way catalytic converter upper bracket | 17582-38070 |
| 18436 | No. 1 integrated three-way catalytic converter protection device | 18436-16020 |
