Toyota COROLLA V-Belt — Figure 1605

Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.

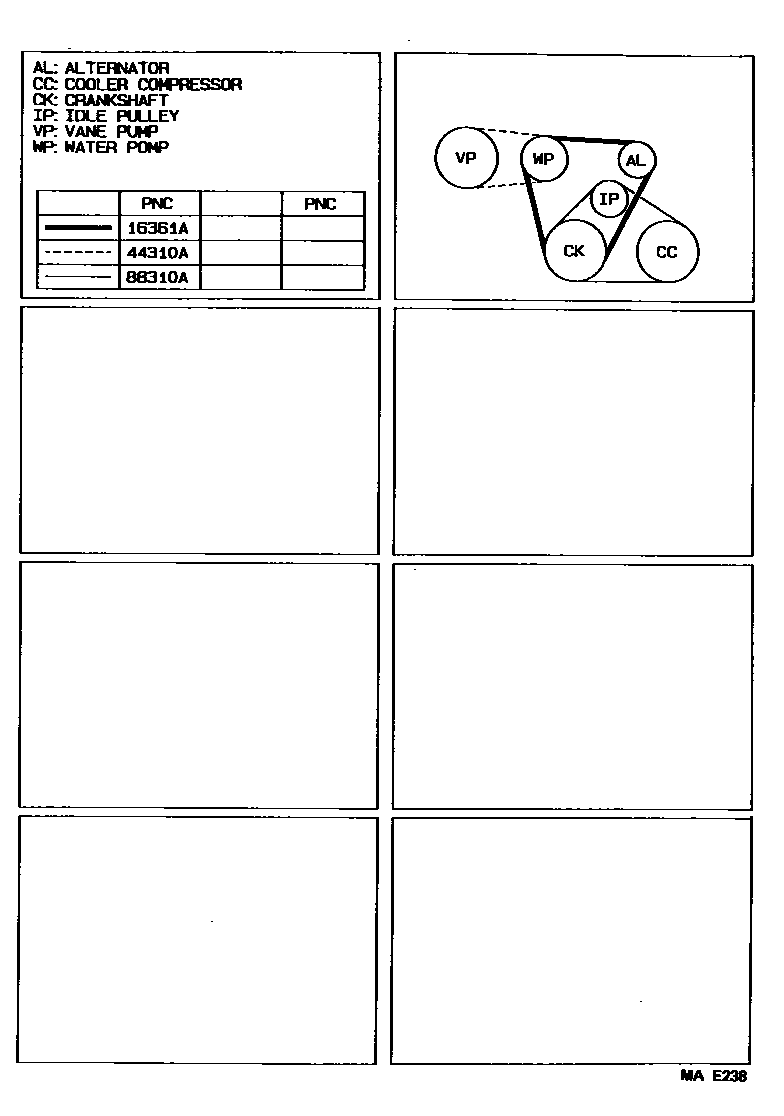

Toyota COROLLA V-Belt EPC diagram — MAE238
V-Belt — MAE238 (199009 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)99365-20970
44310AV-belt (for vane pump)99363-50630 · 99363-80630
88310ANo. 1 V-belt (cooler compressor to crankshaft pulley)99364-00860 · 99364-20860 · 99364-50830 · 99364-70830 · 99364-70860
