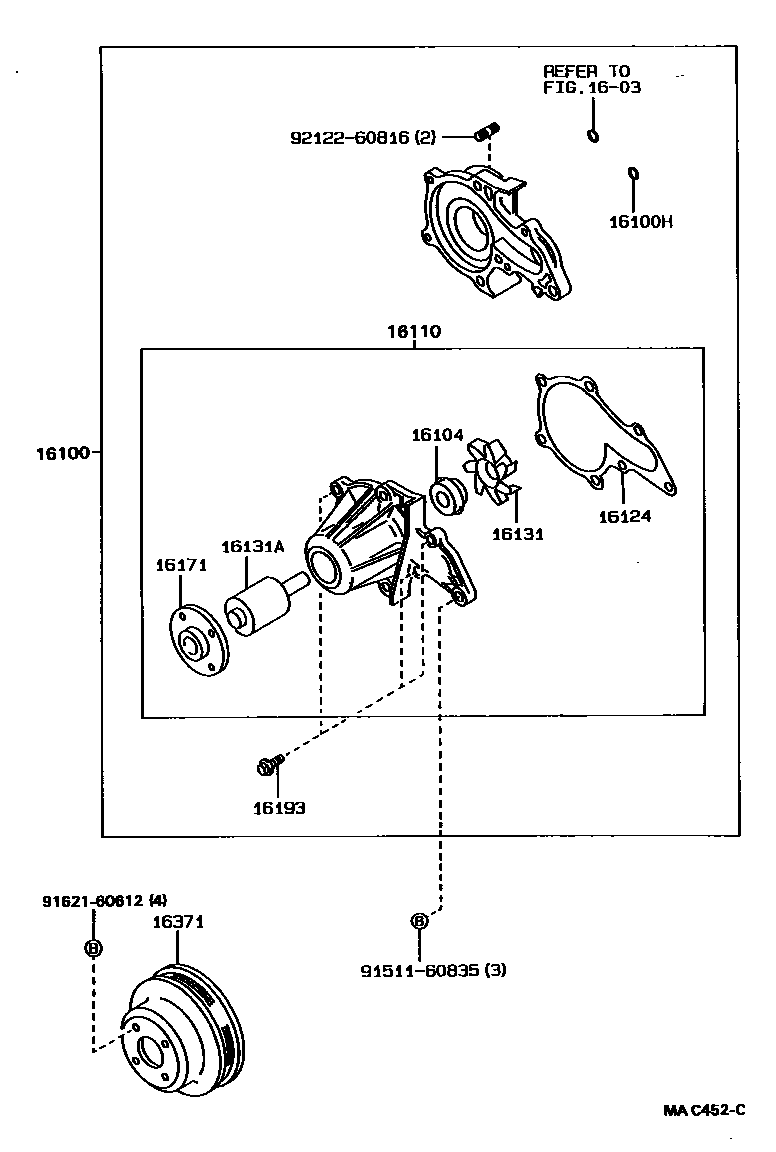

Toyota COROLLA Water Pump — Figure 1601
Toyota COROLLA EPC diagram 1601, Water Pump, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-19205 |
| 16100H | O-ring (for water pump) | 96711-24035 · 96761-24035 |
| 16104 | Water pump seal components | 16104-15060 · 16104-16040 · 16104-70010 · 16104-74010 |
| 16110 | Water pump assembly without coupling | 16110-19076 · 16110-19086 |
| 16124 | water pump cover gasket | 16124-15061 · 16124-16020 |
| 16131 | water pump rotor | 16131-15070 · 16131-15080 |
| 16131A | water pump bearings | 90369-35043 · 90369-35071 |
| 16171 | water pump pulley seat | 16171-10012 · 16171-15070 |
| 16193 | Studs (for water pump cover) | 16193-15011 · 16193-15060 · 16193-15100 |
| 16371 | fan pulley | 16371-02030 · 16371-15050 · 16371-15060 · 16371-15070 |
