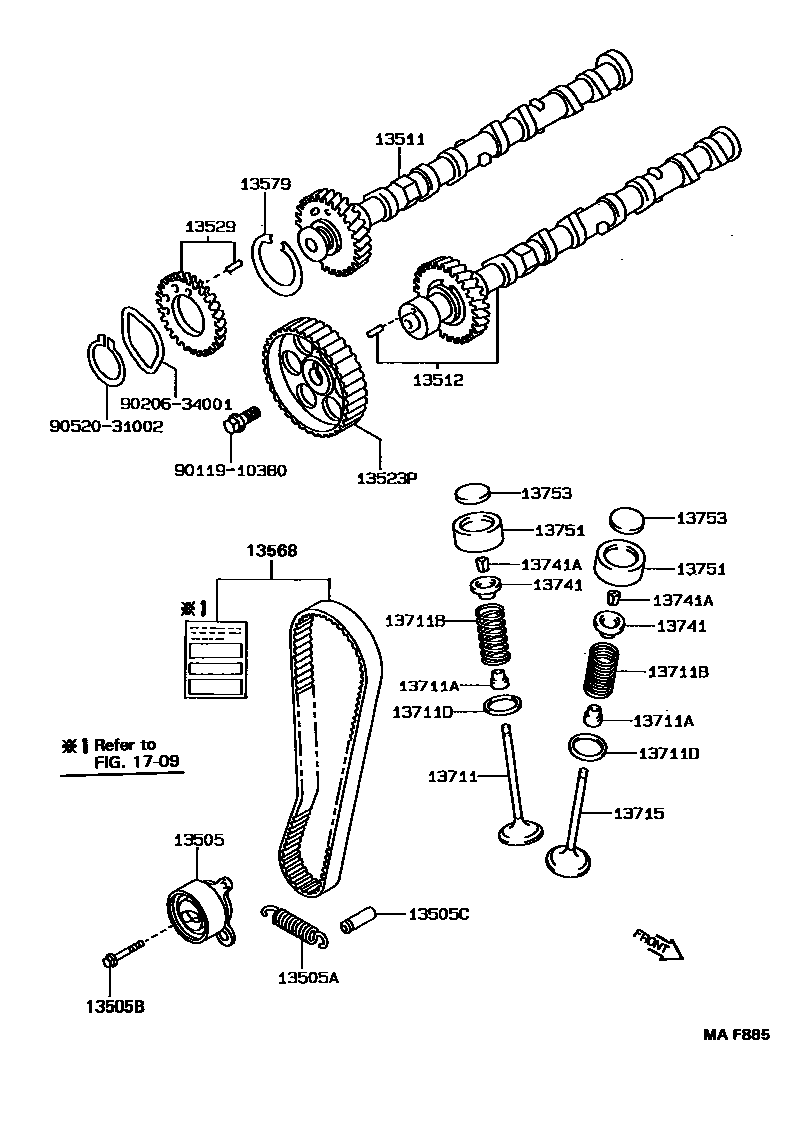

Toyota COROLLA Camshaft & Valve — Figure 1302
Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-15041 |
| 13505A | Tension spring (for idler pulley) | 90507-18017 |
| 13505B | Flange bolts (for idler gear) | 90105-10334 · 91511-61040 |
| 13505C | Pin (for idler tension spring) | 90249-06006 |
| 13511 | camshaft | 13501-15030 |
| 13512 | Camshaft No. 2 | 13502-15020 |
| 13523P | Camshaft timing pulley | 13523-14010 |
| 13529 | Camshaft counter gear | 13529-15900 |
| 13568 | timing belt | 13568-15041 · 13568-19135 |
| 13579 | Camshaft timing gear bolt washer | 13579-15010 |
| 13711 | intake valve | 13711-15050 · 13711-15071 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02062 · 90913-02066 · 90913-02089 · 90913-02090 |
| 13711B | Compression spring (for inner side) | 90501-31005 |
| 13711D | Flat washer (for valve spring seat) | 90201-16020 |
| 13715 | exhaust valve | 13715-15030 · 13715-15050 |
| 13741 | Valve spring seat ring | 13741-16010 |
| 13741A | Valve spring seat lock plate | 90913-03021 |
| 13751 | valve lifter | 13751-16010 |
| 13753 | valve adjustment gasket | 13753-16020 · 13753-16040 · 13753-16060 · 13753-16080 · 13753-16100 · 13753-16120 · 13753-16140 · 13753-16160 · 13753-16180 · 13753-16200 · 13753-16220 · 13753-16240 · 13753-16260 · 13753-16280 · 13753-16300 · 13753-16320 · 13753-16340 |
