Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 11 PNC and OE references.

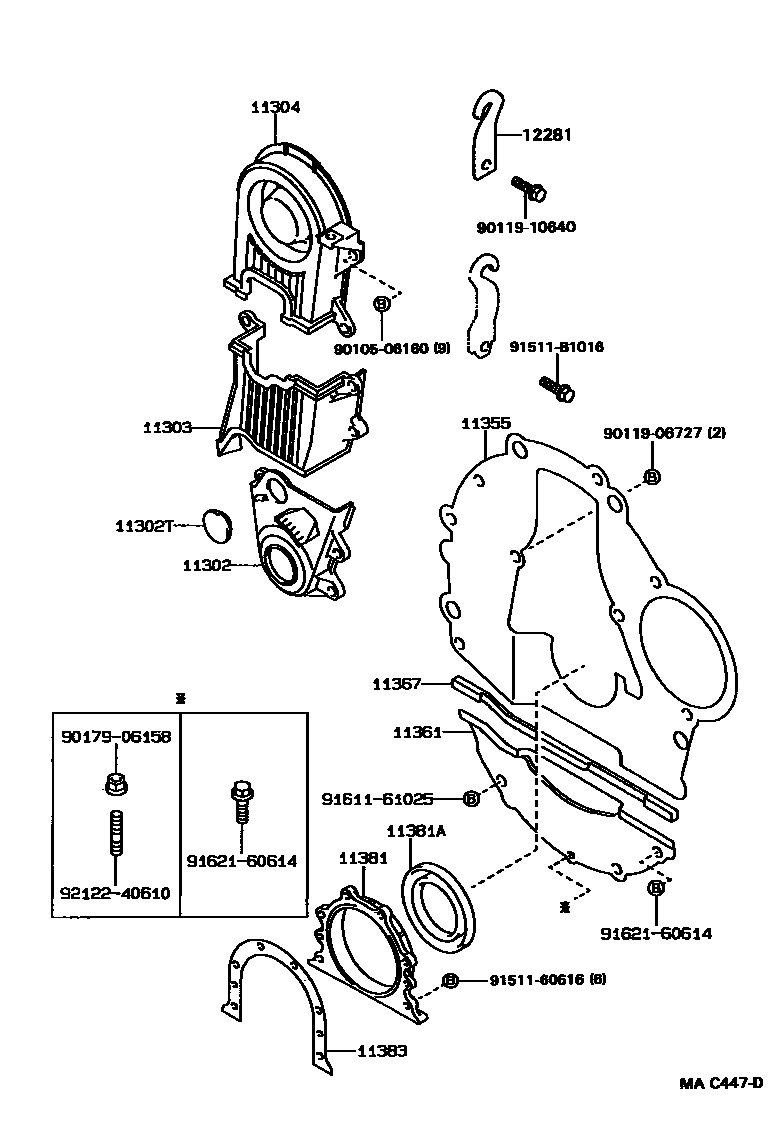

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MAC447D
Timing Gear Cover & Rear End Plate — MAC447D (199009 – 999999)

PNC and OE references

PNCPart nameOE numbers
11302TIMING CHAIN OR BELT COVER SUB-ASSY11302-15041
11302Thole plug90950-01391
11303Crankshaft gear or crankshaft pulley cover sub-assembly11303-15040
11304No. 2 timing chain or timing belt cover11304-15020
11355rear end plate11355-16010
11361Flywheel housing bottom cover11361-16040
11367Flywheel housing lower gasket11367-15030
11381RETAINER, ENGINE REAR OIL SEAL11381-15010
11381ASEAL, ENGINE REAR OIL90311-70004 · 90311-70007
11383Engine rear oil seal seat gasket11383-15011 · 11383-16010
12281Engine No. 1 hanger12281-15050
